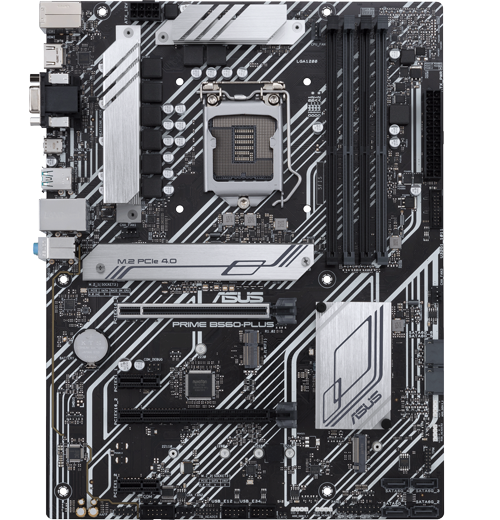

ASUS PRIME B560-PLUS Intel B560 PCIe 4.0 ATX Motherboard

Tune it Your Way Introducing the all-new ASUS Prime motherboards expertly engineered to unleash the full potential of 10th and 11th Generation Intel® Core™ processors. The Prime B560-PLUS motherboard features a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime motherboards provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.

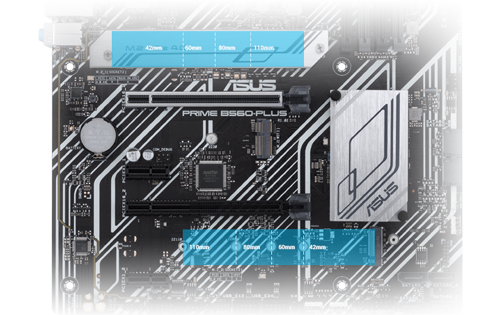

Dual M.2 slots (up to 64 Gbps)Prime B560-PLUS offers a total of two M.2 slots, with one slot supporting data-transfer speeds of up to 64 Gbps via PCI Express® 4.0, enabling quicker boot-up and app load times with OS or application drives.
* Actual transmission speeds will be lower than the theoretical maximum speed.
** The M.2 supports PCIe 4.0, and the M.2 support PCIe 3.0.

Tune It Your WayComprehensive controls form the foundation of the ASUS Prime series. The Prime B560 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.

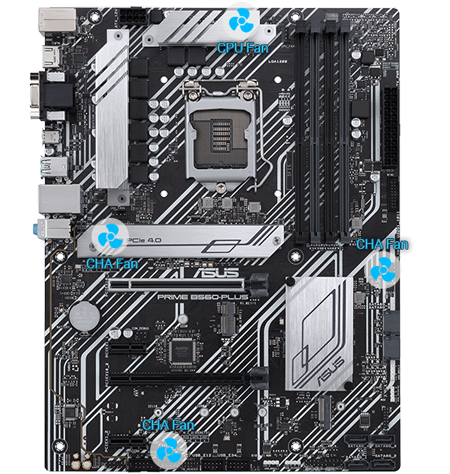

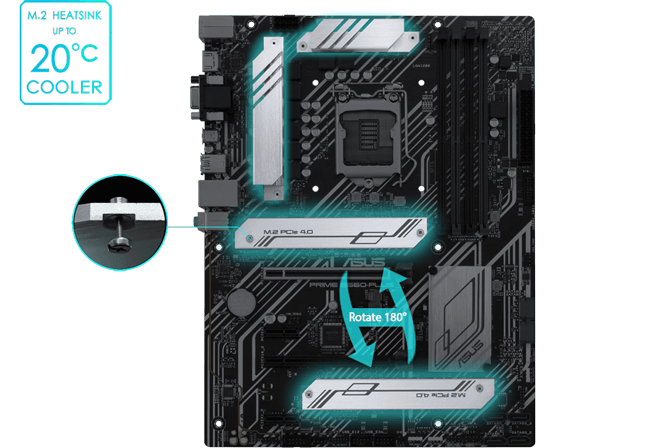

M.2 HEATSINK, PLUS THERMAL PADS AND VRM HEATSINKPrime B560 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws and can be moved to other M.2 slot. Includes Two massive VRM heatsinks and thermal pads to improve heat transfer from the MOSFETs and chokes for better cooling performance.

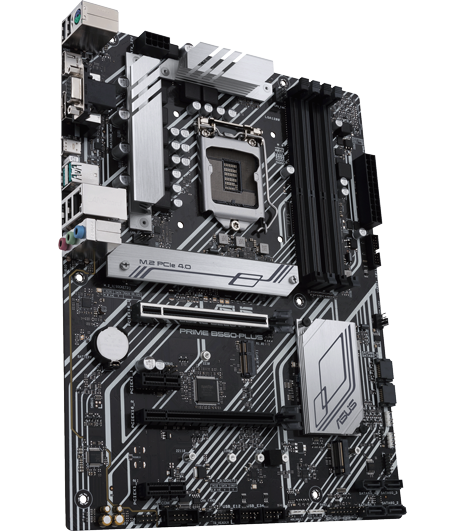

control settings for an ever-growing number of ASUS productsA well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips connected to the onboard RGB headers – and it can all be synced with an ever-growing portfolio of Aura-capable hardware. Two addressable Gen 2 RGB headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear. Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customize RGB lighting and effects for every compatible device in your arsenal.

ASUS OptiMemPrime B560 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel® Core™ processors. ASUS B560 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. Revisions to the motherboard's trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.

Combined onboard features deliver elevated audio Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.

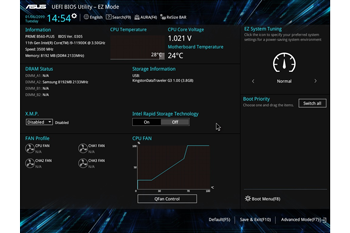

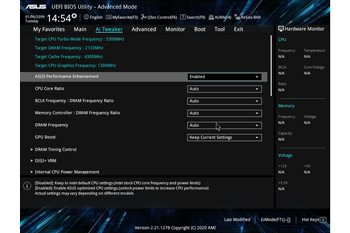

ASUS UEFI BIOS The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

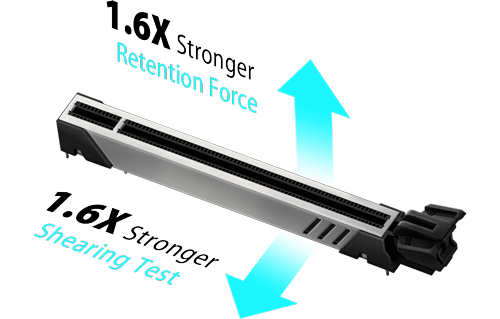

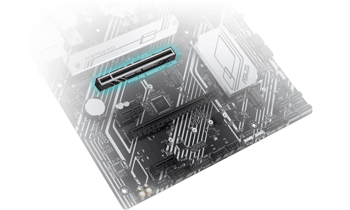

SafeSlot Core+ SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.
