Scan code: LN107759 Manufacturer code: PRIME B460M-K

ASUS PRIME Intel B460M-K 10th Gen Micro-ATX Motherboard

ASUS PRIME B460M-K, Intel B460, S 1200, DDR4, SATA3, M.2, Intel GbE, USB 3.2 Gen 1, Micro-ATX

Thumbnail 1 : ASUS PRIME Intel B460M-K 10th Gen Micro-ATX Motherboard Thumbnail 2 : ASUS PRIME Intel B460M-K 10th Gen Micro-ATX Motherboard Thumbnail 3 : ASUS PRIME Intel B460M-K 10th Gen Micro-ATX Motherboard Thumbnail 4 : ASUS PRIME Intel B460M-K 10th Gen Micro-ATX Motherboard
Scan code: LN107759 Manufacturer code: PRIME B460M-K
£79.99Item overdue since 14 September 2020
Pre order
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

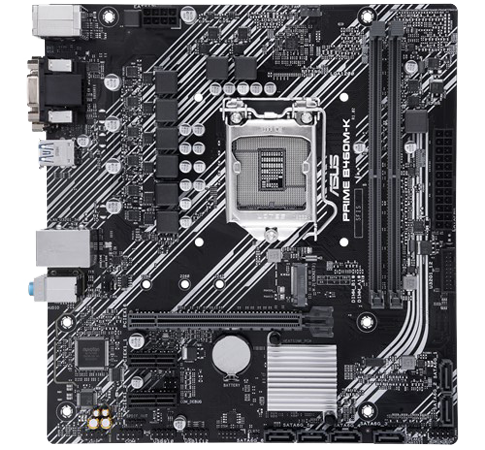

Prime B460M-K 10th Generation Intel Mini-ATX Motherboard from ASUS

Prime b460M-K Motherboard

Newest Addition to the Prime Series Introducing the ASUS Prime B460M-K M-ATX Motherboard, expertly engineered to unleash the full potential of 10th Gen Intel® Core™ processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B460 series motherboards provide daily users and DIY PC builders a range of performance tuning options via included software and hardware.

Intel B460Chipset

LGA 1200CPU Socket

M-ATXForm Factor

Tweak and Tune Your Way

Wide Range of Performance and Tuning OptionsComprehensive controls form the foundation of the ASUS Prime series. The Prime B460M-K motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity.

Energy Efficiency

All-Around Energy efficiencyThe Energy Processing Unit (EPU) automatically optimises your power consumption and maximizes energy savings with a simple Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down any unused I/O controllers.

Fan Xpert PRIME 400 Series motherboards offer comprehensive control over system fans, via the included FAN Expert software. Auto-Tuning mode intelligently configures all parameters with a single click.

Fan Expert 4

Precise Digital Power ControlThe Digi+ voltage-regulator module (VRM) gives real-time control over voltage drop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

World Renowned UEFI BIOS

Not just for veteransThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Mode

Advanced Mode An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various Advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Easy Mode

EZ(Easy) ModeEZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

Cooler by Design

Cool to the corePrime B460 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

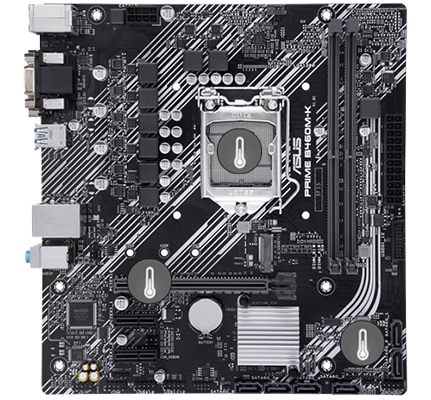

Thermometer sensors

Multiple temperature sources Each header can be set to monitor and react to several thermal sensors, and via Fan Xpert 2+ you can even assign a sensor to monitor the temperature of supported ASUS graphics cards — for optimal cooling during GPU- or CPU-intensive workloads.

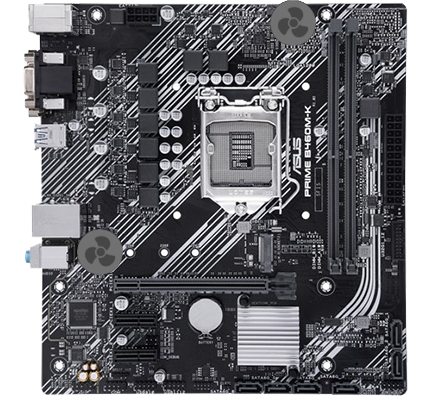

Fan detectors and headers

4-pin PWM/DC Fan Every onboard header supports auto-detection of PWM or DC fans.

Optimise your Memory with ASUS OptiMem

Optimem

Revisions to Trace Routing The B490 Prime Motherboards now provide unrestricted access to memory bandwidth for 10th Gen CPUs by making some revisions to the motherboards trace routing. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.

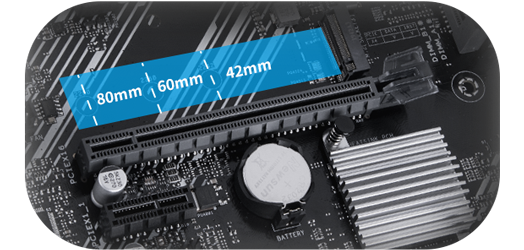

Lightning Fast Storage with Dual M.2

Dual m.2

Faster booting and app load times Dual M.2 slots support data-transfer speeds of up to 32 Gbps via x4 PCI Express® 3.0 bandwidth, enabling quicker boot-up and app load times with OS or application drives.

ASUS SafeSlot Protection

safe slot core

PREMIUM ASUS TECHNOLOGY SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured via a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

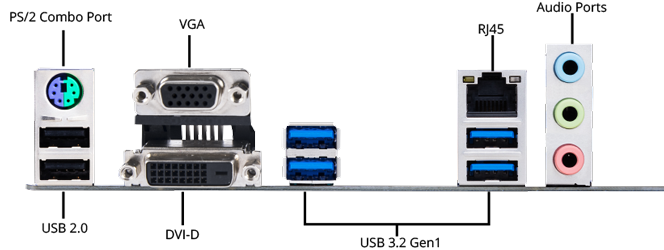

Connections at your Fingertips

Comprehensive IO Panel

Little Things Make a Big Difference

Trustworthy Stability and Compatibility Prime B460 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

OVervoltage Protection

Overvoltage protectionAn exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

DRAM Overcurrent Protection

DRAM Overcurrent ProtectionOn-board resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

Stainless-Steel Back I/O

Stainless-Steel Back I/OCorrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.

Stainless-Steel Back I/O

LANGuardASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.

PRIME B460M-K Tried and Tested

Superior Reliability with 8000+ validation hours ASUS motherboards offer superb endurance verified by subjecting every board to more than 8,000 hours of stringent tests. A barrage of burn-in, environmental, compatibility, software and safety tests confirm that our motherboards are exceptionally robust. It also shows that ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.

tests

Temperature and humidity testsEnsures components withstand extreme conditions.

tests

Thermal measurement testsEnsures that the system remains cool and stable under the heaviest loads.

tests

Insertion testsEvery port and connector is put through repeated installation cycles.

tests

Aging testsUp to 48-hour aging test ensures reliability.

tests

Power-consumption testsDelivers world-class energy efficiency.

tests

Temperature and DC margin testsEnsures that the motherboard is capable of coping with voltages fluctuations caused by varying temperatures.

tests

Thermal-shock testsEnsures ability to survive temperature changes during transportation.

tests

Non-operation shock testsBuilt to withstand jolts that may occur during shipping.

tests

Burn-in testsEvery component is checked to ensure flawless operation.

tests

Installation testsConnector placement is double-checked to ensure hassle-free installation.

tests

Drop testsDrop tests from various heights ensure durability.

tests

Salt and spray testsTested for I/O reliability, prolonged lifespan and rust-resistance.

Specifications
Core Specifications
Edition PRIME B460M-K
Form Factor MicroATX
CPU Socket 1200
Chipset Intel B460
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
Max. Memory Capacity 64GB
Audio
Audio Realtek ALC887 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DVI-D
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3/SATA3
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
SATA Support SATA3
RAID Support via Intel® SATA RAID 0/1/10/5
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 1 x AAFP
  • 1 x Clear CMOS Header
  • 1 x S/PDIF-Out Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x speaker header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 3 x Audio I/O
  • 1 x D-Sub (VGA)
  • 1 x DVI-D
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 226 x 21.1 mm
