Asus AMD AM4 Ryzen PRIME B350M-A Micro ATX Motherboard

Asus PRIME B350M-A, AMD B350, S AM4, DDR4, SATA3, M.2 (PCIe/SATA), Realtek LAN, USB 3.1 A, MicroATX

ASUS
Scan code: LN79042 Manufacturer code: 90MB0TE0-M0EAY0 Request call
£79.99
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 24th Jul 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

AMD Ryzen Micro Motherboard from ASUS. The PRIME B350M-A ATX

ASUS motherboard feature
ASUS Micro Motherboard built on AMD AM4 Socket

As part of the ASUS PRIME series this micro B350M-A comes packed with high-quality components that have been thoroughly tested. The ASUS B350 motherboard runs with the AMD AM4 socket and excels in maximising performance and stability whilst featuring a wide compatibility for the very best DIY PC experiences. Plus, it holds numerous inbuilt protection capabilities and technologies that have been designed to enhance your every experience.

AMD B350
Chipset

AM4
CPU Socket

Micro ATX
Form Factor

PCB Protection III

ASUS motherboard feature
Solid motherboard construction and defensive technologies

PRIME B350 series motherboards are engineered with industry-leading 5X Protection III, employing the finest components, excellent circuit design, and exacting standards to guarantee the quality and long-term durability of your motherboard. That means exceptional protection and stability for your build — thanks to decades of engineering experience from the world's leading motherboard brand.

SafeSlot Core

ASUS motherboard feature
Fortified PCIe slot prevents damage

SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, Safeslot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.
ASUS Prime motherboards have strengthened solder points around both the PCIe and DIMM pins.

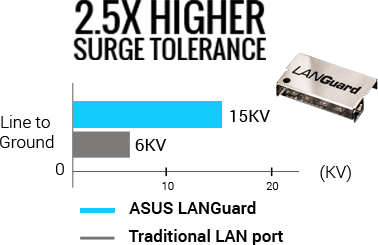

LANGuard Tecyhnology

ASUS motherboard feature
Pumped-up throughput. 2.5x higher surge tolerance

ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors to ensure a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.

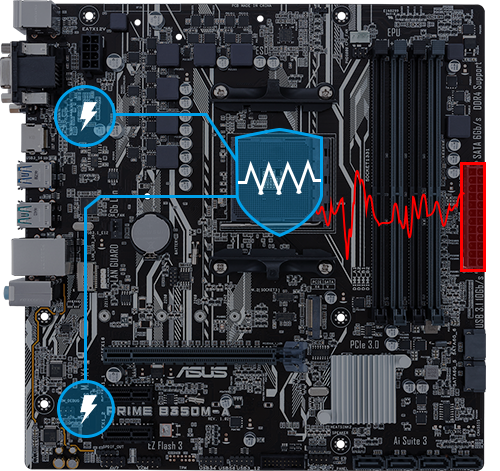

Overvoltage Protection

ASUS motherboard feature
World-class circuit-protecting power design

An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
*Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

ASUS Defense Tech

ASUS motherboard feature
Stability, damage prevention and corrosion-resistance

DIGI+ VRM - ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.

DRAM Overcurrent Protection - Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

Stainless-Steel Back I/O - Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.
*Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

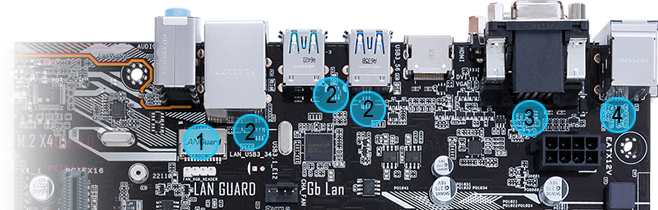

ASUS ESD Guards

ASUS motherboard feature
Electrostatic discharge protection

ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/- 6kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components.

  • 1 LAN PORT - ESD TVS diode protection on the LAN circuit.
  • 2 USB CONNECTORS - TVS diodes for surface-mount and dual-inline packages.
  • 3 VGA CONNECTORS - Additional on-circuit ESD TVS diodes to protect D-Sub functionality.
  • 4 KEYBOARD & MOUSE - Additional on-circuit ESD transient-voltage-suppression diodes.

*Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

Proven PCB Compatibility

ASUS motherboard feature
Future-proofed motherboard

Having the freedom to pick and choose the parts that go into your machine is at the heart of PC DIY. Our extensive certification program focuses on providing the very best compatibility with the widest range of components and devices, giving you the freedom to build and upgrade without frustration. Compatible today and compatible far into the future - that's the ASUS way.

PRIME Supported Devices

ASUS motherboard feature
Supported devices and Qualified Vendor List

The superior compatibility of Prime B350 series is evidenced by our extensive list of supported devices - which includes thousands of compatible components - and our Qualified Vendor List that identifies memory compatibility. That means more choices for worry-free PC-building experiences.

ASUS Product Link Up

ASUS motherboard feature
B350 has great compatibility with other ASUS components

ASUS offers a suite of proprietary components — graphics cards, sound cards, optical drives — that perfectly complement Prime B350 series, so you can complete your custom motherboard build with confidence!

*Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

B350-PLUS Tried and Tested

Temperature and Humidity Test
Ensures components withstand extreme conditions.

Thermal Measurement Test
Ensures that the system remains cool and stable under the heaviest loads.

Insertion Test
Every port and connector is put through repeated installation cycles.

Aging Test
Up to 48-hour aging test ensures reliability.

Power Consumption Test
Checked for world-class energy efficiency.

Temperature and DC Margin Test
Ensures that the motherboard is capable of coping with Voltage fluctuations caused by varying temperatures.

Thermal Shock Test
Ensures ability to survive temperature changes during transportation.

Non-Operation Shock Test
Built to withstand jolts that may occur during shipping.

Burn-In Test
Every component is checked to ensure flawless operation in any environment.

Installation Test
Connector placement is double-checked to ensure hassle-free installation.

Drop Test
Drop tests from various heights ensure durability.

Salt and Spray Test
Tested for I/O reliability, prolonged lifespan and rust-resistance.

Top-to-bottom Reliability with 8000+ validation hours

ASUS motherboards have superb endurance. We verify this by subjecting every board to more than 8,000 hours of stringent tests. A barrage of burn-in, environmental, compatibility, software and safety tests confirm that our motherboards are exceptionally robust. It also shows that ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.

Enhanced Cooling Performance

ASUS motherboard feature
Advanced fan controls with Fan Xpert 2+

With onboard thermal sensors and hardware-level 4-pin/3-pin PWM/DC mode detection, Fan Xpert 2+ makes sure every fan achieves the best balance of cooling performance and low noise!

Auto-Tuning Mode: Scans fan parameters and all fans with a single click.
Extreme Quite Mode: Reduces the CPU fan speed to below the default minimum, for extra-quiet operation and power savings during light loads.

*Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

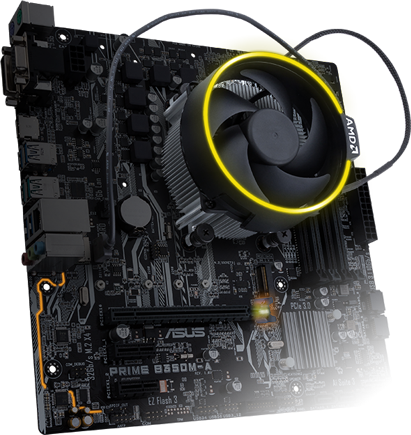

LED Motherboard Lighting

ASUS motherboard feature
LED-illuminated control for PCIe slot and trace paths

Built-in LED lighting options can illuminate your build in a variety of mesmerising styles. With specially-designed Fan RGB header control, you can even personalise your own fan lighting scheme with the exclusive AMD RGB Fan!

*Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

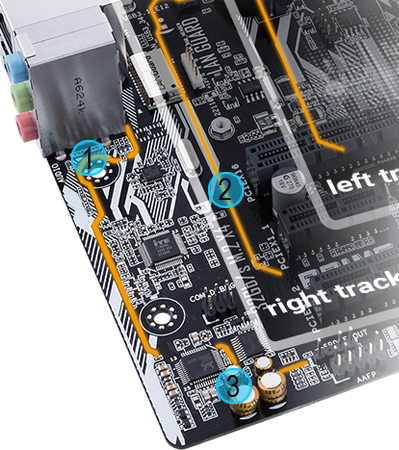

B350 Gaming Audio

ASUS motherboard feature
Combined onboard features deliver elevated audio

Intelligent design and premium hardware create audio quality unlike anything you've ever experienced!

  • 1 Noise isolation - Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.
  • 2 Dedicated Audio PCB Layers - Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.
  • 3 Audio Enjoyment - Premium Japanese audio capacitors provide warm, natural, and immersive sound with exceptional clarity and fidelity.

*Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

Optimised Power Consumption

ASUS motherboard feature
EPU Energy Efficient Design

With the Energy Processing Unit (EPU) you'll enjoy system power savings. EPU automatically optimises power consumption, and maximises savings with Away mode.

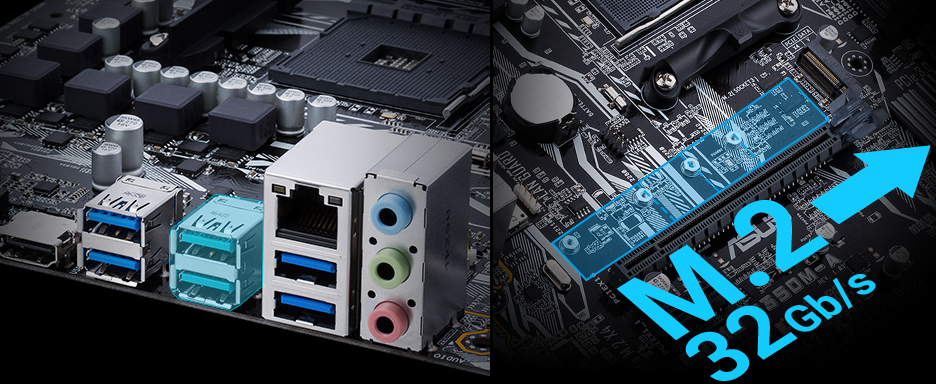

USB 3.1 & M.2 Onboard

ASUS motherboard feature
Experience Advanced speeds and transfer rates

With backward-compatible USB 3.1 Type-A, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gb/s (twice as fast as standard USB 3.0).

With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gb/s data-transfer speeds. It is the perfect choice for an operating system or application drive, making your whole PC or professional apps work as fast as possible.

*Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

M.2 Slot Onboard

ASUS motherboard feature
Speed Up with Onboard M.2 Up to 32Gb/s

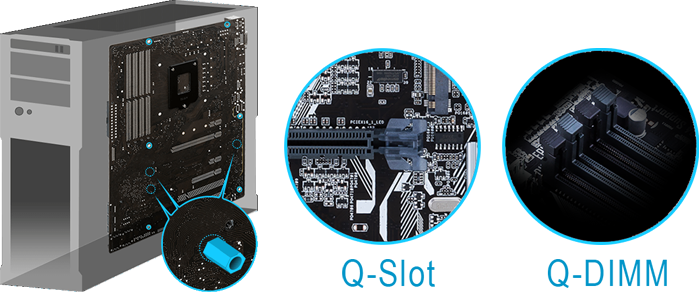

Safe Motherboard Mounting - Fitting your ASUS motherboard is now safer than ever. The comprehensive component-free 'safe zones' around every case-mounting hole minimises the risk of damage and short circuits caused by contact - so you'll assemble your PC with total confidence!

Q-Slot - The large winged clip is easy to reach and easy to operate. Just press the Q-Slot clip lightly, and the graphics card pops out. Installing or removing even the biggest graphics cards is no sweat!

Q-DIMM - Even if you work with a smaller case, just push down on the one-sided clip and push or pull RAM modules in or out - removing memory is that simple!

Easy & Clean BIOS Control

ASUS motherboard feature
Media-acclaimed UEFI BIOS

The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, EZ and Advanced modes help you find your way, quickly and easily.

ASUS AI Suite 3

ASUS motherboard feature
One-stop access to innovative ASUS features

ASUS AI Suite 3 offers a brand-new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy-to-use functionality, with no need to switch back and forth between different utilities.

*Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

Specifications
Core Specifications
Form Factor MicroATX
CPU Socket AM4
Chipset AMD B350
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
Max. Memory Capacity 32GB (4x8GB)
Audio
Audio Realtek ALC887-VD2 8-Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support Not Supported
Crossfire Support Not Supported
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DVI-D
  • HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280/22110, PCIe/SATA
  • 2 x PCIe 2.0 x1
  • 1 x PCIe 3.0 x16
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS jumper
  • 1 x Fan RGB Header
  • 1 x Front Panel Audio Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x SPDIF-Out Header
  • 1 x speaker header
  • 1 x System panel connector
  • 2 x USB 2.0 Header
  • 1 x USB 3.0 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x D-Sub (VGA) Out
  • 1 x DVI-D
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 4 x USB 3.0
  • 2 x USB 3.1 Type-A
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
01442 265548
