Asus PN61-BB5008MD Barebone Compact Mini PC Kit

Asus PN61-BB5008MD Barebone PC Kit, i5-8265U, 2 x SO-DIMM-DDR4 , M.2 SSD Slot, 2.5" Bay, Intel® UHD Graphics 620, No OS

Thumbnail 1 : Asus PN61-BB5008MD Barebone Compact Mini PC Kit Thumbnail 2 : Asus PN61-BB5008MD Barebone Compact Mini PC Kit Thumbnail 3 : Asus PN61-BB5008MD Barebone Compact Mini PC Kit Thumbnail 4 : Asus PN61-BB5008MD Barebone Compact Mini PC Kit
Scan code: LN99564 Manufacturer code: PN61-BB5008MD
£309.98
From £14.88 / month (APR 14.9%)
Monthly Payment: £53.79
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £309.98
Total inc. interest: £322.73
Monthly Payment: £27.83
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £309.98
Total inc. interest: £333.94
Monthly Payment: £19.19
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £309.98
Total inc. interest: £345.39
Monthly Payment: £14.88
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £309.98
Total inc. interest: £357.11
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £7.74 / month (APR 15.9%)
Delivery Options
  • By DPD On 23rd Oct 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

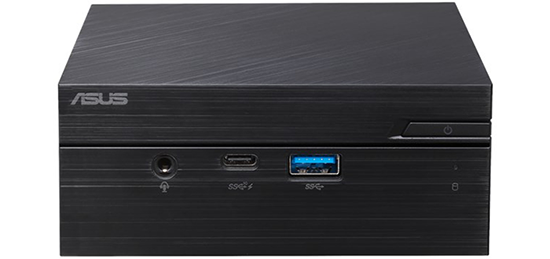

ASUS PN61 Ultra-Compact Mini PC with Intel i5 CPU

ASUS Mini PC PN61

Ultracompact, easily upgradeable designThe ASUS Mini PC PN61 is the ideal solution for both home entertainment and business applications, delivering swift yet extremely quiet performance with an Intel Core i5 processor and a fanless design. Compact and lightweight, Dual-display support and comprehensive I/O ports — including a front-mounted USB 3.1 Gen2 Type-C port with Battery Charging 1.2 support and a configurable port with a Display Port option* — provide ultrafast and versatile connectivity for docks, displays and storage devices. For even more flexibility, a sliding-chassis design enables easy storage and memory upgrades in just two steps.

Intel Core i5Processor

Intel HD GraphicsGraphics

2 x SO-DIMMDDR4 Memory

Upgrade-friendly Mini-PC

Easy-Build

Convenient Design for Easy InstallationA convenient sliding chassis design lets you add or upgrade a M.2 SSD, 2.5-inch HDD or SSD, or memory in two easy steps using just a screwdriver. A bare-bones option is also available, giving you maximum flexibility to customise your system.

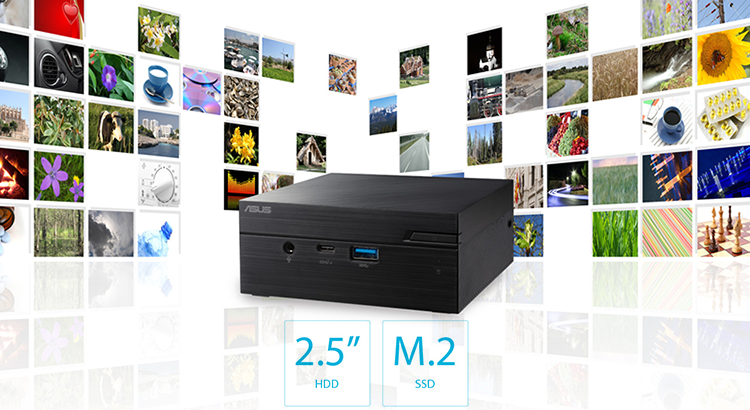

Dual Storage Design

Easy-Build

Flexible Custom Storage OptionsASUS Mini PC PN61 fits one Intel® Optane™ Memory, M.2 SSD and a 2.5-inch HDD, letting you create your own custom storage solution with the balance of speed and capacity to fit your needs.

Modern and Space-Saving Compact PC

Easy-Build

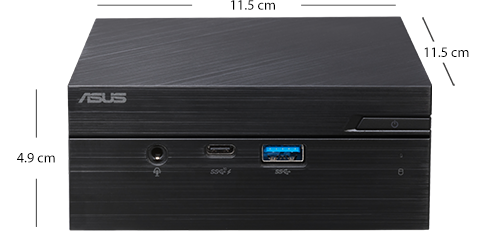

Lightweight PC that can be placed anywhereWith a modern design featuring sleek lines and a stylish, brushed finish, ASUS Mini PC PN61 easily blends in to home, office and retail environments. Compact and lightweight at 115 x 115 x 49mm and 700 grams so it can be placed almost anywhere and even mounted to the back of a display for a space-saving, all-in-one solution.

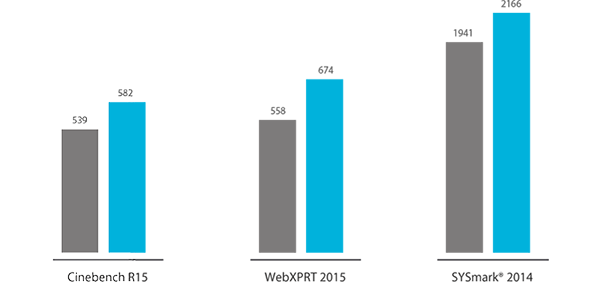

Powerful Performance for Daily Multitasking

Easy-Build

18% better performance compared to previous generationASUS Mini PC PN61 is powered by an Intel Core i5 processor, which provide up to 18% better performance in daily multitask computing compared to previous generation processors, ensuring smooth and responsive experiences in a wide variety of usage scenarios. ASUS Mini PC PN61 provides excellent performance for daily computing tasks with DDR4 2400MHz memory that is 1.5X faster and 20% more energy efficient than DDR3 1600MHz memory.

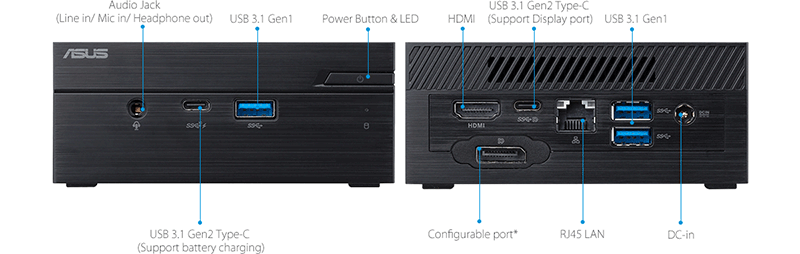

High-Speed Connectivity and Legacy Support

Easy-Build

includes multiple connectivity optionsASUS Mini PC PN61 provides comprehensive connectivity with multiple ports, including a front-mounted USB 3.1 Gen1 Type-C port with fast-charging capability. This particular model has been configured with a Display Port to support additional displays.

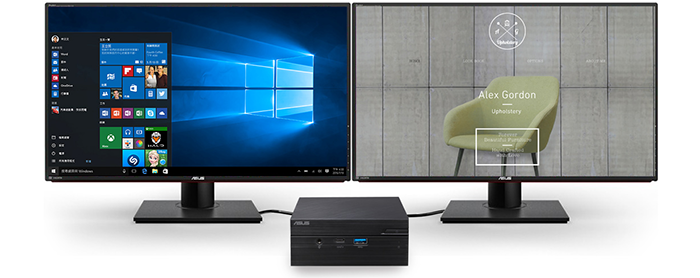

Stunning 4K UHD Resolution and Dual Display Possibilities

Easy-Build

Improve your Workspace Productivity with 4K ResolutionASUS Mini PC PN61 comes equipped with integrated Intel® UHD Graphics, so you can enjoy watching video and viewing images in stunning 4K UHD resolution. Support for dual displays lets you extend your workspace across multiple monitors for more efficient and comfortable productivity experiences.

Extensively Tested for Perfection

down

Vibration test

up

Drop Test

up

Port Test

up

Temp and Humidity Test

up

Noise Test

up

Line Voltage Test

A product put through extreme conditions ASUS mini PCs undergo rigorous noise, vibration, drop, and thermal shock tests to ensure they meet exacting ASUS standards and exceed industry requirements. Be confident that your ASUS mini PC can cope with extreme conditions, ranging from dry -40°C temperatures, to humid and hot environments exceeding 60°C for long periods of time.

Specifications
Edition Mini PC PN61
Form Factor mini PC
CPU Included Yes
CPU Type Intel Core i5
CPU Model 8265U
Architecture
Manufacturing Process 14 nm
Unlocked CPU No
Core Quad Core
No. of Threads 8
Clock Speed 1.6 GHz
Burst Frequency 3.9 GHz
CPU Cache 6MB
CPU Cooler
Max. TDP 15 W
CPU Socket N/A
Chipset N/A
Motherboard Form Factor
Motherboard Model
Memory Type DDR4 SO-DIMM
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz) DDR4 - 2400
Max. Memory Capacity 32GB
On-board/Integrated Graphics Yes
Processor/Motherboard Graphics Chip Intel HD Graphics 620
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface N/A
Expansion Slots 1 x M.2 NGFF
SATA SATA3 / M.2
Storage Drive Included No
Storage Drive Type
Storage Drive Capacity N/A
Optical Drive None
Drive Bays 1 x 2.5" Internal
Backplane I/O
RAID Support
Internal I/O N/A
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel (Gigabit LAN)
Front Panel
  • 1 x Headphone/Mic Combo
  • 1 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen2 Type-C
Back Panel
  • 1 x DC-In (12V - 19V)
  • 1 x HDMI
  • 1 x RJ-45
  • 2 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable Yes
PSU Wattage 90 W
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour
Dimensions 115 x 49 x 115 (mm WxHxD)
Weight 0.7 kg
Includes
  • 1 x Quick Start Guide
  • 1 x UK Power Cable
  • 1 x VESA Mounting Plate
  • 1 x Warranty Card
Notes
Additional Information
Scan Code LN99564
Model Number PN61-BB5008MD
GTIN 4718017239288
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
01442 265548
Loading Please Wait

Please wait . . .

Reviews
Questions & Answers

What's missing?

Does this just need RAM and storage?
Asked by: dtwx
Good Morning, Yes, this should just need RAM, storage and an Operating System. Kind Regards,
Answered by: LukeW
Date published: 2019-06-26
