New
Scan code: LN99565 Manufacturer code: PN60-BB3048MH

Asus PN60 BB3048MH Barebone Compact Mini PC Kit

Asus PN60 BB3048MH Barebone PC Kit, i3-8130U, 2 x SO-DIMM-DDR4 , M.2 SSD Slot, 2.5" Bay, Intel® UHD 620, TB3, No OS

Thumbnail 1 : Asus PN60 BB3048MH Barebone Compact Mini PC Kit Thumbnail 2 : Asus PN60 BB3048MH Barebone Compact Mini PC Kit Thumbnail 3 : Asus PN60 BB3048MH Barebone Compact Mini PC Kit Thumbnail 4 : Asus PN60 BB3048MH Barebone Compact Mini PC Kit
Scan code: LN99565 Manufacturer code: PN60-BB3048MH
£259.99
From £12.48 / month (APR 14.9%)
Monthly Payment: £45.12
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £259.99
Total inc. interest: £270.69
Monthly Payment: £23.34
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £259.99
Total inc. interest: £280.09
Monthly Payment: £16.10
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £259.99
Total inc. interest: £289.67
Monthly Payment: £12.48
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £259.99
Total inc. interest: £299.50
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £6.49 / month (APR 15.9%)
Delivery Options
  • By DPD On 17th Jul 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Easy modification, maximum possibilities
The new ASUS Mini PC PN60 is an ultracompact and lightweight mini PC ideal for a wide range of uses, including business and home entertainment. Measuring just 115mm x 115mm x 49mm and weighing just 700g, Mini PC PN60 blends easily into any environment, yet delivers great performance with the latest Intel® Core™ processors. Dual display support and comprehensive I/O ports — including a front-mounted USB 3.1 Gen1 Type-C port with fast-charging capability and a configurable port* — provide superior connectivity and expandability. For even more flexibility, a sliding chassis design enables easy storage and memory upgrades in just two steps.

Upgrade-friendly
A convenient sliding chassis design lets you add or upgrade a M.2 SSD, 2.5-inch HDD or SSD, or memory in two easy steps using just a screwdriver. A bare-bones option is also available, giving you maximum flexibility to customise your system.

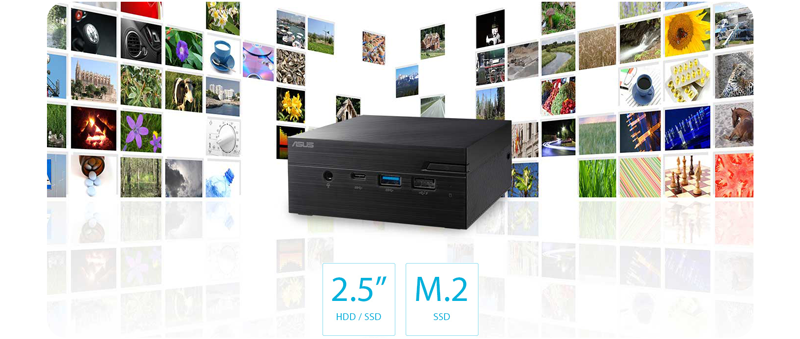

Dual storage design
ASUS Mini PC PN60 fits one Intel® Optane™ Memory, M.2 SSD and a 2.5-inch HDD, letting you create your own custom storage solution with the balance of speed and capacity to fit your needs.

Modern, space-saving design

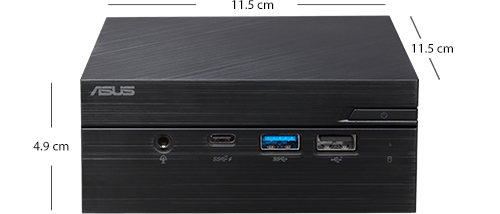

With a modern design featuring sleek lines and a stylish, brushed finish, ASUS Mini PC PN60 easily blends into home, office and retail environments. Compact and lightweight at 115mm x 115mm x 49mm with a 0.62-liter volume, it can be placed almost anywhere and even attached to the back of a display with a VESA mount for a space-saving, all-in-one solution.

Powerful performance for daily multitasking

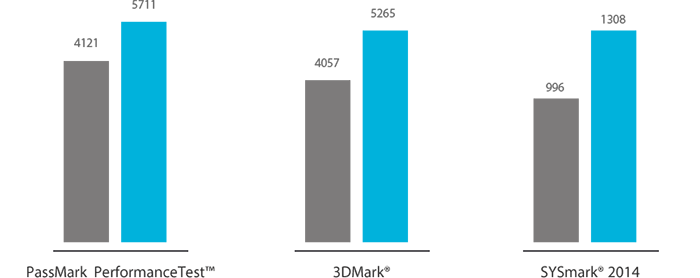

ASUS Mini PC PN60 is powered by 8th Gen Intel® Core™ processors, which provide up to 18% better performance in daily multitask computing compared to previous-platform processors, ensuring smooth and responsive experiences in a wide variety of usage scenarios.

Faster and better DDR4 RAM
With DDR4 2400MHz memory that is 1.5X faster and 20% more energy efficient than DDR3 1600MHz memory, ASUS Mini PC PN60 provides excellent performance for daily computing tasks

High-speed connectivity and legacy support
ASUS Mini PC PN61 provides comprehensive connectivity with multiple ports, including a front-mounted USB 3.1 Gen2 Type-C port with Battery Charging 1.2 support and a configurable port* that provides Thunderbolt 3 connectivity for ultrafast transfer speeds of up to 40Gbps or a variety of other connectivity options to support legacy devices, additional displays or multiple network connections.

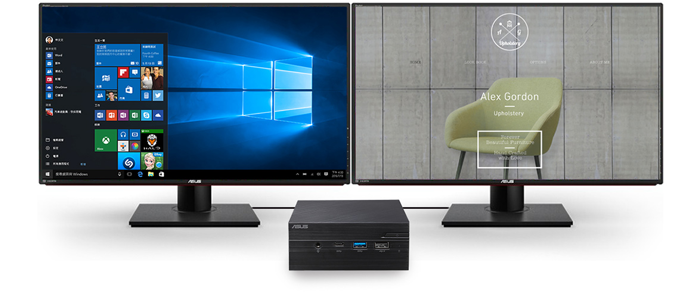

Stunning 4K UHD resolution and dual display support
ASUS Mini PC PN60 comes equipped with integrated Intel® UHD Graphics, so you can enjoy watching video and viewing images in stunning 4K UHD resolution. Support for dual displays lets you extend your workspace across multiple monitors for more efficient and comfortable productivity experiences.

Reduce environmental impact while lowering operating costs
ASUS Mini PC PN60 has an energy-efficient design that reduces environmental impact while helping to lower operating costs for your business. Eco-friendly ASUS mini PCs are recipients of some of the industry's highest environmental certifications, including Energy Star. Mini PC PN60 consumes as little as 6.3W at idle. It is also whisper quiet, generating just 21.5dB of noise at idle and 37.8dB at full load.

ASUS Corporate Stable Model (CSM)
The ASUS Corporate Stable Model (CSM) program is an initiative designed to provide businesses with stable product supply and enhanced aftersales support. Each CSM mini PC purchase entitles the customer to the ASUS Control Center IT-management software suite (CSM Edition, a $60 value)* that provides comprehensive control and monitoring. ASUS CSM products also include a stable roadmap and assured 36-month supply availability to ensure customers need not worry about material-supply gaps or extended supply.

Tested for perfection
ASUS mini PCs undergo rigorous noise, vibration, drop, and thermal shock tests to ensure they meet exacting ASUS standards and exceed industry requirements. Be confident that your ASUS mini PC can cope with extreme conditions, ranging from dry -40°C temperatures, to humid and hot environments exceeding 60°C for long periods of time. Features • Ultracompact size with 0.62-litre volume for a clutter-free workspace
• Powerful performance with 8th Gen Intel® Core™ processors
• Sliding-chassis design for easy, two-step storage and memory upgrades
• Dual-storage design with an up to 1TB 2.5-inch HDD and an up to 256GB M.2 SSD
• Comprehensive I/O connectivity, including a Thunderbolt 3 configurable port option that provides a high-speed, versatile connection for a dock, display or storage device.
• ASUS Corporate Stable Model program ensures 36-month stable-supply guarantee
• 24/7 reliability — Extensively tested to ensure long-term dependability
Specifications
Edition Mini PC PN60
Form Factor mini PC
CPU Included Yes
CPU Type Intel Core i3
CPU Model 8130U
Architecture
Manufacturing Process 14 nm
Unlocked CPU No
Core Dual Core
No. of Threads 4
Clock Speed 2.2 GHz
Burst Frequency 3.4 GHz
CPU Cache 4MB
CPU Cooler
Max. TDP 15 W
CPU Socket N/A
Chipset N/A
Motherboard Form Factor
Motherboard Model
Memory Type DDR4 SO-DIMM
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz) DDR4 - 2400
Max. Memory Capacity 32GB
On-board/Integrated Graphics Yes
Processor/Motherboard Graphics Chip Intel HD Graphics 620
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface N/A
Expansion Slots 1 x M.2 NGFF
SATA SATA3 / M.2
Storage Drive Included No
Storage Drive Type
Storage Drive Capacity N/A
Optical Drive None
Drive Bays 1 x 2.5" Internal
Backplane I/O
RAID Support N/A
Internal I/O N/A
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel (Gigabit LAN)
Front Panel
  • 1 x Headphone/Mic Combo
  • 1 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen2 Type-C
Back Panel
  • 1 x DC-In (12V - 19V)
  • 1 x HDMI
  • 1 x RJ-45
  • 2 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable Yes
PSU Wattage 90 W
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour
Dimensions 115 x 49 x 115 (mm WxHxD)
Weight 0.7 kg
Includes
  • 1 x Quick Start Guide
  • 1 x UK Power Cable
  • 1 x VESA Mounting Plate
  • 1 x Warranty Card
Notes
Additional Information
Scan Code LN99565
Model Number PN60-BB3048MH
GTIN 4718017239301
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Direct
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
Asus Service Centre
Telephone:
01442 265548
