Scan code: LN119115 Manufacturer code: PN60-B7420ZD-OSS

ASUS PN60 Intel Core i7 Mini PC

ASUS PN60 B7420ZD Mini PC, Intel Core 8550U, 8GB DDR4, 256 GB M.2 SSD, Intel HD Graphics, HDMI, DP,USB, WiFi/GbE, Win10

Thumbnail 1 : ASUS PN60 Intel Core i7 Mini PC Thumbnail 2 : ASUS PN60 Intel Core i7 Mini PC Thumbnail 3 : ASUS PN60 Intel Core i7 Mini PC Thumbnail 4 : ASUS PN60 Intel Core i7 Mini PC
Scan code: LN119115 Manufacturer code: PN60-B7420ZD-OSS
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

ASUS PN60 Ultra-Compact Intel i7 8GB DDR4 Mini PC

ASUS Mini PC PN60

Ultracompact, easily upgradeable designThe new ASUS Mini PC PN60 is an ultra-compact and lightweight mini PC ideal for a wide range of uses, including business and home entertainment. Measuring just 115mm x 115mm x 49mm and weighing just 700g, Mini PC PN60 blends easily into any environment, yet delivers great performance with the latest Intel® Core™ processors. Dual display support and comprehensive I/O ports — including a front-mounted USB 3.1 Gen1 Type-C port with fast-charging capability and a configurable port* — provide superior connectivity and expandability. For even more flexibility, a sliding chassis design enables easy storage and memory upgrades in just two simple steps.

Intel Core i7-8550UProcessor

Intel UHD Graphics 620Graphics

8GBDDR4 Memory

256GBSSD Storage

Upgrade-friendly Mini-PC

Easy-Build

Convenient Design for Easy InstallationA convenient sliding chassis design lets you add or upgrade a M.2 SSD, 2.5-inch HDD or SSD, or memory in two easy steps using just a screwdriver. A bare-bones option is also available, giving you maximum flexibility to customise your system.

Dual Storage Design

Easy-Build

Flexible Custom Storage OptionsASUS Mini PC PN60 fits one Intel® Optane™ Memory, M.2 SSD and a 2.5-inch HDD, letting you create your own custom storage solution with the balance of speed and capacity to fit your needs.

Modern and Space-Saving Compact PC

Easy-Build

Lightweight PC that can be placed anywhereWith a modern design featuring sleek lines and a stylish, brushed finish, ASUS Mini PC PN60 easily blends in to home, office and retail environments. Compact and lightweight at 115 x 115 x 49mm and 700 grams so it can be placed almost anywhere and even mounted to the back of a display for a space-saving, all-in-one solution.

Powerful Performance for Daily Multitasking

Easy-Build

34% better performance compared to previous generationASUS Mini PC PN60 is powered by an 8th Gen Intel Core i7 processor, which provides up to 34% better performance in daily multitask computing compared to previous generation processors, ensuring smooth and responsive experiences in a wide variety of usage scenarios. ASUS Mini PC PN60 provides excellent performance for daily computing tasks with upgradeable 8GB DDR4 2400MHz memory that is 1.5X faster and 20% more energy efficient than DDR3 1600MHz memory.

High-Speed Connectivity and Legacy Support

Easy-Build

includes multiple connectivity optionsASUS Mini PC PN60 provides comprehensive connectivity with multiple ports, including a front-mounted USB 3.1 Gen1 Type-C port with fast-charging capability and a configurable port* to support legacy devices, additional displays or multiple network connections.

*This particular model has been configured with a DisplayPort to support additional displays.

Stunning 4K UHD Resolution and Dual Display Possibilities

Easy-Build

Improve your Workspace Productivity with 4K ResolutionASUS Mini PC PN60 comes equipped with integrated Intel® UHD Graphics, so you can enjoy watching video and viewing images in stunning 4K UHD resolution. Support for dual displays lets you extend your workspace across multiple monitors for more efficient and comfortable productivity experiences.

Extensively Tested for Perfection

down

Vibration test

up

Drop Test

up

Port Test

up

Temp and Humidity Test

up

Noise Test

up

Line Voltage Test

A product put through extreme conditions ASUS mini PCs undergo rigorous noise, vibration, drop, and thermal shock tests to ensure they meet exacting ASUS standards and exceed industry requirements. Be confident that your ASUS mini PC can cope with extreme conditions, ranging from dry -40°C temperatures, to humid and hot environments exceeding 60°C for long periods of time.

Specifications
Edition PN60-B7420ZD
Form Factor mini PC
CPU Included Yes
CPU Type Intel Core i7
CPU Model 8550U
Architecture Kaby Lake R
Manufacturing Process 14 nm
Unlocked CPU No
Core Quad Core
No. of Threads 8
Clock Speed 1.8 GHz
Burst Frequency 4.0 GHz
CPU Cache 8MB
CPU Cooler
Max. TDP 15 W
CPU Socket N/A
Chipset N/A
Motherboard Form Factor
Motherboard Model
Memory Type SDRAM
Memory Included Yes
Memory Capacity Included 8GB
Memory Edition
Memory Channels Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz) DDR4 - 2400
Max. Memory Capacity 64GB
On-board/Integrated Graphics Yes
Processor/Motherboard Graphics Chip Intel UHD Graphics 620
Discrete GPU No
Discrete GPU Chipset Intel UHD Graphics
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface N/A
Expansion Slots 1 x M.2, 22-80, PCIe Gen3x4
SATA SATA3
HDD Storage Included No
HDD Storage Type
HDD Storage Capacity N/A
Optical Drive None
Drive Bays 1 x 2.5" Internal
Backplane I/O
RAID Support
Internal I/O 1 x SATA III - 6Gb/s (In Use)
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel 802.11ac WiFi/ BT4.2 Module (433Mbps)
  • 1 x Realtek (Gigabit LAN)

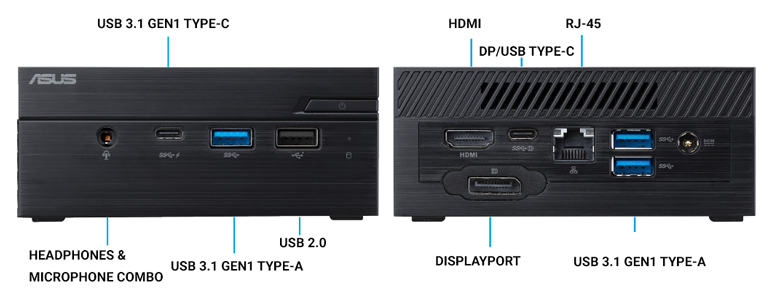

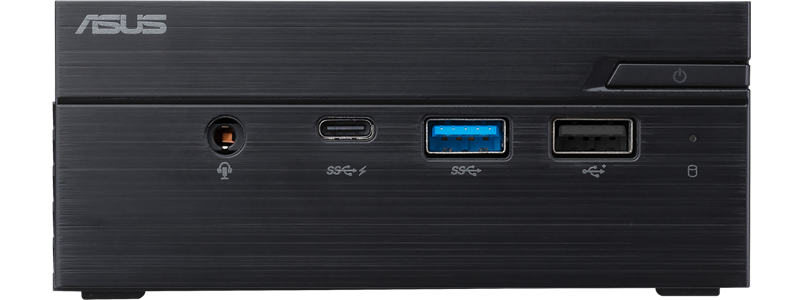

Front Panel
  • 1 x Headphone/Mic Combo
  • 1 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen1 Type-C
Back Panel
  • 1 x DC-In Jack
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x RJ-45
  • 2 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen1 Type-C with DisplayPort Support
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable Yes
PSU Wattage 65 W
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included Yes
Operating System Windows 10 Pro
Colour Black
Dimensions 115 x 49 x 115 (mm WxHxD)
Weight 0.7 kg
Includes
  • 1 x UK Power Cable
  • 1 x VESA Mounting Plate
Notes
Storage Drives
SSD Storage Included Yes
SSD Storage Type M.2 PCIe NVMe SSD
SSD Storage Capacity 256
Additional Information
Scan Code LN119115
Model Number PN60-B7420ZD-OSS
GTIN 4711081115816
