Scan code: LN18931 Manufacturer code: P3-PH4C

ASUS P3-PH4C, S775, i945G, DDR2 533/667, PCI-E (x16), SATA II, On Board VGA

FREE Bullguard Internet Security 2018 3 User/1 year Worth 19.99
Thumbnail 1 : ASUS P3-PH4C, S775, i945G, DDR2 533/667, PCI-E (x16), SATA II, On Board VGA
ASUS P3-PH4C, S775, i945G, DDR2 533/667, PCI-E (x16), SATA II, On Board VGA                   : image 1
Scan code: LN18931 Manufacturer code: P3-PH4C
FREE Bullguard Internet Security 2018 3 User/1 year Worth 19.99
£4.99
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 16th Aug 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £9.58

    Collect your parcel from your newsagents, petrol stations and convenience stores

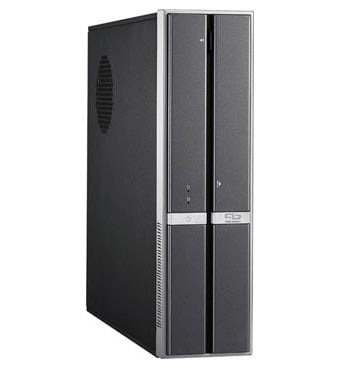

Product Overview Elegant book volume design allows both vertical and horizontal placement to fit any environment

With its sleek and slim design, P3-PH4C is a great replacement for the old-fashion desktops. P3-PH4C can be placed vertically or horizontally to accommodate any work and home environments. Features
Specifications
Edition
Form Factor ATX
CPU Included No
CPU Type 1066MHz
CPU Model
Architecture
Manufacturing Process
Unlocked CPU No
Core
No. of Threads N/A
Clock Speed N/A
Burst Frequency N/A
CPU Cache
CPU Cooler
Max. TDP
CPU Socket 775
Chipset Intel 945G
Motherboard Form Factor
Motherboard Model
Memory Type DDR2
Memory Included No
Memory Capacity Included N/A
Memory Channels
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR2 - 533
  • DDR2 - 667
Max. Memory Capacity 4GB
On-board/Integrated Graphics No
Processor/Motherboard Graphics Chip N/A
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed MHz
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface PCIe (x16)
Expansion Slots
  • 2 x PCI (32 bit) LP
  • 1 x PCIe x1 (LP)
  • 1 x PCIe x16 (LP)
SATA SATA2
Storage Drive Included No
Storage Drive Type
Storage Drive Capacity N/A
Optical Drive None
Drive Bays 1 x 5.25" External
Backplane I/O
RAID Support N/A
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x Floppy
  • 1 x IDE
  • 4 x SATA II - 3Gb/s
Network Interface Type
Network Chip/Modules
Front Panel
  • 1 x Card Reader
  • 1 x Firewire (4pin)
  • 1 x Line In
  • 1 x Mic In
  • 2 x USB 2.0
Back Panel
  • 1 x 10/100/1000 (LAN)
  • 1 x 5.1 Audio I/O
  • 1 x D-Sub (VGA) Out
  • 1 x Firewire (6pin)
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Parallel (LPT)
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 4 x USB 2.0
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable N/A
PSU Wattage 275 W
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour Black
Dimensions 95 x 357 x 398 (mm WxHxD)
Weight
Includes
Notes
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
01442 265548

Additional Notes:
Subject to 2 years manufacturers warranty, return to Scan.
