ASUS NVIDIA GeForce RTX 3080 Ti 12GB ROG Strix LC OC Ampere Graphics Card

ASUS NVIDIA GeForce RTX 3080 Ti ROG Strix LC OC 12GB GDDR6X Ray-Tracing Graphics Card, 10240 Core

Thumbnail 1 : ASUS NVIDIA GeForce RTX 3080 Ti 12GB ROG Strix LC OC Ampere Graphics Card Thumbnail 2 : ASUS NVIDIA GeForce RTX 3080 Ti 12GB ROG Strix LC OC Ampere Graphics Card Thumbnail 3 : ASUS NVIDIA GeForce RTX 3080 Ti 12GB ROG Strix LC OC Ampere Graphics Card Thumbnail 4 : ASUS NVIDIA GeForce RTX 3080 Ti 12GB ROG Strix LC OC Ampere Graphics Card
Scan code: LN117529 Manufacturer code: 90YV0GT2-M0NM00
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

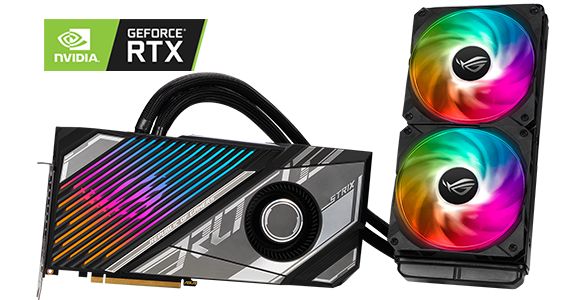

ROG Strix LC RTX 3080 Ti OC Edition Ampere Graphics Card from ASUS

GeForce RTX 3080

Overflowing with Power The mind-blowing performance of the revolutionary NVIDIA Ampere architecture just got cooler. The ROG Strix LC GeForce RTX™ 3080 Ti OC channels the power of liquid cooling to unlock the GPU’s full potential and then some, delivering ultra-quiet thermal performance that blows air-cooled designs out of the water. Boasting a full-coverage coldplate, 240mm radiator, on-board cooling for power delivery (handled by a blower style fan) and 600mm tubing for compatibility with EATX chassis and alternative mounts this GPU is perfect for performance connoisseurs looking to build a supremely powerful rig, ROG Strix LC is here.

10240Cuda Cores

1370 MHzCore Clock

1860 MHz Boost Clock

12GBGDDR6X Memory

Full-coverage Cold Plate

Cold Plate

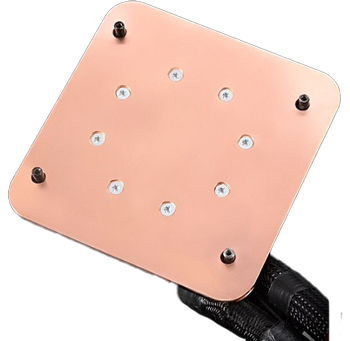

Experience Liquid CoolingA custom-designed cold plate extends over the GPU die and the onboard GDDR6X memory, bringing the full benefits of liquid-cooling to the components most responsible for raw performance.

On-board Cooling

Blower Style

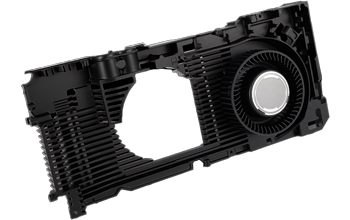

Heat Dissipation - Blower StyleHeat produced by power-delivery components is dispelled by a blower-style fan and a low-profile heatsink under the shroud. The combo exhausts hot air quietly and efficiently.

Optimised for high CFMs and Static Pressure

240mm

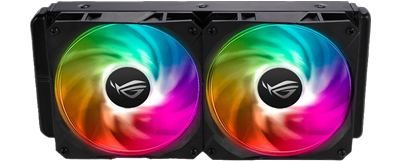

2x 120mm ARGB FansThe 240mm radiator is cooled by two powerful 120mm ARGB fans that are optimised for high CFMs and static pressure.

Clever Compatibility

Clever Compatbility

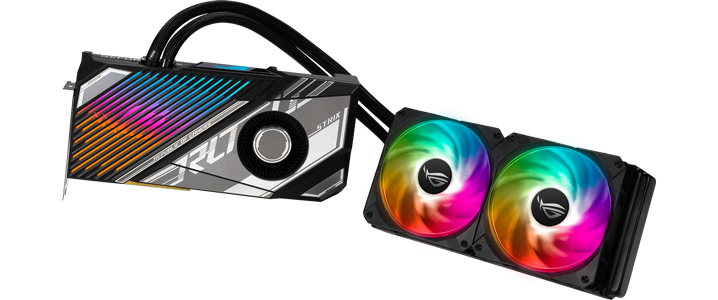

Mesh-Lined TubingThe LC utilises 600mm tubing to enable compatibility with large chassis or builds that feature an AIO CPU cooler. The radiator fan cables are housed in the tubing’s mesh lining and come pre-connected to the card, streamlining setup and the rig’s interior.

Improved PCB Features

top shelf components

Premium ComponentsAs to be expected from a premium brand like ASUS ROG Strix, top-shelf capacitors, chokes and MOSFETs have been used to effortlessly deliver large amounts of power at a Milliseconds notice. The Super Alloy Power II are soldered to the PCB using the amazing Auto-Extreme automated manufacturing process, allowing human error to be removed from the process ensuring each graphics card meets rigorous specifications.

PWM fanconnect headers

Fanconnect IIThe rear of the ROG Strix graphics card sports two PWM FanConnect headers that provide additional DIY flexibility. Chassis fans can be directly attached to the GPU and tuned with a curve that is based on CPU or GPU temperature, providing extra intake or exhaust for demanding 3D tasks.

Add a Splash of Colour

Aura

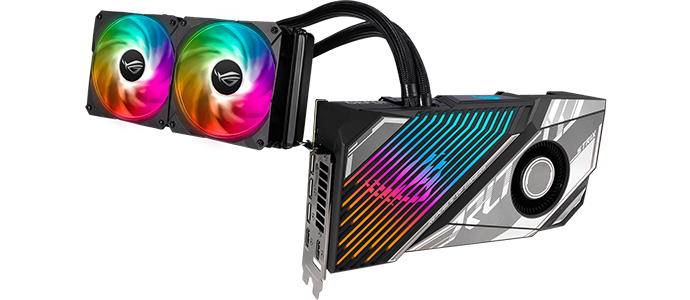

Beautiful PersonalisationThe ROG Strix LC flaunts its power with addressable RGB lighting that shines through striations in the shroud, an illuminated ROG logo, and two ARGB radiator fans. Customised colours and lighting effects can be tweaked via Armoury Crate. To fulfill the power demands of the GeForce RTX 3080 Ti, three 8-pin power connectors are present, along with an onboard circuit that monitors PSU rail voltage. The circuit is fast enough to catch any transients that result in the rail voltage dropping too low. If that happens, a red LED will light up to indicate a power supply issue.

Equipped with Armour

Backplate

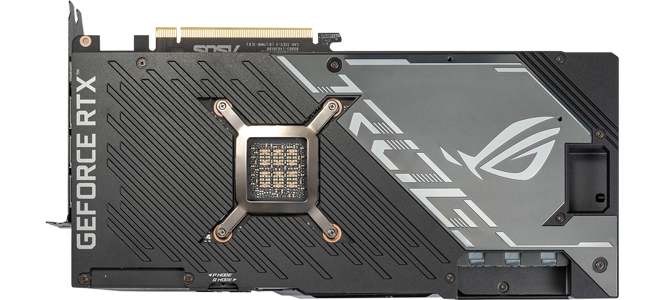

Strong and Durable Armored Underside The underside of the card reveals further improvements. The rear is covered in a protective metal backplate that reinforces the PCB, adding structural rigidity to prevent flex and protect components and trace pathways from damage. A GPU bracket provides extra stability to the critical connection between die and heat spreader. Stainless steel is used for the I/O bracket to protect ports and provide a more secure mount. And a conveniently placed Dual BIOS switch allows customization of the card’s default performance profile without software.

NVIDIA Ampere Architecture

NVIDIA Ampere Architecture

2nd Gen RT Cores2X THROUGHPUT

3rd Gen Tensor CoresUP TO 2X THROUGHPUT

NEW SM2X FP32 THROUGHPUT

DLSS AI Acceleration

Max FPS. Max Quality. Powered by AI. NVIDIA DLSS is groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has arrived to gaming.

DLSS ON

Ultimate Ray Tracing And AI

RTX Technology

RTX. It’s On.Only NVIDIA’s RTX platform includes dedicated RT Cores for ray tracing and Tensor Cores for AI that enable groundbreaking technologies at breakthrough speed. Experience today’s biggest blockbusters like never before. RTX. It’s On.

NVIDIA Reflex Dynamically Reduces System Latency

NVIDIA Reflex

Victory Measured in MillisecondsNVIDIA Reflex delivers the ultimate competitive advantage. The lowest latency. The best responsiveness. Powered by GeForce RTX™ 30 Series GPUs and NVIDIA® G-SYNC® monitors. Acquire targets faster, react quicker, and increase aim precision through a revolutionary suite of technologies built to optimise and measure system latency for competitive games.

Create as Fast as your Imagination

create with AI

Up Your Creative GameTake your creative projects to a new level with GeForce RTX 30 Series GPUs. Delivering AI-acceleration in top creative apps. Backed by the NVIDIA Studio platform of dedicated drivers and exclusive tools. And built to perform in record time. Whether you’re rendering complex 3D scenes, editing 8K video, or livestreaming with the best encoding and image quality, GeForce RTX GPUs give you the performance to create your best.

Transform any Room Into your Home Studio

Broadcast

Stream Like a Boss Live streamers can now level up their game even further with the new NVIDIA Broadcast app. It upgrades any room into a home broadcast studio by transforming standard webcams and microphones into smart devices through the power of AI. The Broadcast app offers three AI-powered features which are: Noise Removal, Virtual Background and Auto frame so the focus always remains on you.

DirectX Raytracing Allows Incredibly Realistic Graphic Effects

DirectX 12 Ultimate

DirectX 12 Ultimate offers features like ray tracing and variable rate shading DirectX Raytracing allows games to simulate how light works in real life, providing incredibly realistic and beautiful graphics effects like global illumination, reflections, and shadows.

NVIDIA has partnered closely with Microsoft to enable full DXR support on GeForce GPUs. GeForce RTX GPUs were designed from the start for the extreme demands of ray-tracing workloads. Specialised RT cores, found only on GeForce RTX graphics cards, provide billions of rays per second of performance, and up to 3X the frame rates with DXR games and applications. This makes ray tracing at real-time frame rates possible for the first time.

GeForce RTX 30 Series Features

8K Gaming

8K HDR GamingStep up to the ultimate 4K gaming experience with the GeForce RTX and enjoy today’s biggest games in amazing detail.

GeForce Experience

GeForce ExperienceThe essential companion to your GeForce graphics card. Capture and share videos, screenshots, and livestreams. Keep your drivers up to date and optimize your games.

Game Ready Drivers

Game Ready DriversGet the highest levels of performance, and the smoothest experience possible, from the moment you start playing.

Virtual Reality

Virtual RealityTake your VR experiences to a whole new level with the powerful new GeForce® RTX GPUs. You can count on the lowest latency and highest performance with VR.

NVIDIA G-Sync & HDR

NVIDIA G-SyncGet smooth, tear-free gameplay at refresh rates up to 360 Hz, plus HDR and more. NVIDIA G-SYNC gaming monitors are the ultimate go-to equipment for enthusiast gamers.

NVIDIA Ansel

NVIDIA AnselTurn your screenshots into art with this powerful in-game photo mode that captures 360, HDR, and super-resolution photos.

NVIDIA GeForce Graphics Card Specifications

GeForce RTX 30-Series, 20-Series, GTX 16-Series & 10-Series Card Specifications
Model RTX 3090 RTX 3080 RTX 3070 RTX 3060 Ti TITAN RTX RTX 2080 Ti RTX 2080 Super RTX 2080 RTX 2070 Super RTX 2070 RTX 2060 Super RTX 2060 GTX 1080 Ti GTX 1080 GTX 1070 Ti GTX 1070 GTX 1660 Ti GTX 1660 Super GTX 1660 GTX 1650 Super GTX 1650 GTX 1060 6GB GTX 1060 3GB GTX 1050 Ti GTX 1050
Architecture Ampere Ampere Ampere Ampere Turing Turing Turing Turing Turing Turing Turing Turing Pascal Pascal Pascal Pascal Turing Turing Turing Turing Turing Pascal Pascal Pascal Pascal
GPU GA102 GA102 GA104 GA104 TU102 TU102 TU104 TU104 TU104 TU106 TU106 TU106 GP102 GP104 GP104 GP104 TU116 TU116 TU116 TU117 TU117 GP106 GP106 GP107 GP107
CUDA Cores 10,496 8,704 5,888 4,864 4,608 4,352 3,072 2,944 2,560 2,304 2,176 1,920 3,584 2,560 2,432 1,920 1,536 1,408 1,408 1,280 896 1,280 1,152 768 640
Tensor Cores 328 272 184 152 576 544 384 368 320 288 272 240 0 0 0 0 0 0 0 0 0 0 0 0 0
RT Cores 82 68 46 38 72 68 48 46 40 36 34 30 0 0 0 0 0 0 0 0 0 0 0 0 0
Reference Base Clock 1,400MHz 1,440MHz 1,500MHz 1,410MHz 1,350 MHz 1,350 MHz 1,650 MHz 1,515 MHz 1,605 MHz 1,410 MHz 1,470 MHz 1,365 MHz 1,480 MHz 1,607 MHz 1,607 MHz 1,506 MHz 1,500 MHz 1,530 MHz 1,530 MHz 1,530 MHz 1,485 MHz 1,506 MHz 1,506 MHz 1,290 MHz 1,354 MHz
Reference Boost Clock 1,700 MHz 1,710 MHz 1,730 MHz 1,665MHz 1,770 MHz 1,545 MHz 1,815 MHz 1,710 MHz 1,770 MHz 1,710 MHz 1,650 MHz 1,680 MHz 1,582 MHz 1,733 MHz 1,683 MHz 1,683 MHz 1,770 MHz 1,785 MHz 1,785 MHz 1,725 MHz 1,665 MHz 1,708 MHz 1,708 MHz 1,392 MHz 1,455 MHz
Memory 24GB GDDR6X 10GB GDDR6X 8GB GDDR6 8GB GDDR6 24GB GDDR6 11GB GDDR6 8GB GDDR6 8GB GDDR6 8GB GDDR6 8GB GDDR6 8GB GDDR6 6GB GDDR6 11GB GDDR5X 8GB GDDR5X 8GB GDDR5 8GB GDDR5 6GB GDDR6 6GB GDDR6 6GB GDDR5 4GB GDDR6 4GB GDDR5 6GB GDDR5 3GB GDDR5 4GB GDDR5 2GB GDDR5
Memory Controller 384-bit 320-bit 256-bit 256-bit 384-bit 352-bit 352-bit 256-bit 256-bit 256-bit 256-bit 192-bit 352-bit 256-bit 256-bit 256-bit 192-bit 192-bit 192-bit 128-bit 128-bit 192-bit 192-bit 128-bit 128-bit
TDP 350W 320W 220W 200W 280W 260W 250W 225W 215W 175W 175W 160W 250W 180W 180W 150W 120W 125W 120W 110W 75W 120W 120W 75W 75W
Specifications
Key Specifications
Chipset GeForce RTX 3080 Ti
Edition ROG Strix LC OC
Manufacturing process 8 nm
Microarchitecture Ampere
Cores & Clocks
Cores 10240
Core Clock 1370 MHz
Boost Clock 1860 MHz
Video Memory (VRAM)
Memory Size 12GB
Memory Type GDDR6X
Memory Clock 19000 MHz
Memory Bus 384 Bit
Cooling
Cooling Solution Hybrid Cooling
Cooler Design
Included/Fitted Backplate Yes
I/O & Connectivity
Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
Connectivity
  • 3 x DisplayPort 1.4a
  • 2 x HDMI 2.1
Visuals
GeForce VR Ready Yes
Multi-Way Graphics Support
Microsoft DirectX Support 12 API
HDCP Ready Yes
Max. Concurrent Displays 4 Displays
Maximum Digital Resolution 7680x4320 (8K UHD)
Maximum Analog (VGA) Resolution
Ray-Tracing
Real-Time Ray Tracing Yes
NVIDIA RT Cores
NVIDIA Tensor Cores
RTX-OPS
Rays Cast
Power & Thermals
Graphics Card Power Connectors 3 x 8-pin PCIe
Graphics Card TDP/Power
Minimum Recommended PSU 850 W
Maximum GPU Temperature 93 °C
Physical
Width 2.5 Slot
Low Profile Compatible No
Low Profile Support N/A
Dimensions 293 x 133 x 52 mm
Package Type Retail
Additional Information
Scan Code LN117529
Model Number 90YV0GT2-M0NM00
GTIN 4711081220824
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
ASUS
Telephone:
01442 265548
