ASUS Core i9 Raptor Canyon NUC 13 Extreme Mini PC Kit

ASUS NUC13RNGi9 Raptor Canyon Extreme NUC, i9-13900k, Intel UHD Graphics, DDR5, 3x M.2, PCIe Gen5, TB4, Barebone Kit

Thumbnail 1 : ASUS Core i9 Raptor Canyon NUC 13 Extreme Mini PC Kit Thumbnail 2 : ASUS Core i9 Raptor Canyon NUC 13 Extreme Mini PC Kit Thumbnail 3 : ASUS Core i9 Raptor Canyon NUC 13 Extreme Mini PC Kit Thumbnail 4 : ASUS Core i9 Raptor Canyon NUC 13 Extreme Mini PC Kit
Scan code: LN144838 Manufacturer code: 90AB3RNG-MRC100
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
£1,329.98
Get it Tomorrow, 14 AprIn stock
From £37.50 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £120.50
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,329.98
Total inc. interest: £1,445.90
Monthly Payment: £64.94
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,329.98
Total inc. interest: £1,558.59
Monthly Payment: £46.58
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,329.98
Total inc. interest: £1,676.53
Monthly Payment: £37.50
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,329.98
Total inc. interest: £1,799.99
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £35.34 / month (APR 19.9%)
Delivery Options
  • By DPD On 15th Apr to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Product Overview

Revolutionize your Gaming and Workstation Experience

Unlock a new age of gaming potential, with Raptor Canyon, the new Intel® NUC 13 Extreme. Powered by Intel's hot-off-the-press 13th Gen i5-13600K 125W desktop processor in a whole-new 14L form factor, Raptor Canyon allows for increased cooling, expanded customizability, and heightened functionality. For the first time on an Intel NUC, you can customize your Raptor with up to 64GB of DDR5 memory and up to 40TB of storage, opening the doors to playing all your favourite AAA games at the highest settings, flawlessly. The Intel® NUC 13 Extreme is here to revolutionize your gaming and workstation experience.


Peak Performance with Raptor Canyon

Raptor Canyon is the highest performing NUC on the market, bringing with it the ability to harness new technologies, such as DDR5 RAM and three Gen4 compatible M.2 sockets to help you compete at the top of the leader board, or effortlessly tackle with your most complex CAD or content creation tasks. With Raptor Canyon, there is nothing to hold you back from peak PC performance. Its Gen5 PCIe x16 socket gives you the flexible functionality you need, supplying up to 450W for your new triple-slot 12” graphics card or I/O expansion card of your choice. Raptor’s new modern design with optimal airflow will minimize noise and throttling under intense workloads, and its beefy 750W internal power supply ensures you the peak performance you need to take your gameplay to the next level.


Mini. Modular. Mind-Blowing.

Raptor Canyon offers heightened functionality with an upgraded offering of I/O, from its dual-LAN ports with 10Gb and 2.5Gb speeds for a super-fast reliable connection, to its dual Thunderbolt 4 ports for extra monitors, or I/O hubs to keep you at the height of productivity and performance. Raptor Canyon introduces a new NUC form factor – the larger chassis opens up expanded customizability with additional space to mount extra drives and connect more peripherals than ever before, helping you drive efficiency while still maintaining a significantly smaller footprint than a full-sized tower PC. Join the new era of gaming, with Raptor Canyon, it’s Mini, Modular, and Mind-blowing.

Features

• Primary storage sockets supporting up to NVMe Gen4 available up to 4TB, up to 8TB Gen3.
• Secondary and tertiary storage sockets supporting up to NVMe Gen4 available up to 4TB, up to 8TB Gen3 or SATA SSD up to 2TB.
• Dual 2.5” drives up to 8TB SATA per drive.
• Memory up to 64GB.
• Full-Length triple-slot GPU Support.
• OS options including Windows 10/11, Windows Server 2019, Ubuntu.

Specifications
Edition NUC 13 Extreme Kit
Form Factor mini PC
CPU Included Yes
CPU Type Intel Core i9
CPU Model Intel Core i9-13900K
Architecture Raptor Lake 13th Gen
Manufacturing Process Intel 7 nm
Unlocked CPU Yes
Core 24 Core (8 Performance, 16 Efficient)
No. of Threads 32
Clock Speed N/A
Burst Frequency 5.8 GHz
CPU Cache 36MB
CPU Cooler Air Cooled
Max. TDP 253 W
CPU Socket 1700
Chipset N/A
Motherboard Form Factor
Motherboard Model
Memory Type DDR5 SO-DIMM
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U)
Memory Speed (Mhz)
Max. Memory Capacity 64GB (2x32GB)
On-board/Integrated Graphics Yes
Processor/Motherboard Graphics Chip Intel UHD Graphics 770
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface On-board
Expansion Slots
  • 1 x M.2 Key E (Occupied by Wi-Fi Module)
  • 3 x M.2, 22-80, PCIe Gen4x4
  • 1 x PCIe 5.0 x16
SATA SATA3
HDD Storage Included No
HDD Storage Type
HDD Storage Capacity N/A
SSD Storage Included No
SSD Storage Type M.2 PCIe NVMe SSD
SSD Storage Capacity
Optical Drive None
Drive Bays 4 x 2.5" Internal
Backplane I/O
RAID Support RAID-0/RAID-1
Internal I/O 1 x Front Panel Connector
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 10G LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules 1 x Intel® I226V (2.5GbE LAN)

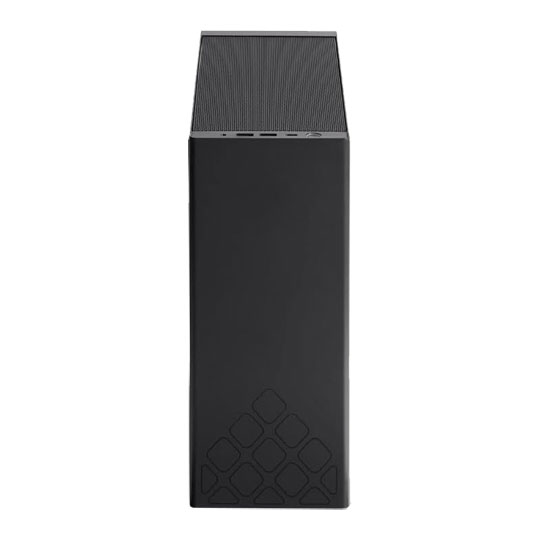

Front Panel
  • 1 x Headphone/Mic Combo
  • 1 x Power Button with LED
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2x2 Type-C

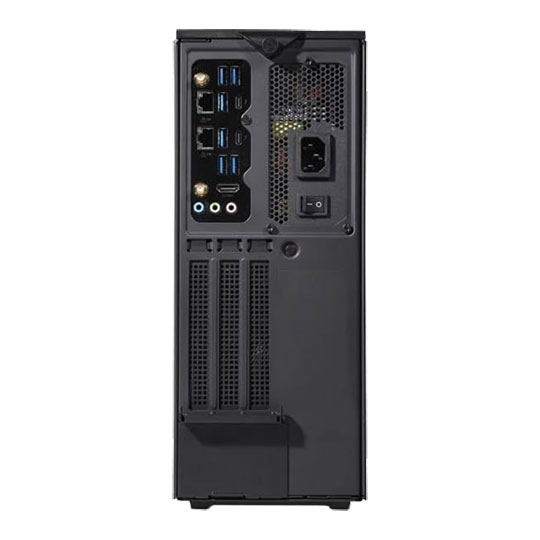

Back Panel
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x 10GbE RJ45
  • 2 x Antenna Ports
  • 3 x Audio I/O
  • 1 x HDMI 2.1
  • 6 x USB 3.2 Gen2 Type-A
  • 2 x USB 4 Type-C / Thunderbolt 4 / DP
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable N/A
PSU Wattage
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour Black
Dimensions 337 x 318 x 129 (mm WxHxD)
Weight
Includes
Notes
Additional Information
Scan Code LN144838
Model Number 90AB3RNG-MRC100
GTIN 5032037257114
Warranty
