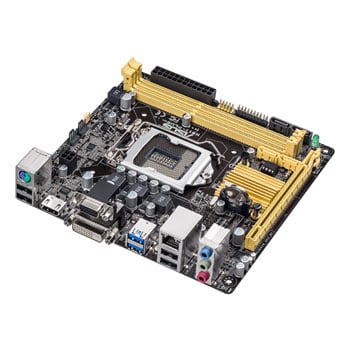

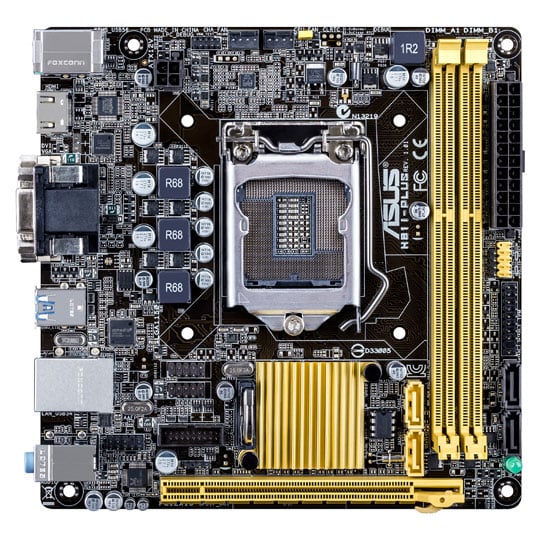

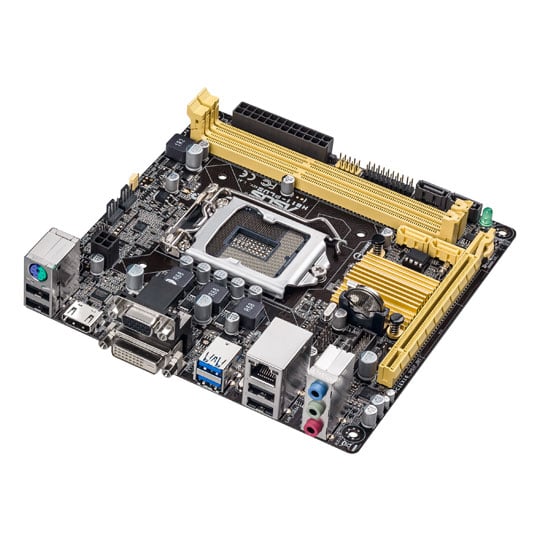

Asus H81I-Plus Mini-ITX Motherboard

Asus H81I-PLUS, Intel H81, S 1150, DDR3, SATA III - 6Gb/s, PCIe 2.0 (x16), D-Sub/DVI-D/HDMI, Mini ITX

Asus
Scan code: LN52998 Manufacturer code: 90MB0GC0-M0EAY0 Request call
Call for price
3xs Approved High End
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Suggested alternatives
Product Overview New UEFI BIOS – friendlier and more intuitive
Exclusive EZ Mode adds useful info to become even easier
Media-renowned UEFI BIOS from ASUS provides the smoothest mouse-controlled graphical BIOS, and now features more intuitive functions to quickly take you to favorite BIOS pages and frequently-accessed settings through custom shortcuts. You can even write quick notes in-BIOS for future reference, view an activity log of setting changes and modifications, and rename SATA ports. EZ Mode has a whole new look, upgraded with extra-friendly capabilities like detailed fan controls, XMP profile settings, SATA information, and fast clock adjustment. Together, these perfect your BIOS experience.

USB 3.0 Boost (UASP Support)
170% faster transfer speeds than traditional USB 3.0
ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol) in Windows 8. With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to already fast USB 3.0 performance. ASUS software automatically accelerates data rates for compatible USB 3.0 peripherals without any user interaction.

• World’s 1st USB 3.0 UASP support – instantly 170% faster.
• Complete USB 3.0 solution – performance boost under Turbo Mode or UASP Mode for most USB devices.
• Simple plug and boost – auto detection design ensures best performance.

Q-DIMM
Easy memory removal
Even if you work with a smaller case, plugging in memory is easy with one-sided clips that are right at the edge of the board and always accessible. Just push down on the clip and push or pull RAM modules in or out – couldn’t be simpler!

ASUS Boot Setting
Multiple startup options
Thanks to ASUS Windows 8 hardware optimization, ASUS Boot Setting provides better flexibility in customizing your PC’s startup process. You can shorten system boot-up time to 2-seconds* for a smoother user experience under Windows 8, and even previous versions of Windows. Also, you can enter the BIOS directly with one click through a user-friendly interface, and quickly select your preferred system boot up method: either get to the OS in seconds or opt for regular boot up. Whatever your choice, settings are saved and persistent, with no need to choose every time you power on.
Features • New UEFI BIOS and EZ Mode: Friendlier, easier, and more intuitive with helpful info added
• USB 3.0 BOOST (UASP Support): 170% faster transfer speeds than traditional USB 3.0
• Network iControl: Real-time network bandwidth management
• AI Suite 3: One-stop access to innovative ASUS features
• EPU:All-round energy efficiency
Specifications
Core Specifications
Form Factor Mini-ITX
CPU Socket 1150
Chipset Intel H81
RAM Memory Support
Memory Type DDR3
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR3 - 1066
  • DDR3 - 1333
  • DDR3 - 1600
Max. Memory Capacity 16GB
Audio
Audio
Graphics Support
Primary GPU Interface PCIe 2.0 (x16)
SLI Support N/A
Crossfire Support N/A
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DVI-D
  • HDMI
Internal Connectivity
Expansion Slots 1 x PCIe 2.0 x16
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Front Panel Audio Header
  • 2 x SATA II - 3Gb/s
  • 2 x SATA III - 6Gb/s
  • 1 x SPDIF-Out Header
  • 1 x System panel connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.0 Header
External Connectivity
Network Interface Type
Network Chip/Modules
Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x D-Sub (VGA) Out
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 4 x USB 2.0
  • 2 x USB 3.0
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
ASUS
Telephone:
01442 265548
Customers also bought
TekSpek Guides
Intel Z97 Chipset
Intel Z97 Chipset
Date Issued: 11th May 2014

In June, 2013, Intel launched an assemblage of new 'Haswell' Core series processors presented in the LGA 1150 form factor. Inherently different to the LGA 1155 form factor it succeeded, LGA 1150 spurred the release of a new chipset family known as the 8-series.

Read More

New 4th Generation CPUs
New 4th Generation CPUs
Date Issued: 9th May 2014

Intel launched a bevy of Haswell Core processors last June. Presented in a LGA1150 form factor and therefore physically different to the LGA1155 Ivy Bridge processors of the year before, new chipsets were also launched to support these new chips.

Read More

Reviews
Asus H81I-PLUS, Intel H81, S 1150, DDR3, SATA III - 6Gb/s, PCIe 2.0 (x16), D-Sub/DVI-D/HDMI, Mini ITX is rated 4.8 out of 5 by 4.
Rated 5 out of 5 by from Pretty austere but does the job. Really no complaints, build and finish are nice & the build it's in has been rock solid. Just be advised that it isn't worth fitting ram any faster than 1600 MHz as it just be run at that speed.
Date published: 2016-02-23
Rated 4 out of 5 by from it does what it says on the tin very good board, what you would expect from a board of this price. No problems encountered installing the software.
Date published: 2015-03-17
Rated 5 out of 5 by from Great Using with Intel Intel Core i3 4330, S 1150, Haswell, Dual Core, 3.5GHz, 1150MHz GPU, 35x Ratio, 54W, Retail. Working really well together in a pretty small case (so cramped environ). Very happy with it so far. Economical for what you get!
Date published: 2014-06-13
Rated 5 out of 5 by from Excellent Excellent performance, good value and fantastic quality. Recommended for a mid range mini itx build.
Date published: 2014-04-15
