ASUS Intel PRO H610M-CT2 D4-CSM Micro-ATX Motherboard

ASUS H610M-CT2 D4-CSM, Intel H610, S 1700, DDR4, SATA3, PCIe 4.0, 1x M.2, GbE, USB 3.2 Gen2, MicroATX

Scan code: LN139413 Manufacturer code: PRO H610M-CT2 D4-CSM
£139.99
£5.48 NEXT DAY DELIVERY
Item currently awaiting an ETA
Pre order

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £11.67 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £11.67
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £139.99
    Total inc. interest: £139.99
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview

Pro

ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customisation. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximise your investment over the product life cycle and offers a high-quality, TCO-optimised solution for your business computing-needs.


ASUS Corporate Stable Model

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organisation to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Centre Express - server-grade IT management software.


ASUS Control Centre Express

ASUS Control Centre Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorised access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organisation. Purchase of a Pro motherboard entitles you to a copy of Control Centre Express.


Optimise IT Endpoint Management

Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely.


Automate IT Maintenance

Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility.


Securely Manage All of Endpoints

Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices.


PCIe 4.0

This business motherboard is specially designed for 12th Gen Intel® Core™ processors and offer PCIe® 4.0 connectivity for storage devices and graphics cards. Wide bandwidth and superfast transmission speeds empower you to create feature-rich builds that deliver optimal performance wherever it’s needed.


ASUS Boot Defender

ASUS Boot Defender on ASUS Business motherboards is designed to automatically protect, detect and recover the boot environment against any intrusions and attacks.


ASUS Self-Recovering BIOS

ASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware.


Trusted Platform Module (TPM)

Hardware-based security offers better data protection, enhances network security, protects digital identities and ensures platform integrity.


NIST SP 800-193 Compliant

ASUS Business motherboard with ASUS Boot Defender adheres to the National Institute of Standards and Technology (NIST) Platform Firmware Resiliency guidelines to protect against potentially destructive attacks.


Certified NIST SP 800-147

ASUS Business motherboard is certified by the national computer security standards.


ASUS Secure Boot

ASUS business motherboard is set to check the firmware and signature of each piece of boot software.


ASUS Boot Defender

ASUS Boot Defender ensures your PC is secure even before you boot up the OS and offers additional protection beyond the OS environment. On start-up, it verifies the BIOS code to detect attacks or corrupted firmware. It’s designed to automatically protect and repair the compromised BIOS code to safeguard PCs from intrusions and attacks.


With ASUS Self-Recovering BIOS

The user simply needs to reboot the system and ASUS Self-recovering BIOS will restore the latest BIOS update.


Anti-Moisture Coating

An innovative moisture-resistant coating protects the motherboard in humid environments, such as factories, libraries, data centres and internet cafes. It also minimises internal corrosion by preventing adhesion and migration of moisture, prolonging the life of the motherboard.


Anti-Sulphur Resistors

Consider long-term reliability of commercial product, ASUS Business motherboard is equipped with anti-sulphur resistors. The resistors provide excellent resistance to sulphuration by constructed in a high-grade ceramic body (aluminium oxide). With anti-sulphur resistors, ASUS Business motherboard can be operated under the harsh environments.


Stainless-Steel Back I/O

Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.


ASUS Commercial BIOS Kit

ASUS understands how important a customised product impacts users' mind share, experience the brand-new Commercial BIOS Kit for partial BIOS update solution!


Remote IT Management

The onboard SMBUS header connects to a DASH LAN card for remote IT management. DASH is a desktop and mobile architecture system hardware that allows the motherboard to be managed via the network.


Q-LED Core

The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.


ASUS COM Debug Header

This 6-1 pin COM debug header allows for faster and more efficient motherboard troubleshooting. IT administrators can view error and debugging codes to get a better idea of initialisation and recovery processes when connecting to a debug card.


Box Headers

All USB headers are box style, enabling fast connector installation and preventing pin damage.


Fixed-Position Connectors

Connector positions on ASUS Business motherboards remain consistent across product generations, protecting training, manufacturing and investments in supporting hardware.

Features

• Intel® LGA 1700 Socket: Ready for 12th Gen Intel Core™ processors.
• ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards.
• ASUS Control Centre Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration.
• Enhanced System Security: Boot defender with NIST SP800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs.
• Consistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environments.
• Efficient Management and Customisation: An event log and commercial BIOS kit to enable easy maintenance.
• Better Serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes.

Specifications
Core Specifications
Edition H610M-CT2 D4-CSM
Form Factor MicroATX
CPU Socket 1700
Chipset Intel H610
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3000
  • DDR4 - 3200
Max. Memory Capacity 64GB (2x32GB)
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DisplayPort 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS Header
  • 1 x Front Panel Audio Header
  • 1 x M.2
  • 1 x M.2 Connector
  • 4 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x SMBus header
  • 1 x speaker header
  • 1 x System panel connector
  • 3 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules

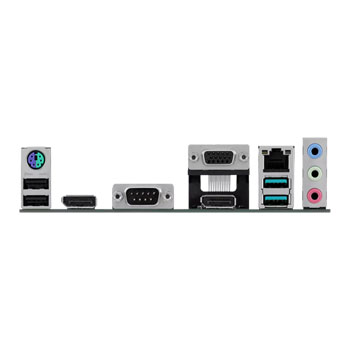

Rear I/O Connectors
  • 1 x D-Sub (VGA)
  • 2 x DisplayPort
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 2 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45
  • 1 x Serial (COM)
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen2 Type-A
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 244 x 220 mm
Note
Additional Information
Scan Code LN139413
Model Number PRO H610M-CT2 D4-CSM
GTIN 4711387309902
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
ASUS
Telephone:
01442 265548
Buying Guide
Need help choosing the right board? Read our Intel Motherboard Buying Guide
