Asus NVIDIA GeForce GTX 1060 6GB DUAL OC Graphics Card
Asus GeForce GTX 1060 DUAL OC 6GB GDDR5 VR Ready Graphics Card, 1280 Core, 1607MHz GPU, 1835MHz Boost
ASUS - GeForce GTX 1060 - GPU - Graphics Card - DUAL OC
ASUS DUAL OC GeForce GTX 1060 GPU
ASUS feature a variety of GTX 1060 cards each with their own benefits. This particular 1060 features everything the regular DUAL ASUS 1060 GPU has but boasts clock speeds that sit significantly higher. The extra speed gives the GPU a boost in performance for a slight increase in cost. If you’re a fan of the ASUS DUAL series but desire more than the standard 1060 speeds then the DUAL OC 1060 could be what you’re looking for.
The GeForce GTX 1060 graphics card is loaded with innovative new gaming technologies that make it the perfect choice for the latest high-definition games. Powered by NVIDIA Pascal™—the most advanced GPU architecture ever created—the GeForce GTX 1060 delivers brilliant performance that opens the door to virtual reality and beyond. #GameReady

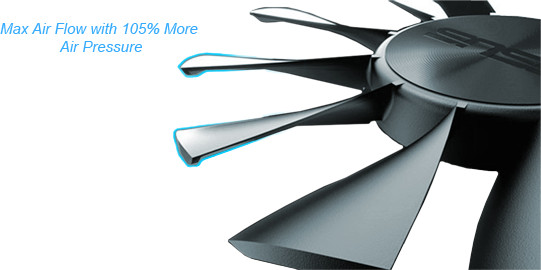

ENHANCED GTX 1060 COOLING
Triple Wing-Blade GPU Cooling
DirectCU III features triple 0dB fans engineered with a patented wing-blade design that delivers maximum air flow and improved 105% static pressure over the heat sink of this GTX 1060, while operating at 3X quieter volumes than reference cards. The 0dB fans also let you enjoy games in complete silence and make DirectCU III the coolest and quietest graphics card in the market.

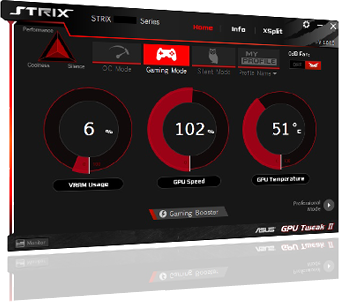

GPU PERFORMANCE TWEAKING
Keep Track Of Your DUAL 1060 Performance
Tweak II technology will allow you to view any and all statistics about your 1060 graphics card, including GPU and memory clock speeds, GPU voltage, fan speeds and more. It also gives the ability to set particular modes on you GTX 1060 card, for example the “Gaming Booster” mode helps to apply numerous optimizations as well as execute memory defragmentation, which in-turn maximizes performance and system responsiveness - enhancing gaming experiences - control your 1060.

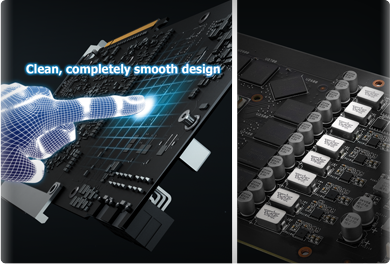

NEXT-GEN GRAPHICS CARDS
Premium 1060 Quality & Top Reliability
ASUS graphics cards are produced using Auto-Extreme Technology, an industry-first 100% automated production process, and features premium Super Alloy Power II components. These components enhance efficiency, reduce power loss, decrease component buzzing under load, and lower thermal temperatures for unsurpassed quality and reliability in your GTX 1060.
GTX 1060 CONNECTIONS
HDMI 2.0b / 3x DisplayPort 1.4 / Dual-Link DVI
GEFORCE GTX VR READY
GeForce® GTX graphics cards provide a powerful next-generation platform for the ultimate immersive virtual reality experience. Rigs and cards marked with "GeForce GTX VR Ready" ensure that your VR games will be optimized with a best-in-class GPU.
Immersive VR requires seven times the graphics processing power of traditional 3D apps and games. NVIDIA's unique set of features - such as multi-res shading - mean you get the right level of performance, image quality, and latency to ensure your VR experience is nothing short of amazing.
|Chipset||GeForce GTX 1060|
|Manufacturing process||16 nm|
|Core Clock||1607 MHz|
|Boost Clock||1835 MHz|
|Memory Clock||8008 MHz|
|Memory Bus||192 Bit|
|Cooling Solution||Dual Fan (2)|
|Cooler Design||Dual Fan|
|Interface||PCIe 3.0 (x16)|
|Maximum Digital Resolution||7680x4320 @ 60Hz|
|Maximum Analog (VGA) Resolution||N/A|
|Max. Concurrent Displays||4 Displays|
|NVIDIA SLI Support||Not Supported|
|GeForce GTX VR Ready||Yes|
|Microsoft DirectX Support||12 API with Feature Level 12.1|
|Low Profile Compatible||No|
|Low Profile Support||N/A|
|Graphics Card TDP/Power|
|Graphics Card Power Connectors||1 x 6-pin PCIe|
|Minimum Recommended PSU|
|Maximum GPU Temperature|
