ASUS PL64-B-S7063MN Intel Core i7 1255U Barebone Mini PC
ASUS Barebone Mini PC PL64-B-S7036MN, Intel i7 1255U, DDR4, 3x HDMI 2.0, WiFi 6E/1x 2.5GbE/1x GbE, 2x M.2 PCIe, USB 3.2
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
PL64 Intel 12th Gen Core i7 Barebone Mini PC from ASUS
Introducing ASUS PL Series Mini PCsASUS PL series mini PCs are designed mainly for indoor industrial applications. PL series mini PCs are subjected to strict testing standards, offer legacy connectivity and long product life cycles to cater to a diverse range of uses.
Intel Core i7-1255UProcessor
Intel® Iris® XeOn-board Graphics
BareboneNo OS
A Versatile Business Solution
Digital Signage - Advantages
• Compact 200 x 120 x 34mm dimensions.
• Stunning 4K resolution output.
• Triple display support via HDMI.
• EDID emulation: Ensures video output is suitable for the display.
• Efficient remote device management without a monitor.
Kiosk & Store OA - Advantages
• Dual COM ports with RS-232/422/485 support with easy driver setup.
• Dual LAN with one 2.5 GbE port.
• Designed to operate at up to 50° C ambient temperature.
• Compact metal chassis offers versatile mounting options to suit various needs.
• Reliable fanless design.
IoT Control Unit - Advantages
• Powerful computing performance with up to 12th Gen Intel® Core™ i7 processors (15 W).
• Reliable fanless design.
• Virtual display: Remote management for headless systems.
• Dual LAN ports with one 2.5 GbE LAN.
• WiFi 6E for stable, high-speed data transfers.
• Stringently tested to ensure 24/7 reliability.
• Versatile mounting options to suit various needs.
Powerful Computing Performance
Intel Core i7-1255UASUS Mini PC PL64 is powered by 12th Generation Intel® Core™ Processors featuring a new hybrid processor design. This new core design enables PL64 to process multiple tasks simultaneously in the most efficient way possible.
With the whole new design CPU, PL64 can deliver superior performance for you to you process intensive business operations more efficiently.
2Performance Cores
8Efficient Cores
12Total Threads
4.70 GHzMax Turbo Frequency
Reliable. Durable. Silent.

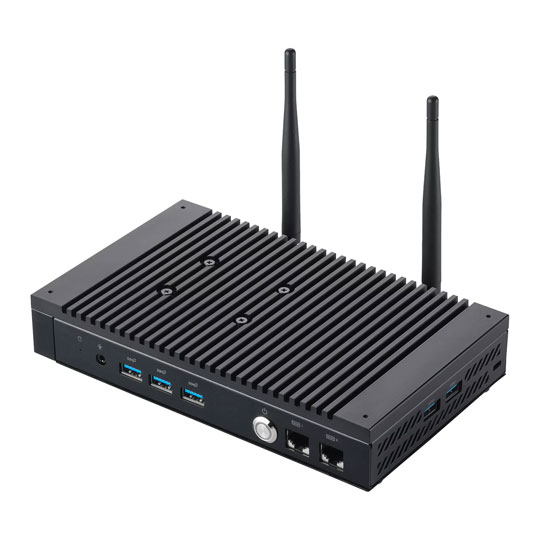

Fanless Chassis Design with TDP 15W SupportASUS Mini PC PL64 employs a new fanless design that lowers operational noise and minimises dust ingress into the chassis, prolonging product life. The fanless design and 15-watt CPU support make PL64 ideal for industrial applications where reliability, durability, and low noise are paramount.
Optimised Cooling DesignThe cooling system of Mini PC PL64 is connected to a heatsink for efficient heat dissipation to ensure optimal performance even when deployed in hot environments reaching up to 50° C.
Advanced Output Management
EDID EmulationMini PC PL64 features Extended Display Identification Data (EDID) emulation and retains signage format so content being displayed remains unaffected even in the event of a temporary loss of power or connectivity issues, making it ideal for digital signage.
Compact Size with Metal Chassis
A Variety of Connectivity OptionsASUS Mini PC PL64 measuring just 199.7 x 119.7 x 33.9mm size and 0.81 litre chassis. The compact size makes PL64 suitable for digital signage, kiosk or any other space-constraint environments. Its metal chassis also makes PL64 more durable and perfect for industrial scenarios.
