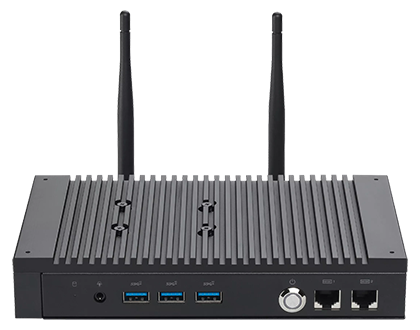

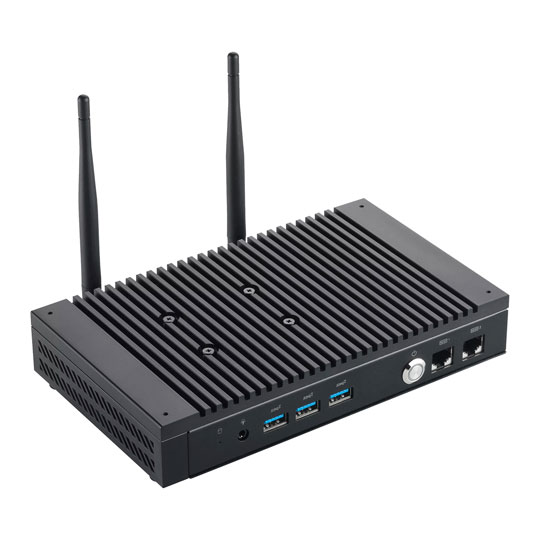

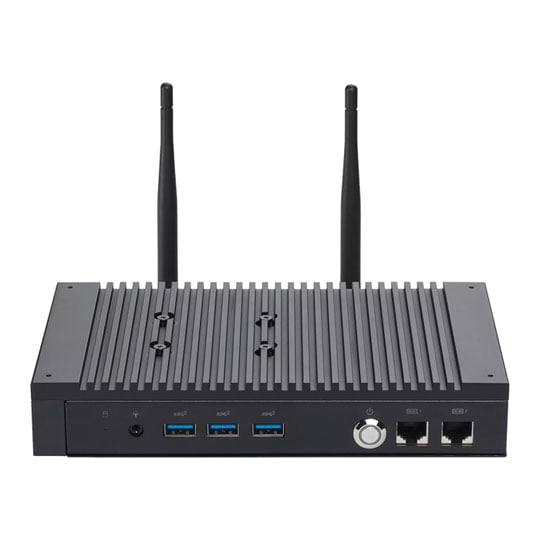

ASUS PL64-B-S3066MN Intel Core i3 1215U Barebone Mini PC

ASUS Barebone Mini PC PL64-B-S3066MN, Intel i3 1215U, DDR4, 3x HDMI 2.0, WiFi 6E/1x 2.5GbE/1x GbE, 2x M.2 PCIe, USB 3.2

Thumbnail 1 : ASUS PL64-B-S3066MN Intel Core i3 1215U Barebone Mini PC Thumbnail 2 : ASUS PL64-B-S3066MN Intel Core i3 1215U Barebone Mini PC Thumbnail 3 : ASUS PL64-B-S3066MN Intel Core i3 1215U Barebone Mini PC Thumbnail 4 : ASUS PL64-B-S3066MN Intel Core i3 1215U Barebone Mini PC
Scan code: LN143753 Manufacturer code: 90MR00V1-M00220
Order in the next 2 hrs 57 mins and get it tomorrow (upgrade to Saturday delivery at checkout)
£399.98
Get it Tomorrow, 20 AprIn stock
FREE DELIVERY ON THIS ITEM
From £19.53 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £36.24
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £399.98
Total inc. interest: £434.83
Monthly Payment: £19.53
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £399.98
Total inc. interest: £468.72
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £10.63 / month (APR 19.9%)
Delivery Options
  • By DPD On 22nd Apr to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

PL64 Intel 12th Gen Core i3 Barebone Mini PC from ASUS

PL64 Intel 12th Gen Core i3 Barebone Mini PC

Introducing ASUS PL Series Mini PCsASUS PL series mini PCs are designed mainly for indoor industrial applications. PL series mini PCs are subjected to strict testing standards, offer legacy connectivity and long product life cycles to cater to a diverse range of uses.

Intel Core i3-1215UProcessor

Intel® UHDOn-board Graphics

BareboneNo OS

A Versatile Business Solution

Digital Signage

Digital Signage - Advantages • Compact 200 x 120 x 34mm dimensions.
• Stunning 4K resolution output.
• Triple display support via HDMI.
• EDID emulation: Ensures video output is suitable for the display.
• Efficient remote device management without a monitor.

Kiosk & Store OA

Kiosk & Store OA - Advantages • Dual COM ports with RS-232/422/485 support with easy driver setup.
• Dual LAN with one 2.5 GbE port.
• Designed to operate at up to 50° C ambient temperature.
• Compact metal chassis offers versatile mounting options to suit various needs.
• Reliable fanless design.

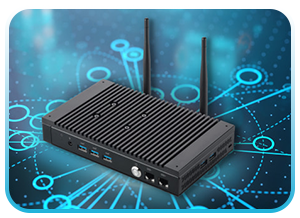

IoT Control Unit

IoT Control Unit - Advantages • Powerful computing performance with up to 12th Gen Intel® Core™ i7 processors (15 W).
• Reliable fanless design.
• Virtual display: Remote management for headless systems.
• Dual LAN ports with one 2.5 GbE LAN.
• WiFi 6E for stable, high-speed data transfers.
• Stringently tested to ensure 24/7 reliability.
• Versatile mounting options to suit various needs.

Powerful Computing Performance

Intel Core

Intel Core i3-1215UASUS Mini PC PL64 is powered by 12th Generation Intel® Core™ Processors featuring a new hybrid processor design. This new core design enables PL64 to process multiple tasks simultaneously in the most efficient way possible.

With the whole new design CPU, PL64 can deliver superior performance for you to you process intensive business operations more efficiently.

2Performance Cores

4Efficient Cores

8Total Threads

4.40 GHzMax Turbo Frequency

Reliable. Durable. Silent.

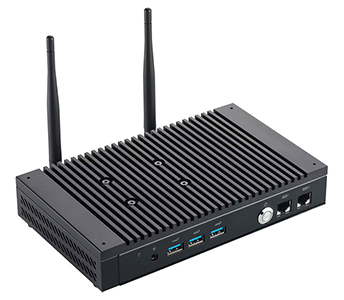

Fanless Chassis

Fanless Chassis Design with TDP 15W SupportASUS Mini PC PL64 employs a new fanless design that lowers operational noise and minimises dust ingress into the chassis, prolonging product life. The fanless design and 15-watt CPU support make PL64 ideal for industrial applications where reliability, durability, and low noise are paramount.

Cooling Design

Optimised Cooling DesignThe cooling system of Mini PC PL64 is connected to a heatsink for efficient heat dissipation to ensure optimal performance even when deployed in hot environments reaching up to 50° C.

Advanced Output Management

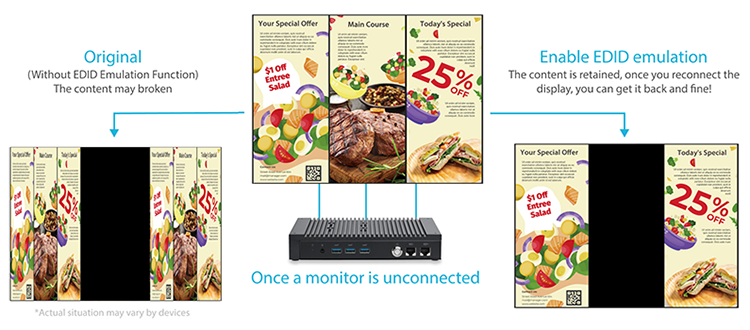

EDID EmulationMini PC PL64 features Extended Display Identification Data (EDID) emulation and retains signage format so content being displayed remains unaffected even in the event of a temporary loss of power or connectivity issues, making it ideal for digital signage.

EDID Emulation

Compact Size with Metal Chassis

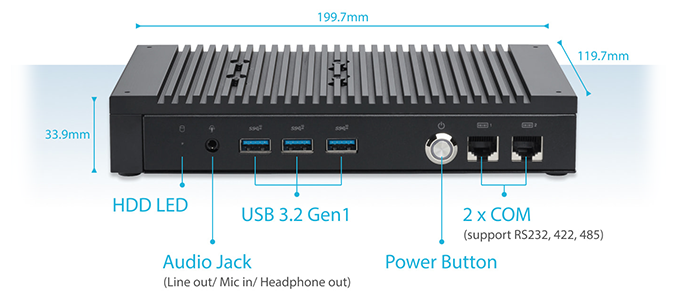

A Variety of Connectivity OptionsASUS Mini PC PL64 measuring just 199.7 x 119.7 x 33.9mm size and 0.81 litre chassis. The compact size makes PL64 suitable for digital signage, kiosk or any other space-constraint environments. Its metal chassis also makes PL64 more durable and perfect for industrial scenarios.

Front

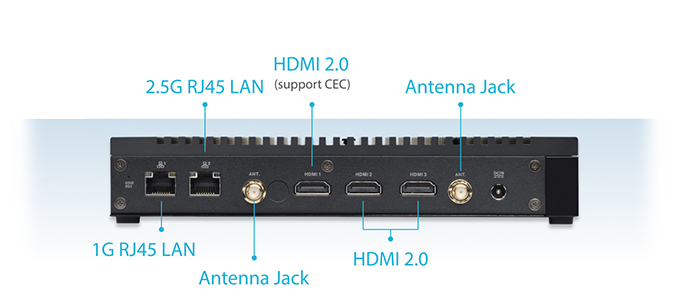

Rear

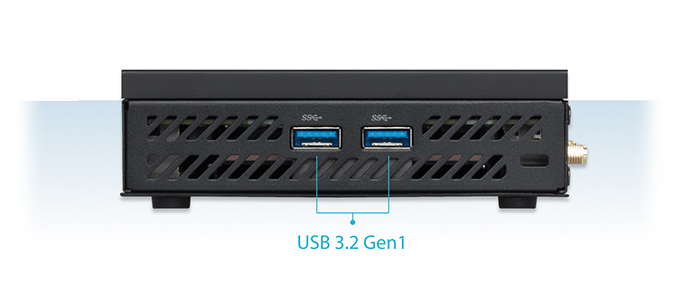

Side
Specifications
Edition PL64-B-S3066MN
Form Factor mini PC
CPU Included Yes
CPU Type Intel Core i3
CPU Model 1215U
Architecture Alder Lake 12th Gen
Manufacturing Process
Unlocked CPU No
Core 6 Core
No. of Threads 8
Clock Speed N/A
Burst Frequency 4.4 GHz
CPU Cache 10MB
CPU Cooler
Max. TDP
CPU Socket N/A
Chipset N/A
Motherboard Form Factor
Motherboard Model
Memory Type DDR4 SO-DIMM
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz)
  • DDR4 - 3200
  • DDR5 - 4800
Max. Memory Capacity 64GB (2x32GB)
On-board/Integrated Graphics Yes
Processor/Motherboard Graphics Chip N/A
Discrete GPU No
Discrete GPU Chipset Intel UHD Graphics
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface N/A
Expansion Slots 2 x M.2, 22-80, PCIe Gen4x4
SATA SATA3
HDD Storage Included No
HDD Storage Type
HDD Storage Capacity N/A
SSD Storage Included No
SSD Storage Type
SSD Storage Capacity
Optical Drive None
Drive Bays N/A
Backplane I/O
RAID Support
Internal I/O N/A
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x 802.11ax WiFi 6E + BT5.3
  • 1 x Intel (2.5GbE LAN)
  • 1 x Intel (Gigabit LAN)
Front Panel
  • 2 x COM Port (RS232/422/485) via RJ45
  • 1 x Headphone/Mic Combo
  • 1 x Kensington Lock Slot
  • 5 x USB 3.2 Gen1 Type-A
Back Panel
  • 1 x 10/100/1000 (LAN)
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x DC-In Jack
  • 3 x HDMI 2.0
  • 2 x WiFi Antenna connectors
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable Please Check Manufacturer
PSU Wattage 65 W
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System O/S Not Included - Please Buy Separately
Colour Black
Dimensions 199.7 x 33.9 x 119.7 (mm WxHxD)
Weight 1.04 kg
Includes
  • 1 x Barebone Server
  • 1 x UK Power Cable
Notes
