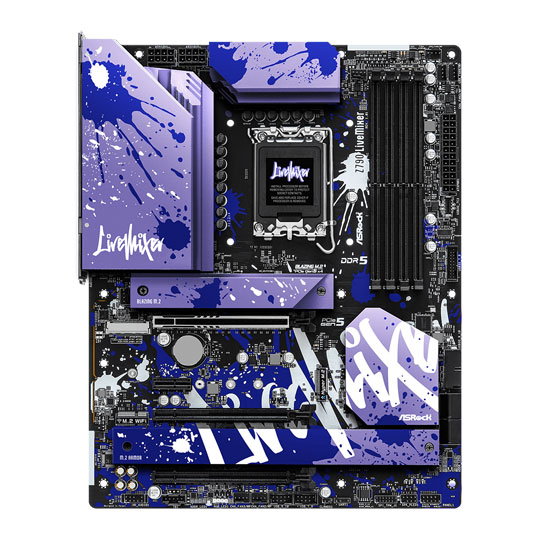

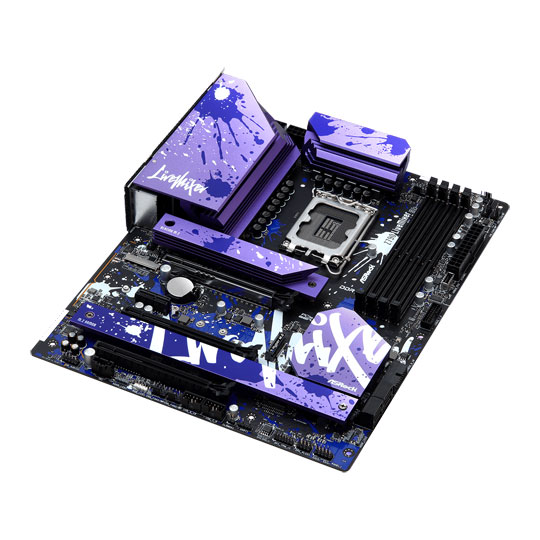

ASRock Intel Z790 LIVEMIXER DDR5 PCIe 5.0 DDR5 ATX Motherboard

ASRock Z790 LIVEMIXER, Intel Z790, S 1700, DDR5, SATA3, PCIe 5.0, 5x M.2, 2.5GbE, USB 3.2 Gen2, ATX

Thumbnail 1 : ASRock Intel Z790 LIVEMIXER DDR5 PCIe 5.0 DDR5 ATX Motherboard Thumbnail 2 : ASRock Intel Z790 LIVEMIXER DDR5 PCIe 5.0 DDR5 ATX Motherboard Thumbnail 3 : ASRock Intel Z790 LIVEMIXER DDR5 PCIe 5.0 DDR5 ATX Motherboard Thumbnail 4 : ASRock Intel Z790 LIVEMIXER DDR5 PCIe 5.0 DDR5 ATX Motherboard
Scan code: LN129526 Manufacturer code: 90-MXBK10-A0UAYZ
Order in the next 1 hr 47 mins and get it tomorrow
£264.98
Get it Tomorrow, 14 JunIn stock
From £12.94 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £24.01
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £264.98
Total inc. interest: £288.07
Monthly Payment: £12.94
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £264.98
Total inc. interest: £310.49
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 14th Jun to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

ASRock Z790 LiveMixer LGA1700 ATX Motherboard

ASRock Livemixer motherboard

Oozing with Urban StyleCrafted through the current-generation of content creators the Z790 LiveMixer is a wonder to behold. Built to squeeze the most from the incredible 12th and 13th generation intel processors. With a robust 14+1+1 power phase design, DDR5 memory support, PCIe 5.0 technology, the capability to house a total 5x M.2 storage drives (1x Pcie 5x4, 4x PCIe 4x4), 2.5GbE LAN and USB Type-C technology, the LiveMixer is ram packed with superb connectivity options for content creators to plug and play all of their auxillary and streaming devices making this motherboard perfect for daily enthusiasts, gamers, creators and those looking to build something beautiful. Do more with ASRock.

Intel Z790Chipset

LGA 1700CPU Socket

12th/13th Gen Intel® Core™ ProcessorsCompatible CPU

ATXForm Factor

Enhanced Performance & Unmatched Overclocking Capabilities

Robust Power Design

14+1+1 Power Phase DesignFeaturing sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

Embrace The Latest Generation

5x m.2 slots

Blazing M.2[PCIe Gen5 x4]Accommodates the latest PCI Express 5.0 standard and is able to perform at upto twice the bandwidth when compared to previous generation, with a breathtaking 128Gb/s transfer speed.

Push Performance To All-New Heights

PCIE 5.0 SMT

PCIe 5.0 + Surface-Mount TechCompared to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximise stability under high speeds, a key breakthrough to fully support the lightning speeds of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable of perform up to a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

Create Until Your Hearts Content

Dual PCIe x4 slots for AIC and TB

Dual PCIe x4 Slots & Thunderbolt HeaderProvides great connectivity for the use of capture card and Thunderbolt AIC at the same time.

Optimise Your User Experience

DDR5 support

DDR5 MemorySupport for the latest DDR5 Memory with a maximum 128GB capacity.

23 USB Ports

23 USB PortsEnjoy unprecedented connectivity with a whopping 23 USB ports, connect all of your devices with ease.

Dragon 2.5G LAN

Dragon 2.5G LANExperience high speed LAN that fulfils the requirements of content creators and high-quality streaming media.

Polychrome Sync

Polychrome SyncAllows users to control and synchronise their RGB LED devices and create they're own unique lighting effects.

Nahmic Audio

Nahmic AudioLet your ears experience sound like they deserve, with an engaging listening experience thats rich with detail and vibrancy.

Auto Driver Installer

Auto driver InstallerInstall your necessary drivers with ease.

Specifications
Core Specifications
Edition Z790 LiveMixer
Form Factor ATX
CPU Socket 1700
Chipset Intel Z790
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR5 - 6800(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • eDP
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4
  • 3 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x M.2, 22-60/80, PCIe Gen5x4
  • 1 x M.2, A-E Key, 22-30, PCIe, for WiFi+BT Card
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable Digital RGB Header
  • 5 x Chassis Water Pump/Fan Connector
  • 1 x CPU Water Pump/Fan Connector
  • 1 x eDP
  • 1 x Front Panel Audio Header
  • 1 x Power LED / Speaker Header
  • 1 x RGB LED connector
  • 1 x Thunderbolt AIC Connector (5-pin)
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN
Network Chip/Modules 1 x 2.5 Gigabit LAN
Rear I/O Connectors
  • 1 x DisplayPort 1.4
  • 1 x HDMI
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 6 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 2 x USB 3.2 Gen2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 240 mm
Note
Additional Information
Scan Code LN129526
Model Number 90-MXBK10-A0UAYZ
GTIN 4710483940897
