ASRock Z690M Phantom Gaming 4 DDR4 12th Gen Intel Micro-ATX Motherboard

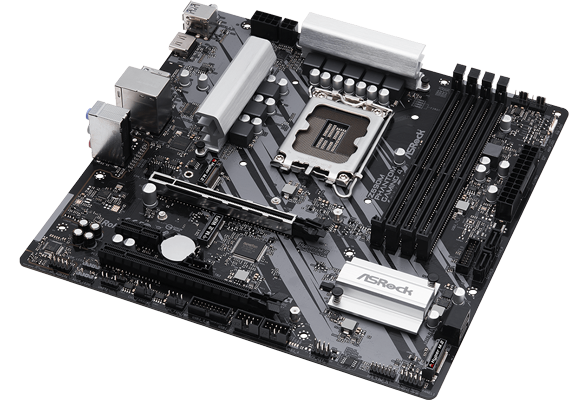

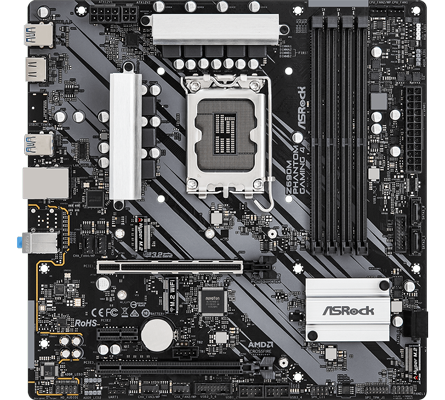

ASRock Z690M Phantom Gaming 4 motherboard

Performance in a Smaller Form The ASRock Z690M Phantom Gaming 4 is here to herald the arrival of the new 12th generation Intel core processors; Phantom Gaming is designed by gamers for gamers! Underneath its relentless appearance lies plenty gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers! The Z690M Phantom Gaming 4 boasts a 7 phase DR MOS power design, supports DDR4 4800MHz (OC) memory, PCIe 4.0 technology, incredible storage support with 2x Gen4x4 m.2, Intel gigabit LAN, 1x m.2 key-E for WiFi, HD audio. Plus with Polychrome RGB support you can utilise onboard ARGB and RGB headers to sync compatible LED illuminated devices together to create your own lighting ecosystem. Perfect for gaming enthusiasts and daily users alike Welcome the Z690M Phantom Gaming 4.

Intel Z690Chipset

LGA 1700CPU Socket

12th Generation IntelCompatible CPUs

M-ATXForm Factor

Heavily Optimised VRM Design

Optimised VRM Design

Dr. MOSDr.MOS is the integrated power stage solution which is optimised for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

7 Power Phase DesignFeaturing sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with low temperature thresholds for advanced gamers as well.

Maximise Your Storage Capabilities

4K Recording

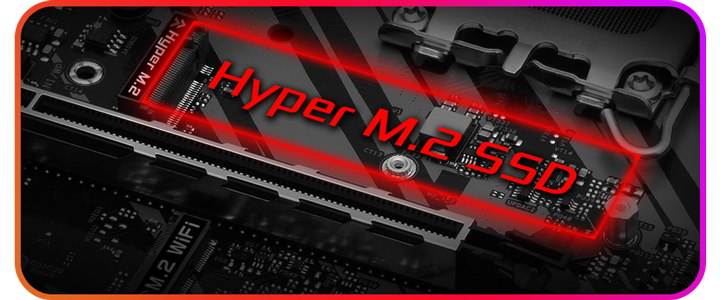

Pcie gen4 x4 for SSDThis motherboard is capable of accommodating multiple PCIe Gen4 M.2 storage devices, capable of performing at twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Surround yourself in Stunning Sound

4K Recording

Nahimic AudioWhether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Create a Beautiful Ecosystem

4K Recording

Polychrome RGB Sync SupportThis motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronise RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Specifications
Core Specifications
Edition Z690M Phantom Gaming 4
Form Factor MicroATX
CPU Socket 1700
Chipset Intel Z690
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U)
Memory Speed (Mhz)
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 4600+(OC)
  • DDR4 - 4800(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 1 x M.2, 22-42/80, PCIe
  • 1 x M.2, 22-80, PCIe Gen4x4/SATA3
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x4
  • 2 x PCIe 4.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via Intel® SATA RAID 0/1/10/5
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 4 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 5 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 3 x Addressable Digital RGB Header
  • 1 x Chassis Intrusion/Speaker Header
  • 1 x Front Panel Audio Header
  • 2 x RGB Header
  • 1 x Thunderbolt AIC Connector (5-pin)
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
Note
Additional Information
Scan Code LN121058
Model Number 90-MXBHJ0-A0UAYZ
GTIN 4710483935992
