Scan code: LN121060 Manufacturer code: Z690 Phantom Gaming-ITX/TB4 DDR5

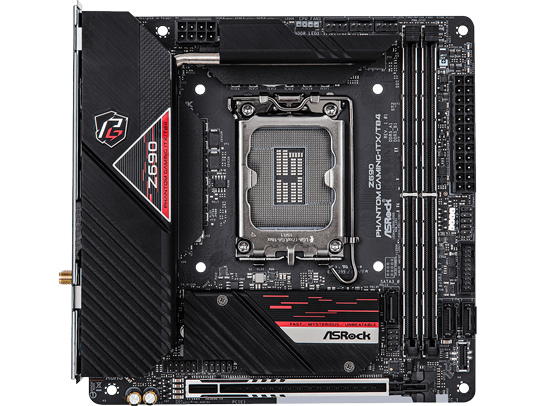

ASRock Intel Z690 Phantom Gaming-ITX/TB4 PCIe 5.0 Mini-ITX Motherboard

ASRock Z690 Phantom Gaming-ITX/TB4, Intel Z690, S 1700, DDR5, PCIe 5.0, SATA3, M.2, 2.5GbE, ax WiFi/BT, Mini-ITX

Thumbnail 1 : ASRock Intel Z690 Phantom Gaming-ITX/TB4 PCIe 5.0 Mini-ITX Motherboard Thumbnail 2 : ASRock Intel Z690 Phantom Gaming-ITX/TB4 PCIe 5.0 Mini-ITX Motherboard Thumbnail 3 : ASRock Intel Z690 Phantom Gaming-ITX/TB4 PCIe 5.0 Mini-ITX Motherboard Thumbnail 4 : ASRock Intel Z690 Phantom Gaming-ITX/TB4 PCIe 5.0 Mini-ITX Motherboard
Scan code: LN121060 Manufacturer code: Z690 Phantom Gaming-ITX/TB4 DDR5
£339.98Item due today
Due today
From £14.17 / month (APR 0%) or 0% for 4 months
Monthly Payment: £28.34
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £339.98
Total inc. interest: £339.98
Monthly Payment: £14.17
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £339.98
Total inc. interest: £339.98
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £8.49 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

ASRock Z690 Phantom Gaming Intel 12th Gen DDR5 ITX/TB4 Motherboard

ASRock Z690 Phantom Gaming ITX/TB4 Motherboard

GAMING DESIGN, RELOADED. Introducing the new Z690 series of motherboards from ASRock. The Z690 Phantom Gaming ITX/TB4 motherboard supports 12th Generation Intel® Core™ processors. Experience a powerful performance, DDR5 memory and protection circuit design, while the DIY-friendly design makes installation seamless. Aimed for die hard gamers and enthusiasts. Lightning Gaming Ports, Killer WiFi 6E assists gamers in connecting with lower latency! The innovative design of the Z690 Phantom Gaming ITX has built-in RGB headers, users can customize and synchronize RGB LED devices with Polychrome RGB Sync-certified accessories. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.

Please note: This motherboard is compatible with Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors.
*Supports Intel® Hybrid Technology.
**Supports Intel® Turbo Boost Max 3.0 Technology.

Intel® Z690Chipset

LGA 1700CPU Socket

12th Gen Intel®Compatible Processors

ITX/TB4Form Factor

Optimized VRM Design

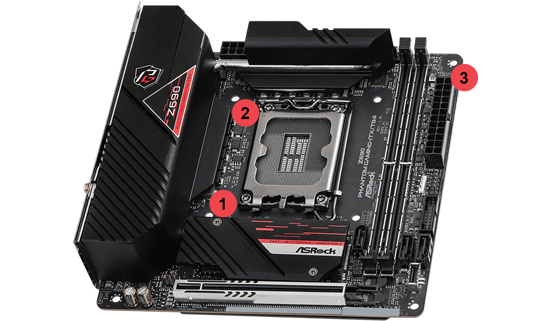

Breakdown

Supports the latest memory modules Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability. The 10 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking!

1. SPS (Smart Power Stage)
2. 11 Power Phase Design
3. 10 Layer PCB

DDR5 Memory with Protection Circuit

features

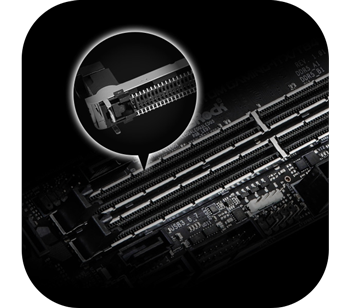

Reinforced DIMM SlotThe reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal, with this superior revolutionary design, it is able to dramatically overclock DRAM module up to insane frequency.

features

DIY Friendly DesignDue to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.

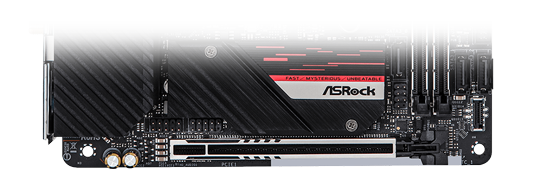

How Sound is Meant to be Heard

Audio

Incredible Nahimic Audio Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Superb Connectivity

features

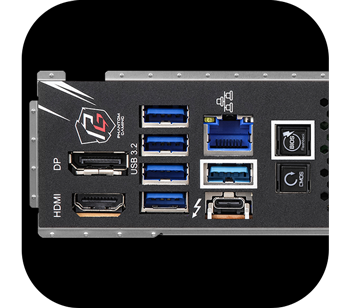

Abundant USBThis motherboard has four onboard Type-A USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

features

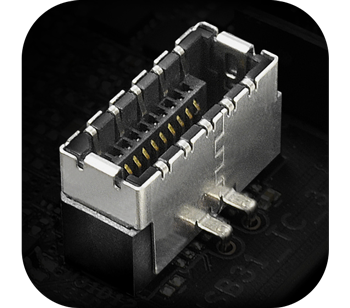

Front USB 3.2 Gen2x2 Type-CThe latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

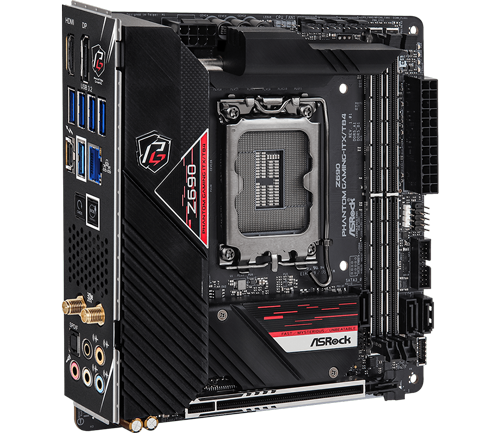

Polychrome RGB Illumination

RGB

Light up your rig This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters. *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

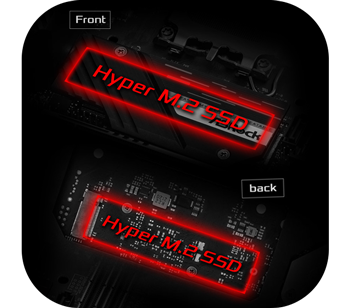

High Speed M.2 Solution

m2

PCIe Gen4 x4 for SSD This motherboard is capable of accommodating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

PCIe 5.0 and Surface-Mount Tech

pcie

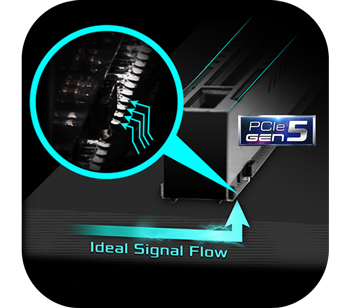

Breathtaking bandwidth Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.

The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

Killer Networking Gives you the Speed

network

Reliable Killer DoubleShot Pro This motherboard comes with both Killer E3100 2.5G Ethernet & WiFi 6E solution, the enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications.
Killer DoubleShot Pro allows the use of both the Killer Wireless and Killer Ethernet interfaces work at the same time which will give the max throughput as high as 4.9 Gbps, it automatically utilizes the fastest network connection for high priority traffic, that will always be put on the fastest and most reliable link.

Super-Fast Thunderbolt™ Technology

features

Thunderbolt™ 4/USB4 Type-CThe technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt™, and USB devices with a single Thunderbolt 4 cable.

features

Fast Charging TechnologyEnjoy the superfast charging rate, up to [email protected] 27W with the next generation PD 3.0.
*Actual charging rate may differ between devices.

Specifications
Core Specifications
Edition Z690 Phantom Gaming-ITX/TB4
Form Factor Mini-ITX
CPU Socket 1700
Chipset Intel Z690
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz)
  • DDR4 - 4266+(OC)
  • DDR4 - 4600+(OC)
  • DDR4 - 5066(OC)
Max. Memory Capacity 64GB (2x32GB)
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
  • Thunderbolt 4
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Occupied by Wi-Fi Module)
  • 1 x M.2 Key E Vertical (Supports WiFi Modules)
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x M.2, 22-80, SATA
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via Intel® SATA RAID 0/1/10/5
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Addressable Digital RGB Header
  • 1 x Chassis Intrusion/Speaker Header
  • 2 x CPU Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x RGB LED connector
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x Intel® I219V (Gigabit LAN)
  • 1 x Intel®Wi-Fi 6E AX210 + BT5.2
  • 1 x Killer E3100G (2.5GbE LAN)
Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x Clear CMOS Button
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 1 x Thunderbolt 4
  • 1 x USB 2.0
  • 1 x USB 3.2 Gen1 Type-C
  • 4 x USB 3.2 Gen2 Type-A
  • 1 x WiFi 802.11ax 6E / Bluetooth 5.2
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 170 x 170 mm
Note
Additional Information
Scan Code LN121060
Model Number Z690 Phantom Gaming-ITX/TB4 DDR5
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
