ASRock Intel Z690 Phantom Gaming 4 ATX Motherboard
ASRock Z690 Phantom Gaming 4, Intel Z690, S 1700, DDR5, SATA3, PCIe 5.0, 3x M.2, GbE, USB 3.2 Gen2x2, ATX
|Instalment Rate:||5.9% p.a. (fixed)|
|Cost of purchase:||£189.98|
|Total inc. interest:||£195.96|
|Cost of purchase:||£99|
|Total inc. interest:||£99|
Purchase Rate: 21.9% p.a. (variable)
Representative: 21.9% APR (variable)
Assumed Credit Limit: £1,200Subject to status. Terms and Conditions apply.
By DPD On 19th May
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

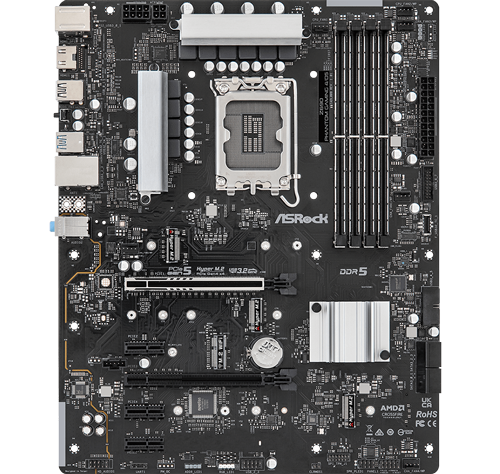

ASRock Z690 Phantom Gaming 4 Intel 12th Gen ATX Motherboard
Fast. Mysterious. Unbeatable. Introducing the new Z690 series of motherboards from ASRock. The Z690 Phantom Gaming 4/D5 motherboard supports 12th Generation Intel® Core™ processors. Experience a powerful performance, DDR5 memory and protection circuit design, while the DIY-friendly design makes installation seamless. The innovative design of the Z690 Phantom Gaming 4/D5 has built-in RGB headers, users can customize and synchronize RGB LED devices with Polychrome RGB Sync-certified accessories. Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers.
Please note: This motherboard is compatible with Intel® Socket LGA1700 for 12th Gen Intel® Core™ Processors.
*Supports Intel® Hybrid Technology.
**Supports Intel® Turbo Boost Max 3.0 Technology.

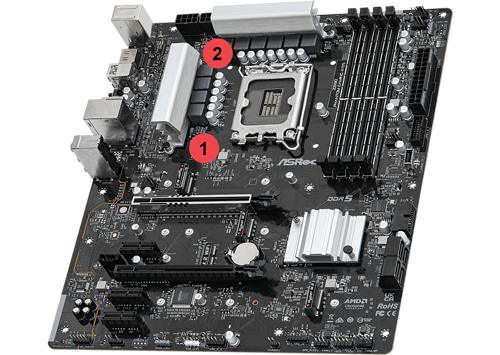

Optimized VRM Design
Supports the latest memory modules Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
2. 9 Power Phase Design

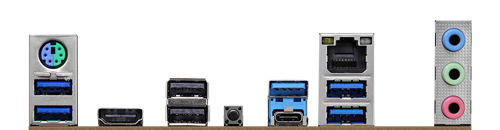

Convenient Backup Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.
DDR5 Memory with Protection Circuit
Reinforced DIMM SlotThe reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal, with this superior revolutionary design, it is able to dramatically overclock DRAM module up to insane frequency.
DIY Friendly DesignDue to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.

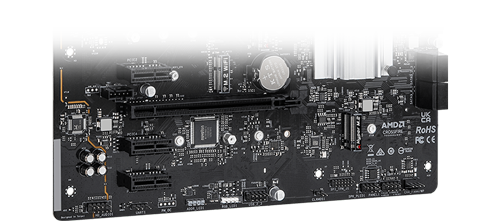

How Sound is Meant to be Heard
Incredible Nahimic Audio Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.CLICK HERE TO FIND OUT MORE >

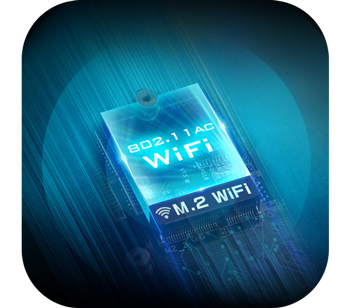

M.2 KEY E for WIFiBesides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.
Front USB 3.2 Gen2x2 Type-CThe latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
Polychrome RGB Illumination
Light up your rig

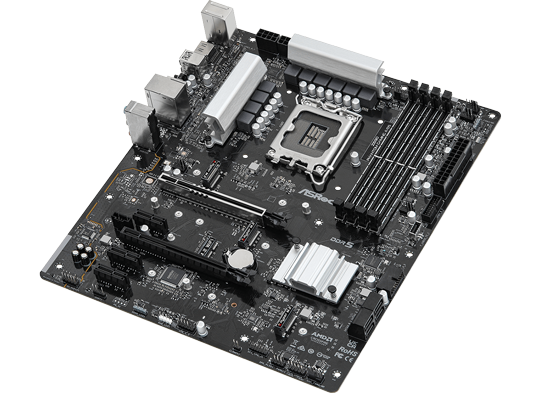

This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters. *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

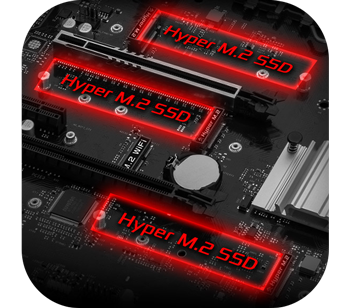

High Speed M.2 Solution
PCIe 4.0 for SSD This motherboard is capable of accommodating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
PCIe 5.0 and Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
|Edition||Z690 Phantom Gaming 4/D5|
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)|
|Memory Type (R/U)|
|Memory Speed (Mhz)||DDR5 - 5800(OC)|
|Max. Memory Capacity||128GB (4x32GB)|
|Audio||Realtek ALC897 7.1 HD Audio|
|Primary GPU Interface||PCIe 5.0 (x16)|
|NVIDIA SLI Support||N/A|
|AMD CrossFire Support||Supported|
|Integrated Graphics||Requires Processor Graphics or Discrete GPU|
|On-Board Graphics Connectors||HDMI 2.1|
|RAID Support via||Intel® SATA RAID 0/1/10/5|
|Storage Mode Support||
|Network Interface Type||Wired Gigabit LAN (10/100/1000)|
|Network Chip/Modules||1 x Intel® I219V (Gigabit LAN)|
|Rear I/O Connectors||
|Board Dimensions||305 x 244 mm|
