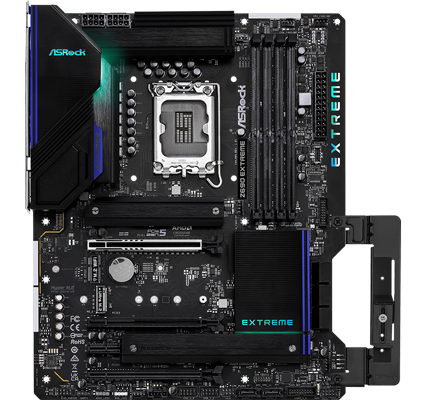

ASRock Intel Z690 Extreme ATX Motherboard

ASRock Z690 Extreme, Intel Z690, S 1700, DDR4, SATA3, PCIe 5.0, 3x M.2, 2.5GbE, USB 3.2 Gen2x2, ATX

Thumbnail 1 : ASRock Intel Z690 Extreme ATX Motherboard Thumbnail 2 : ASRock Intel Z690 Extreme ATX Motherboard Thumbnail 3 : ASRock Intel Z690 Extreme ATX Motherboard Thumbnail 4 : ASRock Intel Z690 Extreme ATX Motherboard
Scan code: LN121047 Manufacturer code: 90-MXBHN0-A0UAYZ
£259.99
Order now and get it tomorrow, Tue 7th Dec
From £10.84 / month (APR 0%) or 0% for 4 months
Monthly Payment: £21.67
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £259.99
Total inc. interest: £259.99
Monthly Payment: £10.84
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £259.99
Total inc. interest: £259.99
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 7th Dec to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

ASRock Z690 Extreme DDR4 12th Gen Intel ATX Motherboard

ASRock Z690

Intelligent Design, Promising Performance The ASRock Z690 Extreme is here to herald the arrival of the new 12th generation Intel core processors; with a new generation comes new performance thresholds and ASrock aren't shy when it comes to implementing new technologies. The Z690 Extreme boasts a 13 phase SPS power design, supports DDR4 5000 MHz (OC) memory, PCIe 5.0, incredible storage support with 2x Gen4x4 m.2 + 1x Gen3x4 m.2, Dragon 2.5G LAN, Type-C connectivity, HD audio and even includes the ASRock graphics card holder to reduce sag and protects both your GPU and slot. Plus with Polychrome RGB support you can control the built-in RGB illumination as well as syncing compatible LED illuminated devices together to create your own beautiful lighting ecosystem using the onboard RGB and ARGB headers. Perfect for daily users and enthusiasts alike Welcome the Z690 Extreme.

Intel Z690Chipset

LGA 1700CPU Socket

12th Generation IntelCompatible CPUs

ATXForm Factor

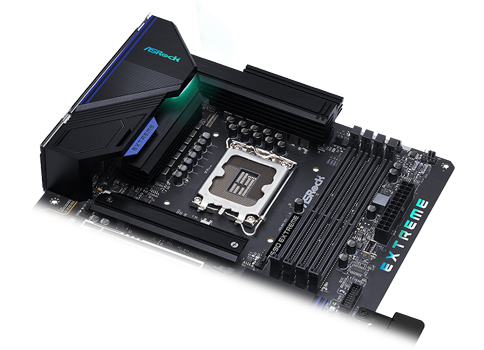

Maximum Power Through Stable Delivery

SPS (Smart Power Stage)The Dr.MOS power design features the latest SPS (Smart Power Stage) technology. It’s optimised for monitoring the current and temperatures of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

13 Power Phase DesignFeaturing sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

4K Recording

Six Layer PCBThe 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!

2OZ Copper PCB2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

The Latest Generation

4K Recording

PCIe 5.0 + Surface-Mount TechCompares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

Maximise Your Storage Capabilities

4K Recording

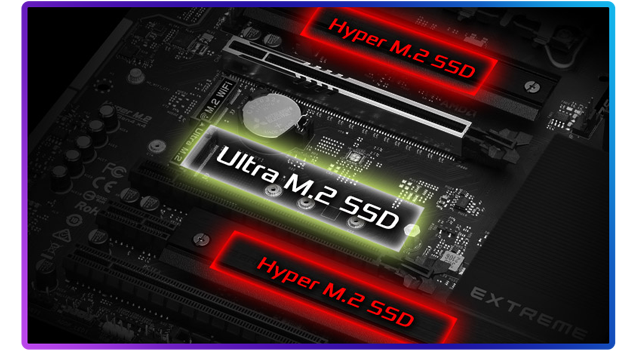

Pcie gen4 x4 for SSDThis motherboard is capable of accommodating multiple M.2 storage devices, two of which can support PCI Express 4.0 M.2 SSD, capable of performing at twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Stay Connected with Ease

4K Recording

Dragon 2.5 Gb/s LANThe intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

The Finest Connectivity Performance

back

Intel® LANIntel® LAN provides the best throughput performance, lower CPU utilisation, enhanced stability and is able to deliver ultimate network experience to users!

Surround yourself in Stunning Sound

4K Recording

Nahimic AudioWhether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Create a Beautiful Ecosystem

4K Recording

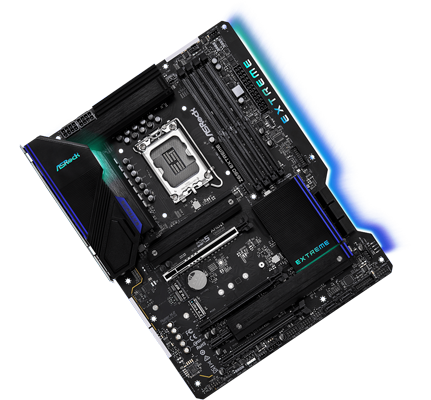

Polychrome RGB Sync SupportIn addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allows the motherboard to be connected to compatible LED devices such as strips, CPU fans, coolers, chassis and so on. Users may also synchronise RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Specifications
Core Specifications
Edition EXTREME
Form Factor ATX
CPU Socket 1700
Chipset Intel Z690
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
Max. Memory Capacity
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 1 x M.2, 22-30/42/60/80, PCIe Gen3/SATA
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 1 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x PCIe 3.0 x1
  • 3 x PCIe 5.0 x16
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10 (SATA only)
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 8-pin (Power)
  • 3 x Addressable Digital RGB Header
  • 5 x Chassis Water Pump/Fan Connector
  • 1 x CPU Fan Connector
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Power LED / Speaker Header
  • 1 x RGB LED connector
  • 1 x Thunderbolt AIC Connector (5-pin)
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2x2 Connector
External Connectivity
Network Interface Type
  • Wired 2.5 Gigabit LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
Rear I/O Connectors
  • 2 x Antenna Ports
  • 1 x Bass Speaker Out
  • 1 x BIOS Flashback Button
  • 1 x Central Speaker Out
  • 1 x DisplayPort 1.4
  • 1 x Front Speaker Out
  • 1 x HDMI 2.1
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 2 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN121047
Model Number 90-MXBHN0-A0UAYZ
GTIN 4710483936067
