New
Scan code: LN121053 Manufacturer code: Z690 AQUA DDR5

ASRock Z690 AQUA PCIe 5.0 E-ATX Motherboard

ASRock Z690 AQUA, Intel Z690, S 1700, DDR5, SATA3, PCIe 5.0, 3x M.2, 10GbE, WiFi ax, USB 3.2 Gen2, E-ATX

Thumbnail 1 : ASRock Z690 AQUA PCIe 5.0 E-ATX Motherboard Thumbnail 2 : ASRock Z690 AQUA PCIe 5.0 E-ATX Motherboard Thumbnail 3 : ASRock Z690 AQUA PCIe 5.0 E-ATX Motherboard Thumbnail 4 : ASRock Z690 AQUA PCIe 5.0 E-ATX Motherboard
Scan code: LN121053 Manufacturer code: Z690 AQUA DDR5
Order now and get it tomorrow, Thu 19th May
£1,199.99
Get it Tomorrow, 19 MayIn stock
From £28.05 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £103.14
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £1,199.99
Total inc. interest: £1,237.66
Monthly Payment: £53.05
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £1,199.99
Total inc. interest: £1,273.10
Monthly Payment: £36.37
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £1,199.99
Total inc. interest: £1,309.27
Monthly Payment: £28.05
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £1,199.99
Total inc. interest: £1,346.00
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £29.97 / month (APR 15.9%)
Delivery Options
  • By DPD On 19th May to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

ASRock Z690 DDR5 AQUA Intel 12th Generation ATX Motherboard

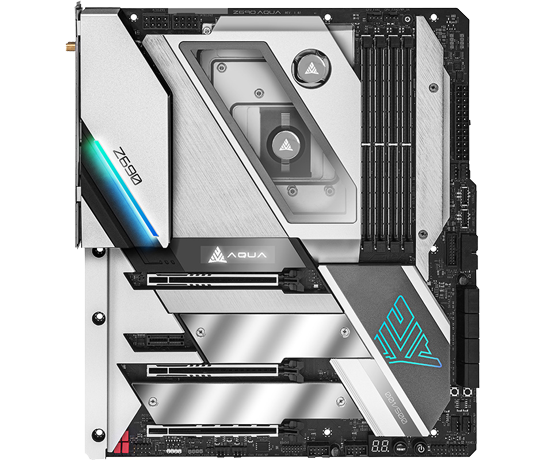

ASRock Z690 AQUA ATX Motherboard

BE AQUA, BE COOL! Introducing the new Z690 series of ATX motherboards from ASRock. The COOLEST flagship motherboard, ASRock AQUA, stands out for its incredible performance and premium specification. The Z690 AQUA motherboard supports 12th Generation Intel® Core™ processors. Experience a powerful performance, support for DDR5 memory, while the DIY-friendly design makes installation seamless. Z690 AQUA is built around a selection of materials, the stainless steel panels are given assortment of surface treatments to give Z690 AQUA a modern and avant-garde appearance, onboard LED effect is intentionally design to be modest and subtle, once again making Z690 AQUA one boutique of a motherboard.

Please note: This motherboard is compatible with Intel® Socket LGA1700 for 12th Gen Intel® Core™ Processors.
*Supports Intel® Hybrid Technology.
**Supports Intel® Turbo Boost Max 3.0 Technology.
***Supports ASRock Hyper BCLK Engine V.

Intel Z690Chipset

LGA 1700CPU Socket

12th Generation IntelCompatible Processors

ATXForm Factor

-

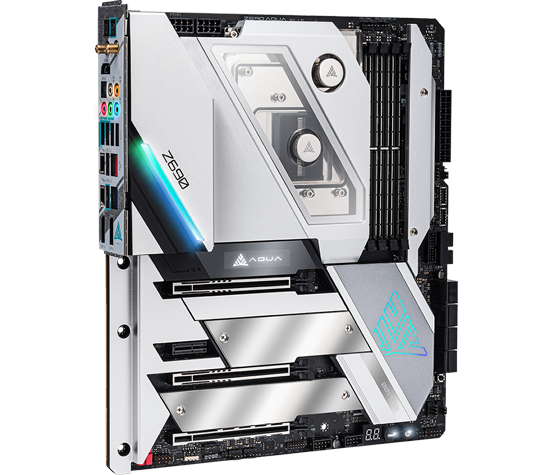

Optimized VRM Design

Breakdown

Supports the latest memory modules Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. SPS (SMART POWER STAGE) is a new power solution with fully optimized integrated MOSFETs with advanced driver IC, current sensors and temperature sensors, which provides current monitoring and more stable current for extreme overclocking.

1. Supports 12th Generation Intel® Core™ Processors
2. 20 Power Phase Design with 105A SPS
3. DDR5 6400MHz (OC) DIMM slots
4. AQUA Cooling Solution / XXL Aluminium Alloy Heatsink
5. 12 Layers Server-Grade Low-Loss PCB
6. Status OLED + Polychrome SYNC

Expansion Slots: 2x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
Hyper M.2 (PCIe Gen4 x4) / Hyper M.2 (PCIe Gen4 x4 & SATA3) / 8 SATA3
Networking: AQUANTIA / Marvell 10G LAN, Killer 2.5G LAN, Wi-Fi 6E

DDR5 Memory with Protection Circuit

features

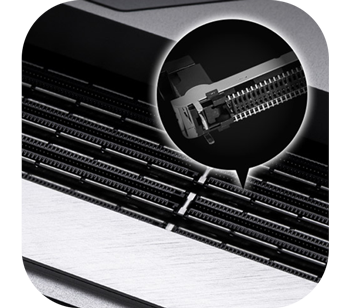

Reinforced DIMM SlotThe reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal, with this superior revolutionary design, it is able to dramatically overclock DRAM module up to insane frequency.

features

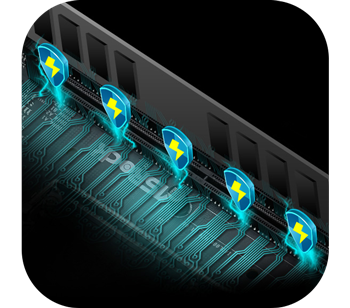

DIY Friendly DesignDue to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.

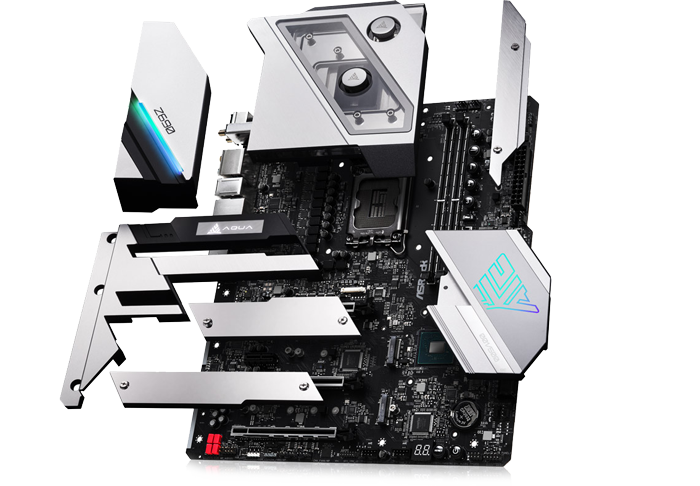

AQUA Cooling Armour

io

Water Block and Stunning RGB water passage Elegant but functional is the main aspect of this unique motherboard, the custom AQUA water cooling block is designed to dissipate the heat of the CPU, VRM as efficiently as possible, it also dazzles with sophisticated but eye-catching RGB LED lighting effects design that brightens the water passage to give a more classy look.

Water Leaking Detector The water leaking detector features a digital pressure gauge and air pump, and offers a fast and safe way to test whether there is leakage in your water cooling system. Before filling with water, just install the digital leak detector into your water cooling system, pressurize the system with an air pump, and keep the system in a closed state. If the pressure is kept constant, there is no leakage.

* AQUA OC Edition pictured.

How Sound is Meant to be Heard

Audio Audio

Incredible Nahimic Audio Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. Embrace the audio stunning performance with ESS 9218 SABRE DAC & WIMA Audio caps.

High Performance Design

features

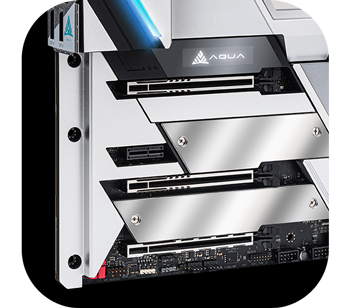

PCIe 5.0 with Surface-Mount Tech Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

features

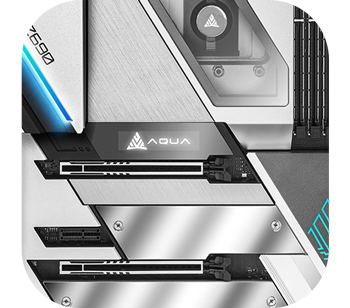

Designed to be user friendlyAn OLED display was added to give a cleaner and informative way to express the status of the motherboard, the content can also be configured in the BIOS for more user friendly application.

Killer Networking

network

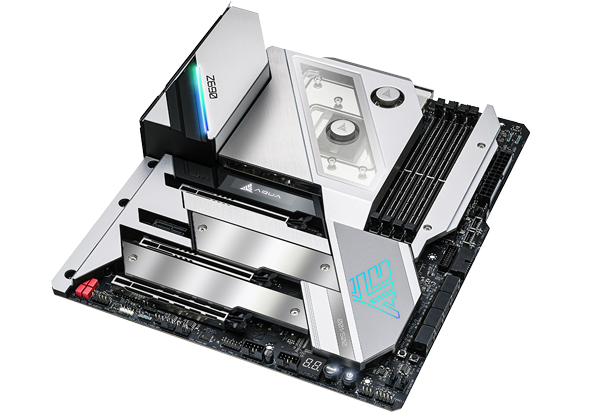

KILLER E3100 + AX1675 The Killer Ethernet controller is designed specifically for competitive gamers and performance-hungry users, this motherboard comes with both Killer E3100 2.5G Ethernet & WiFi 6E solution, the enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications.

Superb Connectivity and Lightning Gaming Ports

io

with Built-in I/O Armour The latest Thunderbolt™ 4/USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt™, and USB devices with a single Thunderbolt 4 cable. The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

Specifications
Core Specifications
Edition Z690 AQUA
Form Factor E-ATX
CPU Socket 1700
Chipset Intel Z690
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR5 - 6400+(OC)
Max. Memory Capacity 128GB
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA3
  • 1 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x M.2, 22-60/80, PCIe Gen4x4/SATA
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 2 x PCIe 5.0 x16
SATA Support N/A
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable Digital RGB Header
  • 6 x Chassis Water Pump/Fan Connector
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Dr. Debug with LED
  • 1 x Front Panel Audio Header
  • 1 x Power Button with LED
  • 1 x Power LED / Speaker Header
  • 1 x ReTry Button
  • 1 x RGB Header
  • 1 x Safe Boot Button
  • 8 x SATA III - 6Gb/s
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 2 x USB 3.2 Gen2x2 Connector
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 10G LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5
  • 1 x Killer E3100G (2.5GbE LAN)
  • 1 x Marvell AQtion AQC113CS 10GbE

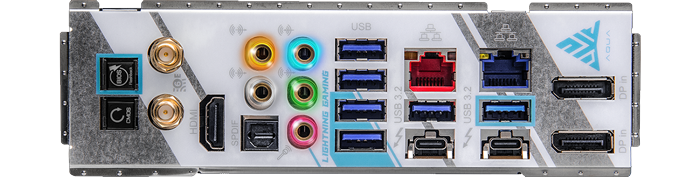

Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Clear CMOS Button
  • 2 x DisplayPort 1.4
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 2 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x Thunderbolt 4
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 267 mm
Note
Additional Information
Scan Code LN121053
Model Number Z690 AQUA DDR5
GTIN 4710483936760
