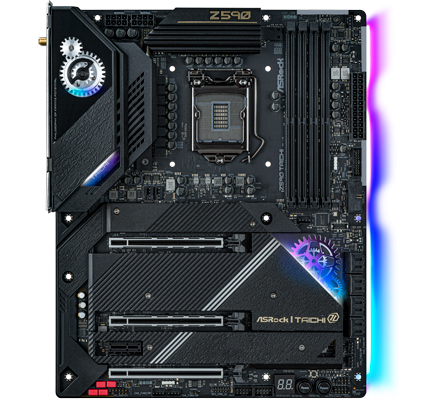

ASRock Z590 Taichi Intel 11th Gen Series ATX Motherboard

ASRock z590 Taichi Intel 11th Gen ATX Motherboard

Tailor-Made for the Next Generation Taichi represents a philosophical state of infinite potential and the Z590 Taichi motherboard from ASRock does just that; A motherboard that fulfils every task, built with longevity in mind and incorporating ASRock's premium super alloy to maximise durability and assist in squeezing every ounce of performance from the latest 11th Gen Intel processors. The Taichi boasts an updated 14 phase power design, 2x Ultra M.2 slots (PCIe 3.0 x4), Thunderbolt 4 connectivity, Wi-Fi 6e support, 7.1 CH HD audio but thats not all; the Z590 Taichi also features support for PCIe Gen 4 for both your GPU interface and 1x Hyper M.2 slot giving you access to the fastest transfer speeds on the market. Make this board your own with polychrome RGB sync and stylise your lighting to suit your own personal aesthetic. Take your gaming immersion to the next level, flow like water with the Z590 Taichi.

Intel Z590Chipset

1200CPU Socket

10th & 11th Gen IntelCompatible CPUs

ATXForm Factor

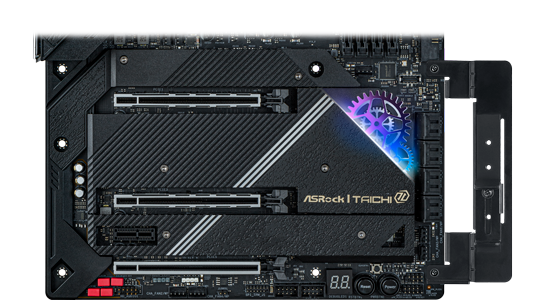

ASRock Graphics Card Holder

GPU Holder

These Graphics Cards are Getting Heavy! ASRock are aware that as huge developments are made to the latest graphics cards; that these heavy GPUs could use some extra support, simply install your graphics card and screw into the chassis holder using the provided screws which can then be moved up and down to perfectly adjust to your chosen graphics card ensuring a snug, tight fit.

Next-Generation Ready

Killer Ethernet & Wi-Fi 6EThe Killer Ethernet controller is designed specically for competitive gamers and performance-hungry users, this motherboard comes with both Killer E3100 2.5G Ethernet & WiFi 6E solution, the enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications.

8LAYER & 2OZ COPPER PCBThe 8 Layer PCB comes with 4 sets of 2 ounce copper inner layers, providing stable signal traces and power shapes and delivering lower temperature and higher energy efficiency for overclocking! Thus, it's able to support the latest DDR4 memory modules with most extreme memory performance!

PCIe 4.0

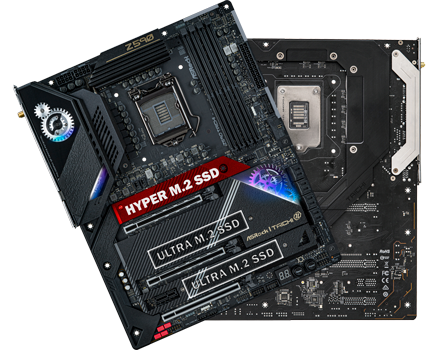

PCIe 4.0 High Speed M.2 Solution The incredible Z590 Taichi is ready to support PCIe 4.0 technology; accommodating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Solid Metal BackplateStrengthens the motherboard to prevent bending caused by heavy coolers or graphics cards with better airflow and enhanced stability.

Reinforced Steel SlotThe reinforced steel slot has been introduced alongside the newest generation of PCI Express 4.0 and now boasts additional anchor points and a stronger latch to reduce sag and preventing PCB Flex and damage to your GPU.

The Taichi Philosophy of Infinite Potential

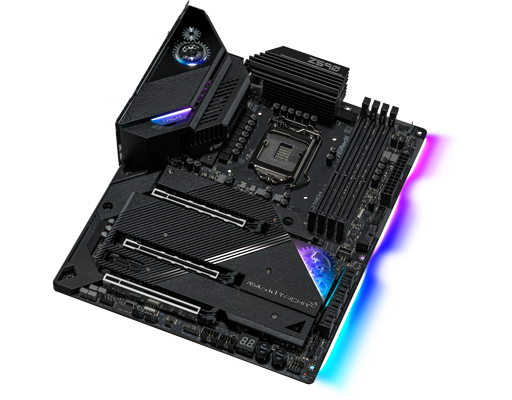

Polychrome

RULE YOUR OWN LIGHTING WAY WITH POLYCHROME RGB ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.


*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters. *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

Equipped to Deliver an Extreme Audio Performance

ASRock audio

NAHIMIC AUDIO   |   WIMA AUDIO CAPS   |   ESS 9218 DAC   |   Realtek ALC1220 Audio Codec Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. Optimized for high end audio applications, WIMA Audio Caps deliver crystal and balanced sound to satisfy even the pickiest sound enthusiasts. Embrace the audio stunning performance with ES9218 SABRE DAC! True Hi-Fi Audio. No distorted digital signal.

All The Connections You'll Ever Need

networking connectivity

Steel Alloy Motherboards

down

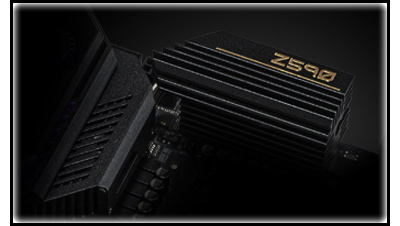

XXL Aluminium Alloy HeatsinkExtra large aluminium alloy heat sinks that effectively take away heat from the MOSFET and chipset to keep your system temperatures stable.

down

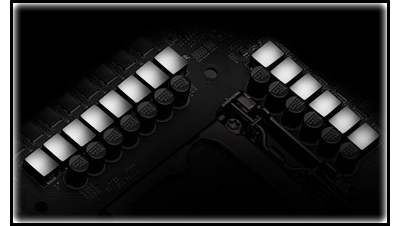

90A Power ChokeCompared to traditional chokes, ASRock’s premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

down

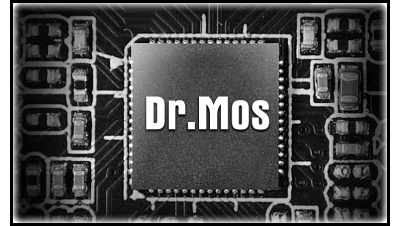

DR. MOSDr.MOS is the integrated power stage solution which is optimised for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 90A continuous current for each phase, providing improved thermal result and superior performance.

down

Alloy Memory ChokesSpecifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard and memory modules.

down

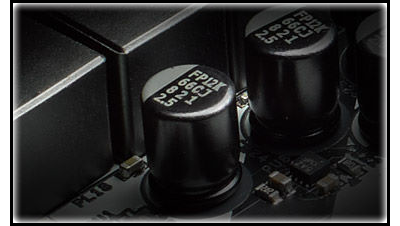

Nichicon 12K Black CapsSupreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that have lifespans of around 10,000 hours. Nichicon 12K Black Caps offer 20% longer lifespans and provide more stability and reliability.

down

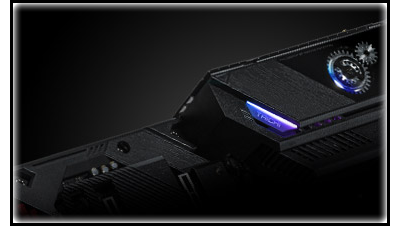

I/O ArmourA newly designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.

down

Matte Black PCBA new mysterious matte black and copper color scheme to bring a level of consistency to the prestigious components on ASRock's high-end motherboards.

down

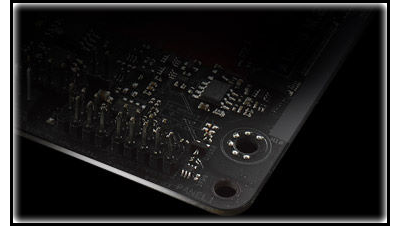

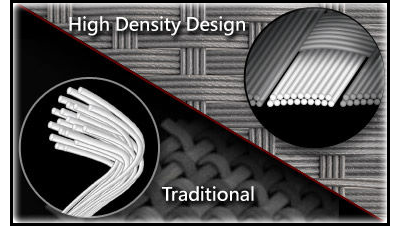

Glass Fabric PCBHigh Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

down

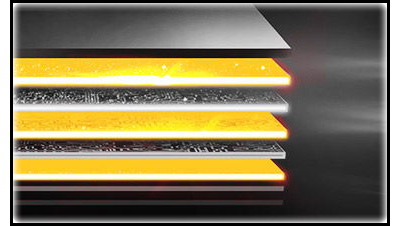

8 Layer PCBThe 8 Layer PCB comes with 4 sets of 2 ounce copper inner layers, providing stable signal traces and power shapes and delivering lower temperature and higher energy efficiency for overclocking! Thus, it's able to support the latest DDR4 memory modules with most extreme memory performance!

Support for your ASRock Motherboard

up

FULL SPIKE PROTECTIONASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

up

Water Pump HeaderThis is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

up

LIVE UPDATE & APP SHOPASRock Live Update & APP Shop is designed for your convenience. Users can download various apps and support software, optimise your system with ease and keep your motherboard up to date with
ASRock Live Update & APP Shop

Specifications
Core Specifications
Edition Z590 Taichi
Form Factor ATX
CPU Socket 1200
Chipset Intel Z590
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 5000+(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC S1220A 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • HDMI 2.0
  • Thunderbolt 4
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Occupied by Wi-Fi Module)
  • 1 x M.2, 22-30/42/60/80/110, PCIe Gen3/SATA
  • 1 x M.2, 22-60/80, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x PCIe 3.0 x1
  • 3 x PCIe 4.0 x16
  • 6 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 6 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 2 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Clear CMOS Button
  • 1 x Dr. Debug with LED
  • 1 x Front Panel Audio Header
  • 1 x Power Button with LED
  • 1 x Power LED / Speaker Header
  • 1 x Reset Button with LED
  • 2 x RGB Header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5
  • 1 x Intel® I219V (Gigabit LAN)
  • 1 x Killer E3100G (2.5GbE LAN)
Rear I/O Connectors
  • 1 x Bass Speaker Out
  • 1 x BIOS Flashback Button
  • 1 x Central Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 2 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x Thunderbolt 4
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 224 mm
Note
Additional Information
Scan Code LN114121
Model Number 90-MXBES0-A0UAYZ
GTIN 4710483933943
