ASRock Intel Z590 Steel Legend ATX Motherboard

ASRock Z590 Steel Legend, Intel Z590, S 1200, DDR4, PCIe 4.0, SATA3, 3x M.2, 2.5GbE, USB 3.2 Gen2 A+C, ATX

Thumbnail 1 : ASRock Intel Z590 Steel Legend ATX Motherboard Thumbnail 2 : ASRock Intel Z590 Steel Legend ATX Motherboard Thumbnail 3 : ASRock Intel Z590 Steel Legend ATX Motherboard Thumbnail 4 : ASRock Intel Z590 Steel Legend ATX Motherboard
Scan code: LN114124 Manufacturer code: 90-MXBEQ0-A0UAYZ
£184.99Item due on 04 November 2021
Due 4th Nov
From £16.61 / month (APR 14.9%)
Monthly Payment: £16.61
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £184.99
Total inc. interest: £199.28
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

ASRock Z590 Steel Legend Intel 11th Gen Series ATX Motherboard

ASRock z590 Steel Legend Intel 11th Gen ATX Motherboard

Tailor-Made for the Next Generation Steel Legend represents a philosophical state of rock-solid durability and the Z590 Steel Legend motherboard from ASRock does just that; A motherboard thats built around irresistible aesthetics and the most demanding specs and features, squeezing every ounce of performance from the latest 11th Gen Intel processors. The Steel Legend boasts an updated 14 phase power design, 2x Ultra M.2 slots (PCIe 3.0 x4), USB 3.2 Gen2x2 connectivity, Dragon 2.5 Gigabit LAN, 7.1 CH HD audio but thats not all; the Z590 Steel Legend also features support for PCIe Gen 4.0 for both your GPU interface and 1x Hyper M.2 slot giving you access to the fastest transfer speeds on the market. Make this board your own with polychrome RGB sync and stylise your lighting to suit your own personal aesthetic. Take your gaming immersion to the next level with the ASRock Z590 Steel Legend for daily users and mainstream enthusiasts who expect a stable and reliable performance.

Intel Z590Chipset

1200CPU Socket

10th & 11th Gen IntelCompatible CPUs

ATXForm Factor

ASRock Graphics Card Holder

GPU Holder

These Graphics Cards are Getting Heavy! ASRock are aware that as huge developments are made to the latest graphics cards; that these heavy GPUs could use some extra support, simply install your graphics card and screw into the chassis holder using the provided screws which can then be moved up and down to perfectly adjust to your chosen graphics card ensuring a snug, tight fit.

Next-Generation Ready

Dragon 2.5 Gb/s LANThe intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media.

2OZ COPPER PCB2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperatures and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules and boasts extreme memory performance!

PCIe 4.0

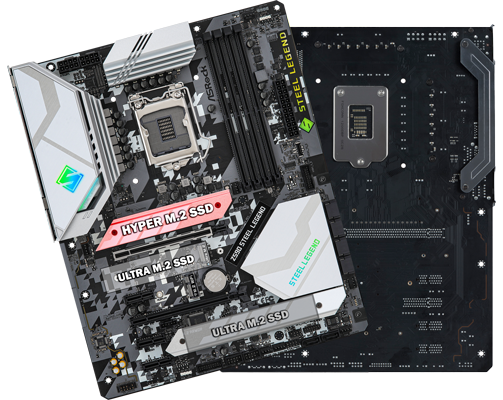

PCIe 4.0 High Speed M.2 Solution The incredible Z590 Steel Legend is ready to support PCIe 4.0 technology; accommodating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Solid Metal BackplateStrengthens the motherboard to prevent bending caused by heavy coolers or graphics cards with better airflow and enhanced stability.

Reinforced Steel SlotThe reinforced steel slot has been introduced alongside the newest generation of PCI Express 4.0 and now boasts additional anchor points and a stronger latch to reduce sag and preventing PCB Flex and damage to your GPU.

Make Your Own Mark

Polychrome

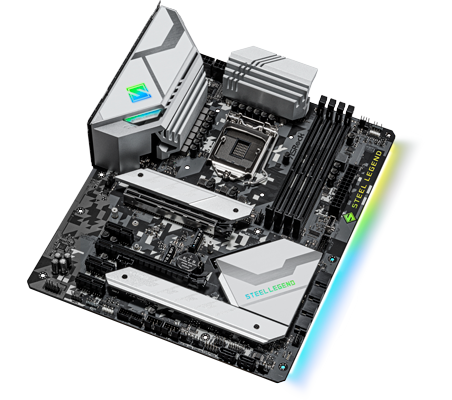

RULE YOUR OWN LIGHTING WAY WITH POLYCHROME RGB ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.


*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters. *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

Equipped to Deliver an Extreme Audio Performance

ASRock audio

NAHIMIC AUDIO For High Quality Audio Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

All The Connections You'll Ever Need

networking connectivity

Support for your ASRock Motherboard

up

FULL SPIKE PROTECTIONASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

up

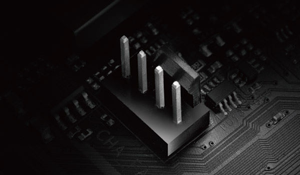

Water Pump HeaderThis is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

up

LIVE UPDATE & APP SHOPASRock Live Update & APP Shop is designed for your convenience. Users can download various apps and support software, optimise your system with ease and keep your motherboard up to date with
ASRock Live Update & APP Shop

Specifications
Core Specifications
Edition Z590 Steel Legend
Form Factor ATX
CPU Socket 1200
Chipset Intel Z590
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 4666+(OC)
  • DDR4 - 4800(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.0
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 1 x M.2, 22-60/80, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x M.2, 22-60/80/110, PCIe Gen3x4/SATA3
  • 3 x PCIe 3.0 x1
  • 2 x PCIe 4.0 x16
  • 6 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 5 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 2 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Front Panel Audio Header
  • 1 x Power LED / Speaker Header
  • 2 x RGB Header
  • 1 x Thunderbolt AIC Connector (5-pin)
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules 1 x Dragon RTL8125BG (2.5GbE LAN)
Rear I/O Connectors
  • 1 x Bass Speaker Out
  • 1 x Central Speaker Out
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN114124
Model Number 90-MXBEQ0-A0UAYZ
GTIN 4710483933776
