Scan code: LN118259 Manufacturer code: 90-MXBFG0-A0UAYZ

ASRock Intel Z590 Phantom Gaming-ITX/TB4 mITX Motherboard

ASRock Z590 Phantom Gaming-ITX/TB4, Intel Z590, S 1200, DDR4, SATA3, 2x M.2, 2.5GbE/GbE, ax/BT5.2, USB 3.2 Gen2 A+C,mITX

Thumbnail 1 : ASRock Intel Z590 Phantom Gaming-ITX/TB4 mITX Motherboard Thumbnail 2 : ASRock Intel Z590 Phantom Gaming-ITX/TB4 mITX Motherboard Thumbnail 3 : ASRock Intel Z590 Phantom Gaming-ITX/TB4 mITX Motherboard Thumbnail 4 : ASRock Intel Z590 Phantom Gaming-ITX/TB4 mITX Motherboard
Scan code: LN118259 Manufacturer code: 90-MXBFG0-A0UAYZ
£274.99
Order now and get it tomorrow, Fri 29th Oct
From £13.20 / month (APR 14.9%)
Monthly Payment: £24.69
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £274.99
Total inc. interest: £296.23
Monthly Payment: £13.20
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £274.99
Total inc. interest: £316.78
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 29th Oct to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

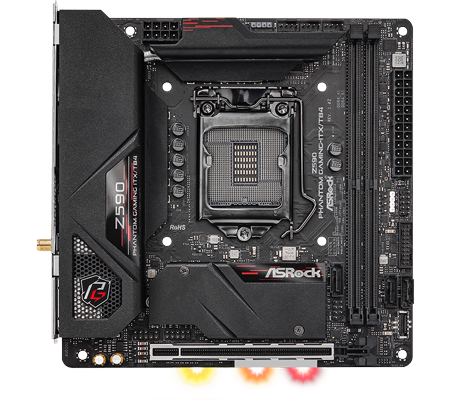

ASRock Z590 Phantom Gaming ITX/TB4 Mini-ITX Motherboard

Phantom Gaming ITX

Designed for Gamers A new addition has arrived to the ASRock Z590 Phantom Gaming Series, beneath it's relentless appearance lie plenty of gaming oriented features to boost your immersion and heighten your experience. Supporting both intel 10th and 11th generation processors the ASRock Z590 ITX boasts support for DDR4 4266 MHz memory, lighting customisation via ASRock Polychrome, PCIe 4.0 technology for both your GPU and Hyper M.2 slot plus an additional PCIe Gen 3x4 slot for additional storage, Intel TB4 Type-C and finally Killer LAN & Wi-Fi 6E connectivity. All these incredible features and more are hear to support you on your journey to high-core PC performance. If your looking for top-shelf performance in a smaller form factor, take a look at the Phantom Gaming ITX.

Intel Z590Chipset

:LGA 1200CPU Socket

10th & 11th Gen IntelCompatible Processors

Mini-ITXForm Factor

Built for Power

back

Dr. MOSDr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal results and superior performance.


back

10 Power Phase DesignFeaturing sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

The Latest PCIe Technology

4K Recording

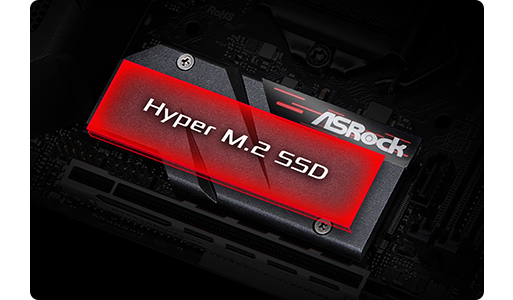

Hyper M.2 (PCIe Gen4 x4)The ASRock Z590 Phantom gaming ITX boasts support for 1x PCIe 4.0 M.2 SSD the latest generation of storage capable of up to twice the speeds of PCie 3.0 giving lighting fast data transfer speeds Plus ASrock have integrated M.2 armour to promote product longevity and ensure your M.2 storage runs cool.

Thunderbolt 4 Ready Connectivity

4K Recording

Thunderbolt™ 4/USB 4.0 Type-CThunderbolt™ 4/USB 4.0 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects up to 5 Thunderbolt™ devices with a single wire, and even provides PD 2.0 with [email protected] (27W).

Stay Connected with Ease

4K Recording

Killer™ Ethernet E3100 + Wi-Fi 6E AX1675xThe Killer Ethernet controller is designed specically for competitive gamers and performance-hungry users, this motherboard comes with both Killer E3100 2.5G Ethernet & WiFi 6E solution, the enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications.

Wi-Fi 6E (6GHz band) is not currently enabled by default due to the different regulation status of each country. It will be activated (for supported countries) through Windows® Update and software update once available. The update is expected to be in the middle of 2021.

Prioritise your Connections

4K Recording

Killer DoubleShot™ ProKiller DoubleShot Pro allows the use of both the Killer Wireless and Killer Ethernet interfaces work at the same time which will give the end user max throughput as high as 4.9 Gbps, it automatically utilises the fastest network connection for high priority traffic, this ensures the highest priority traffic will always be put on the fastest and most reliable link.

Made to Handle any Components

4K Recording

Reinforced Steel Slot [PCIe 4.0 Version]The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:
• Extra anchor points.
• Stronger latch.
• Ensure signal stability.
• Make sure GPUs are well-installed.

Equipped to Deliver an Extreme Audio Performance

ASRock audio

NAHIMIC AUDIO   |   WIMA AUDIO CAPS   |   ESS 9218 DAC   |   Realtek ALC1220 Audio Codec Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. Optimized for high end audio applications, WIMA Audio Caps deliver crystal and balanced sound to satisfy even the pickiest sound enthusiasts. Embrace the audio stunning performance with ES9218 SABRE DAC! True Hi-Fi Audio. No distorted digital signal.

Steel Alloy Motherboards

down

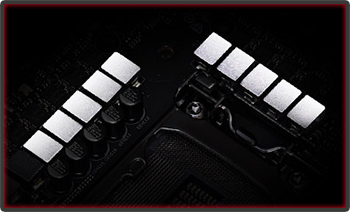

90A Power ChokeCompared to traditional chokes, ASRock’s premium 90A power chokes effectively make the saturation current up to 3x greater, thus providing enhanced and improved Vcore voltage to the motherboard.

up

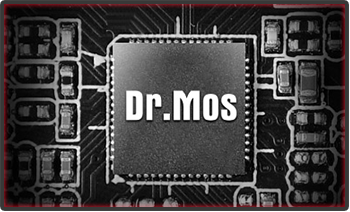

Dr. MOSDr.MOS is the integrated power stage solution which is optimised for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 90A continuous current for each phase, providing improved thermal result and superior performance.

up

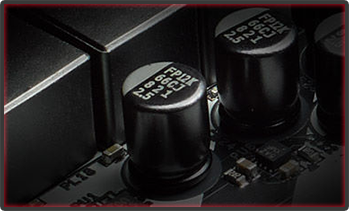

Nichicon 12K Black CapsSupreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that have lifespans of around 10,000 hours. Nichicon 12K Black Caps offer 20% longer lifespans and provide more stability and reliability.

down

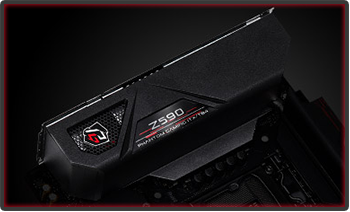

I/O ARMOURA new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.

up

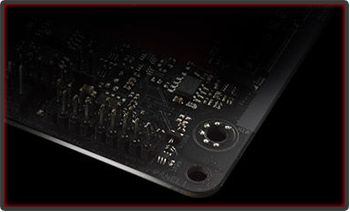

MATTE BLACK PCBA new mysterious matte black and copper color scheme to bring a level of consistency to the prestigious components on ASRock's high-end motherboards.

up

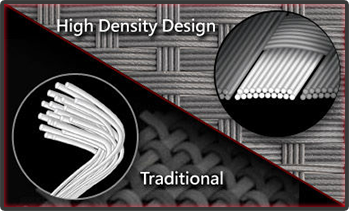

GLASS FABRIC PCBHigh Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Support for your ASRock Motherboard

up

FULL SPIKE PROTECTIONASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

up

Water Pump HeaderThis is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

up

LIVE UPDATE & APP SHOPASRock Live Update & APP Shop is designed for your convenience. Users can download various apps and support software, optimise your system with ease and keep your motherboard up to date with
ASRock Live Update & APP Shop

Specifications
Core Specifications
Edition Z590 Phantom Gaming-ITX/TB4
Form Factor Mini-ITX
CPU Socket 1200
Chipset Intel Z590
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 4266+(OC)
  • DDR4 - 4600+(OC)
  • DDR4 - 5066(OC)
Max. Memory Capacity 64GB (2x32GB)
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Occupied by Wi-Fi Module)
  • 1 x M.2, 22-80, PCIe Gen3x4
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x M.2, 22-80, SATA
  • 1 x PCIe 4.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via Intel® SATA RAID 0/1/10/5
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 1 x Addressable Digital RGB Header
  • 1 x Chassis Intrusion/Speaker Header
  • 1 x Front Panel Audio Header
  • 1 x RGB Header
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5
  • 1 x Dragon RTL8125BG (2.5GbE LAN)
  • 1 x Intel® I219V (Gigabit LAN)
  • 1 x Killer E3100G (2.5GbE LAN)
Rear I/O Connectors
  • 1 x Clear CMOS Button
  • 1 x DisplayPort 1.4
  • 1 x HDMI
  • 1 x Killer E3100 LAN
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 1 x Thunderbolt 4
  • 1 x USB 2.0
  • 5 x USB 3.2 Gen2 Type-A
  • 1 x WiFi 802.11ax 6E / Bluetooth 5.2
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 170 x 170 mm
Note
Additional Information
Scan Code LN118259
Model Number 90-MXBFG0-A0UAYZ
GTIN 4710483934520
