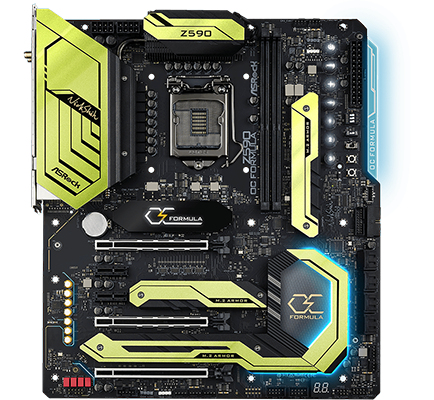

ASRock Intel Z590 OC Formula EATX Motherboard

ASRock Z590 OC Formula, Intel Z590, S 1200, DDR4, PCIe 4.0, SATA3, 3x M.2, 2.5GbE/GbE, ax/BT5.2, TB4, EATX

Thumbnail 1 : ASRock Intel Z590 OC Formula EATX Motherboard Thumbnail 2 : ASRock Intel Z590 OC Formula EATX Motherboard Thumbnail 3 : ASRock Intel Z590 OC Formula EATX Motherboard Thumbnail 4 : ASRock Intel Z590 OC Formula EATX Motherboard
Scan code: LN118257 Manufacturer code: 90-MXBFS0-A0UAYZ
£529.99Item currently awaiting an ETA
Pre order
From £18.11 / month (APR 14.9%)
Monthly Payment: £47.58
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £529.99
Total inc. interest: £570.95
Monthly Payment: £25.44
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £529.99
Total inc. interest: £610.53
Monthly Payment: £18.11
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £529.99
Total inc. interest: £651.78
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £13.24 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

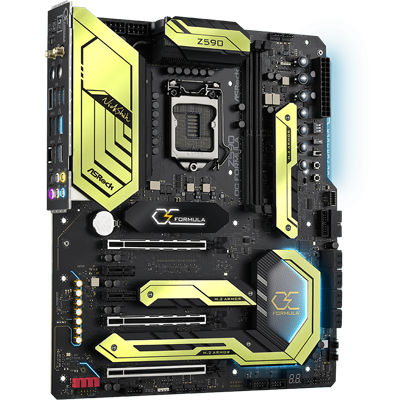

ASRock Z590 OC FORMULA Intel 11th Gen Series E-ATX Motherboard

ASRock z590 OC FORUMLA Intel 11th Gen ATX Motherboard

Born to be fast Designed at the hands of world reknowned overclocker, Nick Shih, the ASrock Z590 OC Formula has been built from the ground up by individuals who are dedicated to breaking boundaries. Using only specially selected high-performance components this masterpiece pushes the Z590 platform and the latest 11th Generation Intel processors to their limits. The OC formula boasts an updated 16 phase power design, support for up to 6000 MHz DDR4 memory, 7.1 channel HD audio and 2x ultra M.2 slots. Thats not all though, with the addition of PCie 4.0 technology the OC FORMULA features 2x PCIe 4.0 slots for your GPU and an additional 1x Hyper M.2 slot giving you access to the fastest data transfer speeds on the market. Finally connectivity is handled by a 2.5Gbps intel LAN and Wifi 6E technology (includes Bluetooth V5.2). Can you control all of this performance? are you up to the challenge?

Intel Z590Chipset

1200CPU Socket

10th & 11th Gen IntelCompatible CPUs

E-ATXForm Factor

Fully Optimised Performance

4K Recording

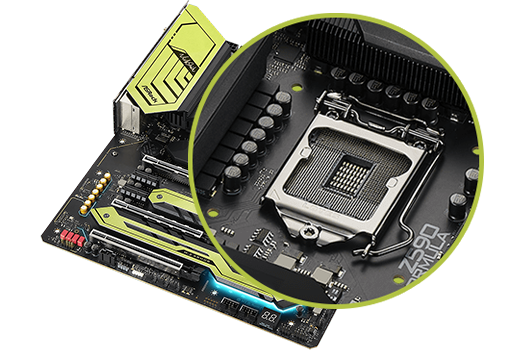

16 POWER PHASE DESIGN with 90A SPSThis formidable motherboard features all new SPS (smart power stages) that includes fully iptimised integrated MOSFETs with advanced driver ICs, current and temperatures sensors giving you accurate monitoring as well as a more stable current as you chase those extreme overclocks.

Improved Stability Under High Frequencies

4K Recording

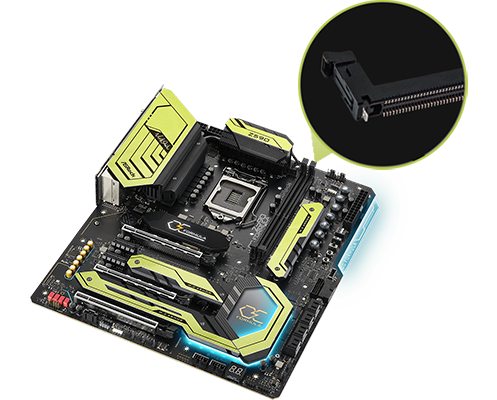

SMD Type DIMMCompared to the conventional DIP style DIMM slot, SMD type DIMM slot can reduce signal loss, improving overall stability under high frequencies whilst also maximising overclocking potential.

Next-Generation Ready

Wi-Fi 6EBoasting Wi-Fi 6E technology, providing greater Wi-Fi capability and faster internet connections even under high load, Wi-Fi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

OLED Display & OC ButtonsAn OLED Display has been added to give a cleaner and intuitive means of showing the status of the motherboard, the content displayed can be configured through the BIOS for a more user-friendly application. Plus An array of OC friendly buttons with various functions to help overclockers achieve the world record!

PCIe 4.0

PCIe 4.0 High Speed M.2 Solution The incredible Z590 OC FORMULA is ready to support PCIe 4.0 technology; for the GPU and also accommodating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Solid Metal BackplateStrengthens the motherboard to prevent bending caused by heavy coolers or graphics cards with better airflow and enhanced stability.

XXL Aluminum Alloy HeatsinkXXL Aluminum Alloy Heatsink design with active fan technology that effectively improves heat dissipation and increases overall performance. This is aimed for die hard gamers and OC enthusiasts to bring a new computing experience when paired with Intel’s high core 11th Gen processors.

Equipped to Deliver an Extreme Audio Performance

ASRock audio

NAHIMIC AUDIO   |   WIMA AUDIO CAPS   |   ESS 9218 DAC   |   Realtek ALC1220 Audio Codec Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. Optimized for high end audio applications, WIMA Audio Caps deliver crystal and balanced sound to satisfy even the pickiest sound enthusiasts. Embrace the audio stunning performance with ES9218 SABRE DAC! True Hi-Fi Audio. No distorted digital signal.

Want to See More?

ASROCK
Specifications
Core Specifications
Edition Z590 OC Formula
Form Factor E-ATX
CPU Socket 1200
Chipset Intel Z590
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 5000+(OC)
Max. Memory Capacity 64GB (2x32GB)
Audio
Audio Realtek ALC S1220A 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors HDMI 2.0
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Occupied by Wi-Fi Module)
  • 1 x M.2, 22-30/42/60/80/110, PCIe Gen3/SATA
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-60/80, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x PCIe 3.0 x1
  • 3 x PCIe 4.0 x16
  • 6 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via Intel® SATA RAID 0/1/10/5
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 6 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 2 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Clear CMOS Button
  • 1 x Dr. Debug with LED
  • 1 x Front Panel Audio Header
  • 1 x LN2 Mode Switch
  • 1 x PCIe ON/OFF Switch
  • 1 x Post Status Checker (PSC)
  • 1 x Power Button with LED
  • 1 x Power LED / Speaker Header
  • 1 x Rapid OC Buttons
  • 1 x Reset Button with LED
  • 1 x ReTry Button
  • 1 x Safe Boot Button
  • 1 x Slow Mode Switch
  • 1 x Thunderbolt AIC Connector (5-pin)
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5
  • 1 x Intel® I219V (Gigabit LAN)
  • 1 x Intel® I225V (2.5GbE LAN)
Rear I/O Connectors
  • 1 x Bass Speaker Out
  • 1 x BIOS Flashback Button
  • 1 x Central Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x Rear Speaker Out
  • 2 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x Thunderbolt 4
  • 4 x USB 3.2 Gen1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 267 mm
