ASRock Intel Z590 Extreme ATX Motherboard

ASRock Z590 Extreme, Intel Z590, S 1200, DDR4, PCIe 4.0, SATA3, 3x M.2, 2.5GbE/GbE, USB 3.2 Gen2 A+C, ATX

Thumbnail 1 : ASRock Intel Z590 Extreme ATX Motherboard Thumbnail 2 : ASRock Intel Z590 Extreme ATX Motherboard Thumbnail 3 : ASRock Intel Z590 Extreme ATX Motherboard Thumbnail 4 : ASRock Intel Z590 Extreme ATX Motherboard
Scan code: LN114123 Manufacturer code: 90-MXBF60-A0UAYZ
£199.99Item due on 04 November 2021
Due 4th Nov
From £9.60 / month (APR 14.9%)
Monthly Payment: £17.96
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £199.99
Total inc. interest: £215.45
Monthly Payment: £9.60
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £199.99
Total inc. interest: £230.37
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

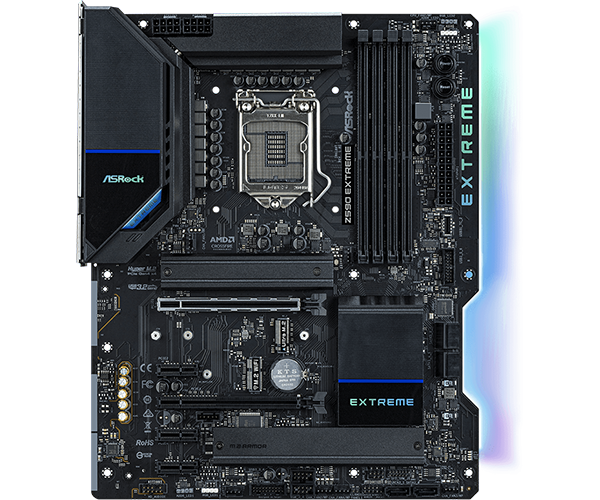

ASRock Z590 Extreme ATX Intel Motherboard

ASRock Z590

EXTREME PERFORMANCE, ELEGANT AESTHETICS The ASRock Z590 Extreme is a motherboard built for Intel Core processors, and supports DDR4 4800MHz (OC) memory. Enjoy your custom light show with ASRock Polychrome RGB and get connected and synced to various LED RGB devices. The durability and protection systems the Z590 offers include a full Coverage M.2 heatsink which improves heat dissipation, also for durability there are Solid Steel PCIe Slots which provide support for PCIe components and prevent shearing. Get super fast and reliable connections with the new Dual USB 3.2 Gen2 ports that include both Type-A and Type-C to support your next generation devices.

Intel® Z590Chipset

Intel® Core™ 10th/11th GenCompatible CPU

ATXForm Factor

Built for Power

back

Dr. MOSDr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.


back

14 Power Phase DesignFeaturing sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

Loading Times are a thing of the Past

4K Recording

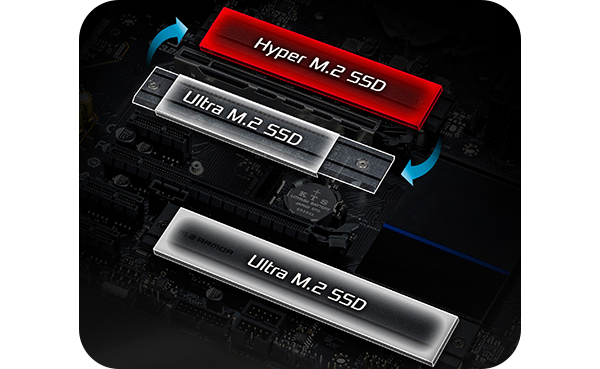

PCIe 4.0 High Speed M.2 SolutionThis motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

*This M.2 Heatsink is default equipped with M.2_1 socket to pair with Intel® 11th Gen processor. You may use it for M.2_2 if you’re using the Intel® 10th Gen processor to get the best heat dissipation.

Build it your Way

back

ASRock Graphics Card Holder (Patent Pending) Install your heavy graphics card on the holder; connect it to your motherboard and chassis with screws. Flexibly slide up and down to perfectly adjust the height required for your graphics card in place.

Blazing Fast Connectivity

back

USB 3.2 Gen2x2 Type-CThe latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

Stay Connected with Ease

4K Recording

Dragon 2.5 Gb/s LANThe intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

The Finest Connectivity Performance

back

Intel® LANIntel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

Transfers made Easy

back

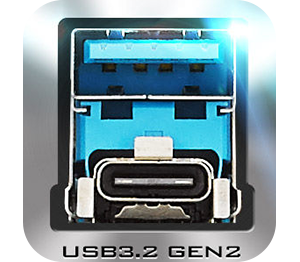

Dual USB 3.2 Gen2 (Type-A + Type-C)This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

Made to Handle any Components

4K Recording

Reinforced Steel Slot [PCIe 4.0 Version]The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:
• Extra anchor points.
• Stronger latch.
• Ensure signal stability.
• Make sure GPUs are well-installed.

Rule Lighting your Way

4K Recording

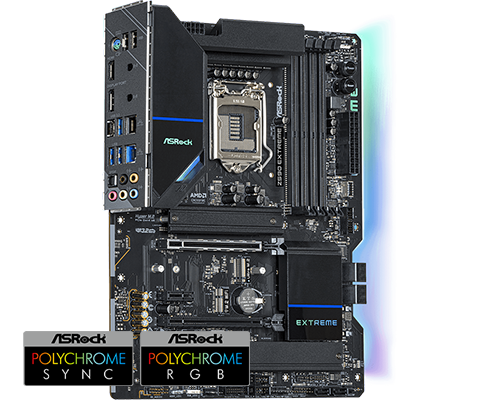

POLYCHROME RGBASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.

*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

Surround yourself in Stunning Sound

4K Recording

Nahimic AudioWhether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Designed for the Extremes

back

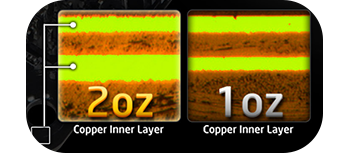

2oz Copper PCB2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperatures and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with extreme memory performance!

Installing made Easy

back

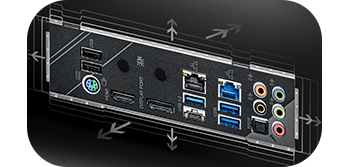

Flexible Integrated I/O ShieldUnlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.

Easy to Diagnose Problems

back

Post Status Checker An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.

Enjoy Stunning Display Quality

back

HDMI 4k @60HzSupports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

Additional Features of your ASRock Motherboard

down

Water Pump HeaderThis is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

down

Full Spike ProtectionSome sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

down

Live Update & APP ShopASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Specifications
Core Specifications
Edition Z590 Extreme
Form Factor ATX
CPU Socket 1200
Chipset Intel Z590
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 4666+(OC)
  • DDR4 - 4800(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC S1220A 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.0
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 1 x M.2, 22-60/80, PCIe Gen3x4/SATA3
  • 1 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x M.2, 22-60/80/110, PCIe Gen3x4/SATA3
  • 3 x PCIe 3.0 x1
  • 2 x PCIe 4.0 x16
  • 6 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 5 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 2 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Front Panel Audio Header
  • 1 x Power Button with LED
  • 1 x Power LED / Speaker Header
  • 1 x Reset Button with LED
  • 2 x RGB Header
  • 1 x Thunderbolt AIC Connector (5-pin)
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Dragon RTL8125BG (2.5GbE LAN)
  • 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x Bass Speaker Out
  • 1 x Central Speaker Out
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 2 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN114123
Model Number 90-MXBF60-A0UAYZ
GTIN 4710483934025
