Scan code: LN107254 Manufacturer code: 90-MXBC00-A0UAYZ

ASRock Intel Z490M-ITX/ac Mini-ITX Motherboard

ASRock Z490M-ITX/ac, Intel Z490, S 1200, DDR4, SATA3, Dual M.2, 2.5GbE, ac WiFi, USB 3.2 Gen2, Mini-ITX

Thumbnail 1 : ASRock Intel Z490M-ITX/ac Mini-ITX Motherboard Thumbnail 2 : ASRock Intel Z490M-ITX/ac Mini-ITX Motherboard Thumbnail 3 : ASRock Intel Z490M-ITX/ac Mini-ITX Motherboard Thumbnail 4 : ASRock Intel Z490M-ITX/ac Mini-ITX Motherboard
Scan code: LN107254 Manufacturer code: 90-MXBC00-A0UAYZ
£163.99
Order in the next 1 hr 59 mins and get it tomorrow
From £13.67 / month (APR 0%)
Monthly Payment: £13.67
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £163.99
Total inc. interest: £163.99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 23rd Sep to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

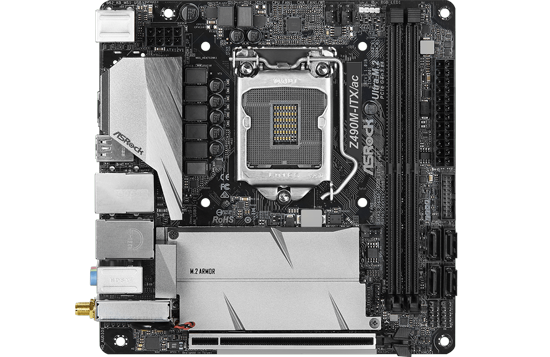

ASRock Z490M-ITX/ac Intel 10th Generation Mini-ITX Motherboard

ASRock Intel Z490M-ITX/ac Mini-ITX Motherboard

Compact. Blazing Speed. Easy-to-Use. The ASRock Intel® Z490M-ITX/ac motherboard supports 10th Gen and future generation Intel® Core™ Processors. The Z490M boasts longevity and reliability with Dual Ultra M.2 sockets which supports PCIe M.2 SSDs and includes thermal protection with M.2 Armors. Improve your networking capabilities with Dragon Gigabit LAN, Intel® Gigabit LAN and Intel® 802.11ac Wi-Fi. The motherboard offers Dual USB 3.2 Gen2 and various connectivity ports for super speedy transfer rates. Enjoy dazzling customization with Polychrome RGB Sync lighting, plus incredible Nahimic 3D audio has been optimized to satisfy gamers, movie goers, or anyone who is looking for an outstanding sound experience in high definition. ASRock Boost Frequency Boost Technology, allows users to install their non K series CPUs to ASRock’s 400 series motherboards (even non Z models) and enjoy the base frequency boost with the hidden power of processors immediately.


Please note: Z490 Motherboards are compatible with 10th Gen Intel Core™/ Pentium® CPUs for LGA 1200 socket. These Intel Z490 Motherboards do not share the same socket as Intel's 300 Series Motherboards, they are electrically incompatible & will not work with 9th Gen Intel CPUs.

Intel Z490Chipset

1200CPU Socket

10th Gen IntelCompatible CPUs

Mini-ITXForm Factor

Unique Style and Designed for an Incredible Performance

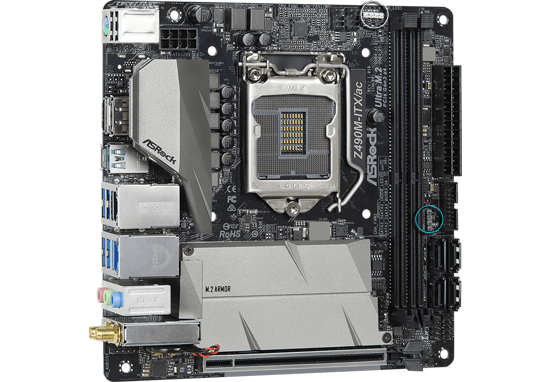

Polychrome RGB Lighting

RULE YOUR OWN LIGHTING WAY WITH POLYCHROME RGB SYNC ASRock Intel Z490M-ITX/ac provides an outstanding performance and superior aesthetics that let you rule your own way. This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.


*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters. *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

Boosted for Maximum Networking Performance

networking connectivity

Dragon 2.5 Gb/s LAN   |   DUAL USB 3.2 Gen2 (A & C)   |   Dual Band Wi-Fi   |   FRONT USB 3.2 PORTS Featuring the intelligent 2.5Gb/s LAN platform, built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster connectivity experience for gaming, file transfers and backups. This motherboard has Dual onboard Type-A and Type-C USB 3.2 Gen2 ports, built on the rear I/O for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates. In total 4 USB 3.2 Gen2 Type-A (Rear) and4 USB 3.2 Gen1 (Rear Type A+C, 2 Front).

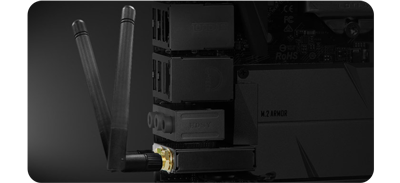

Dual Band 802.11ac Wi-Fi

Intel WIFI

No one has time for weak Wi-Fi signals and sluggish internet! This motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.2.

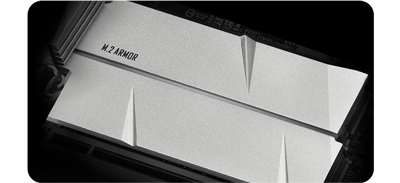

Dual M.2 for SSD and Stable Armor Protection

Dual M.2 Armor

Ready for even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Two Ultra M.2 sockets that support both SATA3 6Gb/s and PCIe Gen3 x4 modes, pushing data transfer speeds up to 32Gb/s. Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution that makes SSDs to run in a certain low temperature.

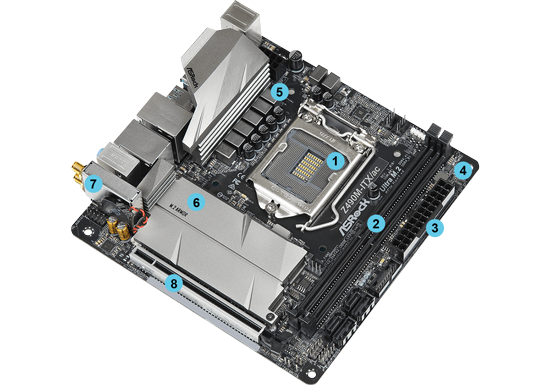

Z490M-ITX/ac Component Features

Design of ASRock

1. Supports 10th Gen and future generation Intel® Core™ Processors   |   2. Dual Channel DDR4 Memory Technology
3. 24Pin ATX Connector   |   4. POST Status Checker   |   5. 8 Power Phase Design
6. 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 Ultra M.2 (PCIe Gen3 x4)   |   7. Dual Band 802.11ac Wi-Fi
8. Advanced PCI-E Steel Slot / PCIe 3.0 x16, 2 PCIe 3.0 x1

Equipped to Deliver an Extreme Audio Performance

ASRock audio

NAHIMIC AUDIO TAKES YOU TO ANOTHER DIMENSION Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Sound is positioned in 360° on a radar for sound immersion.

ASRock Superior Alloy

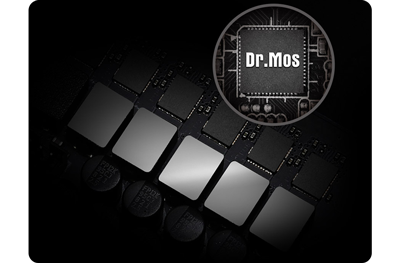

Power Design

DR.MOS Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Premium 60A Power Choke Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

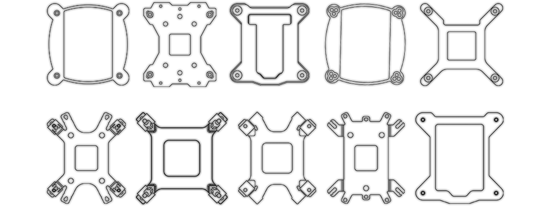

ASRock Provides a Variety of CPU Cooler Support

LARGE SURFACE BACKPLATE Engineers took enormous effort to make the CPU backplate area big enough to accommodate the wide variety of CPU coolers.

ASRock Cooling Support

Support Software for your ASRock Motherboard

up

FULL SPIKE PROTECTIONASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

up

LIVE UPDATE & APP SHOPASRock Live Update & APP Shop is designed for your convenience. Users can download various apps and support software, optimise your system with ease and keep your motherboard up to date with
ASRock Live Update & APP Shop

Specifications
Core Specifications
Edition Z490M-ITX/ac
Form Factor Mini-ITX
CPU Socket 1200
Chipset Intel Z490
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3200(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4333(OC)
  • DDR4 - 4400+(OC)
Max. Memory Capacity 64GB
Audio
Audio Realtek ALC1200 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E Vertical (Supports WiFi Modules)
  • 1 x M.2, 22-80, PCIe Gen3
  • 1 x M.2, 22-80, PCIe Gen3/SATA
  • 1 x PCIe 3.0 x16
SATA Support SATA3 / M.2
RAID Support via Intel® SATA RAID 0/1/10/5
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology 17
  • Intel Rapid Storage Technology Support
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Addressable Digital RGB Header
  • 1 x Front Panel Audio Header
  • 1 x RGB Header
  • 4 x SATA III - 6Gb/s
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel 802.11ac WiFi/ BT4.2 Module (867Mbps)
  • 1 x Intel® I211V (Gigabit LAN)
  • 1 x Realtek RTL8125BG

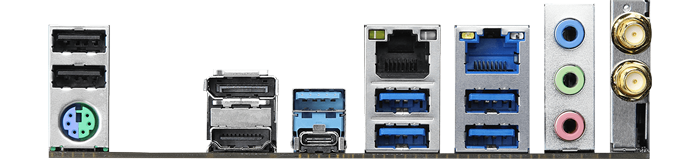

Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x Antenna Ports
  • 1 x DisplayPort 1.4
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Mic-In
  • 2 x USB 2.0
  • 1 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-C
  • 4 x USB 3.2 Gen2 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 170 x 170 mm
Note
Additional Information
Scan Code LN107254
Model Number 90-MXBC00-A0UAYZ
GTIN 4710483931147
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747

cooler

what kind of cooler would fit this board?
Asked by: RageSnake
Please contact our Sales team before ordering, and we can suggest a suitable cooler based on your specification and requirements.
Answered by: DavidScan
Date published: 2020-09-07
