ASRock Intel Z490 PRO 4 ATX Motherboard

ASRock Z490 PRO4, Intel Z490, S 1200, DDR4, SATA3, Dual M.2, CrossFire, GbE, USB 3.2 Gen2, ATX

Thumbnail 1 : ASRock Intel Z490 PRO 4 ATX Motherboard Thumbnail 2 : ASRock Intel Z490 PRO 4 ATX Motherboard Thumbnail 3 : ASRock Intel Z490 PRO 4 ATX Motherboard Thumbnail 4 : ASRock Intel Z490 PRO 4 ATX Motherboard
Scan code: LN107250 Manufacturer code: 90-MXBC50-A0UAYZ
End Of Life This product is no longer available to purchase
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

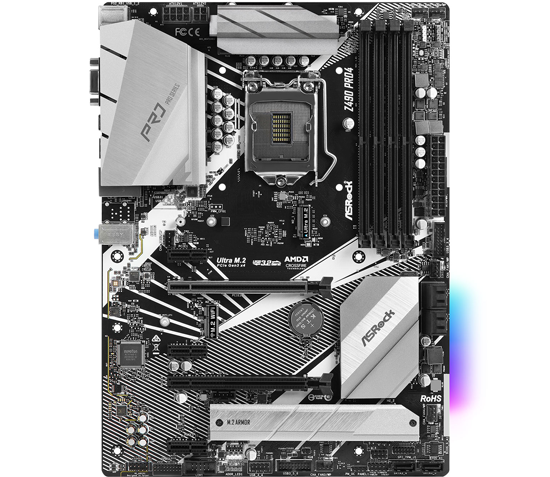

ASRock Z490 PRO4 Intel 10th Generation ATX Motherboard

ASRock Z490 PRO4 Intel 10th Gen ATX Motherboard

Everything You Need For Computing Introducing the ASRock Intel Z490 PRO4 ATX motherboard, which supports 10th Gen and future generation Intel® Core™ Processors and AMD Quad CrossFireX™ and CrossFireX™. The Z490 PRO4 boasts rapid transfer speed with Dual Ultra M.2 sockets which supports PCIe M.2 SSDs. Improve your networking capabilities with Intel® LAN, users can choose wireless connections by an M.2 (Key E) slot. The I/O offers Dual USB 3.2 Gen2 and various connectivity ports for super speedy transfer rates. ASRock Boost Frequency Boost Technology, allows users to install their non K series CPUs to ASRock’s 400 series motherboards (even non Z models) and enjoy the base frequency boost with the hidden power of processors immediately. Enjoy stunning customization with Polychrome RGB Sync lighting, plus incredible Nahimic 3D audio has been optimized to satisfy gamers, movie goers, or anyone who is looking for an outstanding sound experience in high definition.


Please note: Z490 Motherboards are compatible with 10th Gen Intel Core™/ Pentium® CPUs for LGA 1200 socket. These Intel Z490 Motherboards do not share the same socket as Intel's 300 Series Motherboards, they are electrically incompatible & will not work with 9th Gen Intel CPUs.

Intel Z490Chipset

1200CPU Socket

10th Gen IntelCompatible CPUs

ATXForm Factor

Get Endless Performance Possibilities with Steel Style

Design of ASRock PRO4

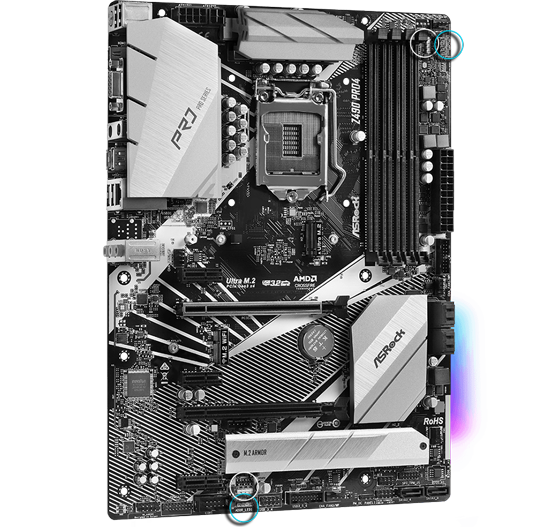

RULE YOUR OWN LIGHTING WAY WITH POLYCHROME RGB SYNC ASRock Intel Z490 PRO4 provides an outstanding performance and superior aesthetics that let you rule your own way, utilizing the comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Includes two Addressable RGB LED Headers and two RGB LED Headers. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.


* The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters. *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

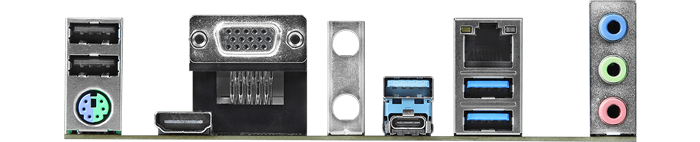

Boosted for Maximum Networking Performance

networking connectivity

INTEL® LAN   |   DUAL USB 3.2 Gen2 (Type A & C)   |   Front USB 3.2 Gen1 Type-C ASRock Z490 PRO4 features Gigabit Intel® LAN which provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users. This motherboard has Dual onboard Type-A and Type-C USB 3.2 Gen2 ports, built on the rear I/O for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates. In total six USB 3.2 Gen1, 4 on the front, 2 on the rear side.

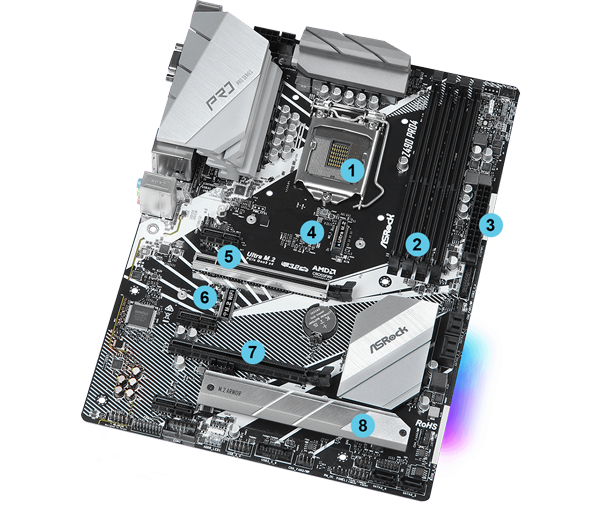

Z490 PRO4 Component Breakdown

Design of ASRock

1. Supports 10th Gen and future generation Intel® Core™ Processors   |   2. Dual Channel DDR4 Memory Technology
3. 24Pin ATX Hi-Density Connector   |   4. Two Ultra M.2 (PCIe Gen3 x4 & SATA3)   |   5. Advanced PCI-E Steel Slot
6. M.2 (Key E) Slot for Wi-Fi (*Module is not included)   |   7. 2 PCIe 3.0 x16, 3 PCIe 3.0 x1
8. Full Coverage M.2 Heatsink

Equipped to Deliver an Extreme Audio Performance

ASRock audio

NAHIMIC AUDIO   |   GOLD AUDIO CAPS   |   Realtek HD Audio Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. The Z490 Series motherboard offers completely immersive audio and with gold audio jacks you get stable sound transmission.

A Solid M.2 Solution and SSD Armor Protection

M.2 Heatsink Armor

Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Two Ultra M.2 sockets that support both SATA3 6Gb/s and PCIe Gen3 x4 modes, pushing data transfer speeds up to 32Gb/s. ASRock provides an M.2 armor solution that makes SSDs run in a certain low temperature.

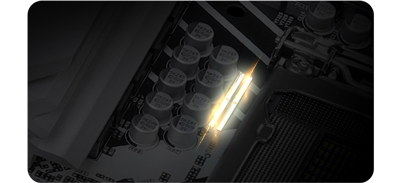

Heat Dissipating PCB Technology

PCB 2oz copper

Heat Dissipating PCB gives the motherboard a more mysterious touch and this design effectively takes the heat away from PCB and lower down the temperature up to 4.1 degrees.

Support Software for your ASRock Motherboard

up

FULL SPIKE PROTECTIONASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

up

LIVE UPDATE & APP SHOPASRock Live Update & APP Shop is designed for your convenience. Users can download various apps and support software, optimise your system with ease and keep your motherboard up to date with
ASRock Live Update & APP Shop

Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
