Z490 Intel 10th Gen Phantom Gaming-ITX Mini-ITX Motherboard

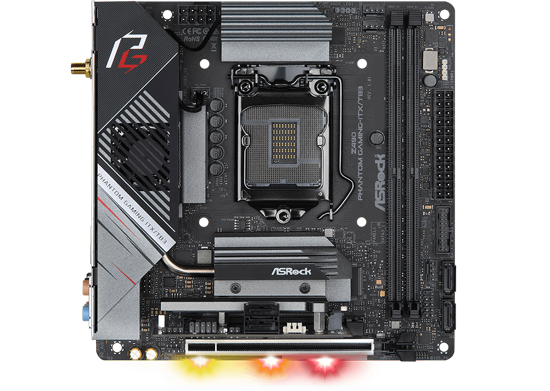

ASRock Intel Z490 Phantom Gaming-ITX Mini-ITX Motherboard

SET YOUR OWN RULES The ASRock Intel® Phantom Gaming-ITX/TB3 is a superb Mini-ITX motherboard supports 10th Gen and future generation Intel® Core™ Processors. The Z490M boasts longevity and reliability with Dual Ultra M.2 sockets which supports PCIe M.2 SSDs and includes thermal protection with M.2 Armors. Improve your networking capabilities with Phantom Gaming LAN, Intel® Gigabit LAN and Intel® Wi-Fi 6. The motherboard offers Dual USB 3.2 Gen2 and various connectivity ports for super speedy transfer rates. Enjoy dazzling customization with Polychrome RGB Sync lighting, plus incredible Nahimic 3D audio has been optimized to satisfy gamers, movie goers, or anyone who is looking for an outstanding sound experience in high definition. ASRock Boost Frequency Boost Technology, allows users to install their non K series CPUs to ASRock’s 400 series motherboards (even non Z models) and enjoy the base frequency boost with the hidden power of processors immediately.


Please note: Z490 Motherboards are compatible with 10th Gen Intel Core™/ Pentium® CPUs for LGA 1200 socket. These Intel Z490 Motherboards do not share the same socket as Intel's 300 Series Motherboards, they are electrically incompatible & will not work with 9th Gen Intel CPUs.

Intel Z490Chipset

1200CPU Socket

10th Gen IntelCompatible CPUs

Mini-ITXForm Factor

Unique Style and Designed for an Incredible Performance

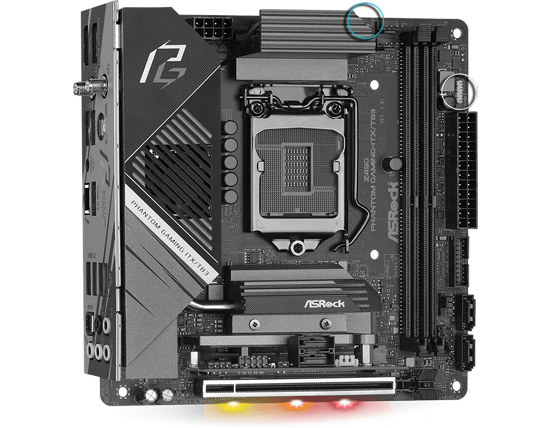

Polychrome RGB Lighting

RULE YOUR OWN LIGHTING WAY WITH POLYCHROME RGB SYNC ASRock Phantom Gaming-ITX/TB3 provides an outstanding performance and superior aesthetics that let you rule your own way. This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.


*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters. *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

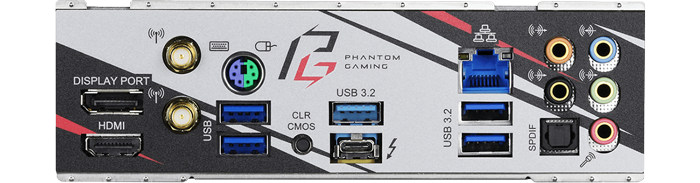

Flexible Integrated I/O Shield & Networking Performance

networking connectivity

PHANTOM GAMING LAN   |   DUAL USB 3.2 Gen2 (A & C)   |   Thunderbolt™ 3 The motherboard has a flexible integrated I/O Shield design, this allows more room for adjustable installation. Featuring the intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. This motherboard has Dual onboard Type-A and Type-C USB 3.2 Gen2 ports, built on the rear I/O for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates. In total 4 USB 3.2 Gen2 Type-A (Rear) and4 USB 3.2 Gen1 (Rear Type A+C, 2 Front).

Welcome to the New Wi-Fi Standard

Intel WIFI

ASRock’s motherboard equipped with next generation Intel® Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.

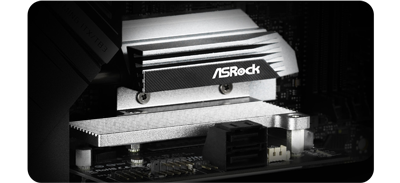

Dual M.2 and Supreme Armor Solution

Dual M.2 Armor

Ready for even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Two Ultra M.2 sockets that support both SATA3 6Gb/s and PCIe Gen3 x4 modes, pushing data transfer speeds up to 32Gb/s. Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution that makes SSDs to run in a certain low temperature.

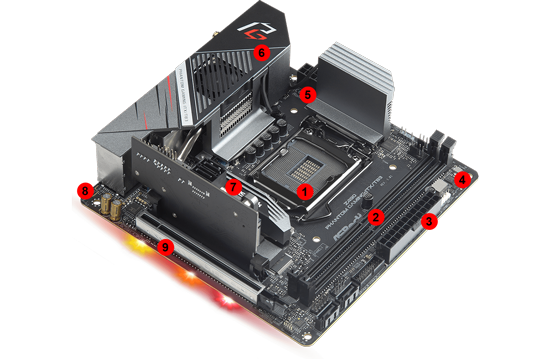

Z490 Phantom Gaming Mini-ITX Component Features

Design of ASRock Z490 Phantom Gaming Mini ITX

1. Supports 10th Gen and future generation Intel® Core™ Processors   |   2. Dual Channel DDR4 Memory Technology
3. 24Pin ATX Connector   |   4. POST Status Checker   |   5. 9 Power Phase Design
6. I/O Armor Protective Cover   |   7. Two Ultra M.2 sockets / M.2 Armor
8. 20z Copper PCB Layers   |   9. Advanced PCI-E Steel Slot / PCIe x1 PCIe 3.0 x16

Equipped to Deliver an Extreme Audio Performance

ASRock audio

NAHIMIC AUDIO   |   GOLD AUDIO CAPS   |   Realtek Audio Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Sound is positioned in 360° on a radar for sound immersion.

ASRock Superior Alloy

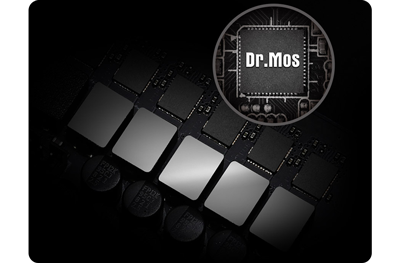

Power Design

DR.MOS Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Premium 90A Power Choke Compared to traditional chokes, ASRock’s premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Optimized for Effective Water Cooling

Heatsink Design

XXL ALUMINIUM ALLOY HEATSINK WITH ACTIVE FAN DESIGN TThe XXL Aluminium Alloy Heatsink design with active fan, effectively improves heat dissipation and promotes overall performance. This is aimed for devoted gamers and enthusiasts to bring a new computing experience paired with Intel’s 10-Core processors. Plus, with 0dB Silent Cooling gamers can experience completely silent computing, as this silent cooling feature automatically adjusts fan speed and even command it stop working when the temperature goes low. An integrated water pump header offers a maximum of 2A power for supporting the most popular water pumps. Adjust the voltage of water pump to get higher cooling with lower noise.

Support Software for your ASRock Motherboard

up

FULL SPIKE PROTECTIONASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

up

LIVE UPDATE & APP SHOPASRock Live Update & APP Shop is designed for your convenience. Users can download various apps and support software, optimise your system with ease and keep your motherboard up to date with
ASRock Live Update & APP Shop

Specifications
Core Specifications
Edition Phantom Gaming-ITX
Form Factor Mini-ITX
CPU Socket 1200
Chipset Intel Z490
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3200(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4333(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4500
  • DDR4 - 4500(OC)
  • DDR4 - 4600
  • DDR4 - 4600(OC)
  • DDR4 - 4666+(OC)
Max. Memory Capacity 64GB
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E Vertical (Supports WiFi Modules)
  • 1 x M.2, 22-60/80, PCIe Gen3/SATA
  • 1 x M.2, 22-80, PCIe Gen3
  • 1 x PCIe 3.0 x16
SATA Support SATA3 / M.2
RAID Support via Intel® SATA RAID 0/1/10/5
Storage Mode Support
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Addressable Digital RGB Header
  • 1 x Chassis Intrusion connector
  • 1 x Front Panel Audio Header
  • 1 x RGB Header
  • 4 x SATA III - 6Gb/s
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x Intel 802.11ax WiFi + BT5 Module
  • 1 x Realtek RTL8125BG
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 2 x Antenna Ports
  • 1 x Bass Speaker Out
  • 1 x Central Speaker Out
  • 1 x Clear CMOS Button
  • 1 x DisplayPort 1.4
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 3.2 Gen1 Type-A
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 170 x 170 mm
