ASRock Z490 Phantom Gaming 4 ATX Motherboard
ASRock Z490 Phantom Gaming 4, Intel Z490, S 1200, DDR4, SATA3, M.2, CrossFire, GbE, USB 3.2 Gen2, ATX
|Instalment Rate:||0% p.a. (fixed)|
|Cost of purchase:||£134.99|
|Total inc. interest:||£134.99|
|Cost of purchase:||£99|
|Total inc. interest:||£99|
Purchase Rate: 21.9% p.a. (variable)
Representative: 21.9% APR (variable)
Assumed Credit Limit: £1,200Subject to status. Terms and Conditions apply.
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

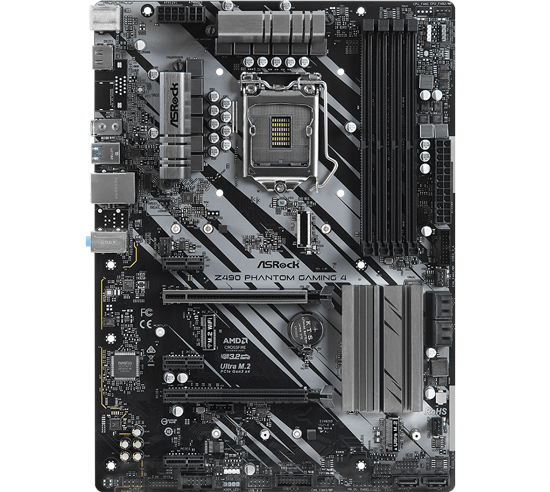

Z490 Phantom Gaming 4 Intel 10th Gen ATX Motherboard
gaming oriented features and excellent gaming capabilities The revolutionary ASRock Z490 Phantom Gaming 4 ATX motherboard supports 10th Gen and future generation Intel® Core™ Processors and AMD Quad CrossFireX™ and CrossFireX™ slots. The Z490 Phantom Gaming 4 features sturdy components and completely smooth power delivery to the CPU. Plus, the 10 Power Phase Design offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. Featuring Ultra M.2 and a wealth of I/O ports, next generation connectivity with Gigabit Intel® LAN to deliver the ultimate network experience. ASRock Boost Frequency Boost Technology allows users to install their non K series CPUs to ASRock’s 400 series motherboards (even non Z models) and enjoy the base frequency boost with the hidden power of processors immediately.
Please note: Z490 Motherboards are compatible with 10th Gen Intel Core™/ Pentium® CPUs for LGA 1200 socket. These Intel Z490 Motherboards do not share the same socket as Intel's 300 Series Motherboards, they are electrically incompatible & will not work with 9th Gen Intel CPUs.

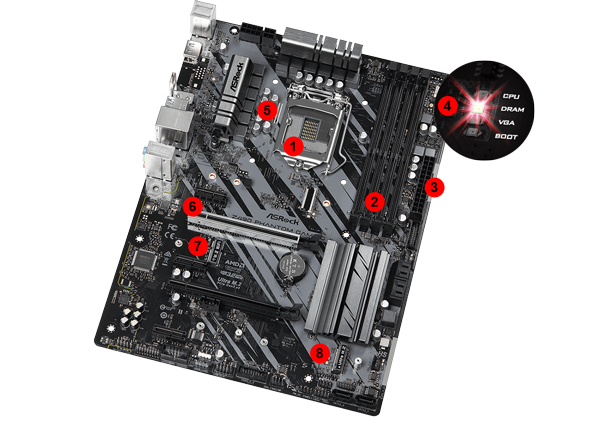

Z490 Phantom Gaming 4 Component Breakdown
1. Supports 10th Gen and future generation Intel® Core™ Processors | 2. Dual Channel DDR4 Memory Technology
3. 24Pin ATX Hi-Density Connector | 4. Post Status Checker | 5. PCB Technology
6. Advanced PCI-E Steel Slot / 2 PCIe 3.0 x16, 3 PCIe 3.0 x1 | 7. M.2 (Key E) Slot for Wi-Fi (*Module is not included)
8. Ultra M.2 (PCIe Gen3 x4 & SATA3)

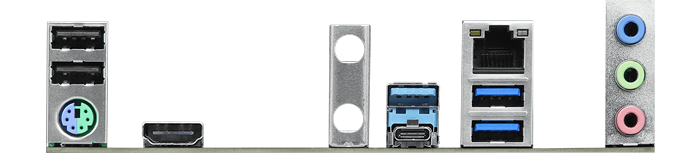

Boosted for Maximum Networking Performance
GIGABIT Intel® LAN | DUAL USB 3.2 Gen2 (Type A & C) | Front USB 3.2 Gen1 Type-C Featuring Gigabit Intel® LAN which provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users. This motherboard has Dual onboard Type-A and Type-C USB 3.2 Gen2 built on the rear I/O, there's six USB 3.2 Gen1 ports in total four in the Front, two at the Rear.
Equipped to Deliver an Extreme Audio Performance
completely immersive sound Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. Z490 Series offers completely immersive audio with 7.1 Realtek ALC1200 Audio Codec.

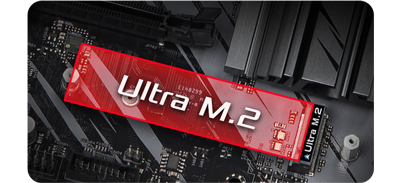

Ready for Higher Capacity with Ultra M.2
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.

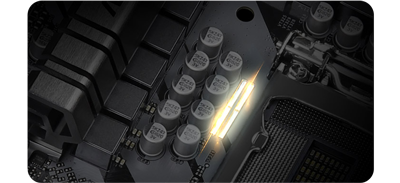

Heat Dissipating PCB Technology
Luxurious features extend to the onboard heat dissipating PCB points. Heat Dissipating PCB gives the motherboard a more mysterious touch and this design effectively takes the heat away from PCB and lower down the temperature up to 4.1 degrees.
Support Software for your ASRock Motherboard
FULL SPIKE PROTECTIONASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
LIVE UPDATE & APP SHOPASRock Live Update & APP Shop is designed for your convenience. Users can download various apps and support software, optimise your system with ease and keep your motherboard up to date with
ASRock Live Update & APP Shop
|Edition||Z490 PHANTOM GAMING 4|
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||ECC/Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||
|Max. Memory Capacity||128GB|
|Audio||Realtek ALC1200 7.1 HD Audio|
|Primary GPU Interface||PCIe 3.0 (x16)|
|NVIDIA SLI Support||N/A|
|AMD CrossFire Support||2-Way CrossFire|
|On-Board Graphics Connectors||None|
|RAID Support via||Intel® SATA RAID 0/1/10/5|
|Storage Mode Support||Intel Rapid Storage Technology 17|
|Network Interface Type||Wired Gigabit LAN (10/100/1000)|
|Network Chip/Modules||1 x Intel® I219V (Gigabit LAN)|
|Rear I/O Connectors||
|Cooling||PCH Fan & Passive Heatsinks|
|Board Dimensions||224 x 305 mm|
