Scan code: LN98654 Manufacturer code: 90-MXBA90-A0UAYZ

ASRock Intel Coffee Lake Z390 Phantom Gaming 4S ATX Motherboard

ASRock Z390 Phantom Gaming 4S, Intel Z390, S 1151, DDR4, SATA3, M.2, 2-Way CrossFire, Intel GbE, USB 3.2 Gen1 A, ATX

Thumbnail 1 : ASRock Intel Coffee Lake Z390 Phantom Gaming 4S ATX Motherboard Thumbnail 2 : ASRock Intel Coffee Lake Z390 Phantom Gaming 4S ATX Motherboard Thumbnail 3 : ASRock Intel Coffee Lake Z390 Phantom Gaming 4S ATX Motherboard Thumbnail 4 : ASRock Intel Coffee Lake Z390 Phantom Gaming 4S ATX Motherboard
Scan code: LN98654 Manufacturer code: 90-MXBA90-A0UAYZ
£99.98
From £8.98 / month (APR 14.9%)
Monthly Payment: £17.35
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £99.98
Total inc. interest: £104.09
Monthly Payment: £8.98
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £99.98
Total inc. interest: £107.69
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 23rd Sep 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

ASRock Z390 Phantom Gaming 4S Intel 1151 Motherboard

ASUS RTX Gaming laptop

Support for 8th and 9th Gen Intel Core ProcessorsASRock have built the Z390 Phantom Gaming 4S for high end gaming and content creation as it support the latest 9th Gen Intel Processors. It's capable of DDR4 4300MHz+ for a fast and responsive system as well as having a slot for super quick M.2 Storage. The ASRock Phantom Gaming Board features onboard RGB headers that allow you to connect multiple LED devices to your motherboard allowing you to create your style of lights and effects in your system.

Please note: Z390 Motherboards are compatible with Intel 8th Gen 'Coffee Lake' and 9th Gen CPUs. Although these Intel Z390 Motherboards share the same socket as Intel's 200 & 100 Series Motherboards, they are electrically incompatible & will not work with 7th & 6th Gen Intel CPUs.

Intel Z390Chipset

1151CPU Socket

8th & 9th Gen IntelCompatible CPUs

ATXForm Factor

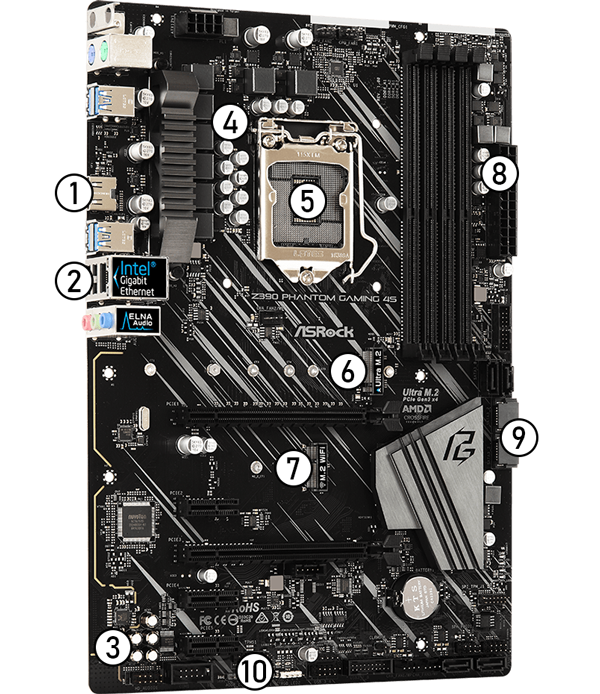

ASRock Z390 Component Breakdown

ASUS RTX Gaming laptop

Quality Build with a host of features 1. HDMI   |   2. Intel Gigabit LAN   |   3. ELNA Audio Caps   | 4. DIGI Power Design 8 Power Phase  
5. Intel LGA 1151 Socket Supports 9th and 8th Gen Intel Core CPUs   | 6. Ultra M.2 Socket (PCIe Gen3 x4 & SATA3)  
7. M.2 KEY-E for WIFI   | 8. Solid Caps   | 9. 6 SATA3 6Gb/s   | 10. RGB LED + Addressable RGB LED Headers  

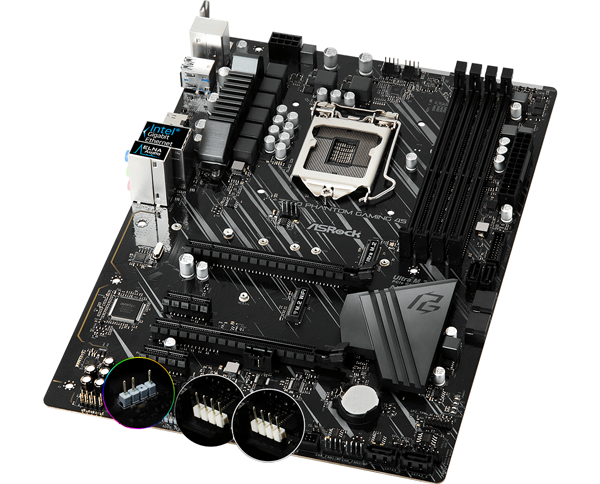

Includes Onboard RGB Headers for Various Lighting and Effects

ASUS RTX Gaming laptop

Style your Rig the way you want This motherboard features onboard RGB headers and an addressable RGB header that allow your motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis etc. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

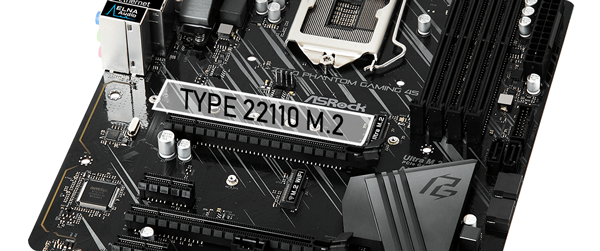

Support for PCIe Gen3 x4 Interface and SATA3 M.2

ASUS RTX Gaming laptop

Get ultra fast transfer speeds of 32Gb/s The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it is also ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance.

The Core Features of the ASRock Z390 Phantom Board

down

ASRock POOL TechnologyThe PCIe Gen3 x4 Ultra M.2 includes transfer speeds up to 32Gb/s. It is also ready for faster Type 22110 M.2 NVMe SSD to fulfill the need of performance.

up

Intel LANIntel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users

up

Intel Optane memory ReadySupports Intel Optane memory technology and Intel Optane storage technology that redefines a new standard of high performance and responsiveness.

A Motherboard Built for Stability and Durability

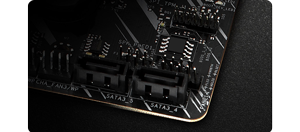

Sapphire Black PCB

Sapphire Black PCBPure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

Glass Fabric

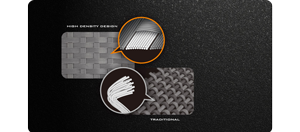

High Density Glass Fabric PCBHigh Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

usb3.2

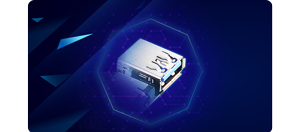

4x USB3.2 Gen1Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.2 Gen1 technology advances the data transfer rate up to 5Gb/s.

status checker

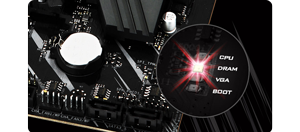

Post Status CheckerAn easy troubleshooting tool that shows the core operations every time you start up the system. Post Status Checker is an fast, easy way to identify the source of the problem.

Specifications
Core Specifications
Edition Z390 Phantom Gaming 4S
Form Factor ATX
CPU Socket 1151
Chipset Intel Z390
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 2933(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4300+(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC1200 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-30 (Supports WiFi/Bluetooth Cards)
  • 1 x M.2, 22-30/42/60/80/110, PCIe Gen3/SATA
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • AHCI
  • Hot Plug
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology 16
  • NCQ
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 4-pin CPU Fan Connector
  • 3 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Addressable Digital RGB Header
  • 1 x Front Panel Audio Header
  • 1 x Power LED / Speaker Header
  • 2 x RGB Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x Thunderbolt AIC Connector (5-pin)
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)
Rear I/O Connectors
  • 1 x Front Speaker Out
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x RJ-45
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x Wi-Fi antenna connector holes
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 305 x 213 mm
Note
Additional Information
Scan Code LN98654
Model Number 90-MXBA90-A0UAYZ
GTIN 4717677338409
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
