New
Scan code: LN99493 Manufacturer code: 90-MXBAT0-A0UAYZ

ASRock AMD Ryzen X570 Pro4 AM4 PCIe 4.0 ATX Motherboard

ASRock X570 Pro4, AMD X570, AM4, DDR4, PCIe 4.0, Dual M.2, 2-Way CrossFire, Intel GbE, USB 3.2 Gen2 A+C, ATX

Thumbnail 1 : ASRock AMD Ryzen X570 Pro4 AM4 PCIe 4.0 ATX Motherboard Thumbnail 2 : ASRock AMD Ryzen X570 Pro4 AM4 PCIe 4.0 ATX Motherboard Thumbnail 3 : ASRock AMD Ryzen X570 Pro4 AM4 PCIe 4.0 ATX Motherboard Thumbnail 4 : ASRock AMD Ryzen X570 Pro4 AM4 PCIe 4.0 ATX Motherboard
Scan code: LN99493 Manufacturer code: 90-MXBAT0-A0UAYZ
£179.99Item currently awaiting an ETA
Pre order
From £16.16 / month (APR 14.9%)
Monthly Payment: £31.24
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £179.99
Total inc. interest: £187.40
Monthly Payment: £16.16
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £179.99
Total inc. interest: £193.91
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

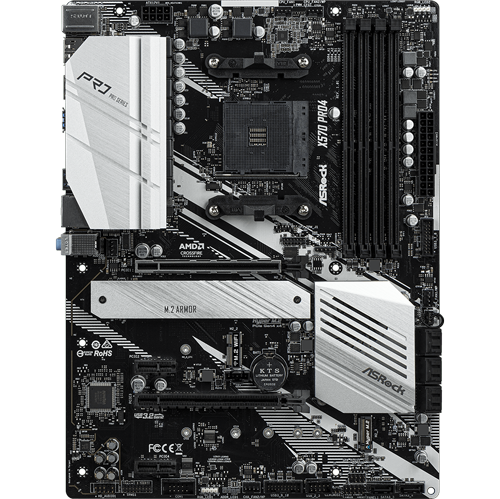

ASRock X570 Pro4 AM4 Ryzen Motherboard

ASRock Pro4 motherboard

Designed to House the new AMD Ryzen LineupThe ASRock X570 Pro4 is a motherboard built for AMD AM4 Series Ryzen CPUs (including 2nd Gen) and supports DDR4 4066+ (OC) memory. Enjoy your custom light show with ASRock Polychrome RGB by connecting and syncing to various LED RGB devices. The durability and protection systems the X570 offers include a full Coverage M.2 heatsink which improves heat dissipation, also for durability there are Solid Steel PCIe Slots which provide support for PCIe components and prevent shearing. Get super fast and reliable connections with the new Dual USB 3.2 Gen2 ports that include both Type-A and Type-C to support next generation devices.

AMD X570Chipset

AM4CPU Socket

AMD 2nd/3rd Gen RyzenCompatible CPU

ATXForm Factor

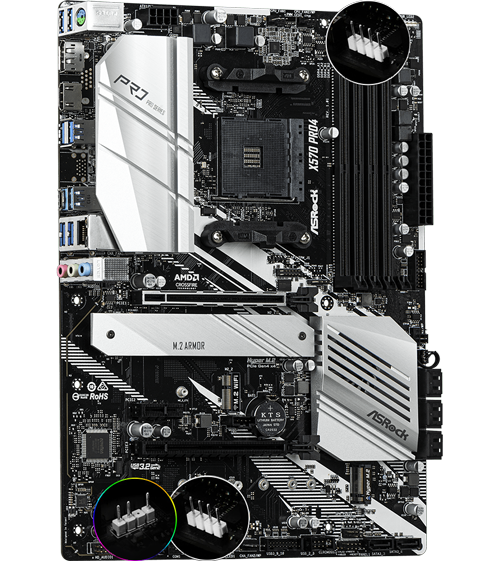

Style Your System Your Way with Polychrome RGB

ASRock Extreme4 motherboard

get incredible control over your lighting and effects ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way. ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

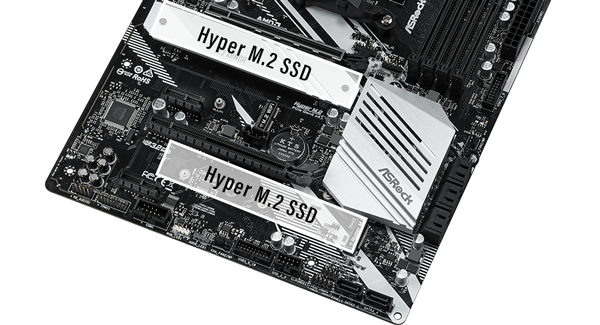

Super Fast Storage with Protective Heatsink

ASRock Extreme4 motherboard

improved heat dissipation with aluminium heatsink Supports the next generation PCI Express 4.0 M.2 SSDs, get a lightning fast data experience and watch as performance and speed is doubled compared to the previous 3rd generation.

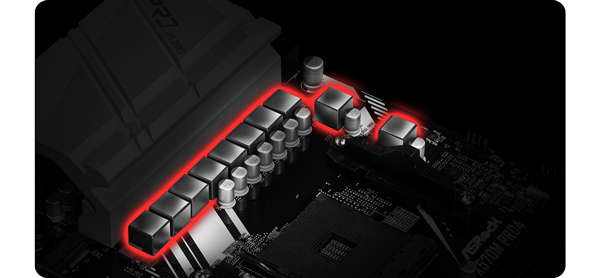

Sturdy 10 Power Phase Design ASRock Motherboard

ASRock Extreme4 motherboard

Offers enhanced performance and unmatched overclocking capabilities Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing improved Vcore voltage to the motherboard.

Support for Next Generation USB 3.2 Devices

ASRock Extreme4 motherboard

Get Double the transfer rate with USB 3.2 This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

ASRock X570 Pro4 Motherboard Features

down

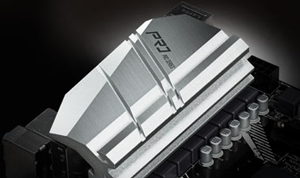

XXL Aluminium Alloy HeatsinkExtra large aluminium alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

up

Premium 50A Power ChokeCompared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better.

up

Matte Black PCBA new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.

Specifications
Core Specifications
Edition X570 Pro4
Form Factor ATX
CPU Socket AM4
Chipset AMD X570
Specifications
Cooling PCH Fan & Passive Heatsinks
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 3466(OC)
  • DDR4 - 4066+(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC1200 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.2
  • HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 1 x M.2, 22-30/42/60/80/110, PCIe Gen4x4
  • 1 x M.2, 22-30/42/60/80/110, PCIe Gen4x4/SATA3
  • 2 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • AHCI
  • Hot Plug
  • NCQ
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 4.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 3 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Addressable Digital RGB Header
  • 1 x AMD LED Fan USB Header
  • 1 x Front Panel Audio Header
  • 1 x Power LED / Speaker Header
  • 2 x RGB Header
  • 8 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x Thunderbolt AIC Connector (5-pin)
  • 1 x TPM (SPI_TPM) header
  • 1 x TPM Header
  • 1 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I211AT (Gigabit LAN)
Rear I/O Connectors
  • 1 x DisplayPort 1.2
  • 1 x Front Speaker Out
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45
  • 6 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 3 x Wi-Fi antenna connector holes (on I/O shield)
Additional Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 305 x 229 mm
Note
Additional Information
Scan Code LN99493
Model Number 90-MXBAT0-A0UAYZ
GTIN 4717677338874
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
