ASRock AMD Ryzen X570 Phantom Gaming X AM4 PCIe 4.0 ATX Motherboard

ASRock X570 Phantom Gaming X, AMD X570, AM4, DDR4, PCIe 4.0, Triple M.2, 2-Way SLi/CrossFire, 2.5G/GbE/WiFi, USB3.2, ATX

Thumbnail 1 : ASRock AMD Ryzen X570 Phantom Gaming X AM4 PCIe 4.0 ATX Motherboard Thumbnail 2 : ASRock AMD Ryzen X570 Phantom Gaming X AM4 PCIe 4.0 ATX Motherboard Thumbnail 3 : ASRock AMD Ryzen X570 Phantom Gaming X AM4 PCIe 4.0 ATX Motherboard Thumbnail 4 : ASRock AMD Ryzen X570 Phantom Gaming X AM4 PCIe 4.0 ATX Motherboard
Scan code: LN99489 Manufacturer code: 90-MXBAN0-A0UAYZ
£353.99
From £17.00 / month (APR 14.9%)
Monthly Payment: £61.43
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £353.99
Total inc. interest: £368.56
Monthly Payment: £31.78
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £353.99
Total inc. interest: £381.34
Monthly Payment: £21.92
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £353.99
Total inc. interest: £394.40
Monthly Payment: £17.00
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £353.99
Total inc. interest: £407.75
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £8.84 / month (APR 15.9%)
Delivery Options
  • By DPD On 19th Jul 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

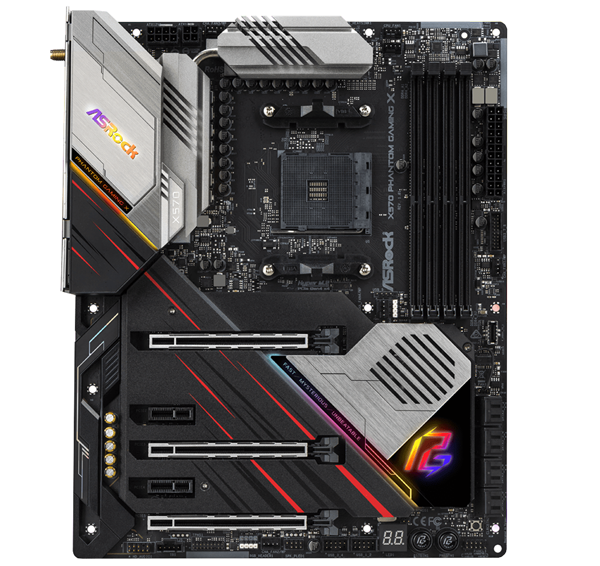

ASRock X570 Phantom Gaming X Motherboard Designed for AMD Ryzen

ASRock Phantom Gaming X motherboard

Designed and Built for AMD Ryzen 2nd & 3rd Gen CPUsThe ASRock X570 Phantom Gaming X is a motherboard built for AMD AM4 Series Ryzen CPUs and supports DDR4 4666+ (OC) memory. Enjoy your custom light show with ASRock Polychrome RGB and get connected and synced to various LED RGB devices. There are multiple durability and protection systems the X570 offers, such as a Full Coverage M.2 heatsink which improves heat dissipation, Solid Steel PCIe Slots, a sturdy metal backplate to prevent bending and damage and I/O armour protective cover. Get super fast and reliable connections with the new Intel Wi-Fi Standard with speeds of up to 2.4 Gbps and can operate 2.4GHz and 5GHz simultaneously.

AMD X570Chipset

AM4CPU Socket

AMD 2nd/3rd Gen RyzenCompatible CPU

ATXForm Factor

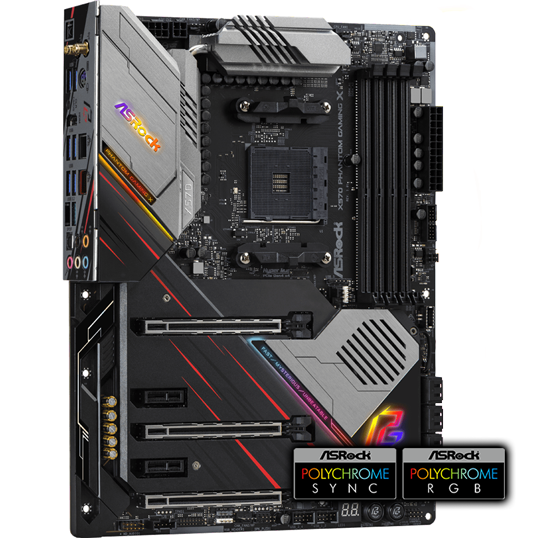

Synchronize your Devices with Polychrome RGB

ASRock Phantom Gaming X motherboard

Light up your system your way ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way. ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

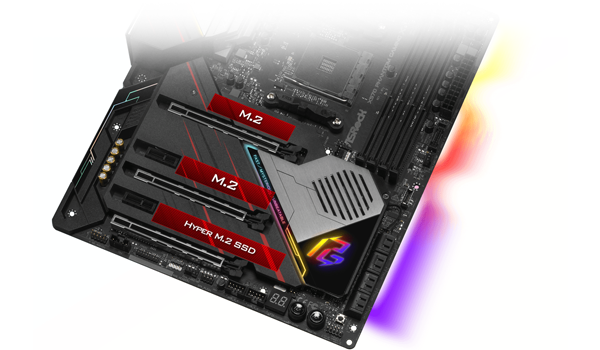

Unbeatable Heatsink Armour With M.2

ASRock Phantom Gaming X motherboard

improved heat dissipation with aluminium heatsink Forged with aluminium alloy heatsink top cover that effectively improves heat dissipation. Underneath is the next generation PCI Express 4.0 Hyper M.2 Socket, with twice the transfer speed of the previous 3rd Generation.

Sturdy 14 Power Phase Design ASRock Motherboard

ASRock Phantom Gaming X motherboard

Offers enhanced performance and unmatched overclocking capabilities Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing improved Vcore voltage to the motherboard.

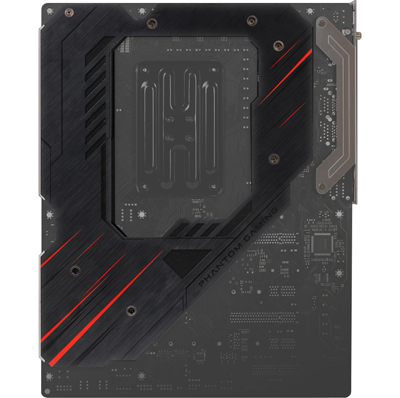

Secure Strengthening Metal Backplate

ASRock Phantom Gaming X motherboard

Prevents bending and promotes stability A strong metal backplate is attached to the backend of the motherboard it's designed to strengthen the board to prevent bending caused by heavy coolers or graphics cards with better airflow and enhanced stability.

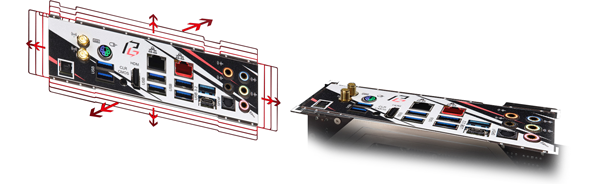

Flexible Integrated I/O Shield

ASRock Phantom Gaming X motherboard

Adjustable Fit for easy installation Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. ASRock reserve more tolerance space and allow the IO shield to be adjustable when installing, thus fitting chassis perfectly without any mechanical issue.

Support for Next Generation USB 3.2 Devices

ASRock Phantom Gaming X motherboard

Get DOuble the transfer rate with USB 3.2 This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

New Intel Wi-Fi Standard

ASRock Phantom Gaming X motherboard

operate both 2.4GHz and 5Ghz simultaneously The speed on the ASRock X570 Phantom Gaming X Motherboard will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.

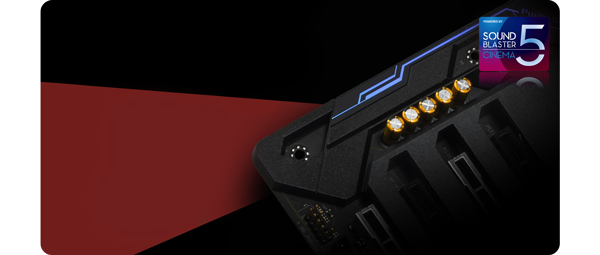

Premium Creative Sound Blaster Cinema5

ASRock Phantom Gaming X motherboard

Get unreal levels of audio realism and dynamics A new world of cinematic audio that delivers unprecedented levels of audio realism, dynamics and punch to gaming sound. Whether you’re gaming or watching a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers.

ASRock X570 Phantom Gaming X Motherboard Features

down

XXL Aluminium Alloy HeatsinkExtra large aluminium alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

up

Premium 60A Power ChokeCompared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better.

up

Dr. MOSDr. MOS features the latest SPS technology. It’s optimized for monitoring current and temperature of each phase, delivering smoother power to the CPU.

down

Premium Memory Alloy ChokeSpecifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat resistant design.

up

Combo CapsA combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power.

up

Nichicon 12K Black CapsSupreme 12K black capacitors consist of at least 12,000 hour lifespans. Compared to other high-end motherboards that merely have lifespans of around 10,000 hours.

up

Matte Black PCBA new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.

down

I/O ArmorA new designed protective cover for all of the crucial parts near the motherboard's rear I/O.

up

High Density Glass Fabric PCBHigh Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts.

Specifications
Core Specifications
Edition X570 Phantom Gaming X
Form Factor ATX
CPU Socket AM4
Chipset AMD X570
Specifications
Cooling PCH Fan & Passive Heatsinks
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4200(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4300(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4666+(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support 2-Way SLi
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-30/42/60/80/110, PCIe Gen4x4/SATA3
  • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA3
  • 1 x M.2, 22-60/80, PCIe Gen4x4
  • 2 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • AHCI
  • Hot Plug
  • NCQ
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 4.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 4 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Addressable Digital RGB Header
  • 1 x AMD Fan LED Header
  • 1 x AMD LED Fan USB Header
  • 1 x Clear CMOS Button
  • 1 x Dr. Debug with LED
  • 1 x Front Panel Audio Header
  • 1 x Power Button with LED
  • 1 x Power LED / Speaker Header
  • 1 x Reset Button with LED
  • 1 x RGB Header
  • 8 x SATA III - 6Gb/s
  • 1 x Thunderbolt AIC Connector (5-pin)
  • 1 x TPM (SPI_TPM) header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Dragon RTL8125AG (2.5GbE LAN)
  • 1 x Intel 802.11ax WiFi + BT5 Module
  • 1 x Intel® I211AT (Gigabit LAN)
Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Clear CMOS Button
  • 1 x Front Speaker Out
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 2 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 6 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 305 x 244 mm
