Scan code: LN101543 Manufacturer code: 90-MXBAW0-A0UAYZ

ASRock AMD Ryzen X570 Creator AM4 PCIe 4.0 ATX Motherboard

ASRock X570 Creator, AMD X570, AM4, DDR4 4666+, PCIe 4.0, M.2 SSD, GbE, ax WiFi, Thunderbolt 3™, ATX

Thumbnail 1 : ASRock AMD Ryzen X570 Creator AM4 PCIe 4.0 ATX Motherboard Thumbnail 2 : ASRock AMD Ryzen X570 Creator AM4 PCIe 4.0 ATX Motherboard Thumbnail 3 : ASRock AMD Ryzen X570 Creator AM4 PCIe 4.0 ATX Motherboard Thumbnail 4 : ASRock AMD Ryzen X570 Creator AM4 PCIe 4.0 ATX Motherboard
Scan code: LN101543 Manufacturer code: 90-MXBAW0-A0UAYZ
£519.98
From £24.96 / month (APR 14.9%)
Monthly Payment: £90.23
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £519.98
Total inc. interest: £541.36
Monthly Payment: £46.68
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £519.98
Total inc. interest: £560.15
Monthly Payment: £32.19
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £519.98
Total inc. interest: £579.37
Monthly Payment: £24.96
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £519.98
Total inc. interest: £599.00
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £12.99 / month (APR 15.9%)
Delivery Options
  • By DPD On 21st Oct 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

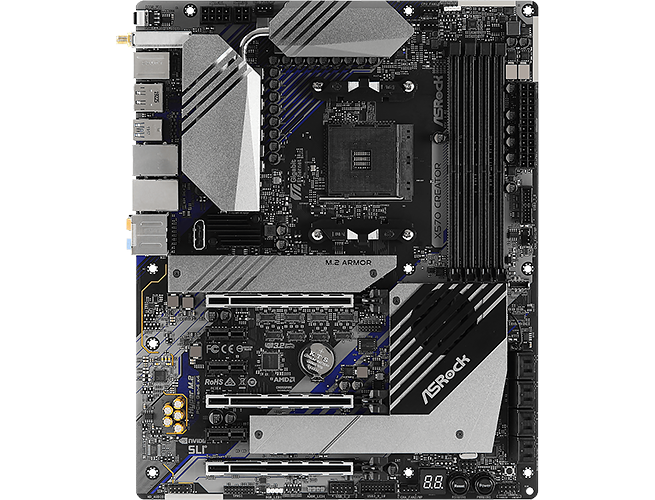

Product Overview A Motherboard Built for Content Creators
Built with primo components and out edge technology, ASRock Creator series makes content creation easy and a pleasure.

Thunderbolt™ 3 Technology
Thunderbolt™ 3 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects up to 3 Thunderbolt™ 3 devices with a single wire, and even provides quick charging with [email protected] (15W). Just experience the world's fastest connectivity with Thunderbolt™ ready motherboards!

AQUANTIA® 10Gb/s BASE-T Ethernet
The new 10Gb/s network standard was specially designed to satisfy the end user who is seeking immediate performance improvements. Based on AQUANTIA's AQtion™ client controller, it offers blazingly fast 10-gigabit/sec transfer speed over Cat6 cable. This 10Gb/s Ethernet is not only fully compatible with 5Gb/s, 2.5Gb/s & Gigabit Lan but also delivers lightning fast transfer speed, perfect for media centers, workstations and gaming PCs.

14 Power Phase Design (IR® DIGITAL PWM)
Featuring sturdy components and completely smooth power delivery to the CPU. The X570 Creator offers unmatched overclocking capabilities and enhanced performance with the lowest temperatures for creators and advanced gamers alike.

Dr. MOS
IR3555 Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 60A continuous current for each phase, thus providing improved thermal results and superior performance.

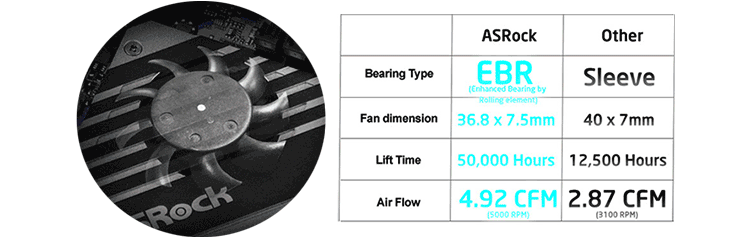

EBR Fan
The longer lifespan EBR bearing fan have been used to ensure the best durability. Compared with a normal sleeve bearing fan, EBR bearing fans have a lifespan of up to 50,000 hours, equivalent to 5.7 years of working under full speed.

Wi-Fi 6 802.11ax
Welcome to the new Wi-Fi standard! ASRock’s motherboard comes equipped with the next generation Intel® Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.

Steel Slot with New-Gen PCI Express 4.0
The next generation PCI Express 4.0 is capable of performing at twice the speed when compared to the previous 3rd generation. ASRock’s exclusive Steel Slot with extra anchor points are revolutionary. Added to ensure signal stability and also ensuring heavy graphics cards can be installed into the PCI-E slot safely.

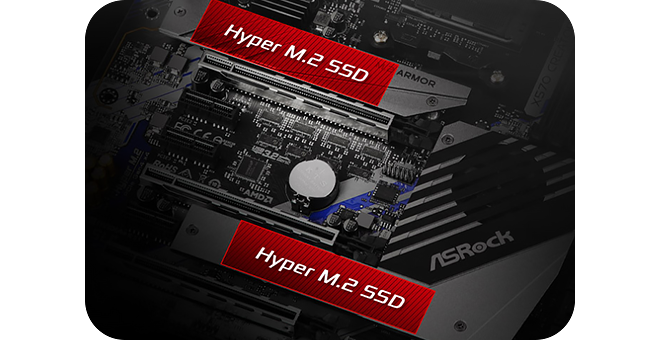

Dual Hyper M.2 for SSD
Supports the next generation PCI Express 4.0 M.2 SSDs, these are capable of performing at twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Rule Your Own Lighting Way - Polychrome RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow the motherboard to be connected to compatible LED devices such as LED strips, CPU fans, coolers, chassis ETC... Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Front USB 3.2 Gen2 Type-C
Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes. Features • Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors.
• Supports DDR4 4666+ (OC).
• Intel® Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.0.
• AQUANTIA® 10G LAN, Intel® Gigabit LAN.
• 3 PCIe 4.0 x16, 3 PCIe 4.0 x1.
• NVIDIA® NVLink™, Quad SLI™, AMD 3-Way CrossFireX™.
• 7.1 CH HD Audio (Realtek ALC1220 Audio Codec).
• Supports DTS Connect.
• 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4).
• 1 Front USB 3.2 Gen2 Type-C, 10 USB 3.2 Gen1 (4 Front, 6 Rear).
• 2 Intel® Thunderbolt™ 3 Type-C.
Specifications
Core Specifications
Edition Creator
Form Factor ATX
CPU Socket AM4
Chipset AMD X570
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4200(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4300(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4666+(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-30/42/60/80/110, PCIe Gen4x4
  • 1 x M.2, 22-42/60/80/110, PCIe Gen4x4
  • 3 x PCIe 2.0 x1
  • 3 x PCIe 4.0 x16
SATA Support SATA3
RAID Support via SATA
Storage Mode Support
  • AHCI
  • Hot Plug
  • NCQ
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x Addressable Digital RGB Header
  • 1 x AMD Fan LED Header
  • 3 x Chassis Water Pump/Fan Connector
  • 1 x Clear CMOS Button
  • 1 x CPU Fan Connector
  • 1 x CPU Water Pump/Fan Connector
  • 1 x DisplayPort In
  • 1 x Dr. Debug with LED
  • 1 x Front Panel Audio Header
  • 1 x Front Panel USB Type-C Header
  • 1 x Power Button with LED
  • 1 x Power LED / Speaker Header
  • 1 x Reset Button with LED
  • 1 x RGB LED connector
  • 1 x TPM (SPI_TPM) header
  • 1 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type
Network Chip/Modules
Rear I/O Connectors
  • 2 x Antenna Ports
  • 1 x Bass Speaker Out
  • 1 x BIOS Flashback Button
  • 1 x Central Speaker Out
  • 1 x DisplayPort 1.4
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 2 x RJ-45
  • 1 x S/PDIF-In (Optical)
  • 6 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-C / Thunderbolt 3 / DP
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 240 mm
Note
Additional Information
Scan Code LN101543
Model Number 90-MXBAW0-A0UAYZ
GTIN 4717677339284
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
