ASRock Intel Core-X X299 Creator ATX Motherboard

ASRock X299 Creator, Intel X299, S 2066, DDR4, SATA3, Triple M.2, 3-Way SLi/CrossFire, Intel GbE, USB 3.2 A+C, ATX

Thumbnail 1 : ASRock Intel Core-X X299 Creator ATX Motherboard Thumbnail 2 : ASRock Intel Core-X X299 Creator ATX Motherboard Thumbnail 3 : ASRock Intel Core-X X299 Creator ATX Motherboard Thumbnail 4 : ASRock Intel Core-X X299 Creator ATX Motherboard
Scan code: LN104732 Manufacturer code: 90-MXBBR0-A0UAYZ
£443.99Item currently awaiting an ETA
Pre order
From £21.31 / month (APR 14.9%)
Monthly Payment: £77.05
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £443.99
Total inc. interest: £462.26
Monthly Payment: £39.86
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £443.99
Total inc. interest: £478.28
Monthly Payment: £27.49
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £443.99
Total inc. interest: £494.68
Monthly Payment: £21.31
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £443.99
Total inc. interest: £511.48
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £11.09 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

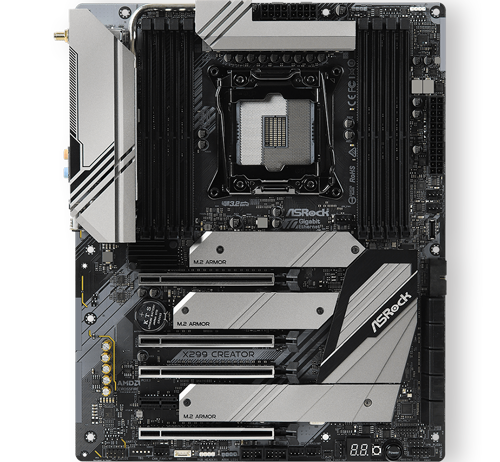

ASRock X299 Creator ATX Motherboard

ASRock x299 Creator High end ATX motherboard

Empower your ImaginationIntroducing the ASRock Intel Core-X X299 Creator, the flagship motherboard specifically built for content creators using primo components and cutting edge technology, featuring an Aquantia 10GbE port assisted by intel Gigabit NIC chipset providing you with dual Ethernet ports to keep connectivity versatile and fast, if a wireless connection is more for you don't worry, a next generation Intel Wi-Fi 802.11 ax adapter with Bluetooth 5.0 technology has been included. Built for creators and perfect for those seeking more expandability through the 3 PCIe 3.0 x4 M.2 slots which offers better performance when connected to SSD drives, the X299 Creator also has 10 SATA ports which are available for higher capacity storage drives and a necessity for all those graphic heavy videos and images. What creators yearn for is data speed between graphic refresh rates and the X299 takes it one step further with support for THUNDERBOLT 3 technology. It brings speed and versatility to the most advanced USB-Type-C ports and offers a fast and simple level of connectivity. It enables lightning-fast data transfer speeds of up to 40Gbps. Transferring videos and 4K images now becomes a breeze for creators.

Intel X299Chipset

2066CPU Socket

Intel Core-XCompatible CPUs

ATXForm Factor

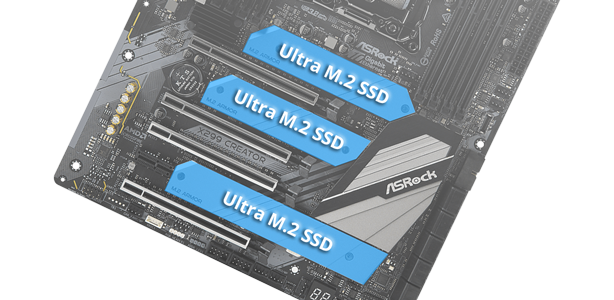

Keep your Super-Fast Storage Safe

Alluminium Alloy Heatshields

Unbeatable heatsink armour ASRock have created an aluminium alloy heatsink top-cover that effectively improves heat dissipation. underneath its solid strong covers lie three gaming required M.2 Key M Sockets.

Get Blazing-Fast WiFi Speeds

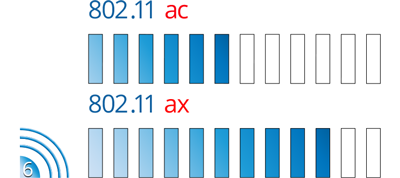

WiFi 6 801.11ax & Bluetooth

WiFi 6 801.11ax & Bluetooth 5.0Welcome to the newest WiFi standards, ASRocks X299 Creator boasts the next generation Intel Wi-Fi 802.11ax adapter, with working speeds of up to 2.4 Gbps a massive 40% performance increase on previous generations and natively operating with both 2.4Ghz and 5.0Ghz simultaneously, ASRrock have also significantly improved bi-drectional MU-MIMO support which is another attractive feature.

Bluetooth 5 Icon
Wifi Speeds

Super speed USB with Thunderbolt 3

Thunderbolt 3 Technology ASRock have included Thunderbolt 3 support with the X299 Creator bringing versatility and speed to the most advanced USB Type-C ports and offering a fast and simple level of connectivity, this highly desirable reversible Thunderbolt 3 Type-C interface delivers breathtaking 40 Gb/s data transfer speeds and also supports USB PD charging up to [email protected] (27w)

Type-C Speeds

USB 3.2 Gen2 Type-C

Type C Thunderbolt 3 Speeds

Thunderbolt 3

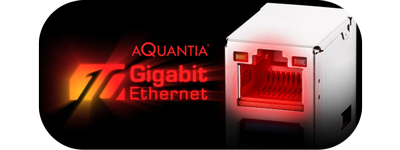

Ultra Fast LAN Connector

10GB LAN connection

Aquantia 10Gb/s Base-T Ethernet Everyone knows that slow or weak connections to thr internet has massive impacts on productivity however this new 10Gb/s network standard has been specially designed for users who are looking for immediate performance improvements based on AQUANTIA's AQtion controller and it offers blazing fast 10-gigabit/sec transfer speeds over Cat6 cable, not only is the 10Gb/s ethernet compatible with 5Gb/s, 2.5Gb/s & Gigabit LAN but with it's lightning fast transfer speeds it's the perfect solution for creators and their media centers, workstations and gaming PC.

Unmatched Overclocking Capabilities

Smooth power delivery with 13 phase design

13 Power Phase DesignDesigned with a 13 Power Phase design, this motherboard features sturdy components and completely smooth power delivery to the CPU and it also offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamer as well.

Step-Up your PC Performance

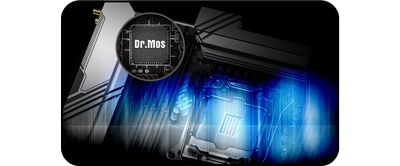

Dr MOS

Dr.MOSDr.MOS is the integrated power stage solution which is optimised for synchronous buck-set down voltage applications. Delivering higher current and driving ip to 50A of continuous current for each phase, the benefit of this is improved thermal results and better performance.

No Limit to Longevity

larger heatsink and heatpipes

XXL Aluminium Alloy Heatsink & Heatpipe DesignASRock have gone all out with the X299 creator by incorporating an extra large aluminium alloy heatsink and heatpipe to take away heat from the MOSFET as effectively as possible to keep your system as stable as possible.

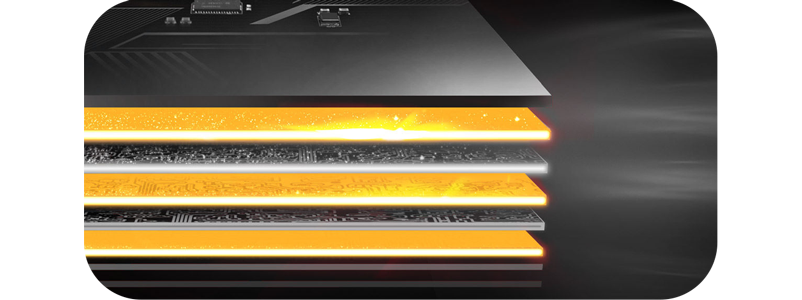

8-layer PCB

8 Layer & 2OZ copper PCB Another implementation of careful planning is the 8 layer PCB comes with 4 sets of two ounce copper inner layers, providing stable signal traces and power shapes and delivering lower temperature and higher energy efficiency for overclocking!, this the X299 Creator can support latest DDR4 memory modules with the higher clock speeds.

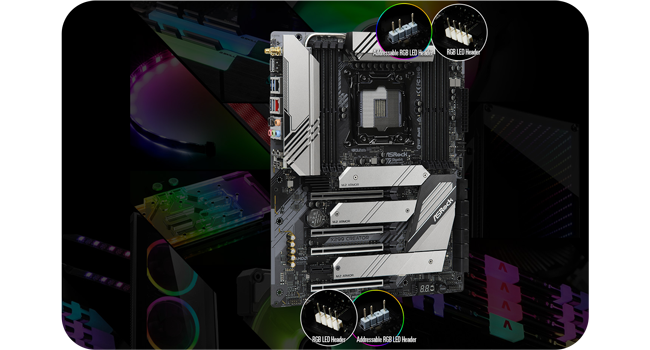

Rule Your Own Lighting

Polychrome RGB supported

Polychrome RGBThe X299 Creator features onboard RGB headers and an addressable RGB header that allow you to connect compatible LED devices to your motherboard such as coolers, LED strips, memory, case fans ETC. and whats more you can also synchronise your effects across Polychrome sync certified accessories and create your own unique lighting effects.

Super Alloy Motherboard

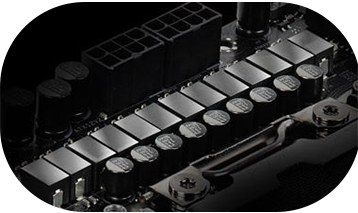

Premium Grade Chokes

Premium 60A Power ChokeWhen compared to traditional chokes, ASrock's premium 60A power chokes make saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

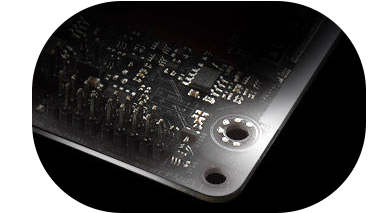

Blacked out PCB

Matte Black PCBASRock introduced a new mysterious matte black and copper colouring for the X299 Creator to match the prestigious components featured on this motherboard.

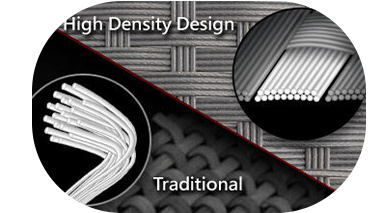

High Density PCB

High Density PCBThe X299 Creator uses a high density glass fibre PCB design that reduces the gaps in the layers of the PCB to protect the motherboard from shorts caused by high humidity.

Comprehensive I/O Panel

I/O Panel

All the connections you could wantOne of the most important components in a motherboard are the connections made available to you and ASRock have included a plethora of them on the X299 Creator the rear I/O houses 2x wireless antenna ports, 2x USB 2.0 Type-A Ports, 2x USB 3.2 Gen2 Thunderbolt 3 Type-C ports, a full comprehensive HD audio panel including SPDIF out port, 4x USB 3.2 Gen1 ports, 2x RJ-45 ports complete with LED indicators and finally a clear CMOS button.

Optimise the Performance of your Motherboard

live update app shop

LIVE UPDATE & APP SHOP ASRock Live Update & APP Shop have been designed to make using your motherboard as convenient as possible. They offer a plethora of apps and support software that you can download. You can also easily optimize your system and keep your motherboard up to date.

Safeguard your Board from Damaging Surges

Full spike protection

FULL SPIKE PROTECTION Your motherboard has some sensitive digital components that can be vulnerable to power surges. The excessive current can cause your system to malfunction, so ASRock's Full Spike Protection features a range of technologies to prevent your motherboard's components from being damaged by unexpected voltage spikes.

Specifications
Core Specifications
Edition X299 Creator
Form Factor ATX
CPU Socket 2066
Chipset Intel X299
RAM Memory Support
Memory Type DDR4
Memory Channel Quad (4)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 2933(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4200+(OC)
Max. Memory Capacity 256GB
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 3-Way SLi
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E
  • 2 x M.2, 22-42/60/80, PCIe Gen3x4
  • 1 x M.2, 22-42/60/80/110, PCIe Gen3x4
  • 1 x PCIe 3.0 x1
  • 4 x PCIe 3.0 x16
SATA Support SATA3
RAID Support via SATA
Storage Mode Support
  • AHCI
  • Hot Plug
  • Intel Rapid Storage Technology 17
  • Intel® Smart Response Technology
  • NCQ
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 5 x Chassis Water Pump/Fan Connector
  • 1 x CPU Fan Connector
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Dr. Debug with LED
  • 1 x Front Panel Audio Header
  • 1 x Front Panel USB Type-C Header
  • 1 x Power LED / Speaker Header
  • 1 x Reset Button
  • 2 x RGB Header
  • 10 x SATA III - 6Gb/s
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type
  • Wired 10G LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel 802.11ax WiFi + BT5 Module
Rear I/O Connectors
  • 2 x Antenna Ports
  • 1 x Bass Speaker Out
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Clear CMOS Button
  • 1 x Front Speaker Out
  • 1 x Mic-In
  • 2 x Mini DisplayPort
  • 1 x Rear Speaker Out
  • 2 x RJ-45 with LED
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-C / Thunderbolt 3 / DP
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 305 x 244 mm
