Scan code: LN110272 Manufacturer code: 90-MXBC30-A0UAYZ

AsRock Intel W480 Creator ATX Motherboard

AsRock W480 Creator, Intel W480, s 1200, DDR4, SATA3, 3x M.2, CrossFire, 10GbE, 2.5GbE, 802.11ax WiFi, USB 3.2 Gen2, ATX

Thumbnail 1 : AsRock Intel W480 Creator ATX Motherboard Thumbnail 2 : AsRock Intel W480 Creator ATX Motherboard Thumbnail 3 : AsRock Intel W480 Creator ATX Motherboard Thumbnail 4 : AsRock Intel W480 Creator ATX Motherboard
Scan code: LN110272 Manufacturer code: 90-MXBC30-A0UAYZ
Order now and get it tomorrow, Thu 30th Jun
£407.99
Get it Tomorrow, 30 JunIn stock
From £18.04 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £35.07
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £407.99
Total inc. interest: £420.80
Monthly Payment: £18.04
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £407.99
Total inc. interest: £432.87
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £10.19 / month (APR 15.9%)
Delivery Options
  • By DPD On 30th Jun to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

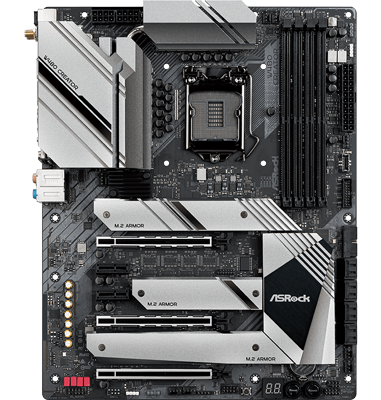

ASRock 10th Gen Intel Core/Xeon W480 Creator ATX Motherboard

W480 Creator

A Motherboard Designed For Content CreatorsCreating content should be a pleasure, thats why ASRock crafted the W480 Creator from premium components and cutting-edge tech, this entire motherboard was designed to streamline your workflow giving you high-tier performance and durability boasting support for both 10th Generation Core intel and also Xeon W processors, server grade ECC memory modules that deliver outstanding performance and durability for high-end computing systems and also offers full support for NVIDIA QUADRO professional graphics cards designed specifically for you creatives.

With the W480 Creators sturdy updated power phase design, premium chokes and aluminium alloy M.2 armour, Wi-Fi 6 and Type-C connectivity you have the cutting-edge technology you need to support you as you blow your chosen audience away.

Intel W480Chipset

LGA 1200Socket

ATXForm Factor

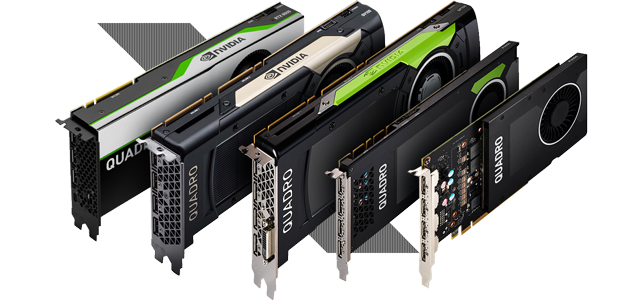

Graphics Cards For Professionals

NVIDIA Quadro

NVIDIA Quadro Professional GraphicsThe W480 Creator boasts full support for NVIDIA QUADRO professional graphics cards, which are designed specifically for artists, designers, 3D animators etc. granting you true firepower for any kind of content creation.

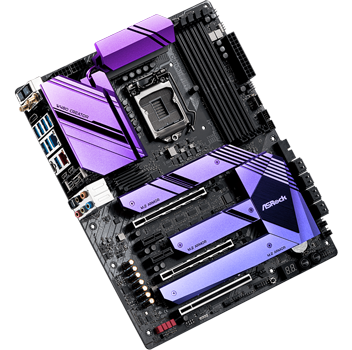

XXL Aluminium Alloy Heatsinks & M.2 Armour

XXL Heatsink

Effective Heat DissipationASRock know that durability and reliability is key when working with professional content creation, the W480 Creator features a huge aluminium alloy heatsink and heatpipe that effectively remove heat from the MOSFET helping to keep your system stable. The M.2 Armour is also built from an aluminium alloy to effectively dissipate heat from your storage devices allowing you to run high speed SSDs without worrying about overheating or throttling.

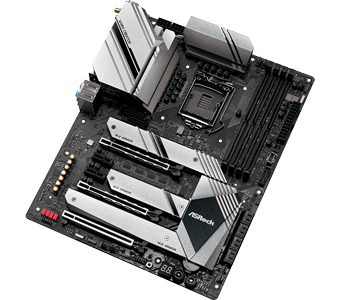

Special Features of the W480 Creator

ASRock W480

CPU Support• Supports 10th Generation Intel Core and Xeon W Processors
• Supports Intel® Turbo Boost Max 3.0 Technology
• Supports Intel® K-Series CPUs

4 x DDR4 DIMM Slots• Supports Non-ECC, unbuffered DDR4 memory
• Supports ECC UDIMM memory modules with Intel® Xeon®
• Supports DDR4 ECC, un-buffered memory with Intel® Xeon®
• Max Capacity: 128GB

Expansion Slots• 3 x PCI Express 3.0 x16 Slots
• 2 x PCI Express 2.0 x1 Slots
• 1 x M.2 Key E (Occupied by Wi-Fi Module)

Storage Capabilities• 6 x SATA3 6.0 Gb/s Connectors
• 1 x M.2, 22-60/80, PCIe Gen3
• 1 x M.2, 22-60/80, PCIe Gen3/SATA
• 1 x M.2, 22-60/80/110, PCIe Gen3x4/SATA3

Connectivity Options• AQUANTIA AQC-107 (10GbE LAN)
• Intel® I225LM (2.5 GbE LAN)
Intel® 802.11ax WiFi Module

- Supports IEEE 802.11a/b/g/n/ax
- Supports Dual-Band (2.4/5 GHz)
- Supports WiFi6 802.11ax (2.4Gbps)
- Supports Bluetooth 5.1
- Supports MU-MIMO

Honorable Mentions • 4 x USB 3.2 Gen1 Type-A
• 3 x USB 3.2 Gen2 Type-A
• 1 x USB 3.2 Gen2 Type-C
• 2 x USB 3.2 Gen2 Type-C / Thunderbolt 3 / DP
• 2 x RGB LED Headers
• 2 x Addressable LED Headers
• 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)

>

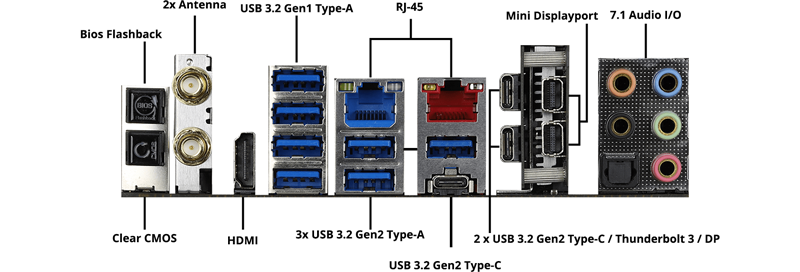

Comprehensive Rear I/O

Rear I/O
Specifications
Core Specifications
Edition W480 Creator
Form Factor ATX
CPU Socket 1200
Chipset Intel W480
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3200(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266+(OC)
  • DDR4 - 4333(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4500(OC)
  • DDR4 - 4600+(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC S1220A 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0
NVIDIA SLI Support N/A
AMD CrossFire Support 4-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort IN for Thunderbolt™ 3
  • HDMI
  • Thunderbolt 3
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Occupied by Wi-Fi Module)
  • 1 x M.2, 22-60/80, PCIe Gen3
  • 1 x M.2, 22-60/80, PCIe Gen3/SATA
  • 1 x M.2, 22-60/80/110, PCIe Gen3x4/SATA3
  • 2 x PCIe 2.0 x1
  • 3 x PCIe 3.0 x16
SATA Support SATA3
RAID Support via Intel® SATA RAID 0/1/10/5
Storage Mode Support
  • AHCI
  • Hot Plug
  • Intel Optane Memory Ready
  • Intel Rapid Storage Technology 17
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 6 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 2 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Clear CMOS Button
  • 1 x Debug Code LED
  • 1 x Front Panel Connector
  • 1 x Power Button with LED
  • 1 x Power LED / Speaker Header
  • 1 x Reset Button with LED
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.1 Gen2 Type-C Front Header
  • 2 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 10G LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x AQUANTIA AQC-107 (10GbE LAN)
  • 1 x Intel 802.11ax WiFi + BT5 Module
Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x 10GbE RJ45
  • 1 x 7.1 Audio I/O
  • 2 x Antenna Ports
  • 1 x BIOS Flashback Button
  • 1 x Clear CMOS Button
  • 1 x HDMI
  • 2 x Mini DisplayPort
  • 4 x USB 3.2 Gen1 Type-A
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 2 x USB 3.2 Gen2 Type-C / Thunderbolt 3 / DP
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions
Note Includes 4x SATA Cables, 1x Antenna, 3x M.2 Screws, 2x M.2 Standoffs
Additional Information
Scan Code LN110272
Model Number 90-MXBC30-A0UAYZ
GTIN 4710483931543
