Scan code: LN103587 Manufacturer code: 90-MXBBK0-A0UAYZ

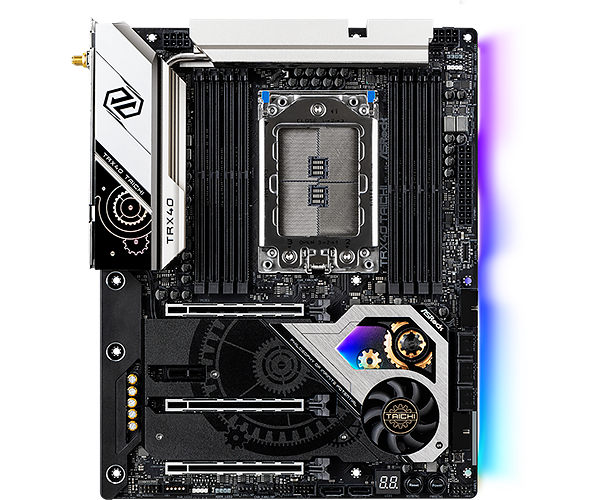

ASRock AMD Threadripper TRX40 Taichi PCIe 4.0 ATX Motherboard

ASRock TRX40 Taichi, AMD TRX40, sTRX4, DDR4, PCIe 4.0, 2x M.2, SLI/CrossFire, 2.5GbE, USB 3.2 Gen2 A+C, ATX

Thumbnail 1 : ASRock AMD Threadripper TRX40 Taichi PCIe 4.0 ATX Motherboard Thumbnail 2 : ASRock AMD Threadripper TRX40 Taichi PCIe 4.0 ATX Motherboard Thumbnail 3 : ASRock AMD Threadripper TRX40 Taichi PCIe 4.0 ATX Motherboard Thumbnail 4 : ASRock AMD Threadripper TRX40 Taichi PCIe 4.0 ATX Motherboard
Scan code: LN103587 Manufacturer code: 90-MXBBK0-A0UAYZ
£469.99Item currently awaiting an ETA
Pre order
From £22.56 / month (APR 14.9%)
Monthly Payment: £42.20
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £469.99
Total inc. interest: £506.28
Monthly Payment: £22.56
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £469.99
Total inc. interest: £541.41
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £11.74 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

ASRock AMD Ryzen TRX40 Taichi Motherboard

ASROCK AMD X570 Creator

ACTIVIATE INCREDIBLE POWER Built with premium components and powerful technologies, the ASRock Taichi makes for an unbeatable computing experience. It offers a wealth of features allowing you to customize and build in your own individual way. This versatile ATX motherboard provides support for NVIDIA® NVLink™, 3-Way SLI™ and AMD 3-Way CrossFireX™ for all of your graphics needs, and supports DDR4 4666+ (OC) memory to give you unbeatable speeds. Keep connected with blazing-fast Intel® 802.11ax WiFi, and stay protected with an aluminum alloy heatsink which will majorly improve heat dissipation. The ASRock TRX40 Taichi motherboard also features fantastic connectivity options, with support for USB 3.2 Type-C, Intel® Gigabit LAN and Hyper M.2 SSDs. The AsRock Taichi motherboard is bundled with a Hyper Quad M.2 card which allows you to support four more M.2 SDDs to satisfy your gaming needs.

Please note: Supports 3rd Gen AMD Ryzen™ Threadripper™ Processors Processors for AM4 socket.

AMD TRX40Chipset

sTRX4CPU Socket

AMD 3rd Gen Ryzen ThreadripperCompatible CPUs

ATXForm Factor

Great Durability for a Longer Lifespan

ebr bearing fan

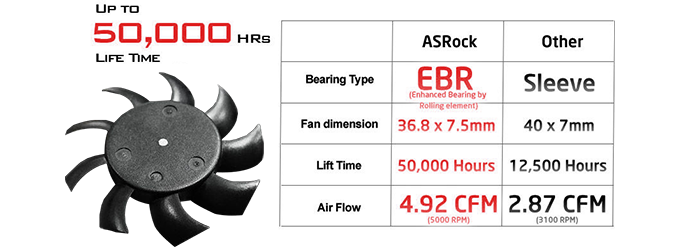

EBR FAN FOR EXCELLENT COOLING The ASRock TRX40 Taichi comes fitted with an EBR bearing fan that ensures you get fantastic durability and a longer lifespan. Compared to a traditional sleeve bearing fan, the EBR bearing fan offers a lifespan of up to 50,000 hours, equivalent to 5.7 years of working at full speed.

Get Finer Performance even Under Heavy Loads

ebr bearing fan

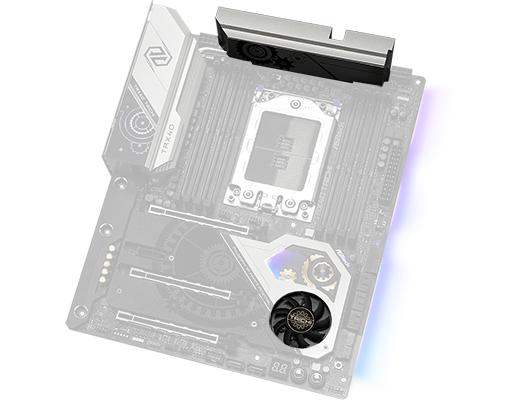

ALLOY HEATSINK AND COOLING FANS Also on the ASRock Taichi is an extra-large aluminium alloy heatsink with cooling fans, which is able to effectively take away heat from the MOSFET, and so delivers greater performance and better overclocking capabilities.

Rule Lighting your Own Way

ebr bearing fan

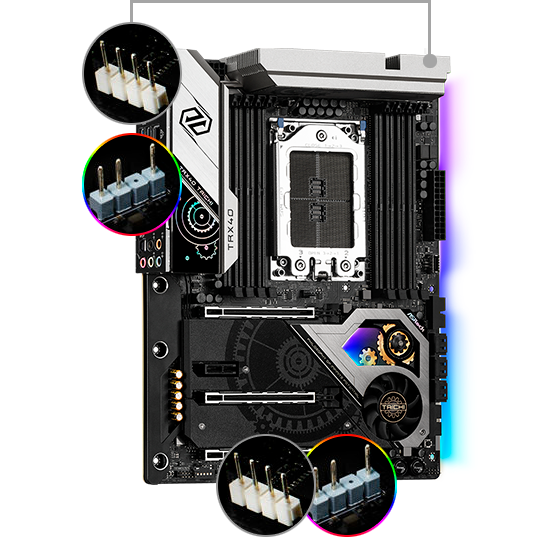

WITH POLYCHROME SYNC RGB Enjoy stunning performance and aesthetics that will rule over any other. Utilize the power of ASRock's Polychrome Sync software to control and customize the built-in RGB LEDs on your Taichi motherboard. You can also connect LED light strips for added style, and carry on the colour scheme onto CPU fans, coolers, cases or any other RGB or PolyChrome Sync-certified devices with ease. The Taichi board features both RGB LED Headers (white) and Addressable RGB LED headers. (blue)

Transfer Data at Lightning Speeds

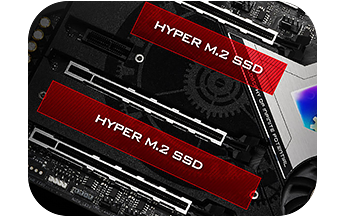

DUAL HYPER M.2 SSD The TRX40 Taichi supports the next generation of PCI Express 4.0 M.2 SSDs. It easily performs at twice the speed of the previous third generation, and so provides you with a super-fast data transferring experience. This motherboard comes with two M.2 SSD slots for all of your storage needs.

Store Anything you Need without Worry

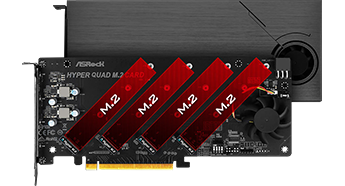

INCLUDED HYPER QUAD M.2 CARD This intuitive motherboard has been bundled with a Hyper Quad M.2 Card which allows you to fit four more M.2 drives into your system. Gaming and PC enthusiasts can never have too much high-speed storage. The card also offers premium cooling to ensure optimal performance.

Fortify your Motherboard

ebr bearing fan

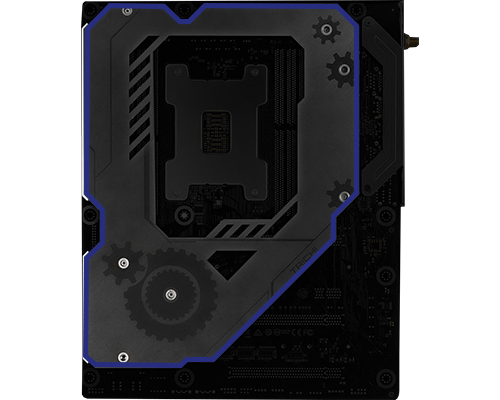

METAL BACKPLATE WITH THERMAL PAD The metal backplate strengthens the motherboard to prevent bending caused by heavy coolers or graphics cards. It also provides better airflow and enhanced stability. The high temperature area on the back of the VRM houses a thermal pad that fits the metal backplate and transfers heat, making the VRM cooler for better performance.

Crafted for the Finest Performance

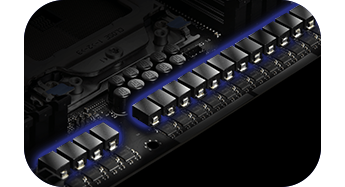

16 power phase design The ASRock Taichi features sturdy components and offers completely smooth power delivery to the CPU. Plus, this impressive motherboard offers unmatched overclocking capabilities and enhanced performance with the lowest temperatures, perfect for advanced gamers.

Designed with Efficiency in Mind

ebr bearing fan

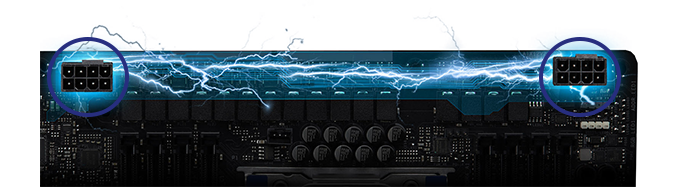

SEPARATED CPU POWER CONNECTOR DESIGN Unlike traditional dual CPU power connectors which are usually located closely together, ASRock separates them to either side of the motherboard in order to create wider trace for CPU VRM. This clever design brings better power delivery, efficiency and lower temperatures, thus improving system stability and increasing overclocking potential.

Get the Greatest Operation for your Components

ebr bearing fan

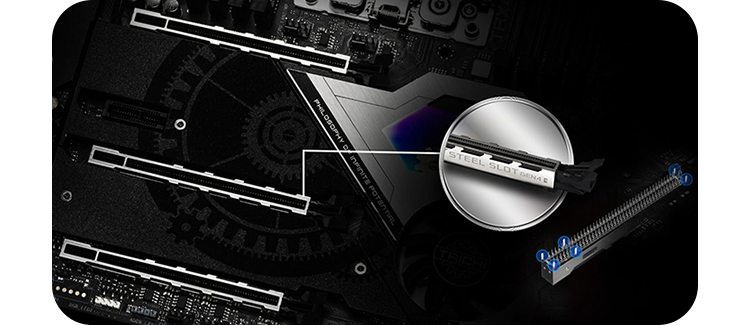

STEEL SLOT WITH PCI EXPRESS 4.0 The next generation PCI Express 4.0 can perform at twice the speed of the previous third generation. ASRock's exclusive Steel Slot with extra anchor points are added to ensure signal stability and to make sure heavy graphics cards will be securely installed into the PCI-E slot safely.

Versatile Connectivity Options

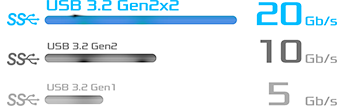

LIGHTNING-FAST TRANSFERS The latest USB 3.2 Gen2x2 Type-C delivers up to 20Gbps of data which is two times faster than the previous generation. This provides blazing-fast transfer speeds with a reversible USB Type-C design that fits the connector both ways.


CONNECT YOUR DEVICES The front USB 3.2 Gen2 Type-C header offers up to 10 Gbps of data transferring, and uses a next generation reversible USB design to the front panel of the computer case.

Higher Current for Greater Performance

ebr bearing fan

SEE YOUR PERFORMANCE BOOSTED The ASRock TRX40 Taichi motherboard features Dr.MOS which is an integrated power stage solution that is optimized for synchronous buck-set down voltage applications. It intelligently delivers a higher current and drives up to a 90A continuous current for each phase, thus providing an improved thermal result and unbeatable performance.

New Intel Wi-Fi Standard with Speeds of 2.4Gbps

ebr bearing fan

OPERATE BOTH 2.4GHZ AND 5GHZ SIMULTANEOUSLY The TRX40 comes equipped with a next generation Intel® Wi-Fi 6 802.11ax adapter. The speed can work up to 2.4Gbps and can also natively operate 2.4Ghz and 5Ghz simultaneously. You can also significant improvement in bi-directional MU-MIMO support.

ASRock TRX40 Taichi Motherboard Features


XXL Aluminium Alloy HeatsinkExtra large aluminium alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.


Premium 90A Power ChokeCompared to traditional chokes, ASRock’s premium 90A power chokes effectively make the saturation current up to three times better.


Premium Memory Alloy ChokeSpecifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard and memory modules.


Combo CapsA combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power, and overclockers may achieve higher scores.


Nichicon 12K Black CapsSupreme 12K black capacitors consist of at least 12,000 hour lifespans. Compared to other high-end motherboards that merely have lifespans of around 10,000 hours.


8 Layer PCBThe 8 Layer PCB comes with 4 sets of 2 ounce copper inner layers, providing stable signal traces and power shapes and delivering lower temperature and higher energy efficiency for overclocking!


Matte Black PCBA new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.


High Density Glass Fabric PCBHigh Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts.


2oz Copper PCBUsing only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

Discover the ASRock TRX40 Taichi Motherboard

Core Specifications
Edition TRX40 Taichi
Form Factor ATX
CPU Socket TRX4
Chipset AMD TRX40
RAM Memory Support
Memory Type DDR4
Memory Channel Quad (4)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4200(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4333(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4466(OC)
  • DDR4 - 4533(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4666+(OC)
Max. Memory Capacity 256GB
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface None
NVIDIA SLI Support 3-Way SLi
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Occupied by Wi-Fi Module)
  • 1 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x M.2, 22-60/80/110, PCIe/SATA
  • 1 x PCIe 4.0 x1
  • 3 x PCIe 4.0 x16
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • AHCI
  • Hot Plug
  • NCQ
  • NVMe Boot (via M.2 PCIe Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 3 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 2 x 8-pin (Power)
  • 1 x Clear CMOS Button
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Dr. Debug with LED
  • 1 x Front Panel Audio Header
  • 1 x Front Panel USB Type-C Header
  • 1 x Power Button with LED
  • 1 x Power LED / Speaker Header
  • 1 x Reset Button with LED
  • 2 x RGB LED connector
  • 8 x SATA III - 6Gb/s
  • 1 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5
  • 1 x Dragon RTL8125AG (2.5GbE LAN)
  • 1 x Intel® I211AT (Gigabit LAN)
Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x Central Speaker Out
  • 1 x Front Speaker Out
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 2 x RJ-45 with LED
  • 1 x S/PDIF (Optical)
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Additional Information
Scan Code LN103587
Model Number 90-MXBBK0-A0UAYZ
GTIN 4717677339918

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
0871 472 4747
