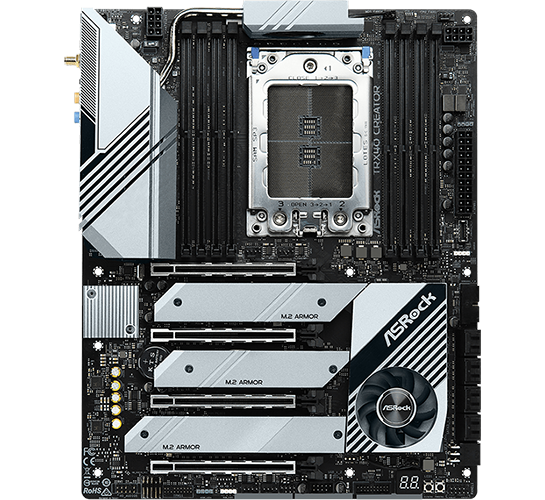

ASRock AMD Threadripper TRX40 Creator PCIe 4.0 ATX Motherboard

ASRock TRX40 Creator, AMD TRX40, sTRX4, DDR4, PCIe 4.0, 3x M.2, SLI/CrossFire, 10GbE, USB 3.2 Gen2 A+C, ATX

Thumbnail 1 : ASRock AMD Threadripper TRX40 Creator PCIe 4.0 ATX Motherboard Thumbnail 2 : ASRock AMD Threadripper TRX40 Creator PCIe 4.0 ATX Motherboard Thumbnail 3 : ASRock AMD Threadripper TRX40 Creator PCIe 4.0 ATX Motherboard Thumbnail 4 : ASRock AMD Threadripper TRX40 Creator PCIe 4.0 ATX Motherboard
Scan code: LN103586 Manufacturer code: 90-MXBB70-A0UAYZ
Order now and get it tomorrow, Mon 26th Jul
From £20.64 / month (APR 14.9%)
Monthly Payment: £38.60
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £429.98
Total inc. interest: £463.20
Monthly Payment: £20.64
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £429.98
Total inc. interest: £495.31
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £10.74 / month (APR 15.9%)
Delivery Options
  • By DPD On 26th Jul to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

ASRock AMD Ryzen TRX40 Creator Motherboard


TAKE ADVANTAGE OF UNBREAKABLE POWER Built with premium components and powerful technologies, the ASRock TRX40 Creator makes for an unbeatable computing experience. It offers a wealth of features allowing you to customize and build in your own individual way. This versatile ATX motherboard provides support for NVIDIA® NVLink™, 4-Way SLI™ and AMD 4-Way CrossFireX™ for all of your graphics needs, and supports DDR4 4666+ (OC) memory to give you unbeatable speeds. Keep connected with blazing-fast Intel® 802.11ax WiFi, and stay protected with an XXL aluminum alloy heatsink which will majorly improve heat dissipation. The ASRock TRX40 Creator motherboard also features fantastic connectivity options, with support for USB 3.2 Type-C, Intel® Gigabit LAN and Ethernet.

Please note: Supports 3rd Gen AMD Ryzen™ Threadripper™ Processors Processors for sTRX4 socket.

AMD TRX40Chipset

sTRX4CPU Socket

AMD 3rd Gen Ryzen ThreadripperCompatible CPUs

ATXForm Factor

Flawless Performance Heatsink Armour

ebr bearing fan

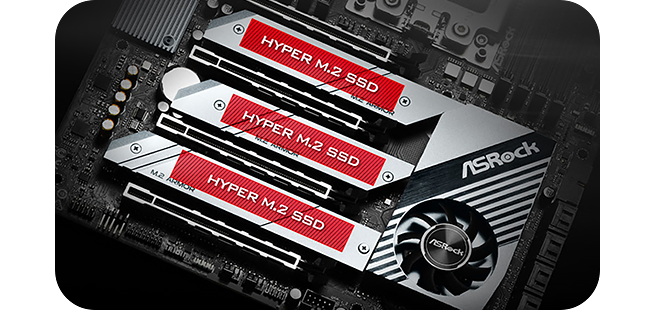

with HYPER M.2 (GEN4 X4) The ASRock TRX40 Creator features unbeatable heatsink armor with Hyper M.2 (Gen4 x 4). The heatsink is forged with an aluminum alloy that effectively improves heat dissipation. Underneath lives the next generation PCI Express 4.0 Hyper M.2 Socket, which offers twice the speed of the previous third generation.

Rule Lighting your Own Way

ebr bearing fan

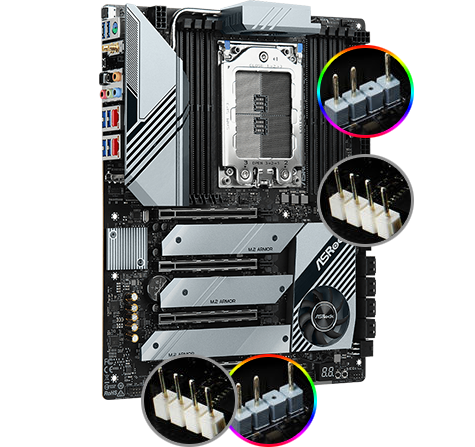

WITH POLYCHROME SYNC RGB Enjoy stunning performance and aesthetics that will rule over any other. Utilize the power of ASRock's Polychrome Sync software to control and customize the built-in RGB LEDs on your Creator motherboard. You can also connect LED light strips for added style, and carry on the colour scheme onto CPU fans, coolers, cases or any other RGB or PolyChrome Sync-certified devices with ease. The Creator board features both RGB LED Headers (white) and Addressable RGB LED headers. (blue)

Get the Greatest Operation for your Components

ebr bearing fan

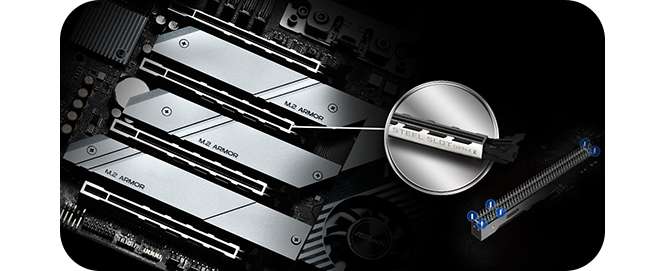

STEEL SLOT WITH PCI EXPRESS 4.0 The next generation PCI Express 4.0 can perform at twice the speed of the previous third generation. ASRock's exclusive Steel Slot with extra anchor points are added to ensure signal stability and to make sure heavy graphics cards will be securely installed into the PCI-E slot safely.

Designed with Efficiency in Mind

ebr bearing fan

SEPARATED CPU POWER CONNECTOR DESIGN Unlike traditional dual CPU power connectors which are usually located closely together, ASRock separates them to either side of the motherboard in order to create wider trace for CPU VRM. This clever design brings better power delivery, efficiency and lower temperatures, thus improving system stability and increasing overclocking potential.

New Intel Wi-Fi Standard with Speeds of 2.4Gbps


OPERATE BOTH 2.4GHZ AND 5GHZ SIMULTANEOUSLY The ASRock TRX40 Creator comes equipped with a next generation Intel® Wi-Fi 6 802.11ax adapter. The speed can work up to 2.4Gbps and can also natively operate 2.4Ghz and 5Ghz simultaneously. You can also significant improvement in bi-directional MU-MIMO support.

Get a Perfect Connection During Every Task

gigabit lan

AQUANTIA® 10Gb/s BASE-T Ethernet The new 10Gb/s network standard was specially designed to satisfy users who crave incredible performance improvements. Based on AQUANTIA's AQtion™ client controller, it offers blazing-fast 10-gigabit per second transfer speeds over a Cat6 cable. The 10Gb/s Ethernet is fully compatible with 5Gb/s, 2.5Gb/s & Gigabit Lan but also delivers lightning fast transfer speeds, perfect for media centers, workstations and gaming PCs.

Higher Current for Greater Performance

dr mos

Intuitive Dr.MOS The ASRock TRX40 Creator motherboard features Dr.MOS which is an integrated power stage solution that is optimized for synchronous buck-set down voltage applications. It intelligently delivers a higher current and drives up to a 60A continuous current for each phase, thus providing an improved thermal result and unbeatable performance.

Versatile Connectivity Options


LIGHTNING-FAST TRANSFERS The latest USB 3.2 Gen2x2 Type-C delivers up to 20Gbps of data which is two times faster than the previous generation. This provides blazing-fast transfer speeds with a reversible USB Type-C design that fits the connector both ways.

ASRock TRX40 Creator Motherboard Features


Premium 90A Power ChokeCompared to traditional chokes, ASRock’s premium 90A power chokes effectively make the saturation current up to three times better.


Nichicon 12K Black CapsSupreme 12K black capacitors consist of at least 12,000 hour lifespans. Compared to other high-end motherboards that merely have lifespans of around 10,000 hours.


8 Layer PCBThe 8 Layer PCB comes with 4 sets of 2 ounce copper inner layers, providing stable signal traces and power shapes and delivering lower temperature and higher energy efficiency for overclocking!


Matte Black PCBA new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.


High Density Glass Fabric PCBHigh Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts.


2oz Copper PCBUsing only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

Core Specifications
Edition TRX40 Creator
Form Factor ATX
CPU Socket TRX4
Chipset AMD TRX40
RAM Memory Support
Memory Type DDR4
Memory Channel Quad (4)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4200(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4333(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4466(OC)
  • DDR4 - 4533(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4666+(OC)
Max. Memory Capacity 256GB
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support 4-Way SLi
AMD CrossFire Support 4-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-30/42/60/80/110, PCIe Gen4x4/SATA3
  • 2 x M.2, 22-60/80, PCIe Gen4x4
  • 4 x PCIe 4.0 x16
SATA Support SATA3 / M.2
RAID Support via SATA / M.2 / PCIe
Storage Mode Support
  • AHCI
  • Hot Plug
  • NCQ
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 3 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 6-pin (Power)
  • 2 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x CPU Water Pump/Fan Connector
  • 1 x CPU Xtreme OC Switch
  • 1 x Dr. Debug with LED
  • 1 x Front Panel Audio Header
  • 1 x Front Panel USB Type-C Header
  • 1 x Power button
  • 1 x Power LED / Speaker Header
  • 1 x Reset Button
  • 2 x RGB LED connector
  • 1 x Right-Angle Front Panel Audio Connector
  • 8 x SATA III - 6Gb/s
  • 1 x TPM Header
  • 1 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 10G LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5
  • 1 x AQUANTIA AQC-107 (10GbE LAN)
  • 1 x Realtek (2.5GbE LAN)
Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x Central Speaker Out
  • 1 x Clear CMOS Button
  • 1 x Front Speaker Out
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 2 x RJ-45 with LED
  • 1 x S/PDIF (Optical)
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Additional Information
Scan Code LN103586
Model Number 90-MXBB70-A0UAYZ
GTIN 4717677339901
