ASRock Intel Z390 Taichi Ultimate ATX Motherboard

ASRock Taichi Ultimate, Intel Z390, S 1151, DDR4, SATA III, 3x M.2, SLI/CrossFire, Intel GbE, USB 3.1 Gen2 A+C, ATX

Thumbnail 1 : ASRock Intel Z390 Taichi Ultimate ATX Motherboard Thumbnail 2 : ASRock Intel Z390 Taichi Ultimate ATX Motherboard Thumbnail 3 : ASRock Intel Z390 Taichi Ultimate ATX Motherboard Thumbnail 4 : ASRock Intel Z390 Taichi Ultimate ATX Motherboard ASRock Intel Z390 Taichi Ultimate ATX Motherboard : video thumbnail 1
Scan code: LN92838 Manufacturer code: 90-MXB8G0-A0UAYZ
RRP: £309.49
£297.49
With a 10% deposit from just £7.43 / month (APR 15.9%)
Delivery Options
  • By DPD On 22nd Oct 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

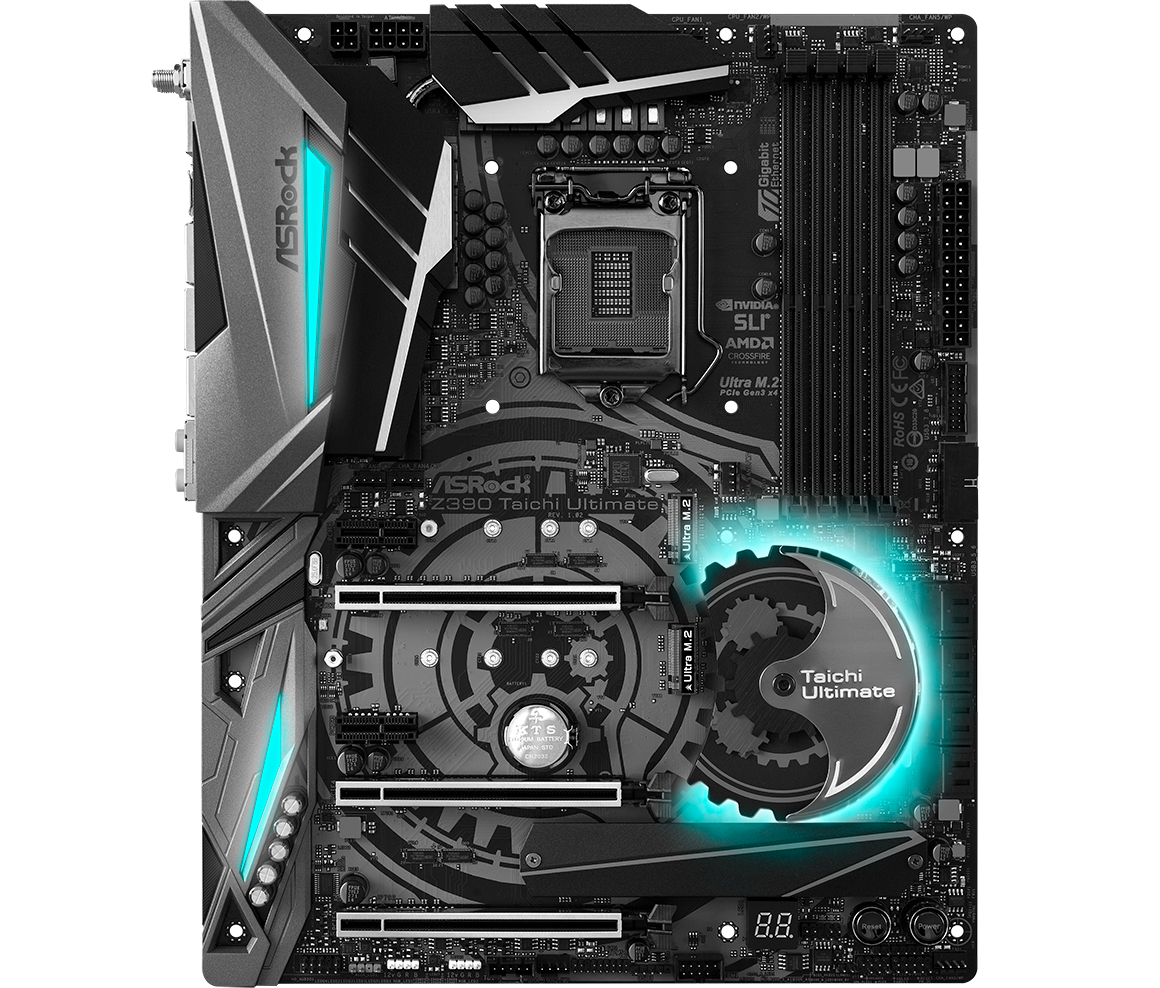

Z390 TAICHI ULTIMATE - Intel 9th Gen ATX Gaming Motherboard

ASRock Z390 TAICHI ULTIMATE

Build Your PC with ASRockASRock Z390 motherboards are the ultimate motherboard for gamers who require superior components. The Z390 TAICHI ULTIMATE motherboard is equipped with the next generation Intel® Wireless-AC 9560 adapter, Triple Ultra M.2 and Intel® Technology. Enjoy the most crisp audio performance with ultra high definition Purity Sound4. The premium alloy design enhances your system, whilst intelligent ASRock hardware and software succeeds in providing an extreme performance. Personalise your setup with ASRock Polychrome SYNC, create lighting effects with the built-in LED illumination. Featuring on-board RGB headers for compatible LED devices allowing for complete synchronization.

Intel Z390Chipset

1151CPU Socket

8th & 9th Gen IntelCompatible CPUs

ATXForm Factor

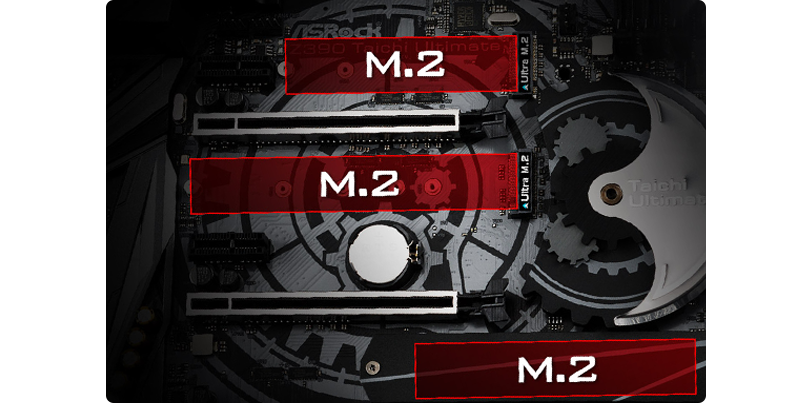

On-board Triple Ultra M.2

triple m.2

Ultra-fast speeds up to 32Gb/s Triple of the world’s fastest PCIe Gen3 x4 Ultra M.2 slots that deliver up to 32Gb/s transfer speed, it also supports SATA3 6Gb/s M.2 modules.

Full Coverage M.2 Heatsink

m2 heatsink

Keep a High-Speed M.2 SSD A massive full coverage M.2 heatsink that is able to dissipate heat efficiently to ensure your high speed M.2 SSD always working at its best.

Hyper BCLK Engine II

Hyper BCLK

External Generator An additional external base clock generator which provides a wider range of frequencies and more precise clock waveforms.

12 Power Phase Design

12 power phase design

IR® DIGITAL PWM Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

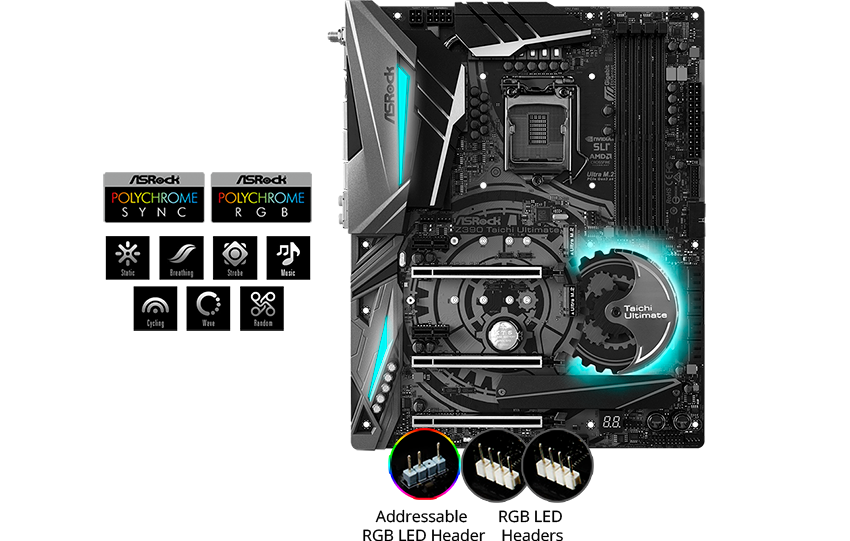

Rule Your own Lighting with Polychrome RGB

rgb rgb

ON-BOARD RGB LED HEADERS In addition to the built-in RGB illumination, it also features on-board RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters. *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

High Definition Purity Sound 4

audio

Crisp Sound Effects in Game It's time to enjoy the most purified audio performance with ultra high definition. Purity Sound4 is a combination of several hardware, software audio solutions. 7.1 CH HD audio with the latest Realtek ALC1220 audio codec, individual PCB layers for R/L audio channel, 120dB SNR DAC, Nichicon fine gold series audio caps and other technologies to deliver the crispest sound effects.

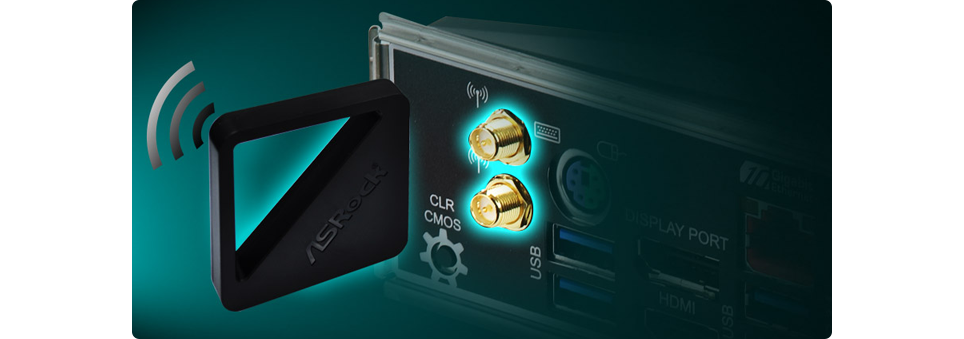

Intel® Technology

Intel WIFI

BLISTERING FAST WIRELESS INTERNET CONNECTIONS Avoid weak WiFi signals and sluggish internet, with the Z390 motherboard that comes with the next generation Intel® Wireless-AC 9560 adapter. This module supports the integrated wireless 802.11ac solutions and provides Bluetooth® 5 and 2x2 802.11ac 2.4/5Ghz Wi-Fi including wave 2 features such as 160MHz channels, delivering up to 1.73Gbps and downlink MU-MIMO. The doubled WiFi speed with superior Bluetooth signal quality can dramatically improve your connected experience at home, work, or on the move.

Intel Optane Memory

Optane™ Memory Ready Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.

Intel Core Processors

Supports 9th Gen Intel® Core Processors The Z390 motherboard is designed to make the best out of 9th Generation Intel® Core™ Processors, the sturdy VRM design provides extreme overclocking potential, lower temperature during gaming and reinforced system stability for taking on all sorts of arduous computing tasks.

Next Gen Reversible USB Type-C

USB Gen 1 Type-C

Up to 10 Gbps data transfer rate Front USB 3.1 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

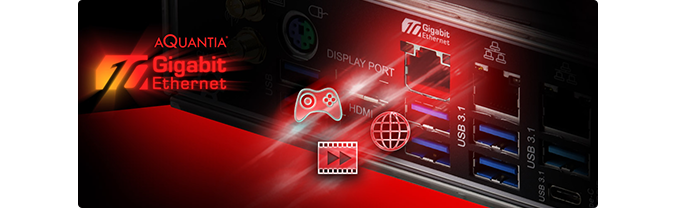

AQUANTIA® Ethernet

triple m.2

Immediate Performance Improvements The new 10Gb/s network standard was specially designed to satisfy the user who is seeking immediate performance improvements. Based on AQUANTIA's AQtion™ client controller, it offers blazingly fast 10-gigabit/sec transfer speed over Cat6 cable. The 10Gb/s Ethernet not only fully compatible with 5Gb/s, 2.5Gb/s & Gigabit Lan but also delivers lightning fast transfer speed, perfect for media center, workstation and gaming PC.

Superior Motherboard Alloy

heatsink

XXL Aluminium Alloy HeatsinkExtra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

power choke

PREMIUM 60A POWER CHOKE Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

choke

Premium Memory Alloy ChokeSpecifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard and memory modules.

up

Dual-Stack MOSFET (DSM) Dual-Stack MOSFET (DSM) is another innovative MOSFETs design by ASRock. The silicon die area is increased by stacking two dies into one MOSFET. The larger the die area, the lower Rds(on). Compared to traditional discrete MOSFET, DSM with larger die area provides extreme lower Rds(on) 1.2 mΩ, so the power supply for the CPU Vcore is more efficient.

Combo Caps

Combo CapsA combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power, and overclockers may achieve higher scores.

12K Black Caps

Nichicon 12K Black Caps Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.

I/O Armor

I/O Armor A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.

pcb

MATTE BLACK PCBWitness the new mysterious matte black and copper colour scheme to match the prestigious components on ASRock's high-end motherboards.

pcb

HIGH DENSITY GLASS FABRIC PCBASRock features the High Density Glass Fabric PCB design, which reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Support Software and Premium Components

up

WATER PUMP HEADERThis is not only a standard CPU fan header, but also supports water pumps. This header provides a maximum of 2A power for supporting the most popular water pumps. Users can also adjust the voltage of the water pump to get a higher cooling performance with lower noise.

up

FULL SPIKE PROTECTIONASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

up

LIVE UPDATE & APP SHOPASRock Live Update & APP Shop is designed for your convenience. Users can download various apps and support software, optimise your system with ease and keep your motherboard up to date with the:
ASRock Live Update & APP Shop.

Specifications
Core Specifications
Edition
Form Factor
CPU Socket
Chipset
RAM Memory Support
Memory Type
Memory Channel
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz)
Max. Memory Capacity
Audio
Audio
Graphics Support
Primary GPU Interface None
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
SATA Support N/A
RAID Support via
Storage Mode Support
Internal I/O
External Connectivity
Network Interface Type
Network Chip/Modules
Rear I/O Connectors
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions
Note
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.
