ASRock AMD Radeon RX 6900 XT OC Formula 16GB Graphics Card

ASRock Radeon RX 6900 XT OC Formula 16GB GDDR6 Ray-Tracing Graphics Card, RDNA2, 5120 Streams, 2125MHz, 2475MHz Boost

Free AMD RX 6900 XT Game download
Thumbnail 1 : ASRock AMD Radeon RX 6900 XT OC Formula 16GB Graphics Card Thumbnail 2 : ASRock AMD Radeon RX 6900 XT OC Formula 16GB Graphics Card Thumbnail 3 : ASRock AMD Radeon RX 6900 XT OC Formula 16GB Graphics Card Thumbnail 4 : ASRock AMD Radeon RX 6900 XT OC Formula 16GB Graphics Card
Scan code: LN116293 Manufacturer code: 90-GA2JZZ-00UANF
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

4

ASRock AMD RADEON RX 6900 XT OC Formula RDNA2 Graphics Card

ASRock OC Formula

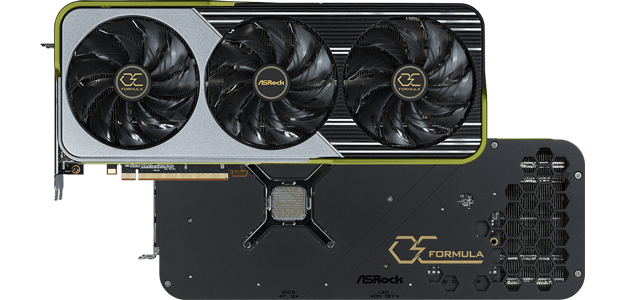

Performance to Rule Your Game The ASRock AMD Radeon RX 6900 XT OC Formula, is here to herald a breath-taking leap in graphical performance; boasting an all-metal cover design with an luxurious green accent, a stylish metal backplate, an updated 21 phase power design, the innovative OC formula cooling solution with striped axial fans and OdB silent cooling technology. However under all that beauty is a serious powerhouse, with 16GB of ultra-fast GDDR6 memory and boosted clock speeds of up to 2475 MHz this impressive card will have you tearing through the latest games and demanding applications with no issues at all. AMD Radeon™ RX 6000 Series graphics cards deliver ultra-high frame rates and serious 4K gameplay. Get the ultimate gaming experience with powerful new compute units, groundbreaking AMD Infinity Cache, and up to 16GB of dedicated GDDR6 memory. And, when paired with an AMD Ryzen™ 5000 Series desktop processor, AMD Smart Access Memory technology offers new levels of gaming performance.

5120Stream Processors

16GBGDDR6 Memory

2125 MHzCore Clock

2475 MHzBoost Clock

Designed for Enhanced Airflow

4K Recording

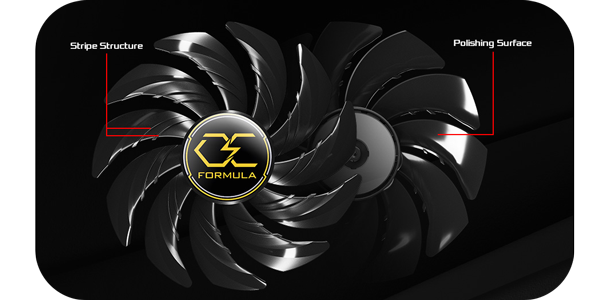

Striped Axial FansASRock's custom designed striped axial fan delivers peak performance by guiding airflow down the through the stripe structure to reduce air turbulence and ensure a more effective and efficient cooling process.

Add Your Own Personality

4K Recording

POLYCHROME SYNCCreate your own colourful lighting effects with the integrated ARGB LEDS, use the intuitive ASRock Polychrome Sync software to sync your lighting effects over compatible products and create your own lighting ecosystem. On the underside of the card you will find a handy LED On/Off switch allowing you to go dark with a simple flick.

Stunning Form and Function

4K Recording

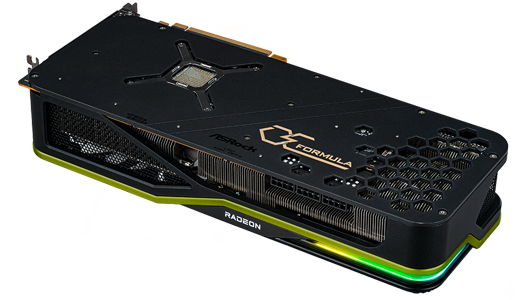

Stylish Metal BackplateDesigned to prevent PCB flex, the solid metal backplate also increases cooling performance by increasing heat dissipation across the length of the GPU.

Super Alloy Graphics Card

down

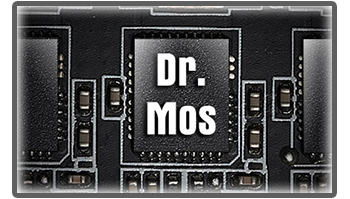

DR MOSDr.MOS is the integrated power stage solution which is optimised for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 60A continuous current for each phase, thus providing improved thermal result and superior performance.

up

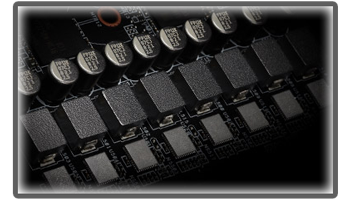

Premium 90A Power ChokeCompared to traditional chokes, ASRock’s premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

down

2oz Copper PCBUsing only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

up

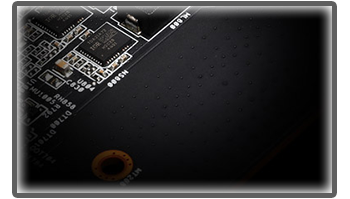

Matte Black PCBA new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.

up

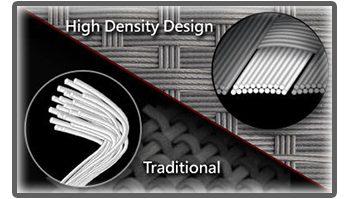

High Density Glass Fabric PCBHigh Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.

A Breakthrough Gaming Architecture

4K Recording

RDNA2 ArchitectureAMD RDNA™ 2 architecture is the foundation of next-generation gaming PCs and consoles. It is the bedrock of the upcoming revolution in PC gaming graphics and cloud gaming. AMD RDNA™ 2 elevates and unifies visual effects and gameplay across multi- gaming platforms, like no other graphics architecture before.

AMD FidelityFX

down

Contrast Adaptive SharpeningOFF

up

Contrast Adaptive SharpeningON

Bring Out All The DetailContrast Adaptive Sharpening (CAS) helps increase visual quality by enabling stunning visual sharpness with optional upscaling to restore detail lost after Temporal Anti-Aliasing (TAA) is applied. For games that support FidelityFX CAS, turning off Radeon™ Image Sharpening in Radeon™ Software to avoid over-sharpening is recommended.

down

Shading Rate OverlayOFF

up

Shading Rate OverlayON

Get Performance with QualityUsing RDNA2 architecture and variable rate shading allows fidelityFX to analyse luminance and motion of frames to help optimise rending to ensure you also get optimal performance without reducing image quality.

down

Ambient OcclusionOFF

up

Ambient OcclusionON

Realistic Geometry ShadingAMD RDNA™ architecture-optimized Combined Adaptive Compute Ambient Occlusion (CACAO) dynamically and efficiently helps improve the appearance of objects based their exposure to ambient light.

down

Screen Space ReflectionsOFF

up

Screen Space ReflectionsON

High-Quality Realistic ReflectionsAMD’s implementation of Stochastic Screen Space Reflections (SSSR) delivers high-quality reflections with minimal overhead via an optimised compute shader and AMD RDNA™ architecture-optimised denoising.

down

DenoiserOFF

up

DenoiserON

High-Quality Raytracing and EffectsDenoising optimised for AMD RDNA™ architecture to help improve the visual quality of real-time raytracing and other in-game effects.

down

HDR MapperOFF

up

HDR MapperON

High-Quality HDR GamingOptimised for use with AMD FreeSync™ Premium Pro1 displays, AMD's Luminance Preserving Mapper (LPM) delivers superb HDR and wide color gamut content.

AMD Graphics Card Specifications

AMD Radeon RX Card Specifications
Model RX 6900 XT RX 6800 XT RX 6800 RX 6700 XT RX 5700 XT RX 5600 XT RX 5500 XT RX 580 RX 570
Architecture RDNA2 RDNA2 RDNA2 RDNA2 RDNA RDNA RDNA GCN 4th GCN 4th
GPU Big Navi Big Navi Big Navi Big Navi Navi 10 Navi 10 Navi 14 Polaris XTX Polaris 20 Pro
Stream Processors 5,120 4,608 3,840 2,560 2,560 2,304 21,408 2,304 2,048
Ray Processors 80 72 60 40 0 0 0 0 0
Reference Base Clock 2,015 MHz 2,015 MHz 1,815 MHz 2,321 MHz 1,605 MHz 1,420 MHz 1,607 MHz 1,257 MHz 1,168 MHz
Reference Boost Clock 2,250MHz 2,250 MHz 2,105 MHz 2,581 MHz 1,905 MHz 1,620 MHz 1,845 MHz 1,340 MHz 1,244 MHz
Memory 16GB GDDR6 16GB GDDR6 16GB GDDR6 12GB GDDR6 8GB GDDR6 6GB GDDR6 4GB/8GB GDDR6 4GB/8GB GDDR5 4GB/8GB GDDR5
Memory Controller 256-bit 256-bit 256-bit 192-bit 256-bit 192-bit 128-bit 256-bit 224-bit
TDP 300W 300W 250W 230W 225W 160W 130W 185W 150W
Specifications
Key Specifications
Chipset Radeon RX 6900 XT
Edition OC Formula
Manufacturing Process 7 nm
Microarchitecture RDNA 2
Cores & Clocks
Streams 5120
Core Clock 2125 MHz
Boost Clock 2365 (Q BIOS), 2475 (P BIOS) MHz
Video Memory (VRAM)
Memory Size 16GB
Memory Type GDDR6
Memory Clock 16000 MHz
Memory Speed (Effective with DDR)
Memory Bus 256 Bit
Memory Bandwidth
Memory Data Rate
Cooling
Cooling Solution Tri Fan (3)
Cooler Design
Fitted/Included Backplate Yes
I/O & Connectivity
Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
Connectivity
  • 3 x DisplayPort 1.4 (DSC)
  • 1 x HDMI 2.1
Visuals
AMD CrossFire Support
AMD Freesync Support Yes
AMD FreeSync Version FreeSync™
HDR Support Yes
Microsoft DirectX Support 12 API
Max. Concurrent Displays 4 Displays
Maximum Digital Resolution 7680x4320 (8K UHD)
Maximum Analog (VGA) Resolution
Compute Performance
Peak Half Precision Compute Performance (FP16)
Peak Single Precision Compute Performance (FP32)
Peak Double Precision Compute Performance (FP64)
Power & Thermals
Graphics Card Power Connectors 3 x 8-pin PCIe
Graphics Card TDP/Power
Minimum Recommended PSU 1000 W
Maximum GPU Temperature
Physical
Width Triple Slot
Low Profile Support N/A
Dimensions 332 x 137 x 61 mm
Package Type Retail
Additional Information
Scan Code LN116293
Model Number 90-GA2JZZ-00UANF
GTIN 4710483933998
