Scan code: LN112835 Manufacturer code: RX6800XT TCX 16GO

ASrock AMD Radeon RX 6800 XT Taichi X 16G OC Graphics Card

ASRock Radeon RX 6800 XT Taichi 16GB GDDR6 Ray-Tracing Graphics Card, RDNA2, 4608 Stream, 1925MHz GPU, 2360MHz Boost

Thumbnail 1 : ASrock AMD Radeon RX 6800 XT Taichi X 16G OC Graphics Card Thumbnail 2 : ASrock AMD Radeon RX 6800 XT Taichi X 16G OC Graphics Card Thumbnail 3 : ASrock AMD Radeon RX 6800 XT Taichi X 16G OC Graphics Card Thumbnail 4 : ASrock AMD Radeon RX 6800 XT Taichi X 16G OC Graphics Card
Scan code: LN112835 Manufacturer code: RX6800XT TCX 16GO
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Please Note: Due to delays in the logistics chain stock of this model is going to be in very short supply for the coming weeks and likely wont be available in larger numbers until 2021. As shipments arrive we will list them for sale on the website. Please do not contact customer services about expected shipments and instead refer to the Radeon FAQ page where we will post any available information we have each week.

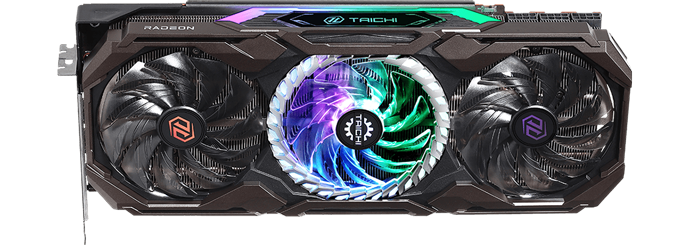

ASRock AMD Radeon RX 6800 XT Taichi X OC Graphics Card

ASRock AMD Radeon™ RX 6800 XT Taichi X OC

Get ready for the next generation of PC gaming The ASRock Radeon RX 6800 XT Taichi X is here to bring you the incredible performance you deserve, featuring the all-new breakthrough RNDA2 architecture and powerful compute units engineered to deliver powerhouse performance to all gamers. The AMD Radeon™ RX 6800 XT Taichi X graphics card powers a new generation of competitive and 4K gaming with vivid visuals, and elevated experiences in every game. This graphics card features PCI® Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI® Express 3.0. Experience gaming with realistic lighting, shadows, and reflections along with rich detail thanks to DirectX® Raytracing (DXR), variable rate shading (VRS), and AMD FidelityFX features, optimized for AMD RDNA™ 2 architecture. The Dual BIOS design allows users choose preferred setting by switching between the P(Performance) BIOS and Q(Quiet) BIOS. Plus, with the USB-C® port included, this graphics card enables seamless integration into your hardware setup.

4608Stream Processors

16GBGDDR6 Memory

2110 MHzGame Clock

2360 MHzBoost Clock

A Breakthrough Gaming Architecture

RDNA2

RDNA2 ArchitectureAMD RDNA™ 2 architecture is the foundation of next-generation gaming PCs and consoles. It is the bedrock of the upcoming revolution in PC gaming graphics and cloud gaming. AMD RDNA™ 2 elevates and unifies visual effects and gameplay across multi-gaming platforms, like no other graphics architecture before. AMD Radeon™ RX 6000 Series graphics cards deliver ultra-high frame rates and serious 4K gameplay. Get the ultimate gaming experience with powerful new compute units, groundbreaking AMD Infinity Cache, and up to 16GB of dedicated GDDR6 memory. And, when paired with an AMD Ryzen™ 5000 Series desktop processor, AMD Smart Access Memory technology offers new levels of gaming performance.

video

Stunning Lighting with Polychrome SYNC

polychrome sync

features an LED Switch and ARGB pin-headerWith the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC. You can switch not only the build-in ARGB LEDs but also the ARGB LEDs equipping with the connected strips/devices at once. With the ARGB pin-header, it can connect ARGB strips/devices to make the lighting effects more rich and vivid. Plus, with ASRock Tweak 2.0 this software provides smart fan speed control and instant performance tweaking.

Designed to Shine with a Solid and Cool Frame

backplate

ARGB logo on the BackplateDesigned for elegancy, the brand new ARGB lighting on the backplate makes the GPU shine. While the reinforced metal frame of the backplate enhances the structure to prevent the PCB from bending. This ASRock design is a Super Alloy graphics card that features Dr.MOS, Premium 90A Power Choke, Nichicon 12K Black Caps, 2oz Copper PCB, and High Density Glass Fabric PCB.

Incredible Solid Hardware Design

heatpipe

ultra-fit heatpipeThe heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

copper base

Nickel-plated copper baseWith premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.

metal welding

High-density Metal WeldingEffectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

thermal pad

Premium Thermal PadThe premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.

screw torque

Precise Screw TorqueASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

thermal paste

Nano Thermal PastePerfect thermal teamwork that eliminates the gaps in the contact area to maximize heat transfer and thermal efficiency.

Taichi 3X Cooling System – Designed For Enhanced Airflow

Spins For Cooling, Stops For Silence.Crafted for the best balance between the thermal efficiency and silence by all the details improved. ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side. The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence. The Air Deflecting Fin guides airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.

cooling video

AMD FidelityFX

down

Contrast Adaptive SharpeningOFF

up

Contrast Adaptive SharpeningON

Bring Out All The DetailContrast Adaptive Sharpening (CAS) helps increase visual quality by enabling stunning visual sharpness with optional upscaling to restore detail lost after Temporal Anti-Aliasing (TAA) is applied. For games that support FidelityFX CAS, turning off Radeon™ Image Sharpening in Radeon™ Software to avoid over-sharpening is recommended.

down

Shading Rate OverlayOFF

up

Shading Rate OverlayON

Get Performance with QualityUsing RDNA2 architecture and variable rate shading allows fidelityFX to analyse luminance and motion of frames to help optimise rending to ensure you also get optimal performance without reducing image quality.

down

Ambient OcclusionOFF

up

Ambient OcclusionON

Realistic Geometry ShadingAMD RDNA™ architecture-optimized Combined Adaptive Compute Ambient Occlusion (CACAO) dynamically and efficiently helps improve the appearance of objects based their exposure to ambient light.

down

Screen Space ReflectionsOFF

up

Screen Space ReflectionsON

High-Quality Realistic ReflectionsAMD’s implementation of Stochastic Screen Space Reflections (SSSR) delivers high-quality reflections with minimal overhead via an optimised compute shader and AMD RDNA™ architecture-optimised denoising.

down

DenoiserOFF

up

DenoiserON

High-Quality Raytracing and EffectsDenoising optimised for AMD RDNA™ architecture to help improve the visual quality of real-time raytracing and other in-game effects.

down

HDR MapperOFF

up

HDR MapperON

High-Quality HDR GamingOptimised for use with AMD FreeSync™ Premium Pro1 displays, AMD's Luminance Preserving Mapper (LPM) delivers superb HDR and wide color gamut content.

AMD Graphics Card Specifications

AMD Radeon RX Card Specifications
Model RX 6900 XT RX 6800 XT RX 6800 RX 6700 XT RX 5700 XT RX 5600 XT RX 5500 XT RX 580 RX 570
Architecture RDNA2 RDNA2 RDNA2 RDNA2 RDNA RDNA RDNA GCN 4th GCN 4th
GPU Big Navi Big Navi Big Navi Big Navi Navi 10 Navi 10 Navi 14 Polaris XTX Polaris 20 Pro
Stream Processors 5,120 4,608 3,840 2,560 2,560 2,304 21,408 2,304 2,048
Ray Processors 80 72 60 40 0 0 0 0 0
Reference Base Clock 2,015 MHz 2,015 MHz 1,815 MHz 2,321 MHz 1,605 MHz 1,420 MHz 1,607 MHz 1,257 MHz 1,168 MHz
Reference Boost Clock 2,250MHz 2,250 MHz 2,105 MHz 2,581 MHz 1,905 MHz 1,620 MHz 1,845 MHz 1,340 MHz 1,244 MHz
Memory 16GB GDDR6 16GB GDDR6 16GB GDDR6 12GB GDDR6 8GB GDDR6 6GB GDDR6 4GB/8GB GDDR6 4GB/8GB GDDR5 4GB/8GB GDDR5
Memory Controller 256-bit 256-bit 256-bit 192-bit 256-bit 192-bit 128-bit 256-bit 224-bit
TDP 300W 300W 250W 230W 225W 160W 130W 185W 150W
Specifications
Key Specifications
Chipset Radeon RX 6800 XT
Edition Radeon RX 6800 XT Taichi X 16G OC
Manufacturing Process 7 nm
Microarchitecture RDNA 2
Cores & Clocks
Streams 4608
Core Clock 1925 MHz
Boost Clock 2360 MHz
Video Memory (VRAM)
Memory Size 16GB
Memory Type GDDR6
Memory Clock 16000 MHz
Memory Speed (Effective with DDR)
Memory Bus 256 Bit
Memory Bandwidth
Memory Data Rate
Cooling
Cooling Solution Tri Fan (3)
Cooler Design
Fitted/Included Backplate Yes
I/O & Connectivity
Interface PCIe 4.0
Connectivity
  • 2 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x USB Type-C
Visuals
AMD CrossFire Support
AMD Freesync Support Yes
AMD FreeSync Version FreeSync™
HDR Support No
Microsoft DirectX Support
Max. Concurrent Displays 4 Displays
Maximum Digital Resolution 7680x4320 @ 60Hz (8K UHD)
Maximum Analog (VGA) Resolution
Compute Performance
Peak Half Precision Compute Performance (FP16)
Peak Single Precision Compute Performance (FP32)
Peak Double Precision Compute Performance (FP64)
Power & Thermals
Graphics Card Power Connectors
Graphics Card TDP/Power
Minimum Recommended PSU 800 W
Maximum GPU Temperature
Physical
Width 2.9 Slot
Low Profile Support
Dimensions 330 x 140 x 56 mm
Package Type Retail
Additional Information
Scan Code LN112835
Model Number RX6800XT TCX 16GO
GTIN 4710483933189
