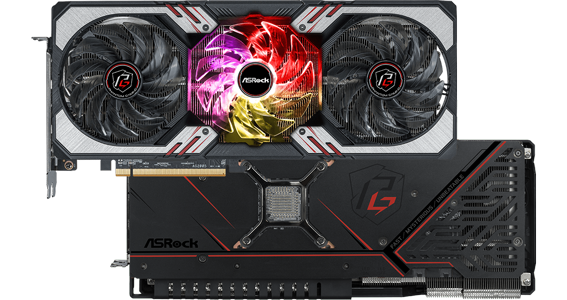

ASRock AMD Radeon RX 6700 XT Phantom Gaming D OC 12GB Graphics Card
ASRock Radeon RX 6700 XT Phantom Gaming D OC 12GB GDDR6 Ray-Tracing Graphics Card, RDNA2, 2560 Streams, 2457MHz, 2622MHz
- By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- SCANPROTECT Protect against installation damage for 28 days. More info
ASRock AMD RADEON RX 6700 XT Phantom Gaming D OC RDNA2 Graphics Card
Performance to Rule Your Game The ASRock AMD Radeon RX 6700 XT Phantom Gaming D OC, is here to deliver the performance you deserve, boasting the latest PCI-e 4.0 support, stylish polychrome ARGB lighting, triple striped axial fan phantom gaming 3X cooling solution that has been crafted to fine tune thermal efficiency and silent acoustics, a stylish metal backplate and 0dB silent cooling technology with maximum contact heatpipes and premium thermal pads, to ensure you can consistently reach the top tier performance required to climb those leaderboards. AMD Radeon™ RX 6700 XT graphics cards deliver serious 1440p gaming and ultra-high frame rates. Get up to 40 high-performance compute units, groundbreaking AMD Infinity Cache, and up to 12GB of dedicated GDDR6 memory. Experience new levels of gaming performance with AMD Smart Access Memory technology when you pair an AMD Radeon™ RX 6700 XT graphics card with an AMD Ryzen™ 5000 Series desktop processor.
2560Stream Processors
12GBGDDR6 Memory
2457 MHzCore Clock
2622 MHzBoost Clock
Designed for Enhanced Airflow

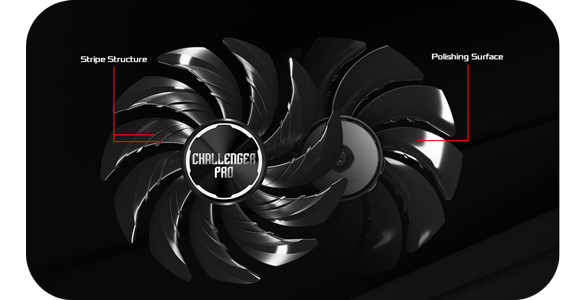

Striped Axial FansASRock's custom designed striped axial fan delivers peak performance by guiding airflow down the through the stripe structure to reduce air turbulence and ensure a more effective and efficient cooling process.
Add Your Own Personality

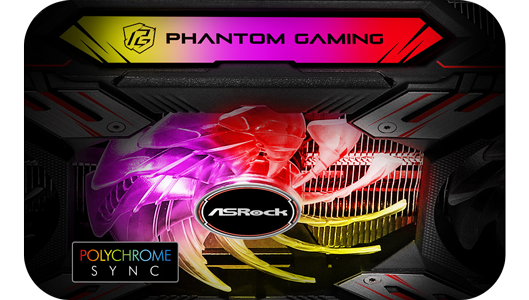

POLYCHROME SYNCCreate your own colourful lighting effects with the integrated ARGB LEDS, use the intuitive ASRock Polychrome Sync software to sync your lighting effects over compatible products and create your own lighting ecosystem. On the underside of the card you will find a handy LED On/Off switch allowing you to go dark with a simple flick.
Super Alloy Graphics Card
DR MOSDr.MOS is the integrated power stage solution which is optimised for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 60A continuous current for each phase, thus providing improved thermal result and superior performance.
Premium 60A Power ChokeCompared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
2oz Copper PCBUsing only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Matte Black PCBA new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.
High Density Glass Fabric PCBHigh Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.
Is your Windows Genuine?
Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.
CLICK HERE TO FIND OUT MORE >A Breakthrough Gaming Architecture
RDNA2 ArchitectureAMD RDNA™ 2 architecture is the foundation of next-generation gaming PCs and consoles. It is the bedrock of the upcoming revolution in PC gaming graphics and cloud gaming. AMD RDNA™ 2 elevates and unifies visual effects and gameplay across multi- gaming platforms, like no other graphics architecture before.
AMD FidelityFX
Contrast Adaptive SharpeningOFF
Contrast Adaptive SharpeningON
Bring Out All The DetailContrast Adaptive Sharpening (CAS) helps increase visual quality by enabling stunning visual sharpness with optional upscaling to restore detail lost after Temporal Anti-Aliasing (TAA) is applied. For games that support FidelityFX CAS, turning off Radeon™ Image Sharpening in Radeon™ Software to avoid over-sharpening is recommended.
Shading Rate OverlayOFF
Shading Rate OverlayON
Get Performance with QualityUsing RDNA2 architecture and variable rate shading allows fidelityFX to analyse luminance and motion of frames to help optimise rending to ensure you also get optimal performance without reducing image quality.
Ambient OcclusionOFF
Ambient OcclusionON
Realistic Geometry ShadingAMD RDNA™ architecture-optimized Combined Adaptive Compute Ambient Occlusion (CACAO) dynamically and efficiently helps improve the appearance of objects based their exposure to ambient light.
Screen Space ReflectionsOFF
Screen Space ReflectionsON
High-Quality Realistic ReflectionsAMD’s implementation of Stochastic Screen Space Reflections (SSSR) delivers high-quality reflections with minimal overhead via an optimised compute shader and AMD RDNA™ architecture-optimised denoising.
DenoiserOFF
DenoiserON
High-Quality Raytracing and EffectsDenoising optimised for AMD RDNA™ architecture to help improve the visual quality of real-time raytracing and other in-game effects.
HDR MapperOFF
HDR MapperON
High-Quality HDR GamingOptimised for use with AMD FreeSync™ Premium Pro1 displays, AMD's Luminance Preserving Mapper (LPM) delivers superb HDR and wide color gamut content.
AMD Graphics Card Specifications
| AMD Radeon RX Card Specifications | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | RX 6950 XT | RX 6900 XT | RX 6800 XT | RX 6800 | RX 6750 XT | RX 6700 XT | RX 6650 XT | RX 6600 XT | RX 6600 | RX 6500 XT | RX 6400 | RX 5700 XT | RX 5600 XT | RX 5500 XT | RX 580 | RX 570 | ||
| Architecture | RDNA2 | RDNA2 | RDNA2 | RDNA2 | RDNA2 | RDNA2 | RDNA2 | RDNA2 | RDNA2 | RDNA2 | RDNA2 | RNDA2 | RDNA | RDNA | GCN 4th | GCN 4th | ||
| GPU | Big Navi | Big Navi | Big Navi | Big Navi | Big Navi | Big Navi | Big Navi | Big Navi | Big Navi | Big Navi | Big Navi | Navi 10 | Navi 10 | Navi 14 | Polaris XTX | Polaris 20 Pro | ||
| Stream Processors | 5,120 | 5,120 | 4,608 | 3,840 | 2,560 | 2,560 | 2,048 | 2,048 | 1,792 | 1,024 | 768 | 2,560 | 2,304 | 21,408 | 2,304 | 2,048 | ||
| Ray Processors | 80 | 80 | 72 | 60 | 40 | 40 | 32 | 32 | 28 | 16 | 12 | 0 | 0 | 0 | 0 | 0 | ||
| Reference Base Clock | 2,100MHz | 2,015 MHz | 2,015 MHz | 1,815 MHz | 2,495MHz | 2,321 MHz | 2,410MHz | 1,986MHz | 1,626MHz | 2,610MHz | TBC | 1,605 MHz | 1,420 MHz | 1,607 MHz | 1,257 MHz | 1,168 MHz | ||
| Reference Boost Clock | 2,310MHz | 2,250MHz | 2,250 MHz | 2,105 MHz | 2,600MHz | 2,581 MHz | 2,635MHz | 2,589MHz | 2,491MHz | 2,815MHz | 2,321MHz | 1,905 MHz | 1,620 MHz | 1,845 MHz | 1,340 MHz | 1,244 MHz | ||
| Memory | 16GB GDDR6 | 16GB GDDR6 | 16GB GDDR6 | 16GB GDDR6 | 12GB GDDR6 | 12GB GDDR6 | 8GB GDDR6 | 8GB GDDR6 | 8GB GDDR6 | 4GB GDDR6 | 4GB GDDR6 | 8GB GDDR6 | 6GB GDDR6 | 4GB/8GB GDDR6 | 4GB/8GB GDDR5 | 4GB/8GB GDDR5 | ||
| Memory Controller | 256-bit | 256-bit | 256-bit | 256-bit | 192-bit | 192-bit | 128-bit | 128-bit | 128-bit | 64-bit | 64-bit | 256-bit | 192-bit | 128-bit | 256-bit | 224-bit | ||
| TDP | 335W | 300W | 300W | 250W | 250W | 160W | 180W | 160W | 132W | 107W | 53W | 225W | 160W | 130W | 185W | 150W | ||
