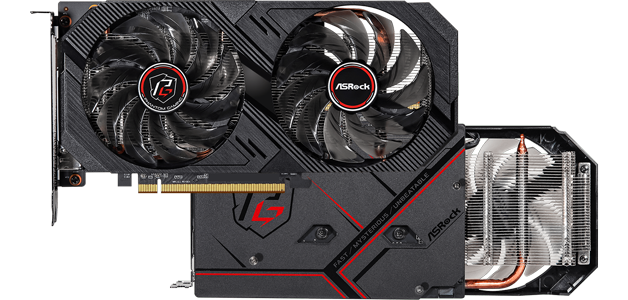

Asrock AMD Radeon RX 6500 XT Phantom Gaming D 4GB OC Graphics Card
Asrock AMD Radeon RX 6500 XT Phantom Gaming D 4GB OC Graphics Card
Scan code: LN123979 Manufacturer code: 90-GA3DZZ-00UANF
£129.98
Get it Tomorrow, 06 NovIn stock
  • Thumbnail 1 : Asrock AMD Radeon RX 6500 XT Phantom Gaming D 4GB OC Graphics Card
  • Thumbnail 2 : Asrock AMD Radeon RX 6500 XT Phantom Gaming D 4GB OC Graphics Card
  • Thumbnail 3 : Asrock AMD Radeon RX 6500 XT Phantom Gaming D 4GB OC Graphics Card
  • Thumbnail 4 : Asrock AMD Radeon RX 6500 XT Phantom Gaming D 4GB OC Graphics Card

Asrock AMD Radeon RX 6500 XT Phantom Gaming D 4GB OC Graphics Card

Asrock Radeon RX 6500 XT Phantom Gaming 4GB OC GDDR6 Graphics Card, RDNA2, AMD FidelityFX, 1024 Streams, 2820MHz Boost

Scan code: LN123979 Manufacturer code: 90-GA3DZZ-00UANF
£129.98
Order now and get it tomorrow, Wed 6th Nov
Get it Tomorrow, 06 NovIn stock
  • By DPD On 6th Nov Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.79 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £10.84 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £10.84
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £129.98
    Total inc. interest: £129.98
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days. More info

ASRock AMD RADEON RX 6500 XT Phantom Gaming D OC RDNA2 Graphics Card

AMD Radeon™ RX 6500 XT

Performance to Rule Your Game The ASRock AMD Radeon RX 6500 XT Phantom Gaming D OC, is here to deliver the performance you deserve, boasting the latest PCI-e 4.0 support, Dual striped axial fan cooling solution a stylish metal backplate and 0dB silent cooling technology with maximum contact heatpipes and premium thermal pads, to ensure you can consistently reach the top tier performance required to climb those leaderboards. AMD Radeon™ RX 6500 XT graphics cards deliver serious 1080p gaming and impressive frame rates. The power of AMD RDNA™ 2 architecture is unleashed with up to 16 powerful graphics compute units, coupled with all ultra-high bandwidth AMD Infinity Cache™, and up to 4GB of dedicated GDDR6 memory.

1024Stream Processors

4GBGDDR6 Memory

2365 MHzCore Clock

2650 (2820) MHzBoost Clock(OCmode)

Designed for Enhanced Airflow

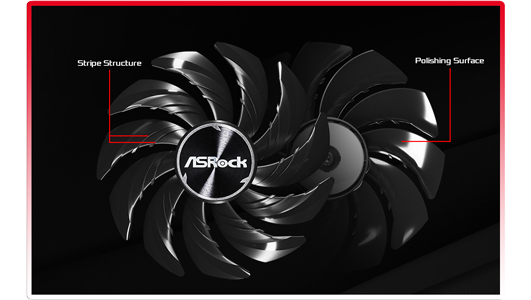

Axial Striped fans

Striped Axial FansASRock's custom designed striped axial fan delivers peak performance by guiding airflow down the through the stripe structure to reduce air turbulence and ensure a more effective and efficient cooling process.

Keeping Your Sensitive Components Safe

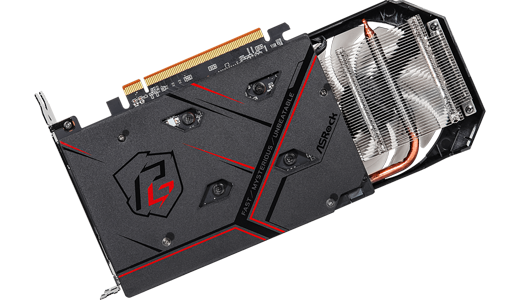

Solid Backplate

Stylish all metal backplateWith the Phantom Gaming look, the stylish metal backplate on the Phantom Gaming graphics cards offers stunning aesthetics, solid construction and increased thermal efficiency to keep your components cool, even under load.

Super Alloy Graphics Card

down

DR MOSDr.MOS is the integrated power stage solution which is optimised for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.

up

Premium 90A Power ChokeCompared to traditional chokes, ASRock’s premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.

down

2oz Copper PCBUsing only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

up

Matte Black PCBA new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.

up

High Density Glass Fabric PCBHigh Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

A Breakthrough Gaming Architecture

4K Recording

RDNA2 ArchitectureAMD RDNA™ 2 architecture is the foundation of next-generation gaming PCs and consoles. It is the bedrock of the upcoming revolution in PC gaming graphics and cloud gaming. AMD RDNA™ 2 elevates and unifies visual effects and gameplay across multi- gaming platforms, like no other graphics architecture before.

AMD FidelityFX

down

Contrast Adaptive SharpeningOFF

up

Contrast Adaptive SharpeningON

Bring Out All The DetailContrast Adaptive Sharpening (CAS) helps increase visual quality by enabling stunning visual sharpness with optional upscaling to restore detail lost after Temporal Anti-Aliasing (TAA) is applied. For games that support FidelityFX CAS, turning off Radeon™ Image Sharpening in Radeon™ Software to avoid over-sharpening is recommended.

down

Shading Rate OverlayOFF

up

Shading Rate OverlayON

Get Performance with QualityUsing RDNA2 architecture and variable rate shading allows fidelityFX to analyse luminance and motion of frames to help optimise rending to ensure you also get optimal performance without reducing image quality.

down

Ambient OcclusionOFF

up

Ambient OcclusionON

Realistic Geometry ShadingAMD RDNA™ architecture-optimized Combined Adaptive Compute Ambient Occlusion (CACAO) dynamically and efficiently helps improve the appearance of objects based their exposure to ambient light.

down

Screen Space ReflectionsOFF

up

Screen Space ReflectionsON

High-Quality Realistic ReflectionsAMD’s implementation of Stochastic Screen Space Reflections (SSSR) delivers high-quality reflections with minimal overhead via an optimised compute shader and AMD RDNA™ architecture-optimised denoising.

down

DenoiserOFF

up

DenoiserON

High-Quality Raytracing and EffectsDenoising optimised for AMD RDNA™ architecture to help improve the visual quality of real-time raytracing and other in-game effects.

down

HDR MapperOFF

up

HDR MapperON

High-Quality HDR GamingOptimised for use with AMD FreeSync™ Premium Pro1 displays, AMD's Luminance Preserving Mapper (LPM) delivers superb HDR and wide color gamut content.

AMD Graphics Card Specifications

AMD Radeon RX Card Specifications
Model RX 7900 XTX RX 7900 XT RX 6950 XT RX 6900 XT RX 6800 XT RX 6800 RX 6750 XT RX 6700 XT RX 6650 XT RX 6600 XT RX 6600 RX 6500 XT RX 6400 RX 5700 XT RX 5600 XT RX 5500 XT RX 580 RX 570
Architecture RDNA3 RDNA3 RDNA2 RDNA2 RDNA2 RDNA2 RDNA2 RDNA2 RDNA2 RDNA2 RDNA2 RDNA2 RDNA2 RNDA2 RDNA RDNA GCN 4th GCN 4th
GPU Navi 31 Navi 31 Big Navi Big Navi Big Navi Big Navi Big Navi Big Navi Big Navi Big Navi Big Navi Big Navi Big Navi Navi 10 Navi 10 Navi 14 Polaris XTX Polaris 20 Pro
Stream Processors 6,144 5,376 5,120 5,120 4,608 3,840 2,560 2,560 2,048 2,048 1,792 1,024 768 2,560 2,304 21,408 2,304 2,048
Ray Processors 96 84 80 80 72 60 40 40 32 32 28 16 12 0 0 0 0 0
Reference Base Clock 2,300MHz 2,000MHz 2,100MHz 2,015 MHz 2,015 MHz 1,815 MHz 2,495MHz 2,321 MHz 2,410MHz 1,986MHz 1,626MHz 2,610MHz TBC 1,605 MHz 1,420 MHz 1,607 MHz 1,257 MHz 1,168 MHz
Reference Boost Clock 2,500MHz 2,400MHz 2,310MHz 2,250MHz 2,250 MHz 2,105 MHz 2,600MHz 2,581 MHz 2,635MHz 2,589MHz 2,491MHz 2,815MHz 2,321MHz 1,905 MHz 1,620 MHz 1,845 MHz 1,340 MHz 1,244 MHz
Memory 24GB GDDR6 20GB GDDR6 16GB GDDR6 16GB GDDR6 16GB GDDR6 16GB GDDR6 12GB GDDR6 12GB GDDR6 8GB GDDR6 8GB GDDR6 8GB GDDR6 4GB GDDR6 4GB GDDR6 8GB GDDR6 6GB GDDR6 4GB/8GB GDDR6 4GB/8GB GDDR5 4GB/8GB GDDR5
Memory Controller 384-bit 320-bit 256-bit 256-bit 256-bit 256-bit 192-bit 192-bit 128-bit 128-bit 128-bit 64-bit 64-bit 256-bit 192-bit 128-bit 256-bit 224-bit
TDP 355W 315W 335W 300W 300W 250W 250W 160W 180W 160W 132W 107W 53W 225W 160W 130W 185W 150W
Specifications
Key Specifications
Chipset Radeon RX 6500 XT
Edition Phantom Gaming D 4GB OC
Manufacturing Process 7 nm
Microarchitecture RDNA 2
Cores & Clocks
Streams 1024
Core Clock 2365 MHz
Boost Clock 2820 MHz
Video Memory (VRAM)
Memory Size 4GB
Memory Type GDDR6
Memory Clock 18000 MHz
Memory Speed (Effective with DDR)
Memory Bus 64 Bit
Memory Bandwidth
Memory Data Rate
Cooling
Cooling Solution Dual Fan (2)
Fitted/Included Backplate Yes
I/O & Connectivity
Interface PCIe 4.0 (x16)
Connectivity
  • 1 x DisplayPort 1.4a
  • 1 x HDMI 2.1
Visuals
AMD CrossFire Support Supported
AMD Freesync Support No
AMD FreeSync Version
HDR Support No
Microsoft DirectX Support
Max. Concurrent Displays 2 Displays
Maximum Digital Resolution 7680x4320 (8K UHD)
Maximum Analog (VGA) Resolution
Compute Performance
Peak Half Precision Compute Performance (FP16)
Peak Single Precision Compute Performance (FP32)
Peak Double Precision Compute Performance (FP64)
Power & Thermals
Graphics Card Power Connectors 1 x 6-pin PCIe
Graphics Card TDP/Power
Minimum Recommended PSU 400 W
Maximum GPU Temperature
Physical
Width
Low Profile Support
Dimensions 240 x 129 x 42 mm
Package Type Retail
Additional Information
Scan Code LN123979
Model Number 90-GA3DZZ-00UANF
GTIN 4710483936777
Warranty
