ASROCK AMD Radeon RX 6500 XT Challenger ITX 4GB Graphics Card
ASROCK Radeon RX 6500 XT Challenger ITX 4GB GDDR6 Ray-Tracing Graphics Card, RDNA2, 1024 Streams, 2815 MHz Boost
|Instalment Rate:||5.9% p.a. (fixed)|
|Cost of purchase:||£251.99|
|Total inc. interest:||£259.90|
|Instalment Rate:||5.9% p.a. (fixed)|
|Cost of purchase:||£251.99|
|Total inc. interest:||£267.36|
|Cost of purchase:||£99|
|Total inc. interest:||£99|
Purchase Rate: 21.9% p.a. (variable)
Representative: 21.9% APR (variable)
Assumed Credit Limit: £1,200Subject to status. Terms and Conditions apply.
By DPD On 30th May
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

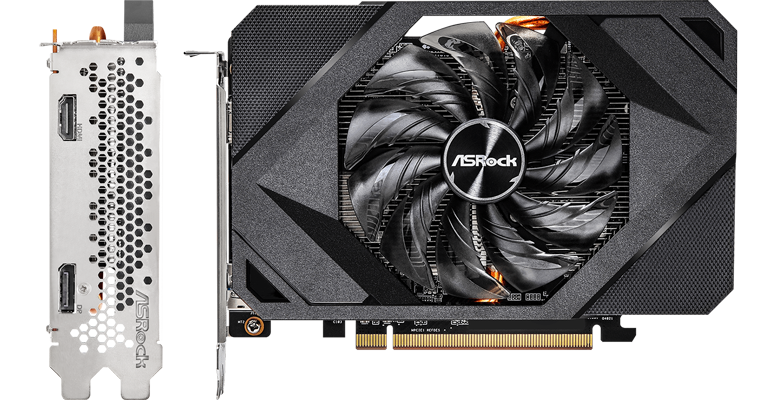

ASRock AMD RADEON RX 6500XT Challenger ITX RDNA2 Graphics Card
Single-Fan Performance For those who prefer or require a smaller-form-factor meet the AMD RX 6500XT Challenger ITX from ASRock, this powerful single fan GPU boasts PCIe 4.0 support, incredible striped axial fan, improved heatpads, airflow diversion holes and 0dB cooling technology to bring you incredible RDNA2 performance in a compact sleek form. AMD Radeon™ RX 6500 XT graphics cards deliver serious 1080p gaming and impressive frame rates. The power of AMD RDNA™ 2 architecture is unleashed with up to 16 powerful graphics compute units, coupled with all ultra-high bandwidth AMD Infinity Cache™, and up to 4GB of dedicated GDDR6 memory.
Single Fan Design
Optimised Cooling EfficiencyThe challenger ITX features a single custom designed axial fan providing strong cooling performance optimised for delivering a superb gaming experience with ASRocks renowned streamline design.
Striped Axial FansASRock's custom designed striped axial fan delivers peak performance by guiding airflow down the through the stripe structure to reduce air turbulence and ensure a more effective and efficient cooling process.
Super Alloy Graphics Card

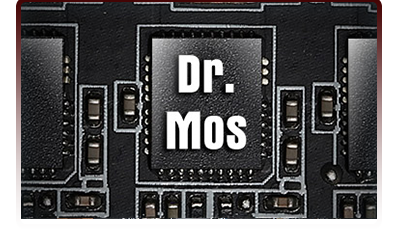

DR MOSDr.MOS is the integrated power stage solution which is optimised for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.

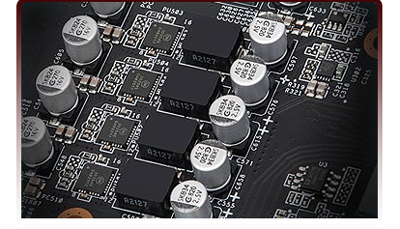

Premium 90A Power ChokeCompared to traditional chokes, ASRock’s premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card..

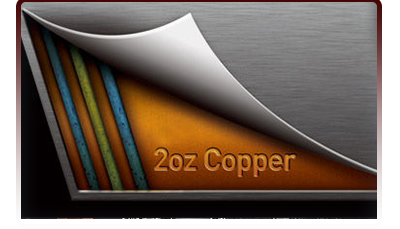

2oz Copper PCBUsing only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

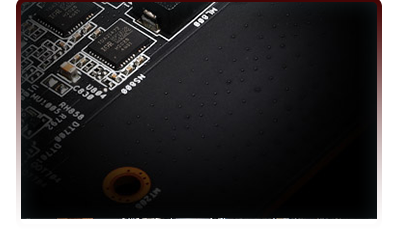

Matte Black PCBA new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.

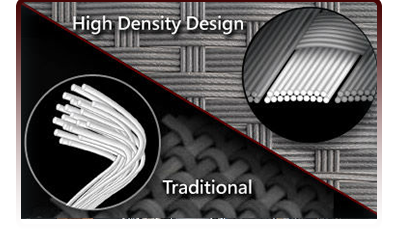

High Density Glass Fabric PCBHigh Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.
Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.CLICK HERE TO FIND OUT MORE >
A Breakthrough Gaming Architecture
RDNA2 ArchitectureAMD RDNA™ 2 architecture is the foundation of next-generation gaming PCs and consoles. It is the bedrock of the upcoming revolution in PC gaming graphics and cloud gaming. AMD RDNA™ 2 elevates and unifies visual effects and gameplay across multi- gaming platforms, like no other graphics architecture before.
Contrast Adaptive SharpeningOFF
Contrast Adaptive SharpeningON
Bring Out All The DetailContrast Adaptive Sharpening (CAS) helps increase visual quality by enabling stunning visual sharpness with optional upscaling to restore detail lost after Temporal Anti-Aliasing (TAA) is applied. For games that support FidelityFX CAS, turning off Radeon™ Image Sharpening in Radeon™ Software to avoid over-sharpening is recommended.
Shading Rate OverlayOFF
Shading Rate OverlayON
Get Performance with QualityUsing RDNA2 architecture and variable rate shading allows fidelityFX to analyse luminance and motion of frames to help optimise rending to ensure you also get optimal performance without reducing image quality.
Realistic Geometry ShadingAMD RDNA™ architecture-optimized Combined Adaptive Compute Ambient Occlusion (CACAO) dynamically and efficiently helps improve the appearance of objects based their exposure to ambient light.
Screen Space ReflectionsOFF
Screen Space ReflectionsON
High-Quality Realistic ReflectionsAMD’s implementation of Stochastic Screen Space Reflections (SSSR) delivers high-quality reflections with minimal overhead via an optimised compute shader and AMD RDNA™ architecture-optimised denoising.
High-Quality Raytracing and EffectsDenoising optimised for AMD RDNA™ architecture to help improve the visual quality of real-time raytracing and other in-game effects.
High-Quality HDR GamingOptimised for use with AMD FreeSync™ Premium Pro1 displays, AMD's Luminance Preserving Mapper (LPM) delivers superb HDR and wide color gamut content.
AMD Graphics Card Specifications
|AMD Radeon RX Card Specifications|
|Model||RX 6950 XT||RX 6900 XT||RX 6800 XT||RX 6800||RX 6750 XT||RX 6700 XT||RX 6650 XT||RX 6600 XT||RX 6600||RX 6500 XT||RX 6400||RX 5700 XT||RX 5600 XT||RX 5500 XT||RX 580||RX 570|
|Architecture||RDNA2||RDNA2||RDNA2||RDNA2||RDNA2||RDNA2||RDNA2||RDNA2||RDNA2||RDNA2||RDNA2||RNDA2||RDNA||RDNA||GCN 4th||GCN 4th|
|GPU||Big Navi||Big Navi||Big Navi||Big Navi||Big Navi||Big Navi||Big Navi||Big Navi||Big Navi||Big Navi||Big Navi||Navi 10||Navi 10||Navi 14||Polaris XTX||Polaris 20 Pro|
|Reference Base Clock||2,100MHz||2,015 MHz||2,015 MHz||1,815 MHz||2,495MHz||2,321 MHz||2,410MHz||1,986MHz||1,626MHz||2,610MHz||TBC||1,605 MHz||1,420 MHz||1,607 MHz||1,257 MHz||1,168 MHz|
|Reference Boost Clock||2,310MHz||2,250MHz||2,250 MHz||2,105 MHz||2,600MHz||2,581 MHz||2,635MHz||2,589MHz||2,491MHz||2,815MHz||2,321MHz||1,905 MHz||1,620 MHz||1,845 MHz||1,340 MHz||1,244 MHz|
|Memory||16GB GDDR6||16GB GDDR6||16GB GDDR6||16GB GDDR6||12GB GDDR6||12GB GDDR6||8GB GDDR6||8GB GDDR6||8GB GDDR6||4GB GDDR6||4GB GDDR6||8GB GDDR6||6GB GDDR6||4GB/8GB GDDR6||4GB/8GB GDDR5||4GB/8GB GDDR5|
|Chipset||Radeon RX 6500 XT|
|Manufacturing Process||7 nm|
|Cores & Clocks|
|Core Clock||2310 MHz|
|Boost Clock||2815 MHz|
|Video Memory (VRAM)|
|Memory Clock||18000 MHz|
|Memory Speed (Effective with DDR)|
|Memory Bus||64 Bit|
|Memory Data Rate|
|Cooling Solution||Single Fan (1)|
|I/O & Connectivity|
|Interface||PCIe 4.0 (x16)|
|AMD CrossFire Support||Supported|
|AMD Freesync Support||No|
|AMD FreeSync Version|
|Microsoft DirectX Support|
|Max. Concurrent Displays||2 Displays|
|Maximum Digital Resolution||7680x4320 (8K UHD)|
|Maximum Analog (VGA) Resolution|
|Peak Half Precision Compute Performance (FP16)|
|Peak Single Precision Compute Performance (FP32)|
|Peak Double Precision Compute Performance (FP64)|
|Power & Thermals|
|Graphics Card Power Connectors||1 x 6-pin PCIe|
|Graphics Card TDP/Power|
|Minimum Recommended PSU||400 W|
|Maximum GPU Temperature|
|Low Profile Support|
|Dimensions||179 x 124 x 40 mm|
