ASRock B550 Phantom Gaming Veloctia ATX Motherboard

ASRock Phantom Gaming Velocita, AMD B550, S AM4, DDR4, SATA3, PCIe 4.0, Dual M.2, CrossFire, 2.5GbE, ATX

Thumbnail 1 : ASRock B550 Phantom Gaming Veloctia ATX Motherboard Thumbnail 2 : ASRock B550 Phantom Gaming Veloctia ATX Motherboard Thumbnail 3 : ASRock B550 Phantom Gaming Veloctia ATX Motherboard Thumbnail 4 : ASRock B550 Phantom Gaming Veloctia ATX Motherboard
Scan code: LN108368 Manufacturer code: 90-MXBD90-A0UAYZ
£226.49
Order now and receive it by Thursday, 22nd October
From £10.88 / month (APR 14.9%)
Monthly Payment: £20.34
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £226.49
Total inc. interest: £243.97
Monthly Payment: £10.88
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £226.49
Total inc. interest: £260.90
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 22nd Oct to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

ASRock B550 PG Velocita 3rd Gen AMD Ryzen ATX Motherboard

ASRock B550 PG Velocita AMD Ryzen ATX Motherboard

A Whole new Gaming Design, Reloaded! This motherboard is ready for 3rd Gen AMD Ryzen™ processors and beyond, also supports AMD CrossFireX™. The AMD B550 chipset makes PCI-e 4.0 available for enthusiasts who desire high performance, bandwidth and speed. Featuring unbelievably rapid Phantom Gaming 2.5 Gb/s LAN, able to take on demanding requirements for online gaming, home networking and content creators. Featuring a wealth of connectivity and USB ports with an integrated and adjustable I/O shield. B550 PG Velocita features Polychrome RGB lighting to customize with a vast colour spectrum and effects. ASRock includes a full coverage M.2 Heatsink with Hyper M.2 socket. Under the Phantom Gaming branch, the PG Velocita motherboard series boasts an uncompromising performance as well as relentless appearance.


Please note: B550 Motherboards are ready for 3rd Gen AMD AM4 Ryzen™ Processors and Future AMD Ryzen™ Processors.
Not Compatible with AMD Ryzen™ 5 3400G & AMD Ryzen™ 3 3200G.

AMD B550Chipset

AM4CPU Socket

3rd Gen AMD Ryzen™and Future Compatible CPUs

ATXForm Factor

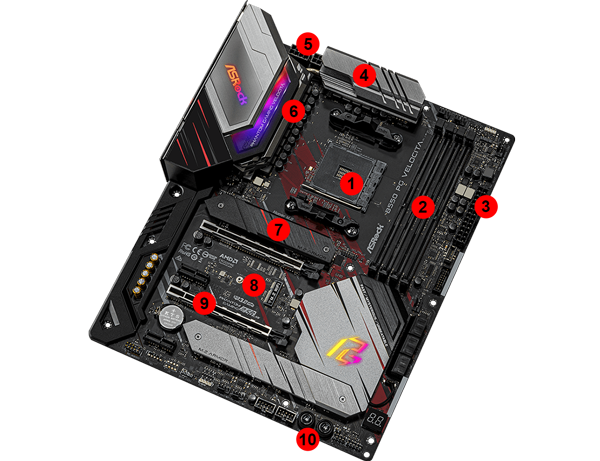

Component Breakdown of the B550 PG Velocita

Design of ASRock B550 AMD Ryzen Motherboard

1. Supports 3rd Gen / future AM4 AMD Ryzen™ Processors   |   2. Dual Channel DDR4 Memory Technology
3. 24Pin ATX Hi-Density Connector   |   4. XXL Aluminium Alloy Heatsink   |   5. 8+4Pin 12V Hi-Density Power Connector
6. Premium 60A Power Choke / 14 Power Phase Design / Digi Power with 50A Dr.MOS   |   7. Hyper M.2 Sockets, PCIe Gen4x4
8. M.2 (Key E) Slot for Wi-Fi (*Module is not included)   |   9. 2x PCIe Steel Slots, Ultra Durable & Reliable
10. Reset & Power Button

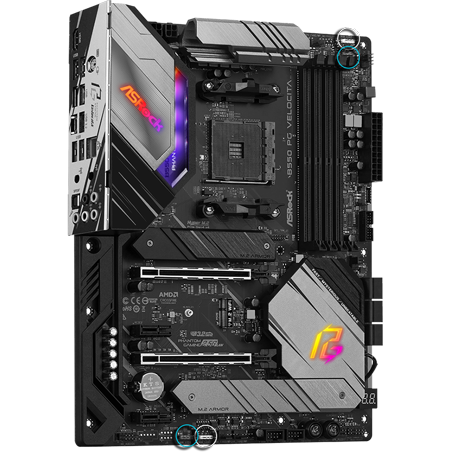

Rule your own Lighting Way with Polychrome RGB

Polychrome RGB Sync

Synchronize across the RGB Sync-certified accessories ASRock motherboards deliver stunning performance and superior aesthetics with an array of lighting effects. Gamers get very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Includes Two Addressable RGB LED Headers and Two RGB LED Headers.


*Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well. *The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters. *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

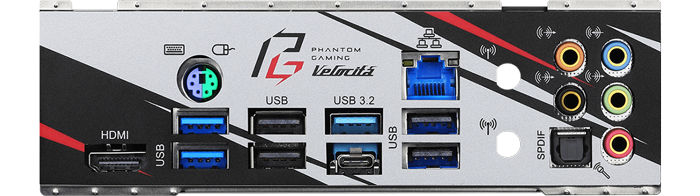

Boosted for Maximum Networking Performance

networking connectivity

PG 2.5 Gb/s LAN   |   Dual USB 3.2 Gen2 TYPE A+C   |   Front USB 3.2 Gen2 Type-C ASRock B550 PG Velocita features I/O Armor and reserves more flexible space with an adjustable IO shield when installing, thus fitting chassis perfectly without any issues. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromising connectivity experience for gaming, file transfers and backups. This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear I/O for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates. The front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design.

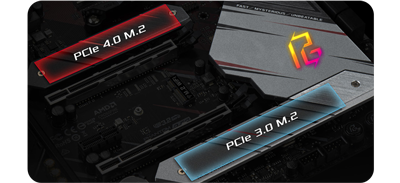

Unbeatable Heatsink Armor

M.2 Heatsink Armor

Dual M.2 Sockets for SSD Engineered with an aluminium alloy heatsink top cover which dissipates heat efficiently, underneath its strong cover are Two M.2 Key M sockets for rapid SSDs. Plus, the Hyper M.2 socket supports PCIe Gen4 x4 – while the M.2 socket is ready to run PCIe Gen3 x2 and SATA3 mode.

Reinforced Steel Slot

PCI-e 4.0

Strong Protection The strengthened steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include extra anchor points, stronger latch, ensures signal stability, and makes sure heavy graphics cards to be well-installed.

Equipped to Deliver an Extreme Audio Performance

ASRock audio

AUDIO THAT MATTERS Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Support Software for your ASRock Motherboard

ASRock Software

FULL SPIKE PROTECTIONASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

ASRock Software

LIVE UPDATE & APP SHOPASRock Live Update & APP Shop is designed for your convenience. Users can download various apps and support software, optimise your system with ease and keep your motherboard up to date with
ASRock Live Update & APP Shop

AMD Ryzen Processors
Specifications
Core Specifications
Edition B550 Phantom Gaming Velocita
Form Factor ATX
CPU Socket AM4
Chipset AMD B550
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2667
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4200(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4333(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4466(OC)
  • DDR4 - 4533(OC)
  • DDR4 - 4600(OC)
  • DDR4 - 4666+(OC)
  • DDR4 - 4733+(OC)
Max. Memory Capacity 128GB
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-30/42/60/80, PCIe Gen4x4
  • 1 x M.2, 22-30/42/60/80/110, PCIe Gen3
  • 2 x PCIe 3.0 x1
  • 2 x PCIe 3.0 x16
  • 2 x PCIe 4.0 x16
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 5 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Dr. Debug with LED
  • 1 x Power Button with LED
  • 1 x Reset Button with LED
  • 2 x RGB Header
  • 6 x SATA III - 6Gb/s
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules 1 x Realtek (2.5GbE LAN)
Rear I/O Connectors
  • 2 x Antenna Ports
  • 1 x Bass Speaker Out
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45 with LED
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN108368
Model Number 90-MXBD90-A0UAYZ
GTIN 4710483931550
