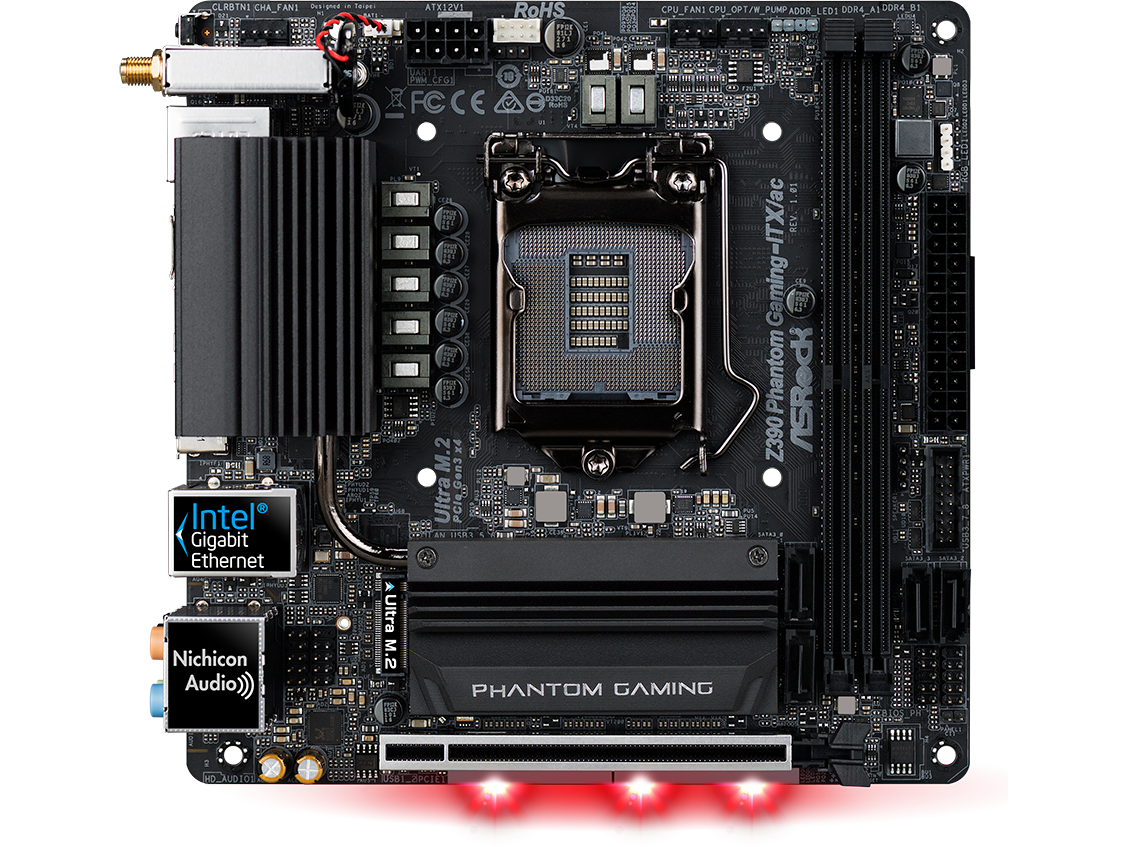

Z390 PHANTOM Gaming - Intel 9th Gen Mini-ITX Motherboard
An Unbeatable Performance with ASRockASRock Z390 motherboards are the ultimate motherboard for gamers who require superior components. The Z390 PHANTOM Gaming ITX/ac motherboard is equipped with the next generation Intel® Wireless-AC 9560 adapter, Ultra M.2 and Thunderbolt™ 3 Type-C connectivity. The premium alloy design enhances your setup, whilst intelligent ASRock hardware and software succeeds in providing an extreme performance. Personalise your setup with ASRock Polychrome SYNC, create lighting effects with the built-in LED illumination. Featuring on-board RGB headers for compatible LED devices allowing for full synchronization.

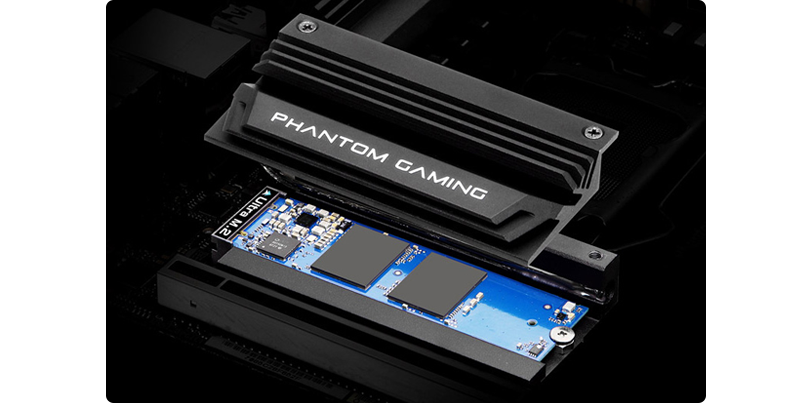

Maintaining Fast Speeds of the M.2 SSD The Z390 PHANTOM Gaming motherboard features a massive full coverage M.2 heatsink that is able to dissipate heat efficiently to ensure your high speed M.2 SSD always working at its best.
Rule Your own Lighting with Polychrome RGB
ON-BOARD RGB LED HEADERS
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
Please note: The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters. *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
Extraordinary Levels of Audio Realism
CREATIVE SOUND BLASTER™ CINEMA5 Discover a new universe of cinematic quality audio that provides extraordinary levels of audio realism, dynamics and punch to gaming sound. Whether gaming or watching a film, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers.
Thunderbolt™ 3 Type-C
Intel® Ultra-fast Connectivity Experience the world's fastest connectivity with ASRock's Intel® Thunderbolt™ ready motherboards. The Daisy-chain feature allows users to connect up to 6 Thunderbolt™ devices with a single wire. The highly desirable reversible USB Type-C interface delivers breathtaking bandwidth and also supports USB PD 2.0 charging up to [email protected] (36W).

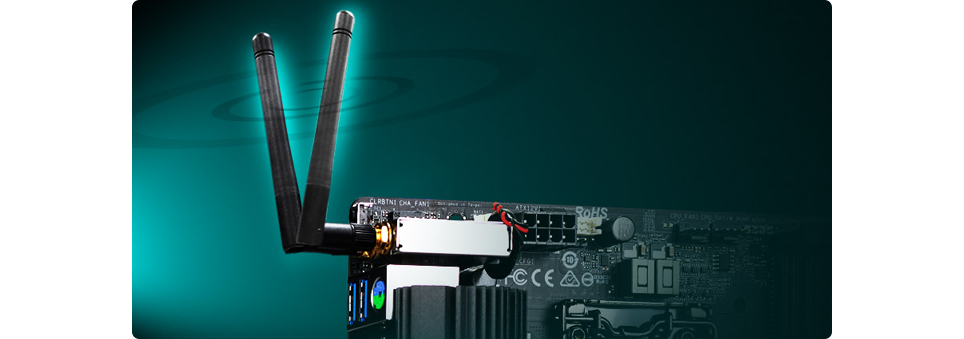

Blistering Fast Wireless Internet Connections Avoid weak WiFi signals and sluggish internet, with the Z390 motherboard that comes with the next generation Intel® Wireless-AC 9560 adapter. This module supports the integrated wireless 802.11ac solutions and provides Bluetooth® 5 and 2x2 802.11ac 2.4/5Ghz Wi-Fi including wave 2 features such as 160MHz channels, delivering up to 1.73Gbps and downlink MU-MIMO. The doubled WiFi speed with superior Bluetooth signal quality can dramatically improve your connected experience at home, work, or on the move.
Optane™ Memory Ready Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.
Powerful POOL Technology POOL (Planes On Outer Layers) technology allows 4-layer boards to utilize stripline routing instead of micro-strip routing, making motherboard having better electrical properties and performance.
Superior Motherboard Alloy
PREMIUM 60A POWER CHOKE Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
MATTE BLACK PCB A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.
HIGH DENSITY GLASS FABRIC PCB ASRock features the High Density Glass Fabric PCB design, which reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

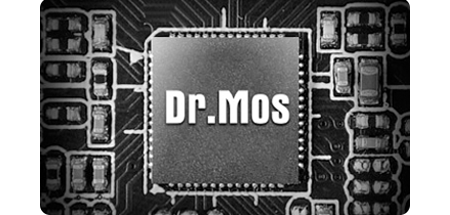

DR. MOS Dr. MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
Nichicon 12K Black Caps Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.
Support Software and Premium Components
WATER PUMP HEADERThis is not only a standard CPU fan header, but also supports water pumps. This header provides a maximum of 2A power for supporting the most popular water pumps. Users can also adjust the voltage of the water pump to get a higher cooling performance with lower noise.
DIGI POWERUnlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
FULL SPIKE PROTECTIONSome sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
LIVE UPDATE & APP SHOPASRock Live Update & APP Shop is designed for your convenience. Users can download various apps and support software, optimise your system with ease and keep your motherboard up to date with the:
ASRock Live Update & APP Shop.
|Edition||Z390 Phantom Gaming-ITX/ac|
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||ECC/Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||
|Max. Memory Capacity||32GB|
|Audio||Realtek ALC1220 7.1 HD Audio|
|Primary GPU Interface||None|
|NVIDIA SLI Support||N/A|
|AMD CrossFire Support||N/A|
|On-Board Graphics Connectors||None|
|SATA Support||SATA3 / M.2|
|RAID Support via||Intel® SATA RAID 0/1/10/5|
|Storage Mode Support||
|Network Interface Type||Wired Gigabit LAN (10/100/1000)|
|Network Chip/Modules||1 x Intel® I219V (Gigabit LAN)|
|Rear I/O Connectors||
|Board Dimensions||170 x 170 mm|
