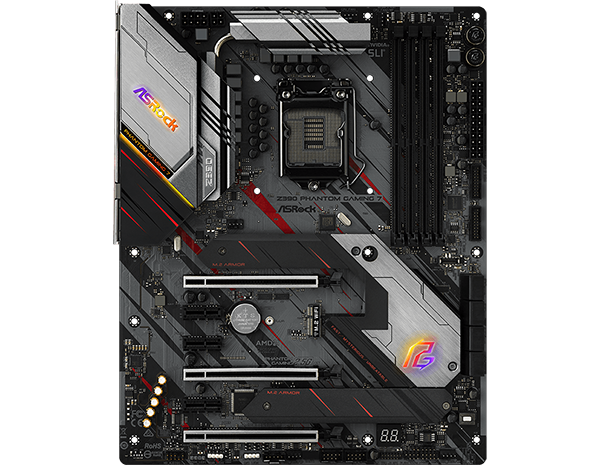

ASRock Intel Z390 Phantom Gaming 7 ATX Motherboard

ASRock Phantom Gaming 7, Intel Z390, S 1151, DDR4, SATA3, 2x M.2, SLI/CrossFire, 2.5GbE, USB 3.2 A+C, ATX

Thumbnail 1 : ASRock Intel Z390 Phantom Gaming 7 ATX Motherboard Thumbnail 2 : ASRock Intel Z390 Phantom Gaming 7 ATX Motherboard Thumbnail 3 : ASRock Intel Z390 Phantom Gaming 7 ATX Motherboard Thumbnail 4 : ASRock Intel Z390 Phantom Gaming 7 ATX Motherboard
Scan code: LN99587 Manufacturer code: 90-MXBAG0-A0UAYZ
£189.98
From £17.06 / month (APR 14.9%)
Monthly Payment: £32.97
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £189.98
Total inc. interest: £197.78
Monthly Payment: £17.06
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £189.98
Total inc. interest: £204.66
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 18th Nov 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Phantom Gaming 2.5 Gb/s LAN
The intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.

2.5G Ethernet, High TCP & UDP Throughput
Going beyond gaming! ASRock 2.5Gb/s LAN motherboard with higher throughput that is excellent at a small package file transferring and unleash the stunning performance especially for gaming.

Rule Your Own Lighting - Polychrome RGB
ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colourful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

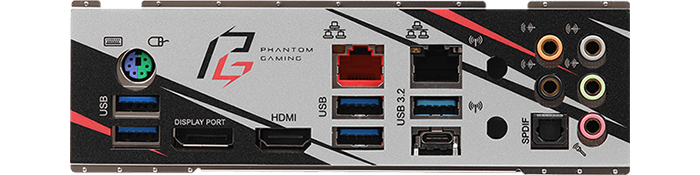

Flexible Integrated I/O Shield
Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.

Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.

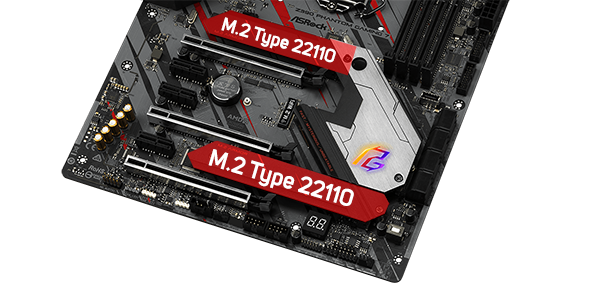

Dual M.2 For SSD, Supports Type 22110 M.2
Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfil the need of performance. Two Ultra M.2 sockets that support both SATA3 6Gb/s and PCIe Gen3 x4 modes, pushing data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.

M.2 Armours
Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armour solution that makes SSDs to run in a certain low temperature.

Dual USB 3.2 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

PCI-e Steel Slot
The advanced PCI-E Steel Slot packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slot safely.

Creative Sound Blaster™ Cinema5
A new world of cinematic audio that delivers unprecedented levels of audio realism, dynamics and punch to gaming sound. Whether you’re gaming or watching a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers.

Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

XXL Aluminium Alloy Heatsink
Extra large aluminium alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Dr. MOS
Dr. MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

Premium Memory Alloy Choke
Specifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard and memory modules.

Combo Caps
A combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power, and overclockers may achieve higher scores.

Nichicon 12K Black Caps
Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.

I/O Armour
A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.

Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Intel® Optane™ Memory Ready
Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop. Features • Supports 9th and 8th Gen Intel® Core™ processors (Socket 1151).
• Phantom Gaming 2.5 Gigabit LAN, Intel® Gigabit LAN.
• Digital PWM, 10 Power Phase.
• Supports DDR4 4300+(OC) MHz.
• 3 PCIe 3.0 x16, 3 PCIe 3.0 x1, 1 M.2 (Key E) For WiFi.
• NVIDIA® NVLink™ & Quad SLI™, AMD 3-Way CrossFireX™.
• Graphics Output Options: HDMI, DisplayPort.
• 7.1 CH HD Audio (Realtek ALC1220 Audio Codec).
• Supports Creative Sound Blaster Cinema 5.
• 8 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3).
• 2 USB 3.2 Gen2 10Gb/s (1 Type-A + 1 Type-C).
• 9 USB 3.2 Gen1 (1 Front Type-C, 4 Front Type-A, 4 Rear).
• ASRock Polychrome SYNC.
Specifications
Core Specifications
Edition Phantom Gaming 7
Form Factor ATX
CPU Socket 1151
Chipset Intel Z390
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 2933(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4300+(OC)
Max. Memory Capacity 128GB
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 2-Way NVLink
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • DisplayPort 1.2
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 1 x M.2, 22-30/42/60/80, PCIe Gen3/SATA
  • 1 x M.2, 22-30/42/60/80/110, PCIe Gen3/SATA
  • 3 x PCIe 3.0 x1
  • 3 x PCIe 3.0 x16
SATA Support SATA3
RAID Support via SATA
Storage Mode Support
  • AHCI
  • Hot Plug
  • Intel Rapid Storage Technology 16
  • NCQ
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x Addressable Digital RGB Header
  • 1 x CPU Fan Connector with PWM Control
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Dr. Debug with LED
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x Performance Mode/Easy OC Header
  • 1 x Power Button with LED
  • 1 x Power LED / Speaker Header
  • 1 x Reset Button with LED
  • 2 x RGB Header
  • 8 x SATA III - 6Gb/s
  • 3 x System Fan/Water Pump Header
  • 1 x Thunderbolt AIC Connector (5-pin)
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB Type-C
External Connectivity
Network Interface Type
  • Wired 2.5 Gigabit LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel® I219V (Gigabit LAN)
  • 1 x Realtek RTL8125AG
Rear I/O Connectors
  • 2 x Antenna Ports
  • 1 x Bass Speaker Out
  • 1 x Central Speaker Out
  • 1 x DisplayPort 1.2
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 2 x RJ-45
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN99587
Model Number 90-MXBAG0-A0UAYZ
GTIN 4717677338461
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
