New
Scan code: LN92840 Manufacturer code: 90-MXB8X0-A0UAYZ

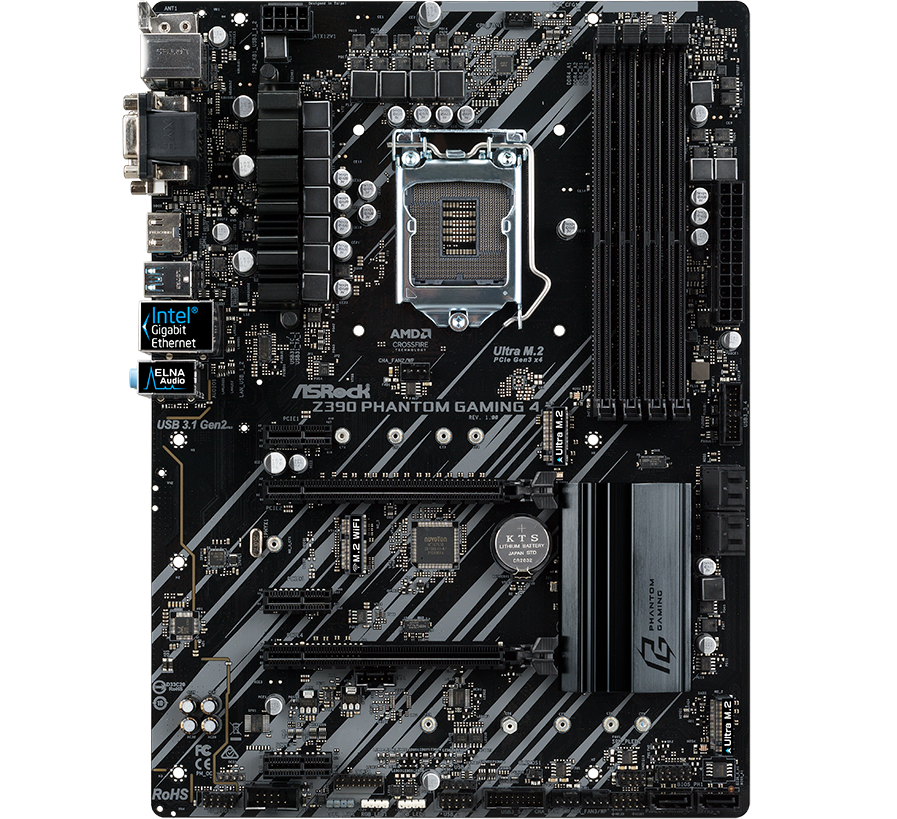

ASRock Intel Z390 Phantom Gaming 4 ATX Motherboard

ASRock Phantom Gaming 4, Intel Z390, S 1151, DDR4, SATA III, 2x M.2, CrossFire, Intel GbE, USB 3.1 Gen2 A+C, ATX

Thumbnail 1 : ASRock Intel Z390 Phantom Gaming 4 ATX Motherboard Thumbnail 2 : ASRock Intel Z390 Phantom Gaming 4 ATX Motherboard Thumbnail 3 : ASRock Intel Z390 Phantom Gaming 4 ATX Motherboard Thumbnail 4 : ASRock Intel Z390 Phantom Gaming 4 ATX Motherboard
Scan code: LN92840 Manufacturer code: 90-MXB8X0-A0UAYZ
RRP: £138.49
£134.99
From £12.12 / month (APR 14.9%)
Monthly Payment: £23.43
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £134.99
Total inc. interest: £140.55
Monthly Payment: £12.12
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £134.99
Total inc. interest: £145.41
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 22nd Oct 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Z390 PHANTOM Gaming 4 - Intel 9th Gen ATX Motherboard

ASRock Z390 PHANTOM Gaming 4

An Unbeatable Performance with ASRockASRock Z390 motherboards are the ultimate motherboard for gamers who require the most superior performance. The Z390 PHANTOM Gaming 4 motherboard is equipped with Dual M.2, Intel® Technology and a durable premium alloy design that enhances your build. Discover a new standard of high performance, stability and resilient hardware and software with ASRock. Personalise your setup with ASRock Polychrome SYNC, create lighting effects with the built-in LED illumination. Featuring on-board RGB headers for compatible LED devices allowing for full synchronization.

Intel Z390Chipset

1151CPU Socket

8th & 9th Gen IntelCompatible CPUs

ATXForm Factor

Dual M.2 Slots

dual m.2 slot

Boosts data transfer speeds up to 32Gb/s Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD. Supports Type 22110 M.2, ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance.

Illuminate Your PC with Polychrome RGB

rgb rgb

ON-BOARD RGB LED HEADERS Customise your PC with Polychrome RGB, in addition to the built-in illumination the on-board RGB headers/addressable RGB header allows the motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and more. Users can also synchronise RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own exclusive lighting effects.
Please note *The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters. *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters. *The built-in LED on this motherboard can only present a single RED colour. The colourful RGB illumination is only supported with external devices via RGB headers.

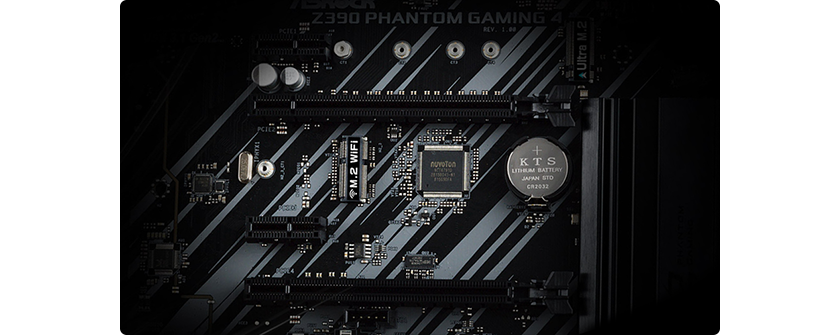

Advanced PCIe Steel Slots

PCIe steel slot

PREVENT SIGNAL INTERFERENCE WITH GRAPHICS CARDS The advanced PCIe Steel Slots are packed with solid protection that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCIe slots safely.

On-board Dual USB 3.1 Gen2

vr

up to 10 Gbps data transfer rates The Z390 PHANTOM Gaming 4 motherboard features a pair of on-board Type-A and Type-C USB 3.1 Gen2 ports, built on the rear i/o for supporting next generation USB 3.1 Gen2 devices, which delivers up to 10 Gbps data transfer rates.

Intel® Technology

Intel LAN

Enhanced Performance & Stability Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

Intel Optane Memory

Optane™ Memory Ready Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.

Intel 4 POOL Tech

Powerful POOL Technology POOL (Planes On Outer Layers) technology allows 4-layer boards to utilize stripline routing instead of micro-strip routing, making motherboard having better electrical properties and performance.

Superior Motherboard Alloy

power choke

PREMIUM 50A POWER CHOKE Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

pcb

SAPPHIRE BLACK PCB Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

fabric density

HIGH DENSITY GLASS FABRIC PCB ASRock features the High Density Glass Fabric PCB design, which reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

10 Power Phase

10 Power Phase Designed with an 10 Power Phase Design, this motherboard provides completely smooth power delivery to the CPU and offers unmatched overclocking capabilities and enhanced performance with the lowest temperature.

Support Software and Premium Components

down

Solid capacitor designASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.

up

ELNA audio capsASRock applied ELNA audio capacitors on mainstream and entry-level motherboards. Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

up

WATER PUMP HEADERThis is not only a standard CPU fan header, but also supports water pumps. This header provides a maximum of 2A power for supporting the most popular water pumps. Users can also adjust the voltage of the water pump to get a higher cooling performance with lower noise.

down

DIGI POWERUnlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

up

FULL SPIKE PROTECTIONSome sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

up

LIVE UPDATE & APP SHOPASRock Live Update & APP Shop is designed for your convenience. Users can download various apps and support software, optimise your system with ease and keep your motherboard up to date with the:
ASRock Live Update & APP Shop.

Specifications
Core Specifications
Edition
Form Factor
CPU Socket
Chipset
RAM Memory Support
Memory Type
Memory Channel
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz)
Max. Memory Capacity
Audio
Audio
Graphics Support
Primary GPU Interface None
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
SATA Support N/A
RAID Support via
Storage Mode Support
Internal I/O
External Connectivity
Network Interface Type
Network Chip/Modules
Rear I/O Connectors
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions
Note
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.
