ASRock Z490 Phantom Gaming 4/ac ATX Motherboard

ASRock Phantom Gaming 4/ac, Intel Z490, S 1200, DDR4, SATA3, M.2, CrossFire, WiFI ac/BT, USB 3.2 A+C, ATX

Thumbnail 1 : ASRock Z490 Phantom Gaming 4/ac ATX Motherboard Thumbnail 2 : ASRock Z490 Phantom Gaming 4/ac ATX Motherboard Thumbnail 3 : ASRock Z490 Phantom Gaming 4/ac ATX Motherboard Thumbnail 4 : ASRock Z490 Phantom Gaming 4/ac ATX Motherboard
Scan code: LN107251 Manufacturer code: 90-MXBD20-A0UAYZ
£148.99
Order now and get it tomorrow (upgrade to Saturday delivery at checkout)
From £13.38 / month (APR 14.9%)
Monthly Payment: £25.86
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £148.99
Total inc. interest: £155.11
Monthly Payment: £13.38
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £148.99
Total inc. interest: £160.49
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 13th Jul to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Z490 Phantom Gaming 4/ac Intel 10th Gen ATX Motherboard

ASRock Z490 Phantom Gaming 4/ac Intel 10th Gen ATX Motherboard

designed by gamers and for gamers The revolutionary ASRock Z490 Phantom Gaming 4/ac ATX motherboard supports 10th Gen and future generation Intel® Core™ Processors and AMD Quad CrossFireX™ and CrossFireX™ slots. The Z490 Phantom Gaming 4/ac features sturdy components and completely smooth power delivery to the CPU. Plus, the 10 Power Phase Design offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. Featuring Ultra M.2 and a wealth of I/O ports, next generation connectivity and Gigabit Intel® LAN, plus Intel® Wireless for unbelievably fast wireless internet connections. ASRock Boost Frequency Boost Technology allows users to install their non K series CPUs to ASRock’s 400 series motherboards (even non Z models) and enjoy the base frequency boost with the hidden power of processors immediately.


Please note: Z490 Motherboards are compatible with 10th Gen Intel Core™/ Pentium® CPUs for LGA 1200 socket. These Intel Z490 Motherboards do not share the same socket as Intel's 300 Series Motherboards, they are electrically incompatible & will not work with 9th Gen Intel CPUs.

Intel Z490Chipset

1200CPU Socket

10th Gen IntelCompatible CPUs

ATXForm Factor

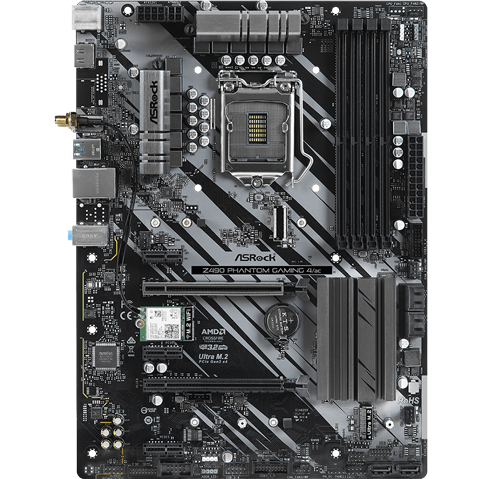

Z490 Phantom Gaming 4/ac Component Breakdown

Design of ASRock

1. Supports 10th Gen and future generation Intel® Core™ Processors   |   2. Dual Channel DDR4 Memory Technology
3. 24Pin ATX Hi-Density Connector   |   4. Post Status Checker   |   5. 2T2R Intel® 802.11ac Wave 2 WiFi & BT 5.0
6. Advanced PCI-E Steel Slot / 2 PCIe 3.0 x16, 3 PCIe 3.0 x1   |   7. M.2 (Key E) Slot for Wi-Fi-802.11ac
8. Ultra M.2 PCIe Gen3 x4 & SATA3

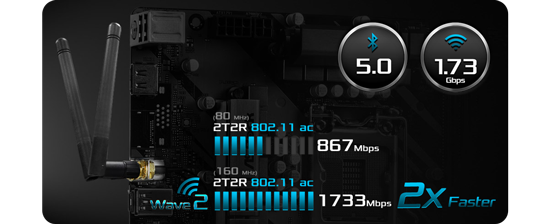

Blistering Fast Wireless Internet Connections

Wireless Intel Wi-Fi

Banish Weak Wi-Fi Signals and Sluggish Internet This Z490 motherboard comes with the next generation Intel® Wireless-AC 9560 adapter. This module supports the integrated wireless 802.11ac solutions and provides Bluetooth® 5 and 2x2 802.11ac 2.4/5Ghz Wi-Fi including wave 2 features such as 160MHz channels, delivering up to 1.73Gbps and downlink MU-MIMO. The doubled Wi-Fi speed with superior Bluetooth signal quality that can dramatically improve your connected experience at home, work, or on the go.

* The doubled bandwidth 160MHz with the max. speed up to 1.73Gbps is only supported with 802.11ac Wave 2 router.

Boosted for Maximum Networking Performance

networking connectivity

GIGABIT Intel® LAN   |   DUAL USB 3.2 Gen2 (Type A & C)   |   Front USB 3.2 Gen1 Type-C Featuring Gigabit Intel® LAN which provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users. This motherboard has Dual onboard Type-A and Type-C USB 3.2 Gen2 built on the rear I/O, there's six USB 3.2 Gen1 ports in total four in the Front, two at the Rear.

Equipped to Deliver an Extreme Audio Performance

ASRock audio

completely immersive sound Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. Z490 Series offers completely immersive audio with 7.1 Realtek ALC1200 Audio Codec.

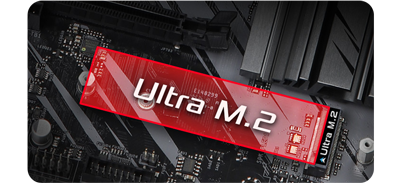

Ready for Higher Capacity with Ultra M.2

M.2 slots

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.

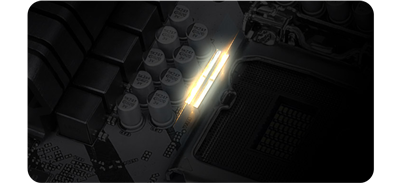

Heat Dissipating PCB Technology

PCB Technology

Luxurious features extend to the onboard heat dissipating PCB points. Heat Dissipating PCB gives the motherboard a more mysterious touch and this design effectively takes the heat away from PCB and lower down the temperature up to 4.1 degrees.

Support Software for your ASRock Motherboard

up

FULL SPIKE PROTECTIONASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

up

LIVE UPDATE & APP SHOPASRock Live Update & APP Shop is designed for your convenience. Users can download various apps and support software, optimise your system with ease and keep your motherboard up to date with
ASRock Live Update & APP Shop

Specifications
Core Specifications
Edition Z490 Phantom Gaming 4/ac
Form Factor ATX
CPU Socket 1200
Chipset Intel Z490
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800
  • DDR4 - 2933
  • DDR4 - 3200(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000+(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4333(OC)
  • DDR4 - 4400+(OC)
Max. Memory Capacity 128GB
Audio
Audio Realtek ALC1200 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Occupied by Wi-Fi Module)
  • 1 x M.2, 22-60/80/110, PCIe Gen3/SATA
  • 3 x PCIe 3.0 x1
  • 2 x PCIe 3.0 x16
SATA Support SATA3
RAID Support via Intel® SATA RAID 0/1/10/5
Storage Mode Support
  • Intel Rapid Storage Technology 17
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 4 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin W_PUMP+ Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Front Panel Audio Header
  • 1 x Power LED / Speaker Header
  • 2 x RGB LED connector
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x Thunderbolt AIC Connector (5-pin)
  • 1 x TPM (SPI_TPM) header
  • 1 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x 802.11ac WiFi + BT5
  • 1 x Intel® I219V (Gigabit LAN)

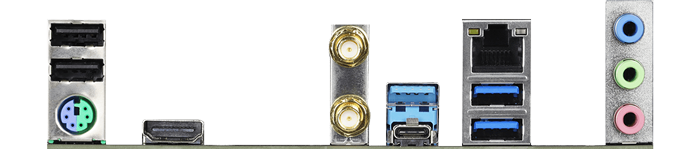

Rear I/O Connectors
  • 2 x Antenna Ports
  • 1 x Front Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45 with LED
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 224 x 306 mm
Note
Additional Information
Scan Code LN107251
Model Number 90-MXBD20-A0UAYZ
GTIN 4710483930843
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
