End Of Life
Scan code: LN67982 Manufacturer code: ASROCK N3150DC-ITX

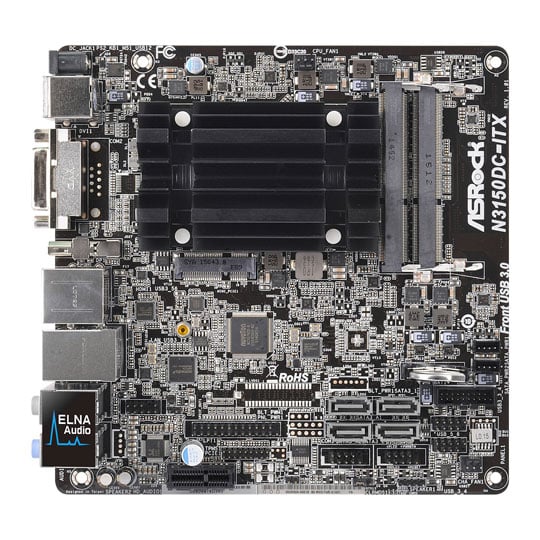

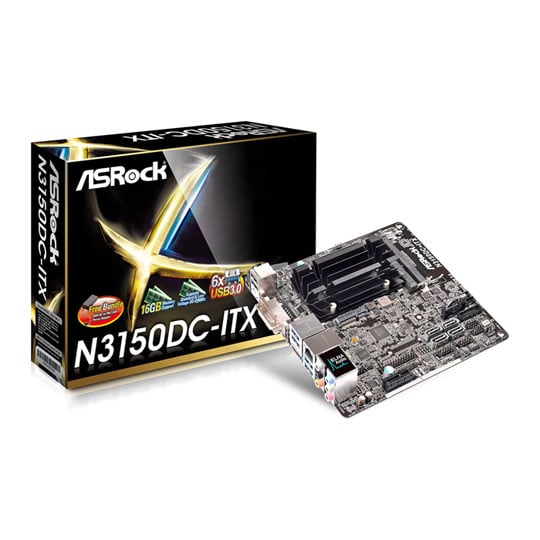

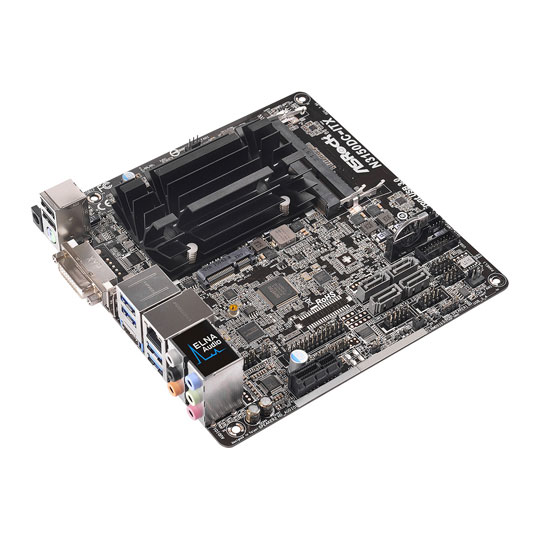

ASRock Quad Core N3150DC-ITX Mini ITX Integrated CPU Motherboard

ASRock N3150DC-ITX, S 1151, Quad Core Intel Celeron N3150 1.6GHz, SOC, DDR3/DDR3L SO-DIMM, Intel HD Graphics, Mini ITX

Thumbnail 1 : ASRock Quad Core N3150DC-ITX Mini ITX Integrated CPU Motherboard Thumbnail 2 : ASRock Quad Core N3150DC-ITX Mini ITX Integrated CPU Motherboard Thumbnail 3 : ASRock Quad Core N3150DC-ITX Mini ITX Integrated CPU Motherboard Thumbnail 4 : ASRock Quad Core N3150DC-ITX Mini ITX Integrated CPU Motherboard
Scan code: LN67982 Manufacturer code: ASROCK N3150DC-ITX
End Of Life
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Product Overview Intel® Quad-Core Processor N3150 (Up to 2.08 GHz)
Improved performance, lower power consumption, and new multimedia capabilities.

14nm CPU Core Inside SoC Motherboards
Built around an Intel® N3000 Series processor, this motherboard packs plenty of expandability, superb integrated performance, and abundant graphics outputs. With its excellent hardware configuration and software support, it is your ideal solution to do business work, play games, or enjoy video and music entertainment. ASRock presents you the best motherboard to build your own mini PC!

DC-In Jack and Free Bundled DC Adapter
Allocate the internal space of your chassis more smartly! The DC-In jack is compatible with the free bundled 19V power adapter, so that your motherboard may fit in the most compact chassis.

Power Gear
Toggle between three operational modes (Eco, Normal and Sport) to maximize performance or conserve energy. Use Eco mode for saving power during torrent downloads or other light activities, normal mode for regular tasks such as web surfing or word processing, and then shift to Sport mode to take on heavy jobs such as gaming or 4K video playback.

• Sport:Take on heavy jobs such as gaming or 4K video playback.
• Normal: Regular tasks such as web surfing or word processing.
• Eco: Save power during torrent downloads or other light activities.

Passive Heatsink Design
The CPU is covered by a specially designed heatsink which allows advanced heat dissipation. Utilizing an ultra quiet fanless design, this ASRock motherboard provides the most silent computing environment.

Supports Standard & Low Voltage SO-DIMMs
Capable of supporting both standard and low-voltage SO-DIMMs.

16GB Memory Support
Each slot supports 8GB memory modules, thus delivering a maximum capacity up to 16GB.

HEVC (H.265) Decoding + 4K
Supports HEVC (H.265) decoding to provide substantially improved video quality. Plus a minimum of 3840 x 2160 pixels with 4K resolution.

Triple Monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.

ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

mini-PCIe Slot
The mini-PCIe slot is a convenient peripheral interface that can be used for connecting WiFi card.

ASRock APP Shop
ASRock APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can easily optimize your system and keep your motherboard up to date with ASRock APP Shop.

ASRock APP Shop is the only all-in-one software package that delivers you the most practical PC apps and tools, in one integrated interface – from ASRock exclusive tools to the most update-to-date options of the latest technology.

• Orbweb ME: Get Connected with ASRock Cloud Anytime, Anywhere.
• App Charger: Fast Charge & Charge Anytime.
• Google Chrome: Better Browsing with Google Options.
• XFast LAN: Your Smartest Internet Access Manager.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

• Surge Protection: Protects the motherboard from excessive surges from the power supply unit.
• Lightning Protection: The onboard LAN chip is protected against sudden and violent voltage spikes caused by lightning.
• ESD Protection:
- USB: Added ICs to protect the onboard USB ports from electrostatic discharges.
- LAN: Prevents the onboard LAN from being damaged by electrostatic discharges.
- MOSFETs: MOSFETs in critical areas use a special design for protecting them from electrostatic discharge during the installation process.

USB Key
In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Nobody has time for that! Just plug in the USB Key and let your computer log in to windows automatically!

Restart to UEFI
Fast Boot is so fast that it is impossible for users to enter the UEFI setup utility during POST. Therefore, ASRock Restart to UEFI technology allows users to easily enter the UEFI setup utility automatically when turning on the PC next time. It is designed for those who constantly need to enter the UEFI setup utility.

XFast RAM
ASRock XFast RAM fully utilizes the memory space that cannot be used under Windows® 32-bit operating systems. It shortens the loading time of previously visited websites, making web surfing faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.

XFast LAN
When Internet Explorer loads very slowly for no clear reason, it's usually due to inefficient management. ASRock is rolling out super efficient web management in the motherboard industry. XFast LAN is a convenient tool that controls internet related applications easily and efficiently. Creating a perfect Internet environment, all you need is a smart manager. ASRock XFast LAN allows you to enjoy more speed, easier multitasking, enhanced multimedia experience, and more – all without weighing you down.

HDMI
This motherboard supports HDMI™ (High-Definition Multimedia Interface) which is an interface standard for transferring uncompressed video data and delivering multi-channel audio through a single cable. Both video and audio data signals transferred through the HDMI™ interface are digital without being converted into analog, therefore it delivers the richest pictures and the most realistic sounds. Features • Intel® Quad-Core Processor N3150.
• Solid Capacitor design.
• Supports DDR3/DDR3L 1600 memory, 2 SO-DIMM slots.
• 1 PCIe 2.0 x1, 1 Half-size mini-PCIe.

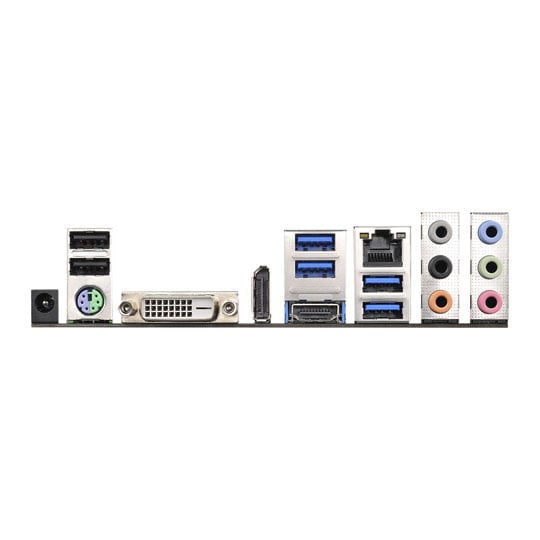

• Graphics Output Options : DVI, HDMI, DisplayPort.
• Built-in Intel® 8th generation (Gen 8) graphics, DirectX 11.1, Pixel Shader 5.0.
• 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), ELNA Audio Caps.
• 4 SATA3, 6 USB 3.0 (2 Front, 4 Rear), 6 USB 2.0 (4 Front, 2 Rear).
• 1 x Print Port Header, 1 x TPM Header, 1 x COM Port Header.
• 1 x DC Jack (Compatible with the 19V power adapter).
• Supports ASRock Live Update & APP Shop, Full Spike Protection.
• Free Bundle : 1 x 65W DC-in 19V 3.42A Power Adapter.
