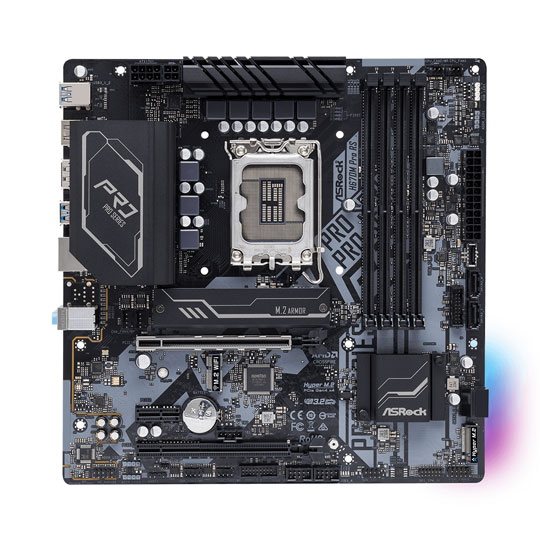

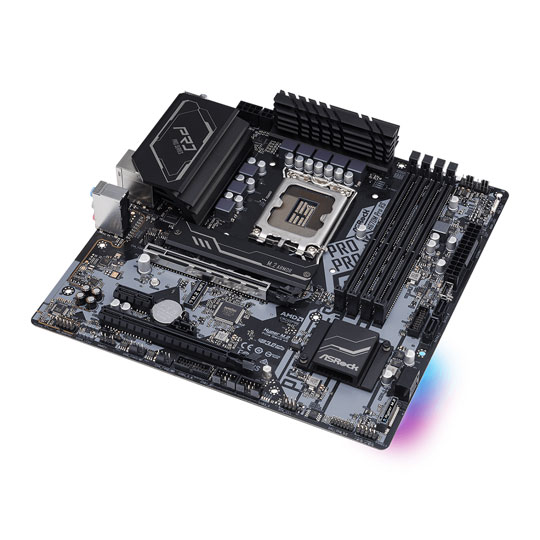

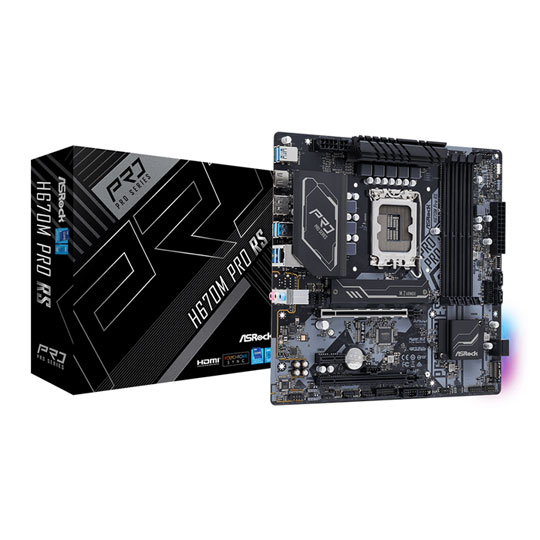

ASRock Intel H670M PRO RS PCIe 4.0 mATX Motherboard

ASRock H670M PRO RS, Intel H670, S 1700, DDR4, PCIe 4.0, SATA3, 2x M.2, Intel I219V GbE, USB 3.2 Gen 1, Micro-ATX

Thumbnail 1 : ASRock Intel H670M PRO RS PCIe 4.0 mATX Motherboard Thumbnail 2 : ASRock Intel H670M PRO RS PCIe 4.0 mATX Motherboard Thumbnail 3 : ASRock Intel H670M PRO RS PCIe 4.0 mATX Motherboard Thumbnail 4 : ASRock Intel H670M PRO RS PCIe 4.0 mATX Motherboard
Scan code: LN122926 Manufacturer code: 90-MXBHK0-A0UAYZ
£134.99Item currently awaiting an ETA
Pre order
From £11.61 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £11.61
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £134.99
Total inc. interest: £139.21
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

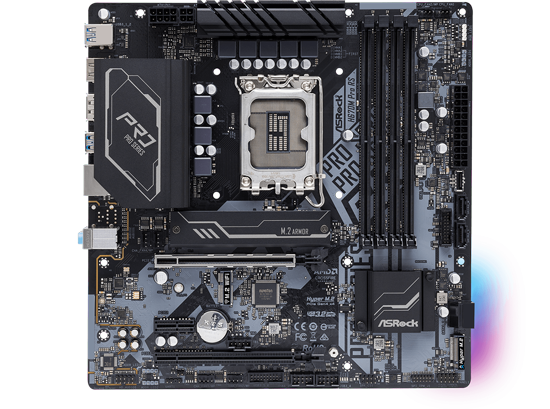

ASRock H670M PRO RS Intel 12th Generation Micro-ATX Motherboard

ASRock H670M PRO RS Micro-ATX Motherboard

the Race Sport Edition is the evolution of the popular PRO series Introducing the new H670 series of motherboards from ASRock. The H670M PRO RS supports 12th Generation Intel® Core™ processors. Experience a powerful performance, DDR4 memory and optimized power phase design. The innovative design of the H670M PRO RS has built-in RGB headers, users can customize and synchronize RGB LED devices with Polychrome RGB Sync-certified accessories. Underneath its appearance lie plentiful powerful features and excellent gaming capabilities. It's all about bringing a new gaming experience to gamers.

Please note: This motherboard is compatible with Intel® Socket LGA1700 for 12th Gen Intel® Core™ Processors.
*Supports Intel® Hybrid Technology.
**Supports Intel® Turbo Boost Max 3.0 Technology.

Intel H670Chipset

LGA 1700CPU Socket

Intel 12th GenerationCompatible Processors

Micro-ATXForm Factor

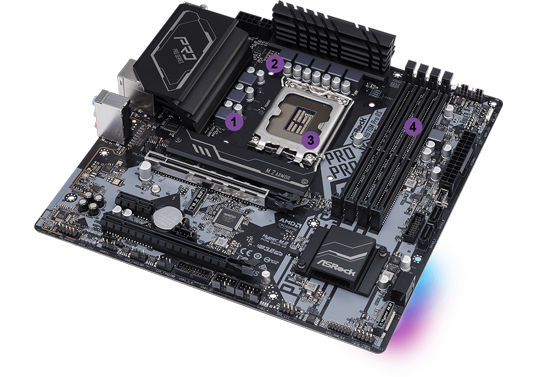

Optimized Powerful Design

Breakdown

Supports the latest memory modules Featuring sturdy components and completely smooth power delivery to the CPU. Compared to traditional discrete MOSFETs, DR.MOS intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

1. Digi Power Design
2. 7 Power Phase Design
3. Supports 12th Gen Intel® Core™ Processors
4. Supports DDR4 4800MHz (OC)

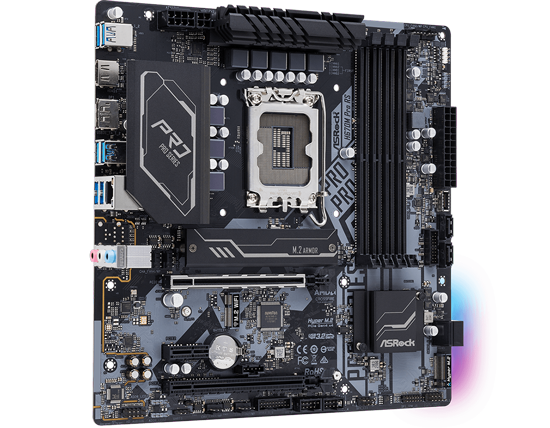

How Sound is Meant to be Heard

Audio

Incredible Nahimic Audio Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

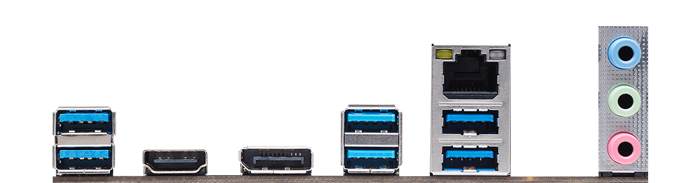

Superb Connectivity, Convenient USB Ports

ports

with Intel® LAN This motherboard has 9 USB 3.2 Gen1 (4 Rear, 4 Front, 1 Front Type-C), 2x USB 3.2 Gen2 (2 Rear). Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

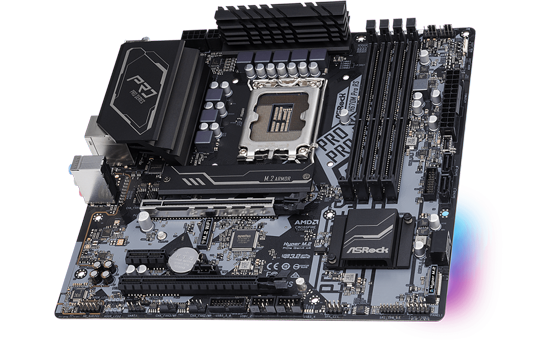

Polychrome RGB Illumination

RGB

Light up your rig In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters. *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

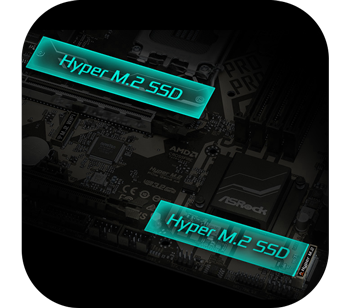

High Speed M.2 Solution

m2

PCIe 4.0 for SSD This motherboard is capable of accommodating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

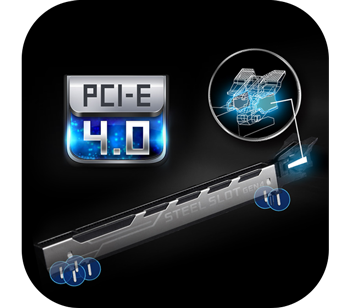

Reinforced Steel Slot

pcie

PCIe 4.0 Version The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:

• Extra anchor points
• Stronger latch
• Ensure signal stability
• Make sure heavy graphics cards to be well-installed.

Specifications
Core Specifications
Edition H670M PRO RS
Form Factor MicroATX
CPU Socket 1700
Chipset Intel H670
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 3200
  • DDR4 - 4800(OC)
Max. Memory Capacity 128GB
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 1 x M.2 PCIe
  • 1 x M.2, 22-80, PCIe Gen4x4/SATA3
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 4.0 x16
  • 4 x SATA 6GB/s
SATA Support N/A
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 3 x Addressable Digital RGB Header
  • 1 x Chassis Intrusion/Speaker Header
  • 4 x Chassis Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Power LED / Speaker Header
  • 1 x RGB Header
  • 1 x Thunderbolt AIC Connector
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel® I219V (Gigabit LAN)

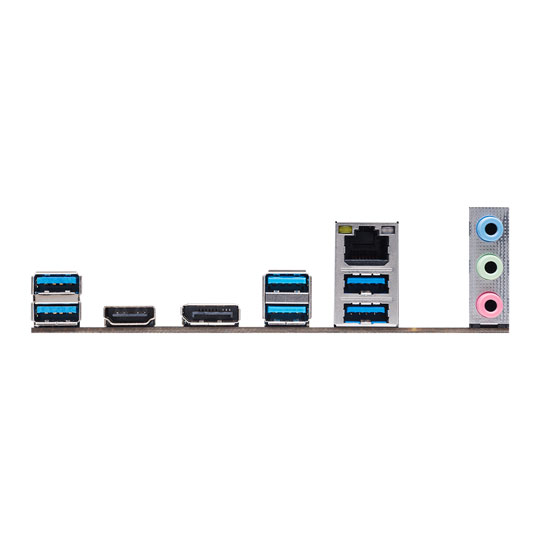

Rear I/O Connectors
  • 1 x DisplayPort 1.4
  • 1 x Front Speaker Out
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Mic-In
  • 1 x RJ-45 with LED
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
Note
Additional Information
Scan Code LN122926
Model Number 90-MXBHK0-A0UAYZ
GTIN 4710483936555
